DP KVM Switch 2 PC 2 Monitors, 4K @144Hz Extended Display, 2 Ports DisplayPort KVM Switch 2 monitors for 2 computers, keyboard, mouse, printer, KVM USB Switch for 4 USB devices with DP and USB cable

High Standard Dual DisplayPort KVM Switch 2 PC Share 2 Monitors

1.

2. 2 Computers share a set of wired/wireless mouse, keyboard, printer, scanner or webcam and display on 2 monitors.
3.

4. You can choose between extended screen mode and mirrored screen mode by pressing Windows+P on your keyboard.
5.

6. Advanced mode can output two different screens and copy mode can output two identical screens
7.

8. 2 switching methods: button switch & 1.5m wired remote control
9.

10. Plug and play. No additional driver software required.
11.

12. LED lights indicate which computer is active
14. Adaptive EDID simulation: The original window is not messed up when changing screens. When switching to PC 2, the background of PC 1 remains connected, but is not controlled until the switch back.
15.

16. Compatible with Windows 10/8/XP/Vista/Chrome/Mac OS/Linux system,
17.

18. Supports DP 1.4 and lower standard protocols.
19.

20. Support most DP interface input devices or signal sources: PC, laptop, TV box, Xbox One, A-p-p-le TV, PS3, PS4, PS5, So-ny Blu-ray player, projectors.
21. Supports UHD [email protected]@144Hz.2560×[email protected]
22.

23. Widely used in business seminars, media education, office, video conferencing, home theater, game entertainment, etc.

DisplayPort KVM Switch 2 computers share 2 monitors and 4 USB devices

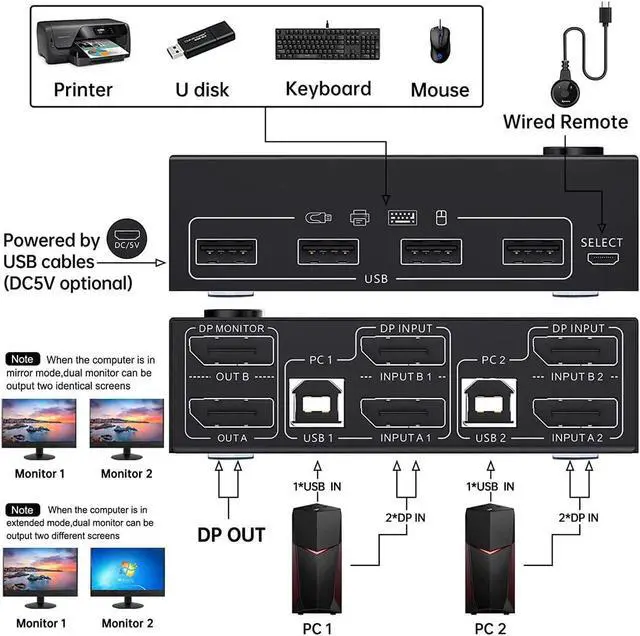

Dual-Monitor DisplayPort KVM Switch Connection Steps

This DP KVM switch has 2 port sets for 2 PCs. Each computer requires 2 DisplayPort cables + 1 USB-B cable to connect KVM switches.

In order not to interfere with the functions of the extended and mirrored display, the USB cable and 2 DisplayPort cables must be fully plugged in.

Step 1: Connect 2 DisplayPort cables and 1 USB-B cable between Computer 1 and KVM (USB 1, INPUT A1, INPUT B1).

Step 2: Connect 2 DisplayPort cables and 1 USB-B cable between Computer 2 and KVM (USB 2, INPUT A2, INPUT B2).

Step 3. Connect 2 DisplayPort cables between the KVM (OUT A, OUT B) and 2 monitors.

Step 4. Connect your USB device (keyboard and mouse) to the USB port on the KVM. You can connect up to 4 USB 2.0 devices at the same time. Compatible with USB 2.0/1.1 devices.

Step 5. Plug the wired remote control into the "SELECT" port to switch between PC1 and PC2 freely.

2 PC-Share 4 USB 2.0 devices

The 4 USB ports of the DisplayPort KVM switch can be connected to USB devices such as mouse, keyboard, printer, U disk, scanner, webcam

Visual enjoyment in 8K/4K UHD resolution

Our KVM switch supports connection to high-resolution 8K and 4K displays, 8K@30Hz, 4K@144Hz, 4k@60Hz, 3D 1080P backward compatible with lower resolutions. Also works with Ultra Wide Monitor

Wired remote control & button switch

The DisplayPort KVM switch can be switched with this 1.5m wired control cable, even with a click of the button on the toggle panel

5 V DC interface (micro USB port)

If you are using high-power USB devices, please connect the 5V DC power adapter to provide enough power (not included)

Compatible with most systems

This KVM switch is suitable for Windows, Windows XP, Mac OS, Vista, Linux, Android, etc

Supports wireless keyboard and mouse

Supports keyboard and mouse with 2.4GHz wireless technology (no Bluetooth support)

Specification:

1. Product Name: DisplayPort KVM Switch 2 Monitors
2. Input: Each PC (DisplayPort A+B), 1 x USB Type-B
3. Video output: 2 x DisplayPort (monitor)
4. Down input: 4 x USB A, supports USB HUB; Connect to a wireless keyboard, mouse, and printer
5. Pack size: 20x15x5,5cm
6. DisplayPort switch size: 10.18 x 6.48 x 3.03 cm
7. DP / USB 2.0 / wired control cable length: 150 cm (50 inches)
8. Package weight: 600 g, DisplayPort KVM switch weight: 200 g
9. HDCP: 2.2
10. YUV: 4:4:4
11. Built-in: ESD protection system
12. Surface: black oxidation treatment
13. Shell material: metal, drop-resistant, high temperature resistant
14. Powered by USB cable or 5V charger.

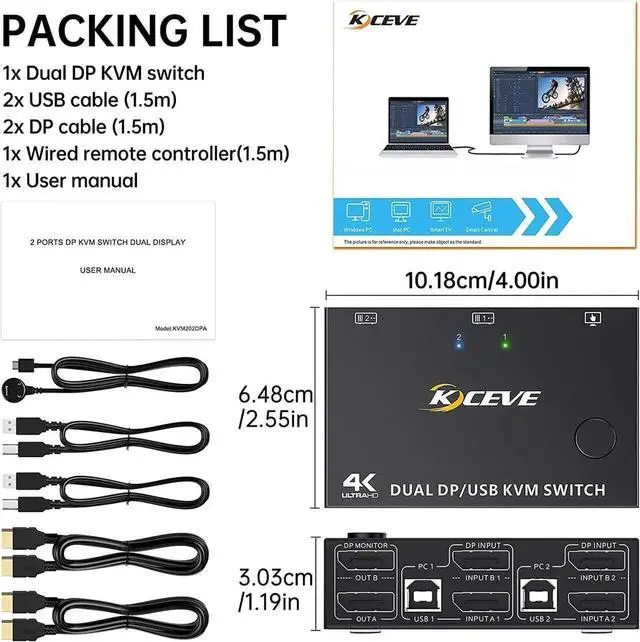

Packing list:

1. 1 x DisplayPort KVM Switch
2. 2 x DisplayPort cable 1.5 m
3. 2 x USB cable 1.5m
4. 1 x wired remote control cable 1.5m
5. 1 x User Manual

A friendly reminder:

Please make sure that the 2 DisplayPort cables and USB cables of PC1 are connected to USB 1, Input A1, Input B1 of the KVM switch.

The two monitors can only output the video source of one computer (mirror mode or extended mode) and cannot simultaneously output the signal sources of PC1 and PC2.

The Windows system can expand 2 different screens while the MAC system can only expand 2 identical screens.

Please make sure your computer is connected directly to the monitor and can output images normally.

The premise of this dual-monitor KVM switch for achieving a dual-screen display is that every PC you connect has the ability to support dual-screen or multi-screen display. Detection method: The computer can be connected directly to 2 monitors (not via KVM). Your computer supports multiple monitors when the screen is displayed on both monitors.

Specification:

Product Name: DisplayPort KVM Switch 2 Monitors

Input: Each PC (DisplayPort A+B), 1 x USB Type-B

Video output: 2 x DisplayPort (monitor)

Down input: 4 x USB A, supports USB HUB; Connect to a wireless keyboard, mouse, and printer

Pack size: 20x15x5, 5cm

DisplayPort switch size: 10.18 x 6.48 x 3.03 cm

DP / USB 2.0 / wired control cable length: 150 cm (50 inches)

Package weight: 600 g, DisplayPort

KVM switch weight: 200 g

HDCP: 2.2

YUV: 4:4: 4

Built-in: ESD protection system

Surface: black oxidation treatment

Shell material: metal, drop-resistant, high temperature resistant

Powered by USB cable or 5V charger.

Packing list:

1 x DisplayPort KVM Switch

2 x DisplayPort cable 1.5 m

2 x USB cable 1.5 m

1 x wired remote control cable 1.5 m

1 x User Manual
