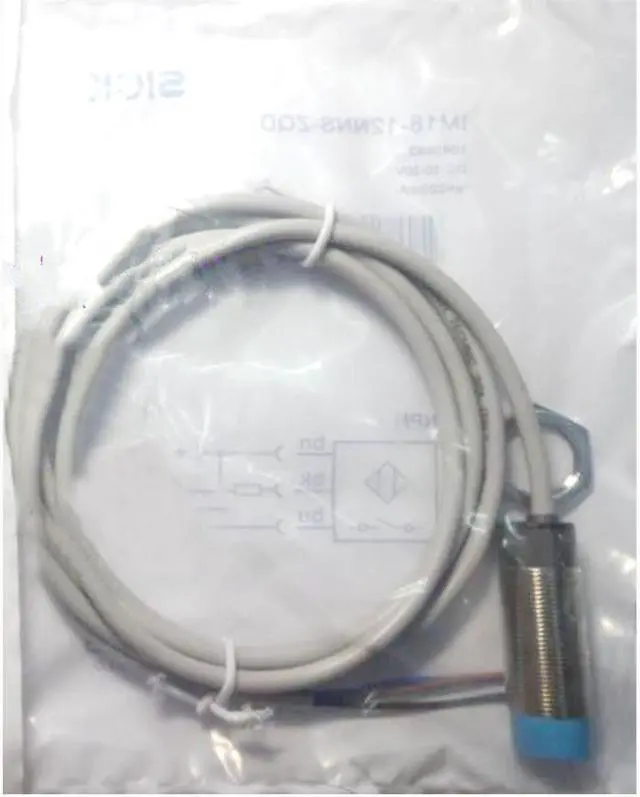

SICK IM18-12NNS-ZQD Proximity Switch ,NPN, New

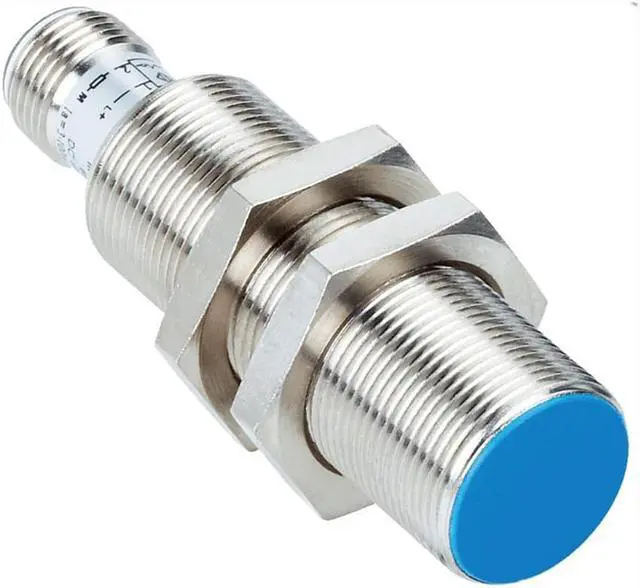

SICK IM18-12NNS-ZQD Proximity Switch, NPN, New Features Housing Cylindrical thread design Housing Standard Thread size M18 x 1 Diameter Ø 18 mm Sensing range Sn 12 mm Installation type Non-flush Switching frequency 300 Hz Connection type Cable with M12 male connector, 4-pin, 1 m Switching output NPN Output function NO Electrical wiring DC 3-wire Enclosure rating IP67 1) Special features Including 2 toothed washers, output signal to pin 4 Mechanics/electronics Supply voltage 10 V DC... 30 V DC Ripple = 10 % Voltage drop = 1 V 1) Current consumption 10 mA 2) Time delay before availability = 100 ms Hysteresis 2 %.

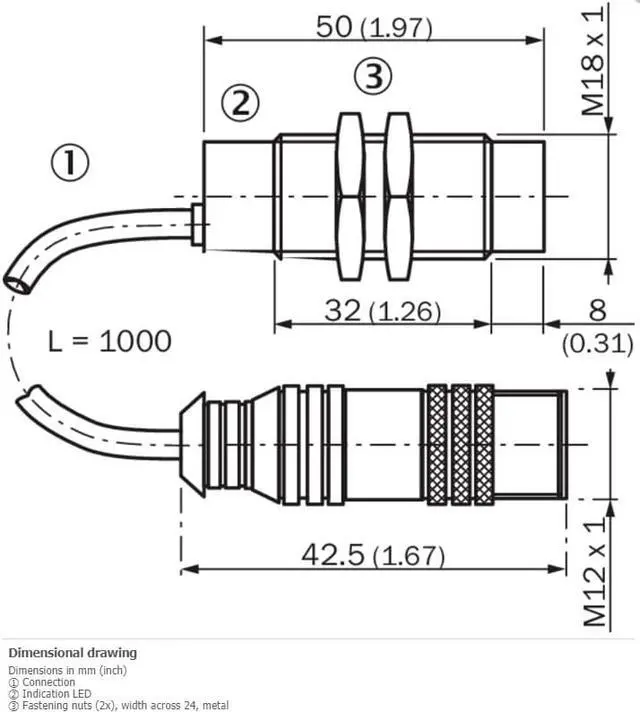

.. 15 % Reproducibility = 5 % 3) 4) Temperature drift (of Sr) ± 10 % EMC According to EN 60947-5-2 Continuous current Ia = 400 mA Cable material PVC Conductor size 0.34 mm² Short-circuit protection? Reverse polarity protection? Power-up pulse protection? Shock and vibration resistance 30 g, 11 ms / 10... 55 Hz, 1 mm Ambient operating temperature –25 °C... +70 °C Housing material Metal, Nickel-plated brass Sensing face material Plastic, Plastic Housing length 50 mm Thread length 32 mm Tightening torque, max. 30 Nm
