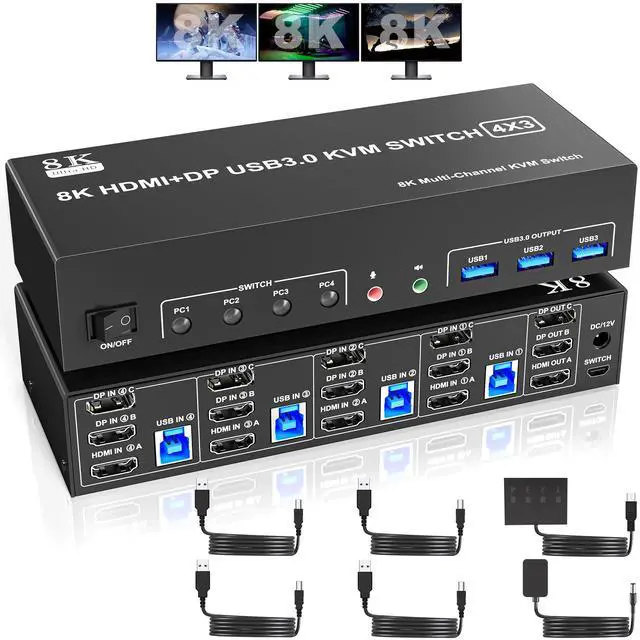

Vszerda 8K@60Hz USB3.0 KVM Switch 3Monitors 4Computers 4K@144Hz,2 DisplayPort +1 HDMI Triple Monitor KVM Switch for 4PC with Audio and 3USB 3.0, 2 DP1.4 +HDMI2.1 Triple Monitor Keyboard Mouse Switcher

8K@60Hz 4 Port USB 3.0 Triple Monitor 1 HDMI + 2 DisplayPort KVM Switch for 4 Computers Sharing 3 Monitor and 3 USB 3.0 Ports, Audio & Microphone

installation steps:

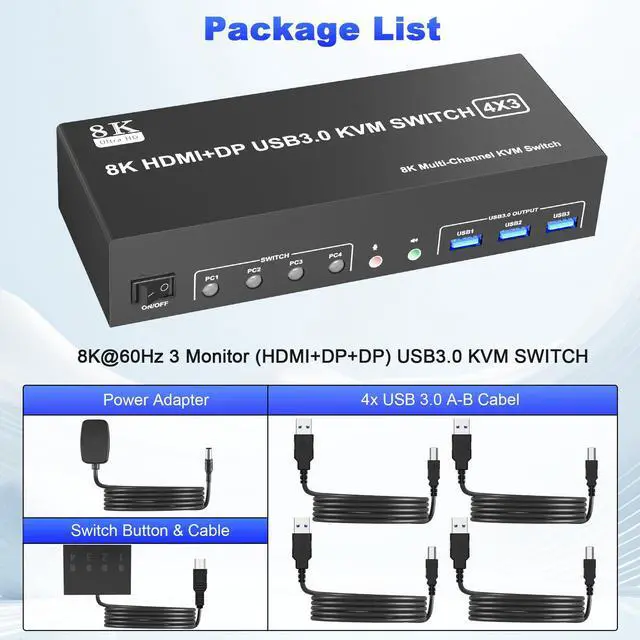

1. Insert the DC/12V adapter into the KVM ;

2. Plug the 1*HDMI cable and 2*DisplayPort cable into the KVM switch and monitor;(Output)

3. Plug the 2*DisplayPort cable, 1*HDMI cable, and 1*USB cable into the KVM switch and your computer/laptop (HDMI and DP cables are not included)(Input)

HDMI IN 1A + DP IN 1B + DP IN 1C + USB IN 1=PC1

HDMI IN 2A + DP IN 2B + DP IN 2C + USB IN 2=PC2

HDMI IN 3A + DP IN 3B + DP IN 3C + USB IN 3=PC3

HDMI IN 4A + DP IN 4B + DP IN 4C + USB IN 4=PC4

Please check whether HDMI IN 1A, DP IN 1B, DP IN 1C, and USB IN 1 corresponding, and whether HDMI IN 2A, DP IN 2B, DP IN 2C and USB IN 2 are corresponding. Mixed insertion is not supported. The same goes for PC3 and PC4.

4. Insert the mouse and keyboard into the KVM switch

5. If needed, you can connect a microphone and audio port

3 Display Modes

Extended Display

Mirrored Display

Spliced Display

Wired Remote Control

Switch by Panel button

LED Indicator

When switching to which PC, the LED will tell you whether PC1 or PC2 or PC3 or PC4 is active.

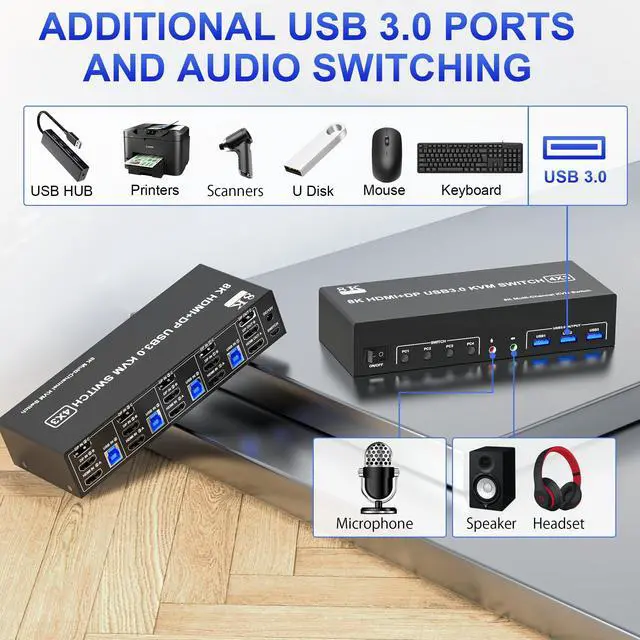

Audio and microphone output

3 monitors 4 computers KVM comes with a 3.5mm Audio Jack port with a DAC chip inside, which can be inserted into a 3-segment 3.5mm earpiece device, and a 3.5mm microphone interface, which can be inserted into a 3-segment microphone

Additional Features

• Convenient Switching modes and Wide Compatibility: You can press the button on the panel or use the wired remote controller (included in the package) to switch between 4 computers. LED indicate the active computer. Our KVM switch 3 monitor compatible with a variety of computer systems,such as Windows, Linux, Mac, Unix, Ubuntu, Raspberry and most other major OS.
• Note: Each PC needs 1*HDMI+2*DP+1*USB 3.0 cable be connected to get triple screens display properly. For desktop or laptop without 2*HDMI+1*DP port, you need to use it with a reliable adapter or USB C docking station. Please make sure each of your PC has the ability to support triple display before purchasing. Test method: You can connect your PC directly to 3 monitors (not via KVM).
