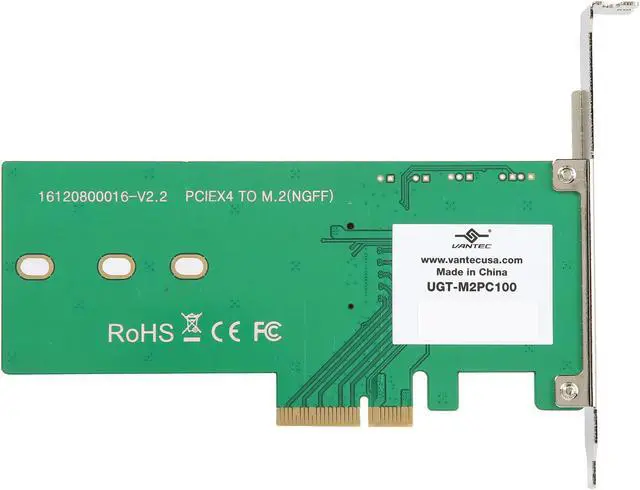

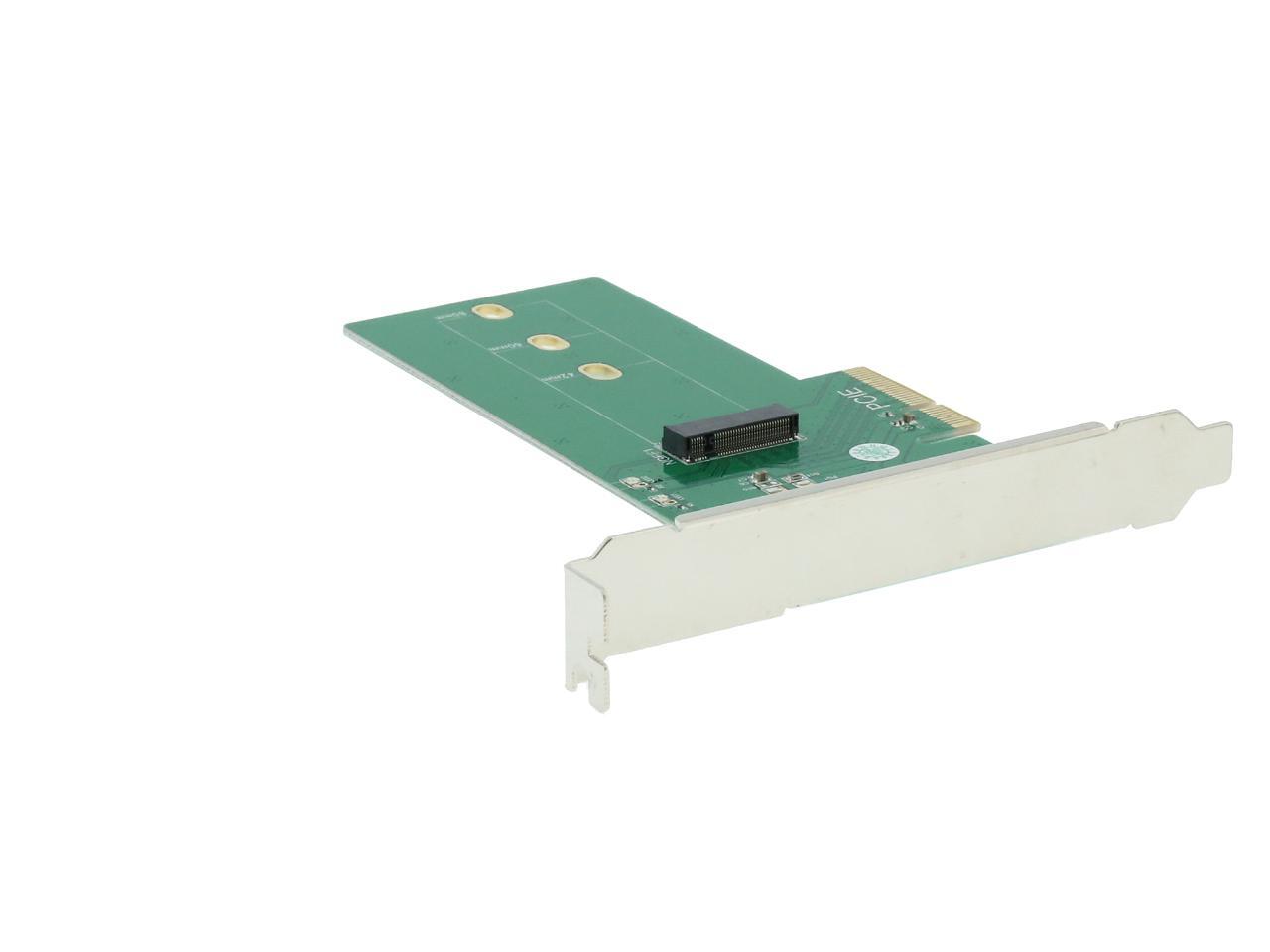

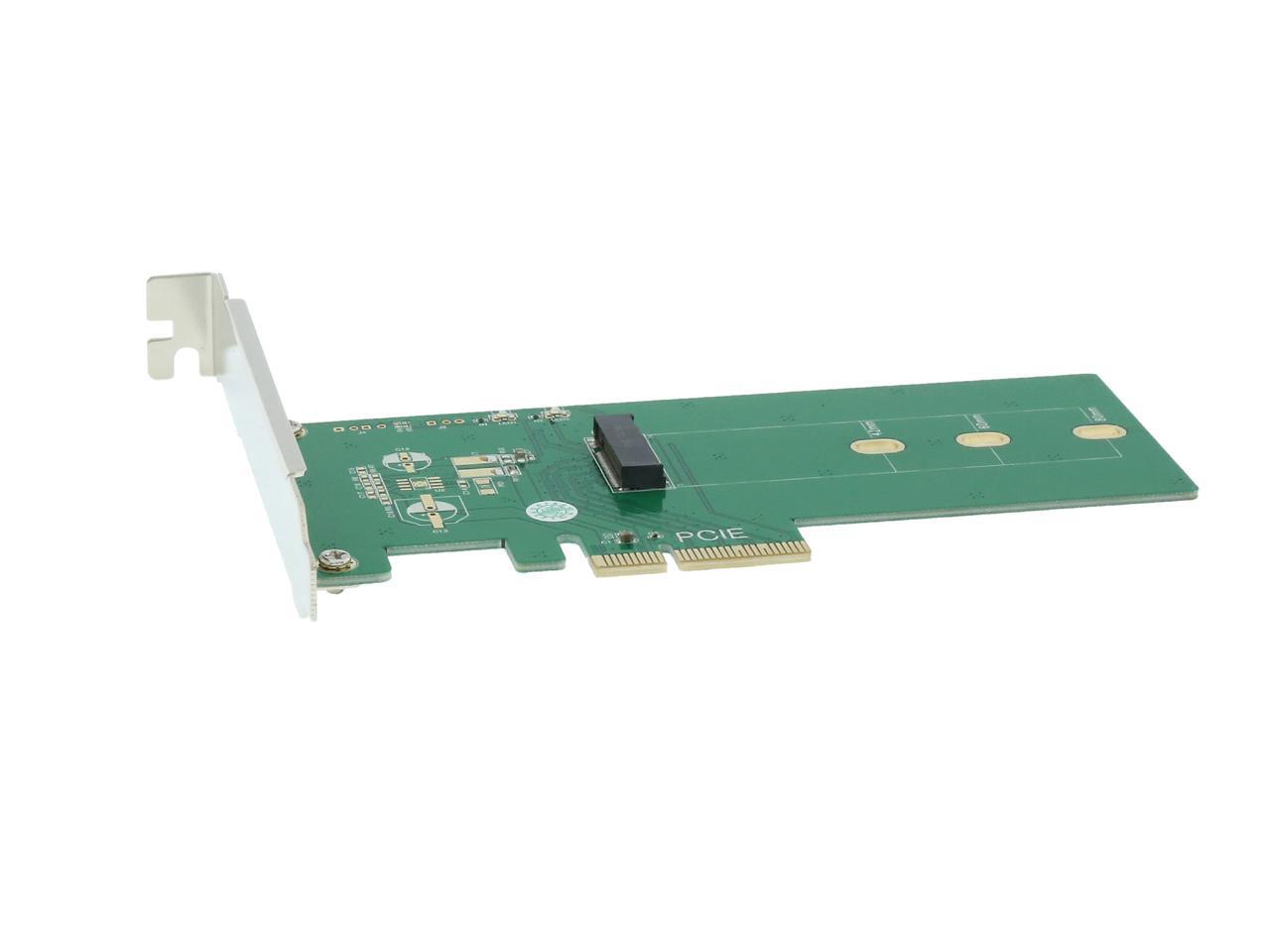

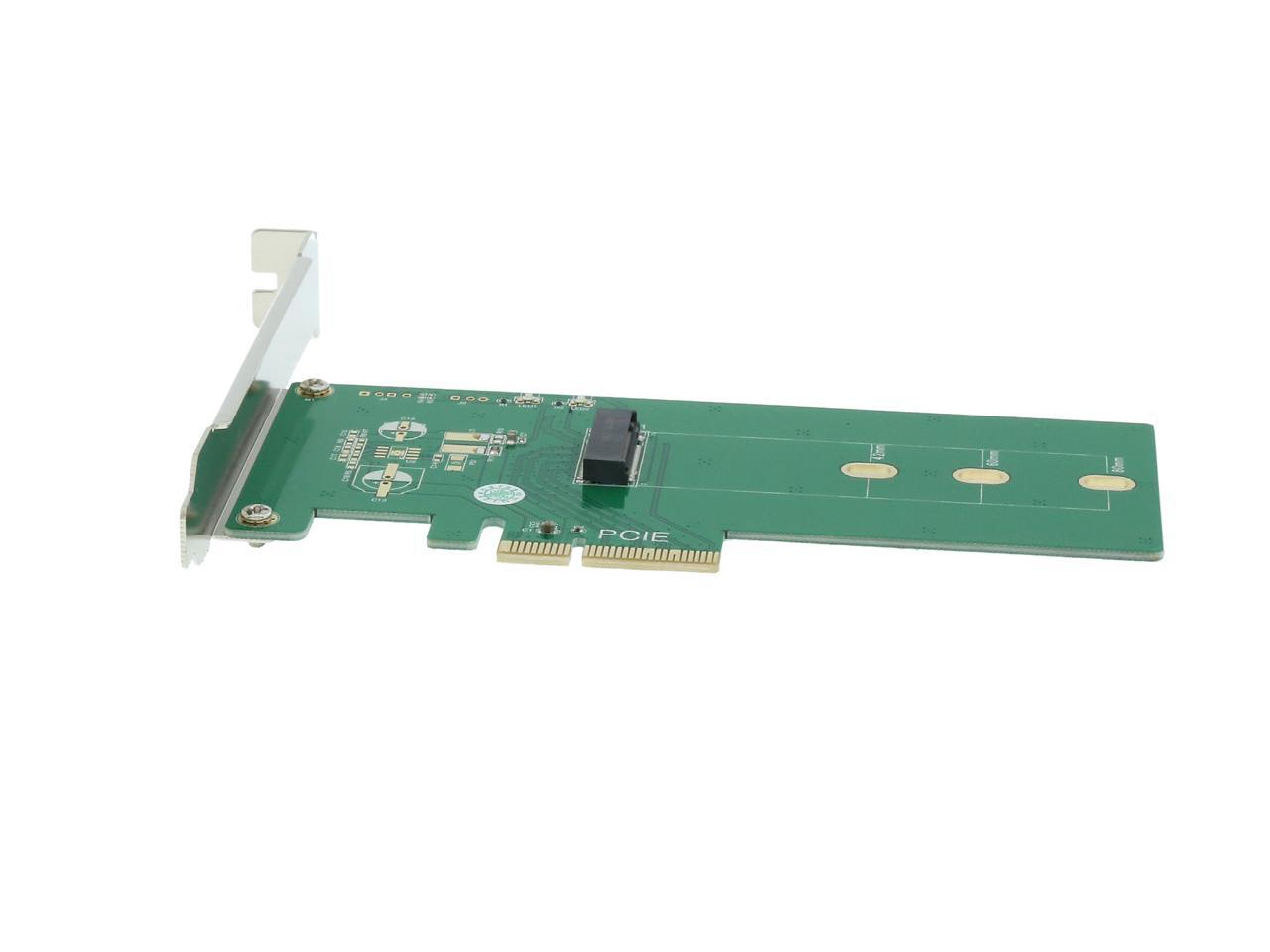

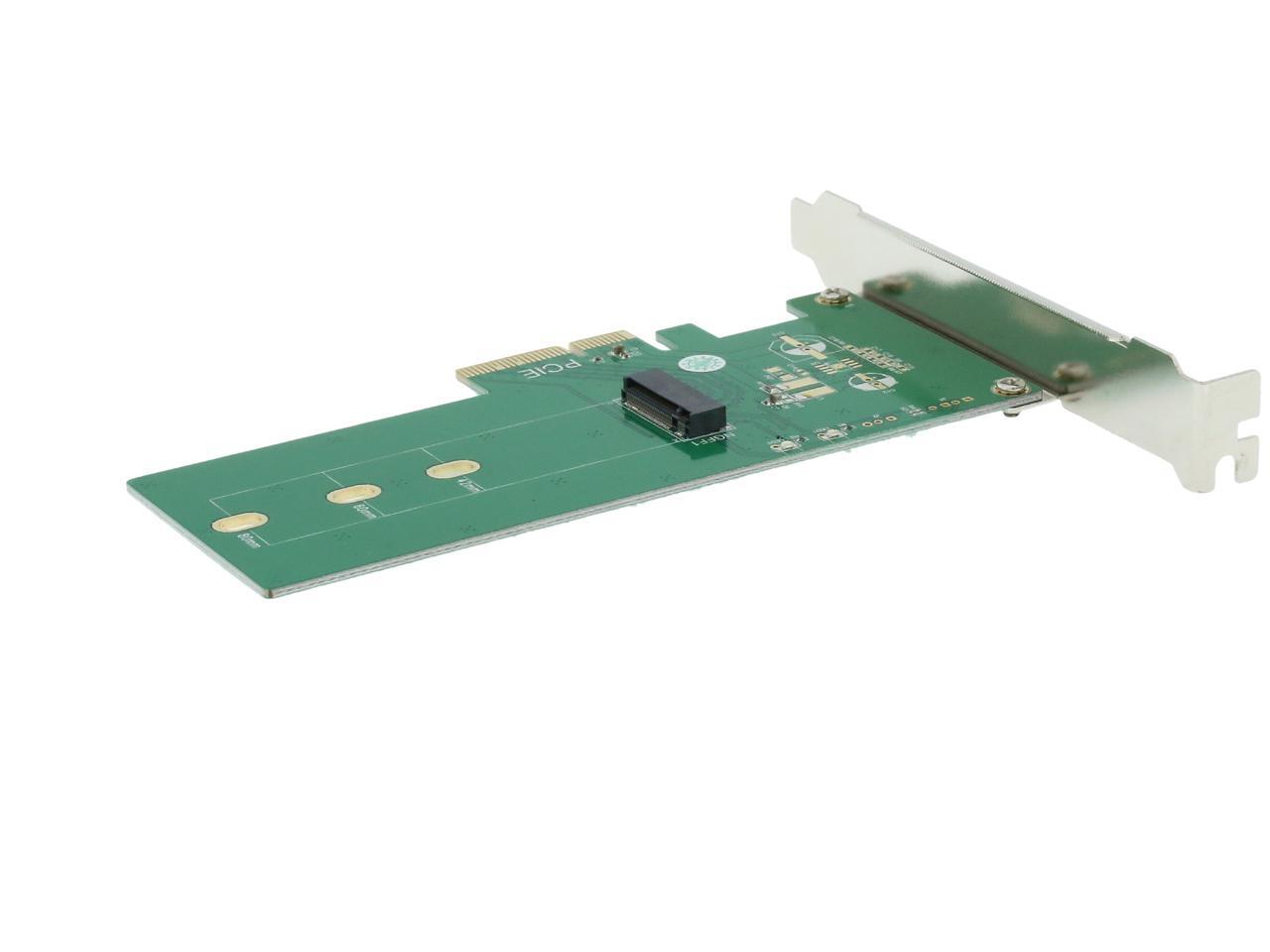

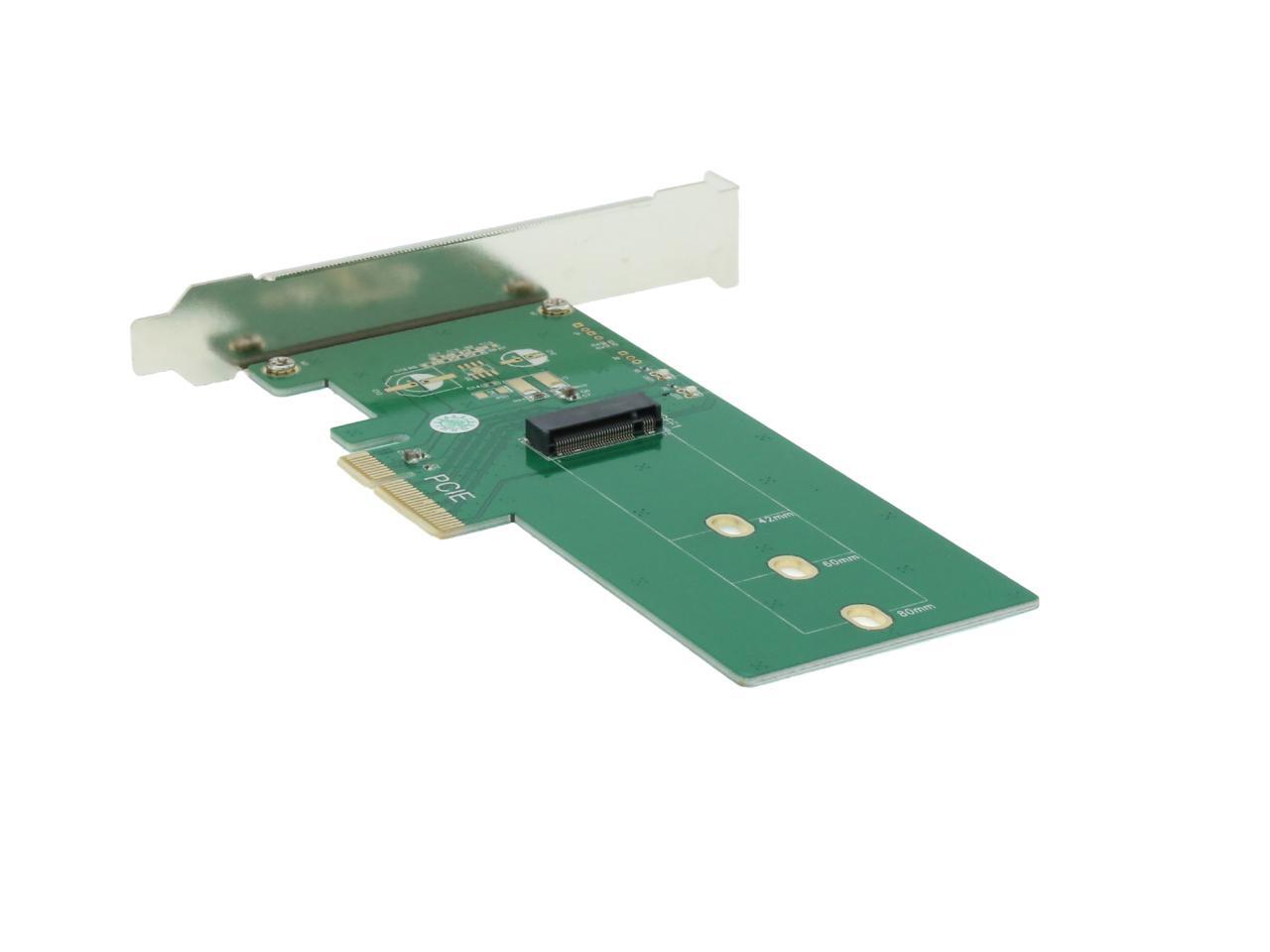

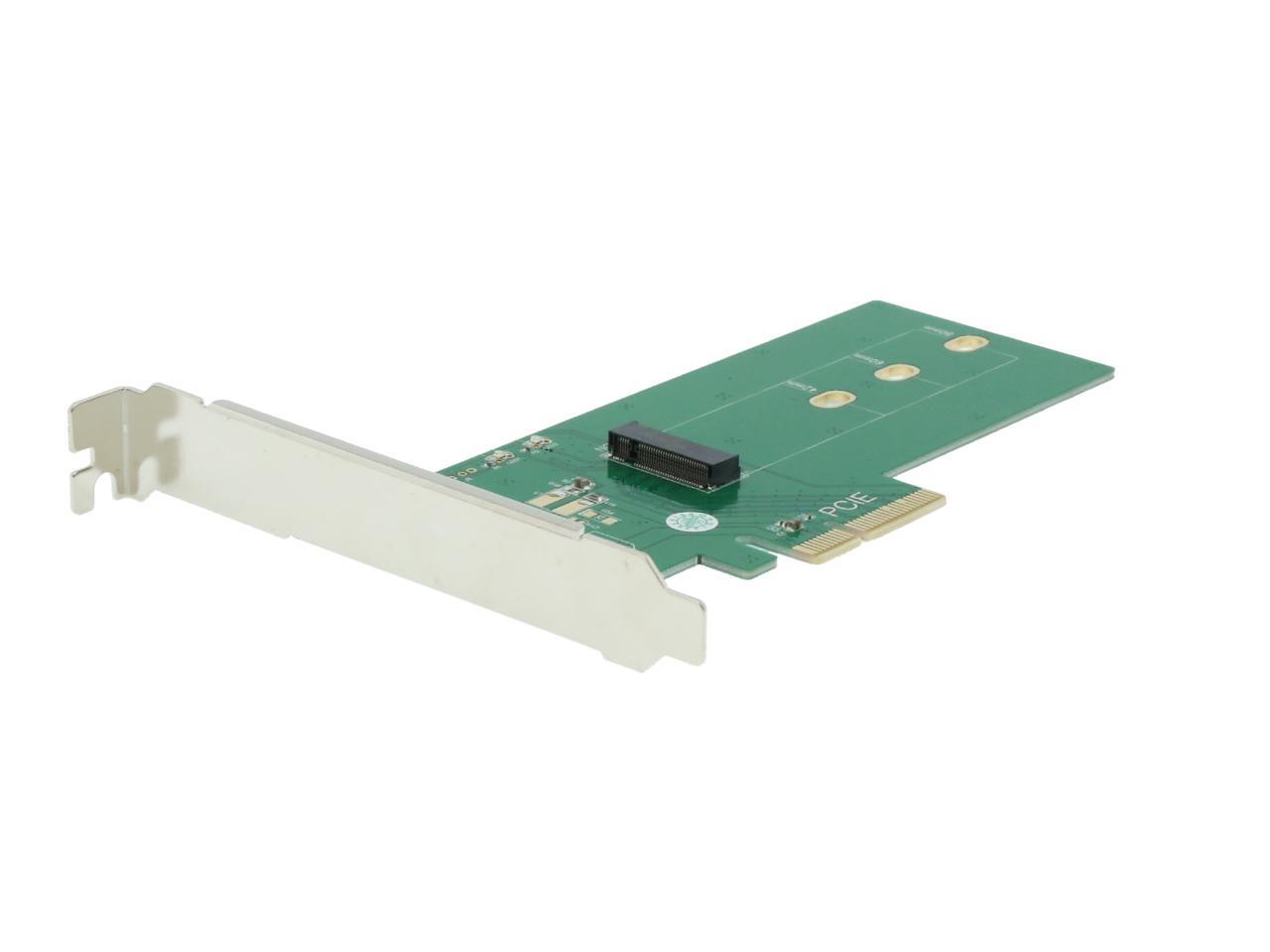

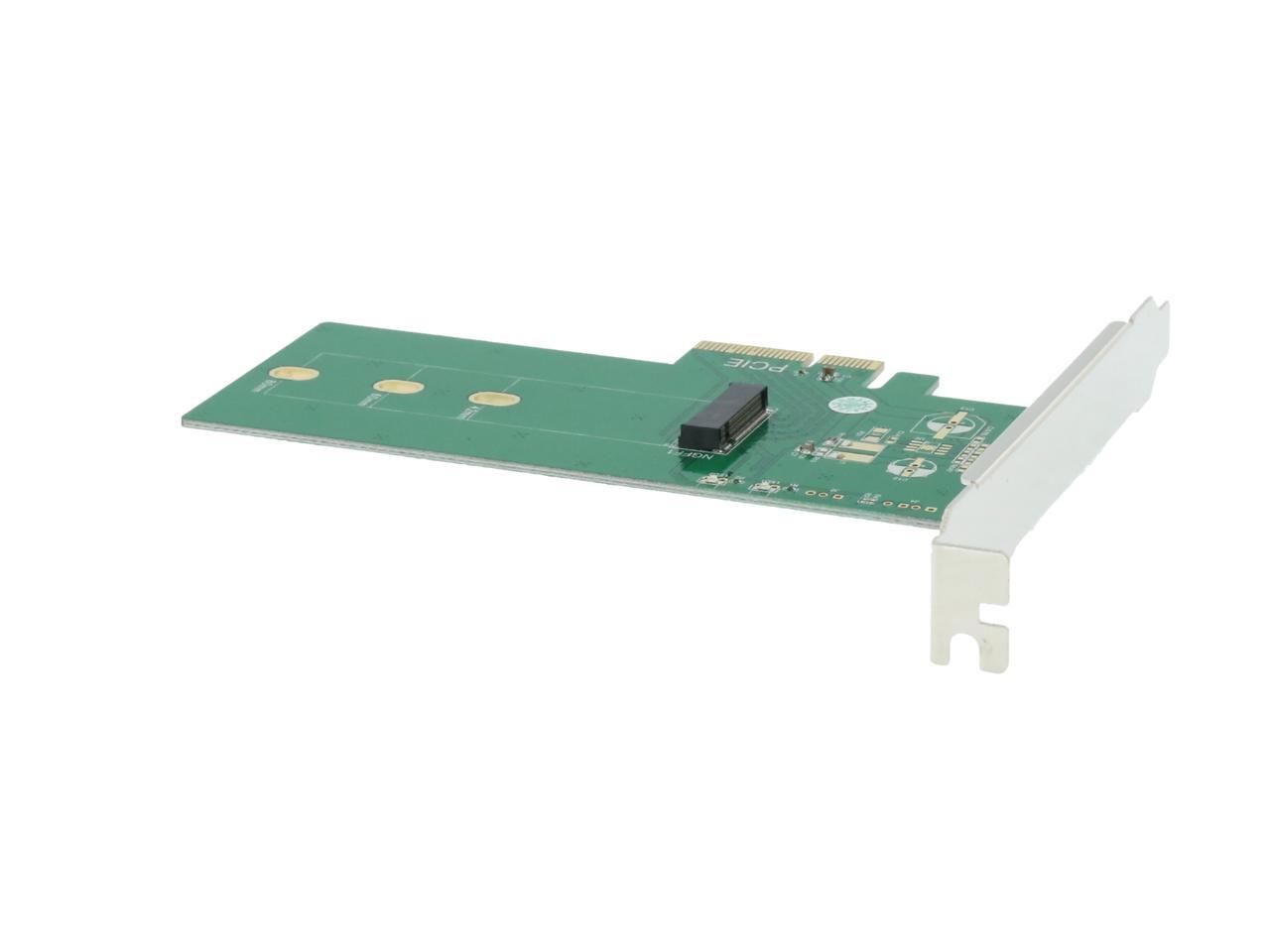

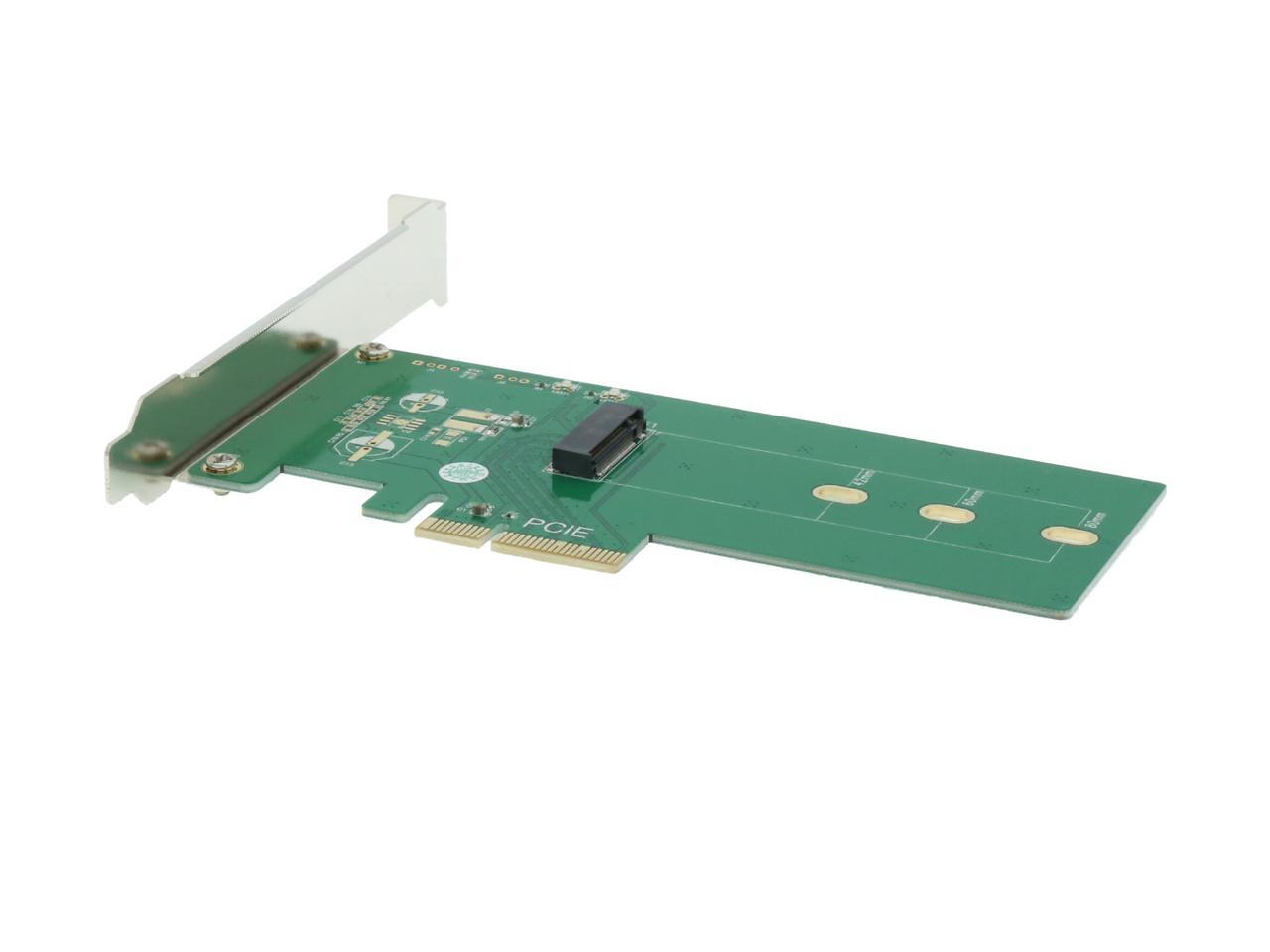

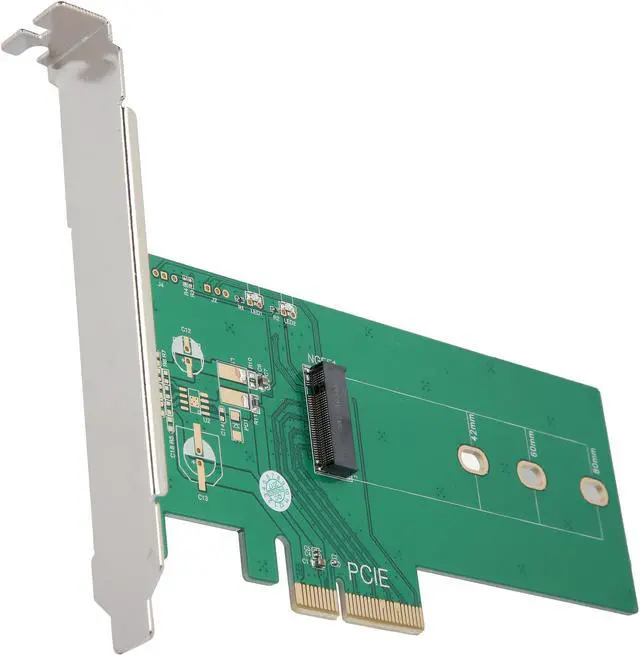

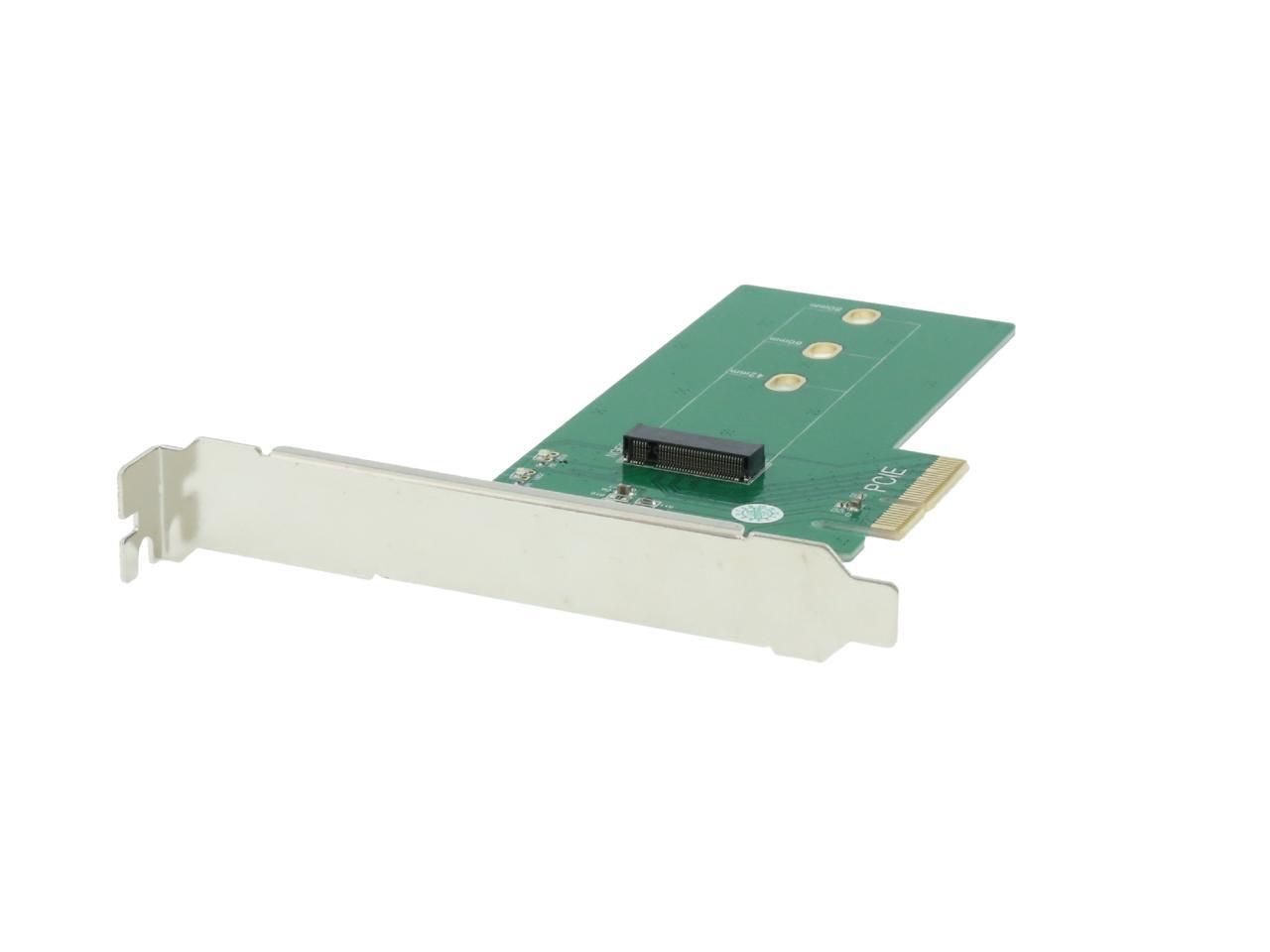

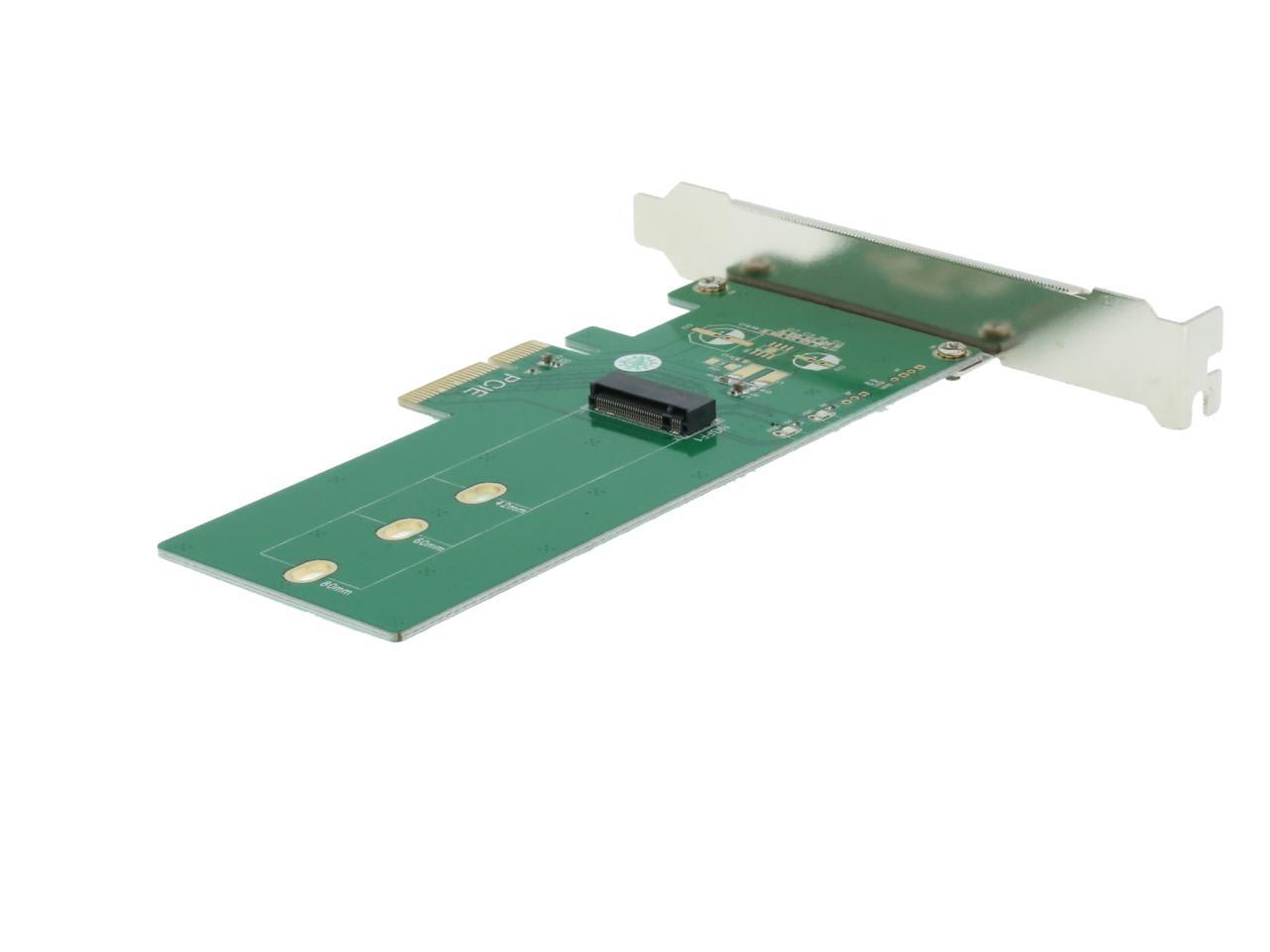

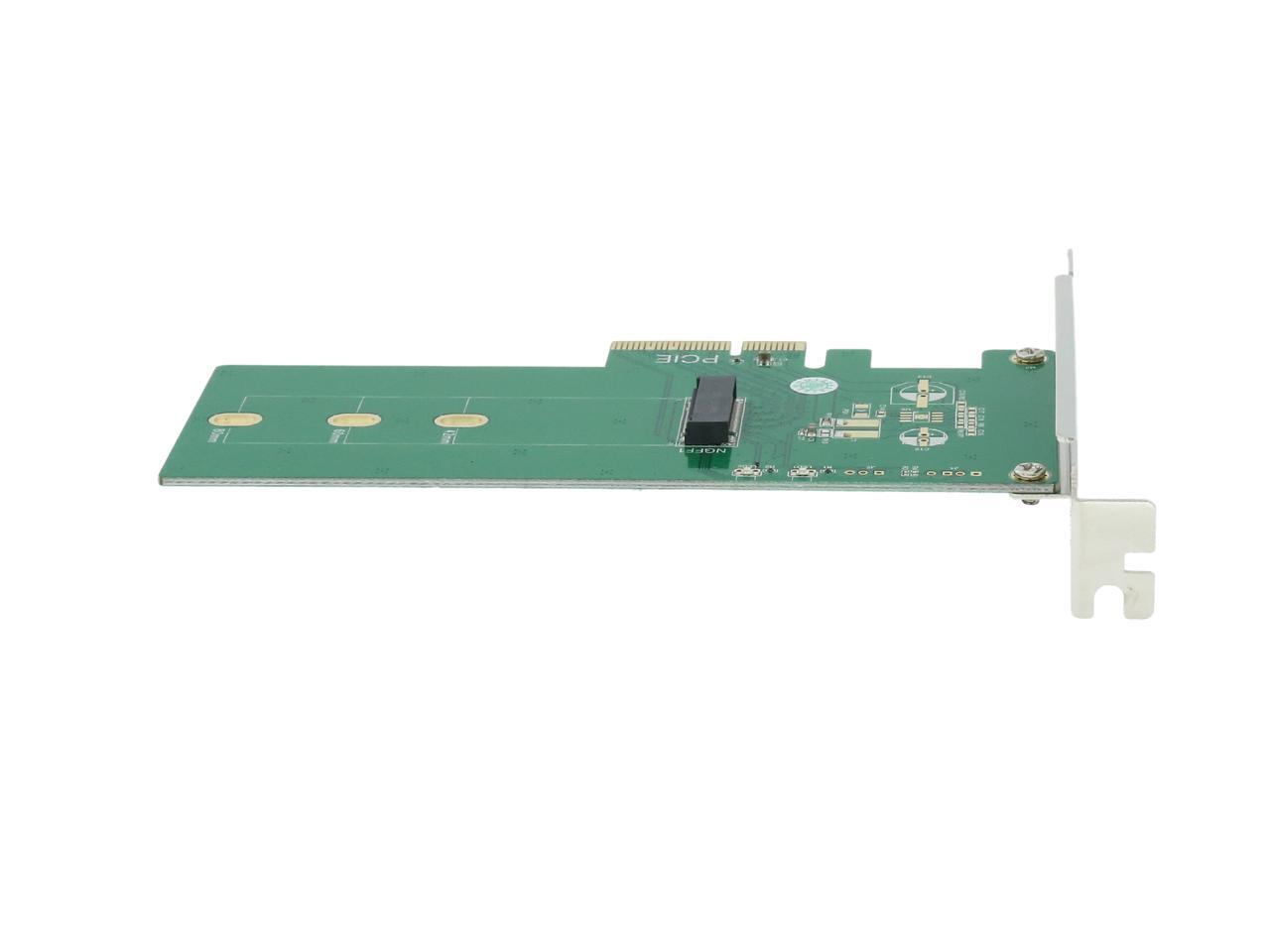

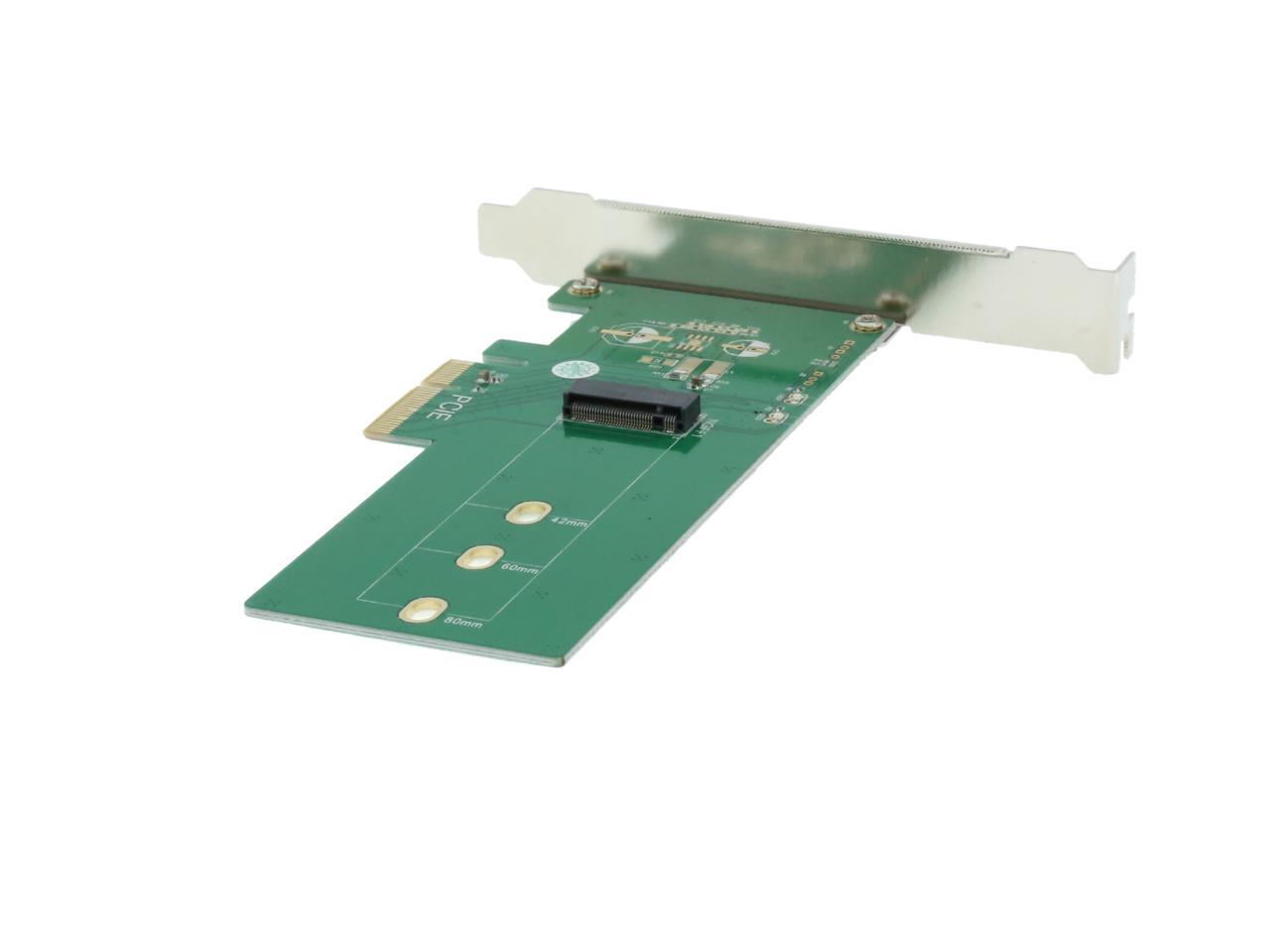

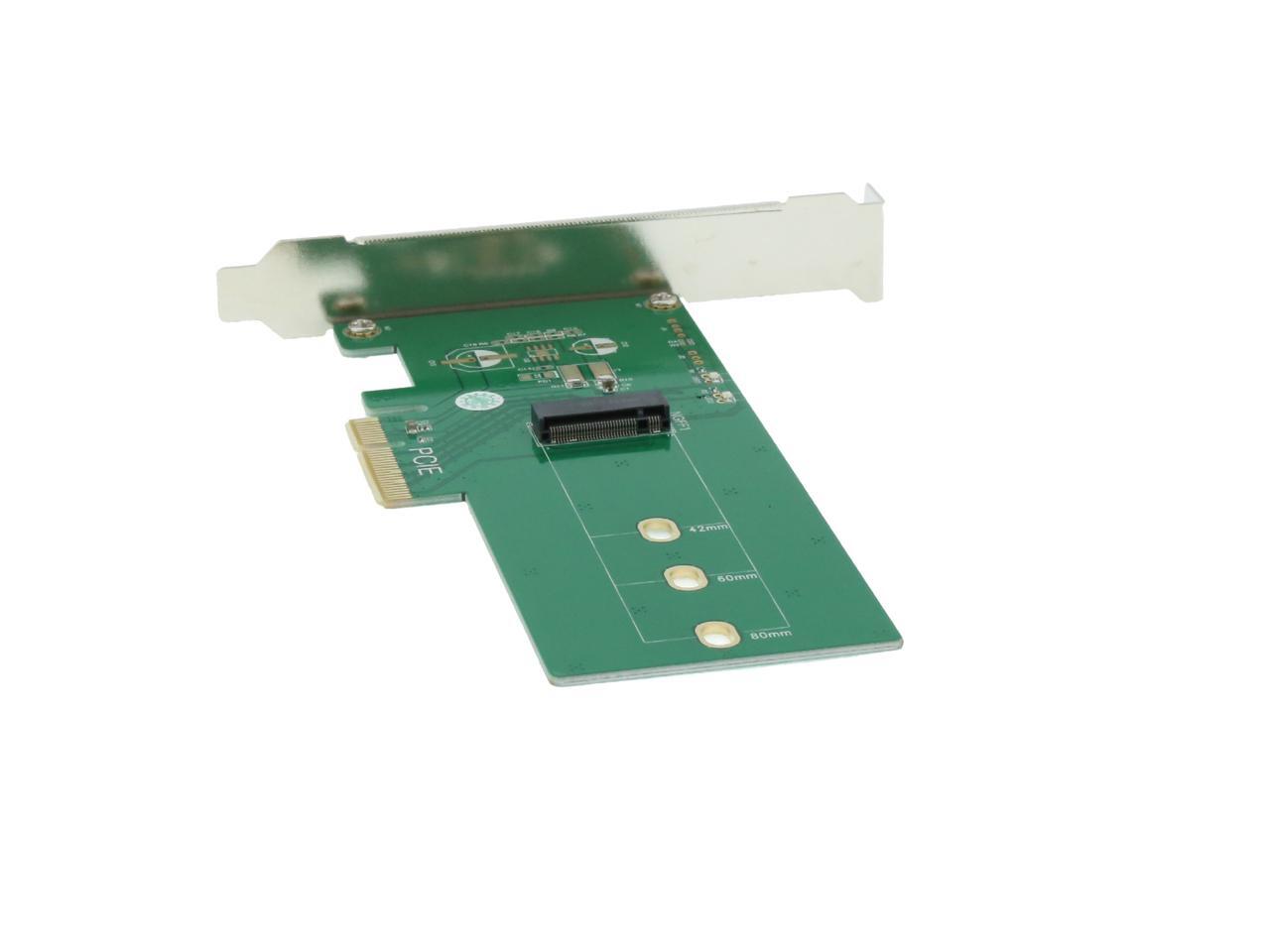

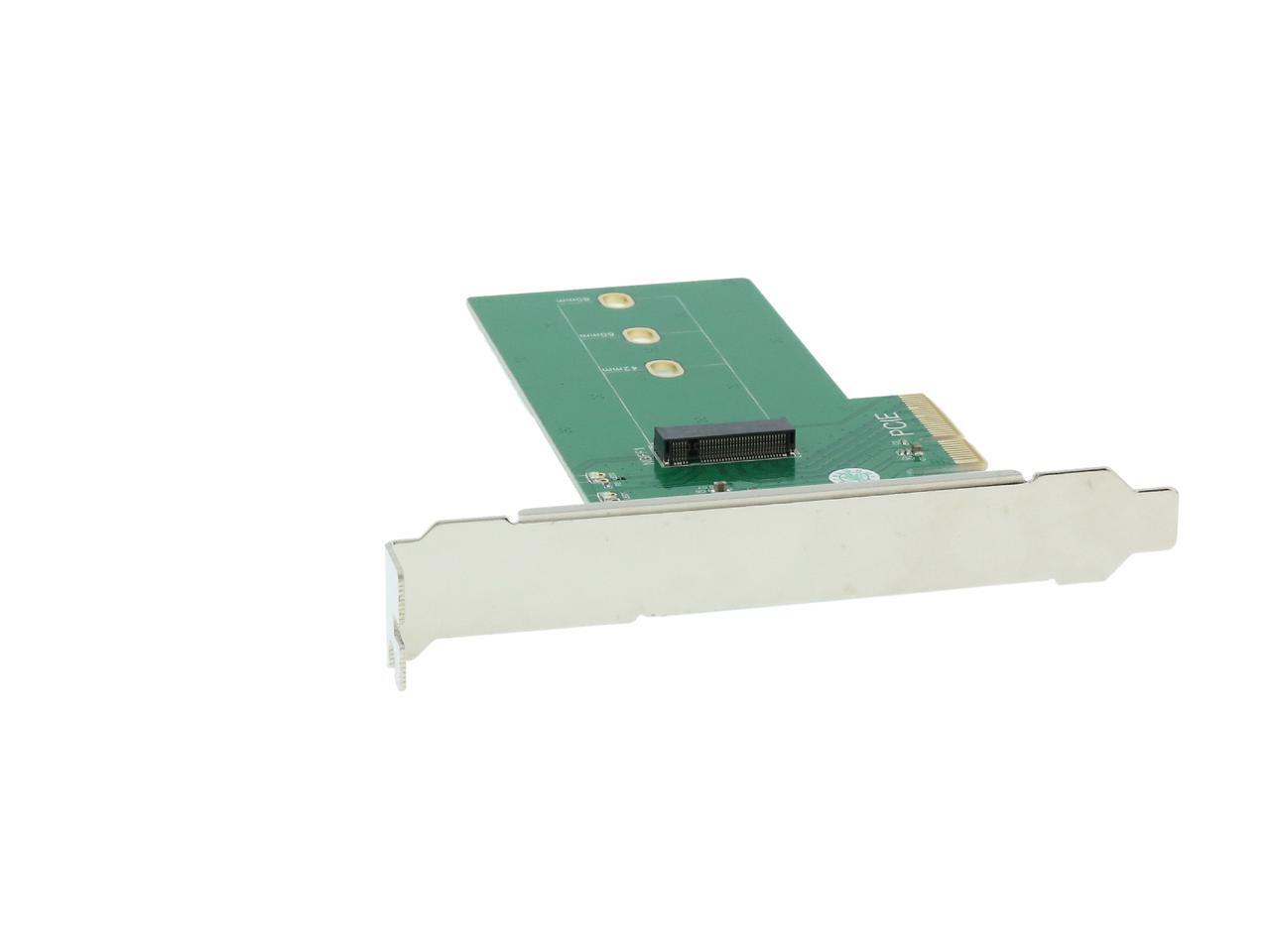

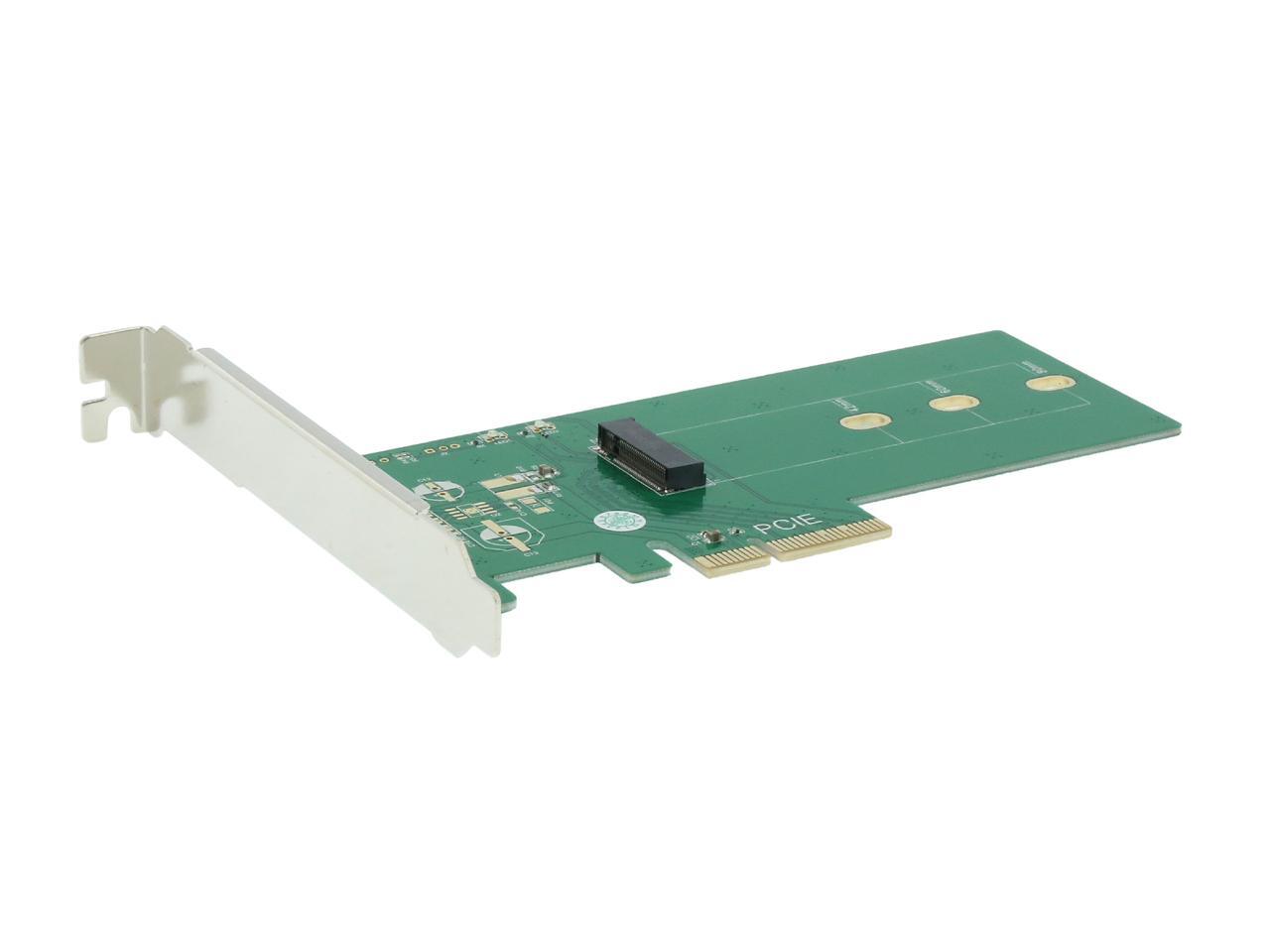

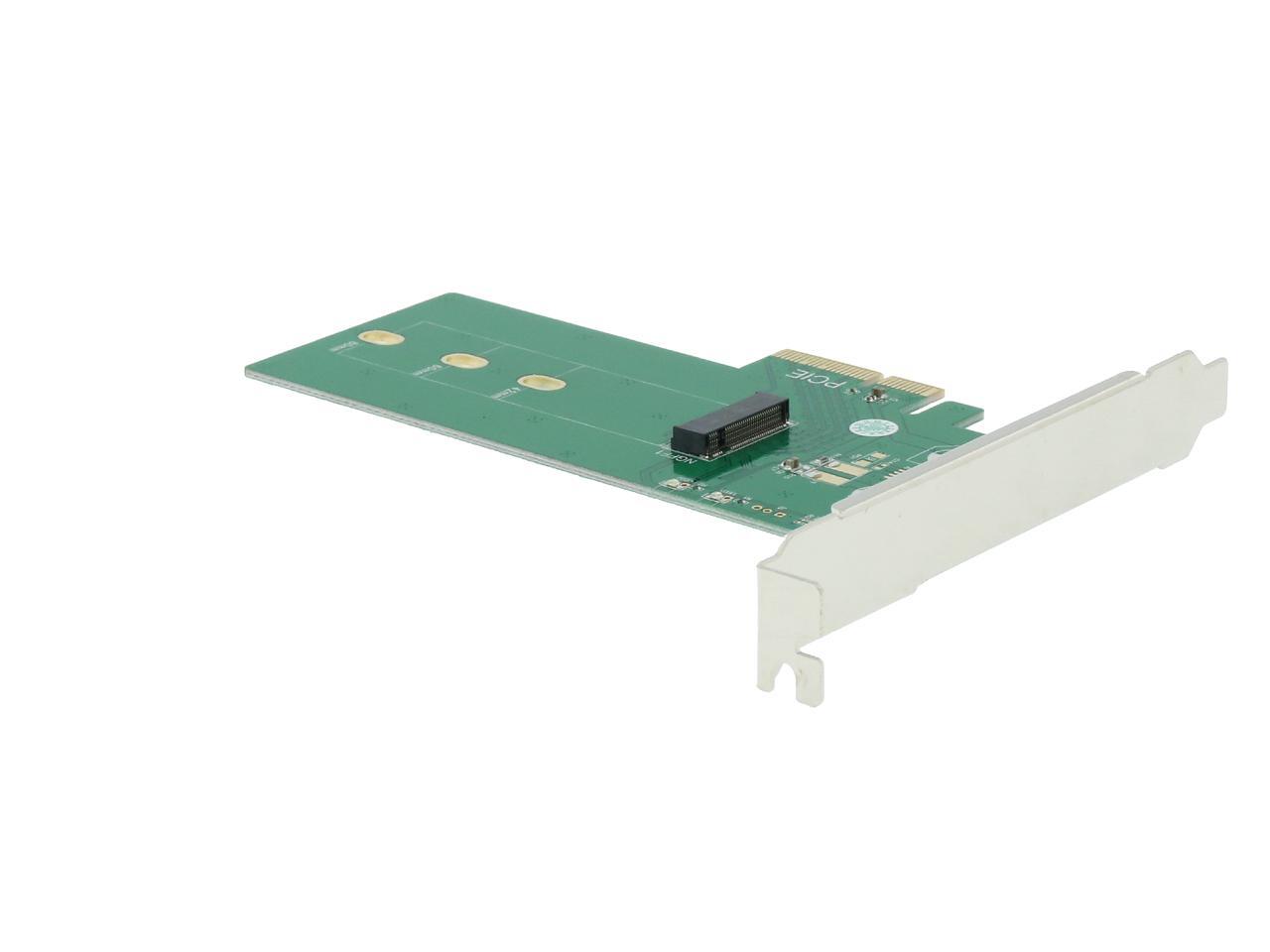

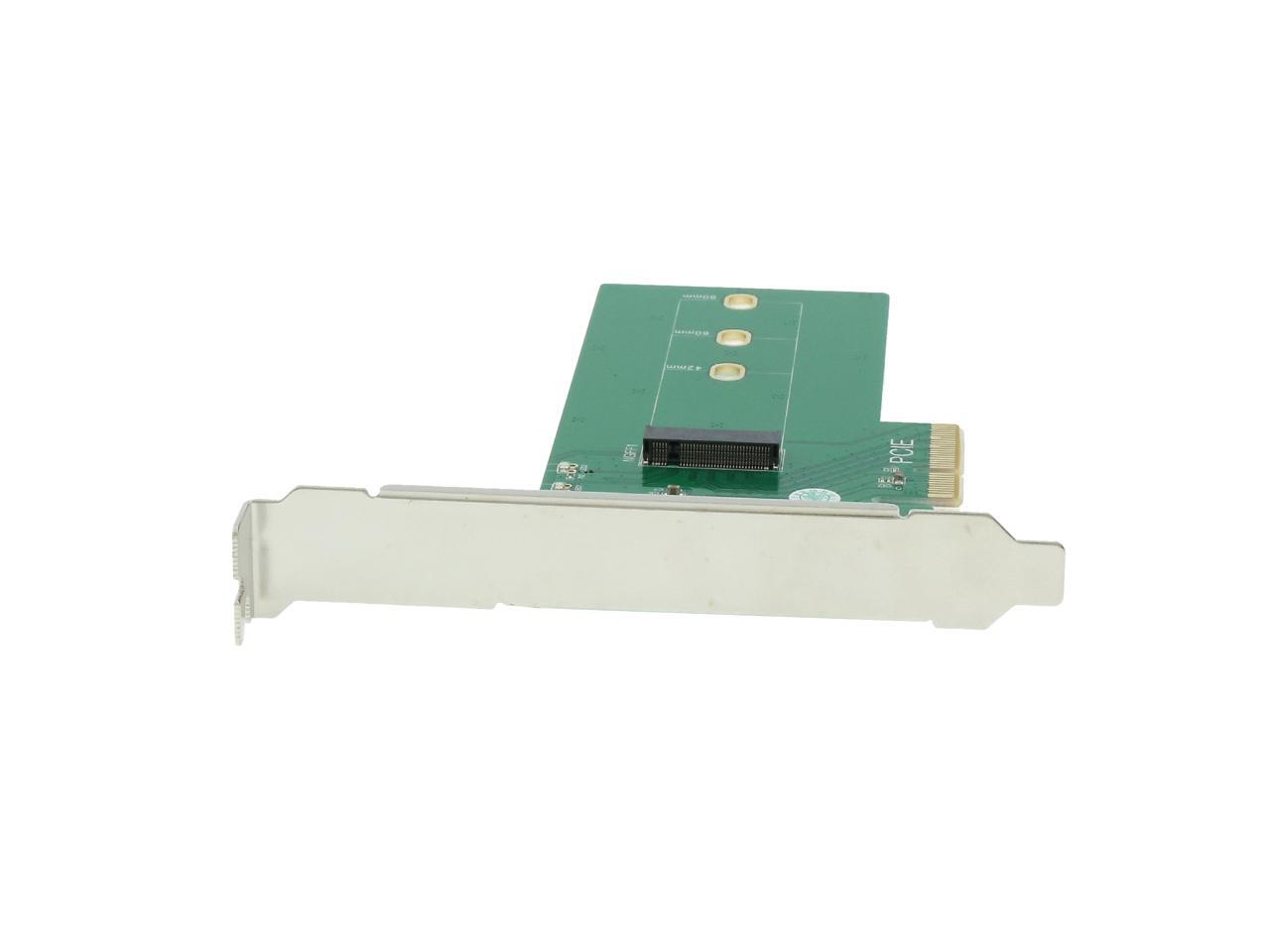

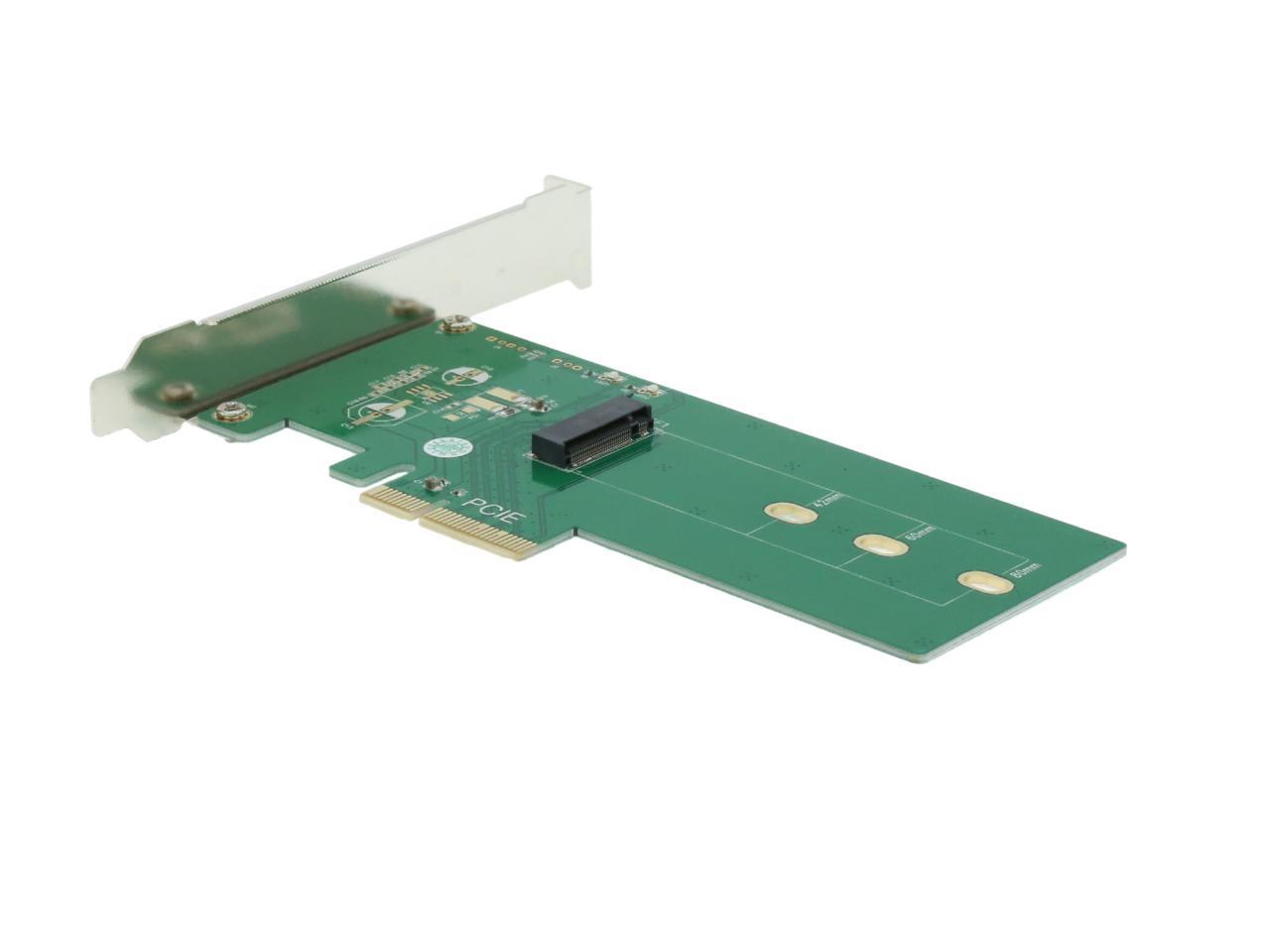

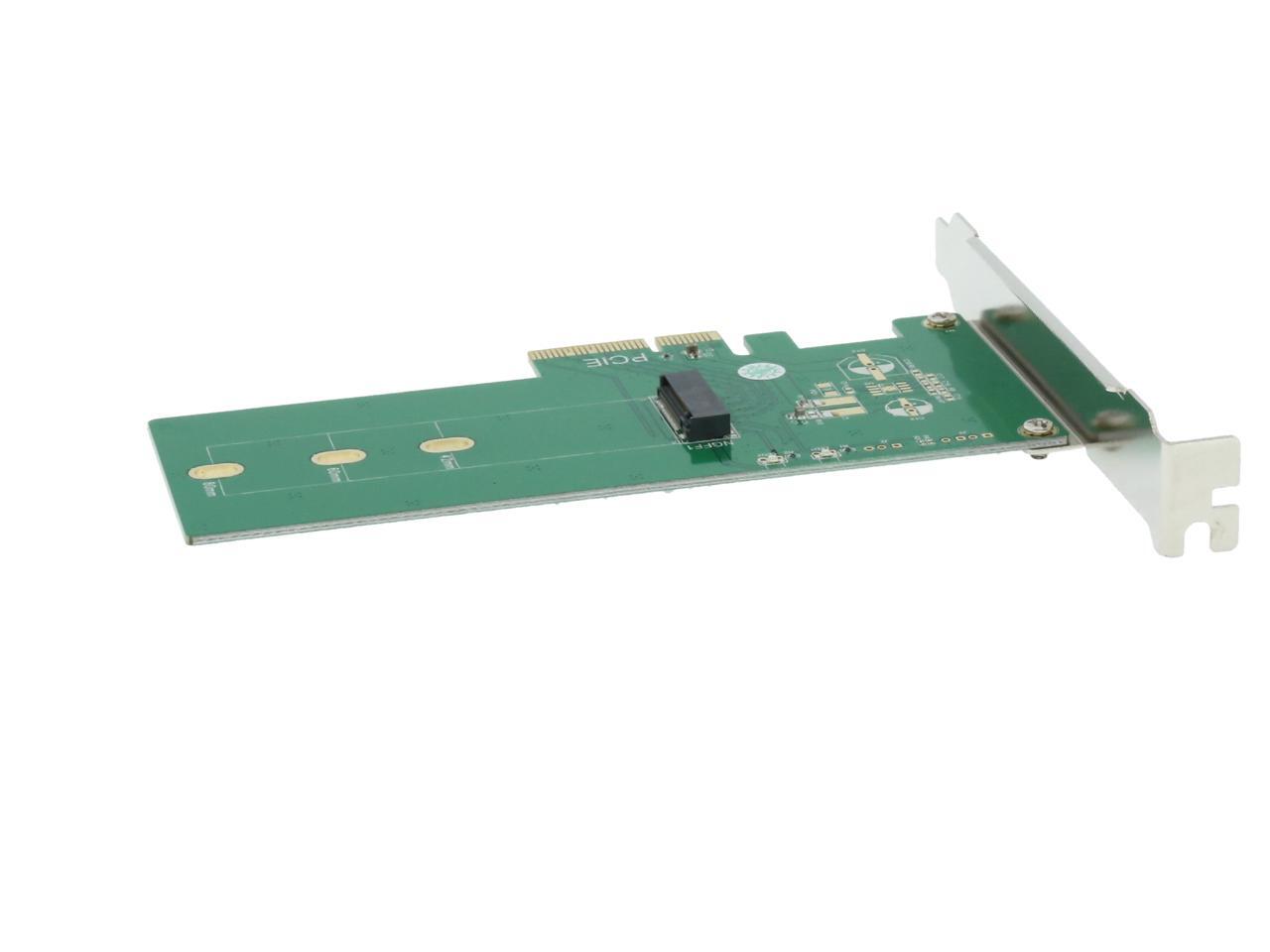

VANTEC UGT-M2PC100 M.2 NVMe SSD PCIe X4 Adapter
- Support M.2 (NGFF) PCIe based (NVMe or AHCI) SSD to PCIe x4 slot
- Support M.2 interface with M key, do not support M+B key

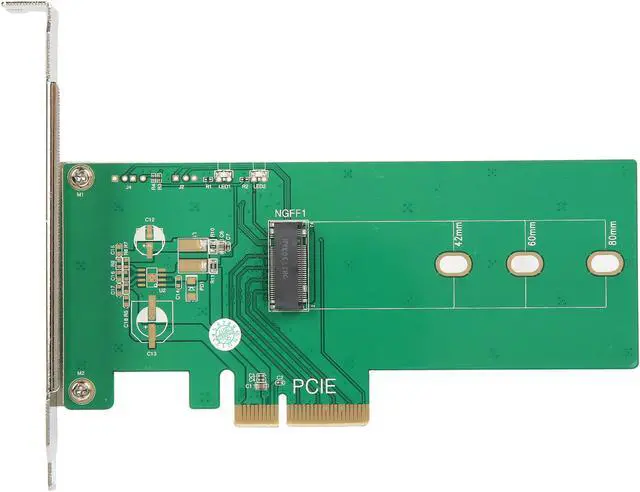

- Support different length M.2 (NGFF) card, 22x42mm, 22x60mm or 22x80mm
- Adapter supports PCI Express v3.0 Specs and compatible with v2.0 / v1.0
- Supports system boards with PCIe x4,x8,x16 slots
- Uses minimum power from PCIe 3.3V for better power management

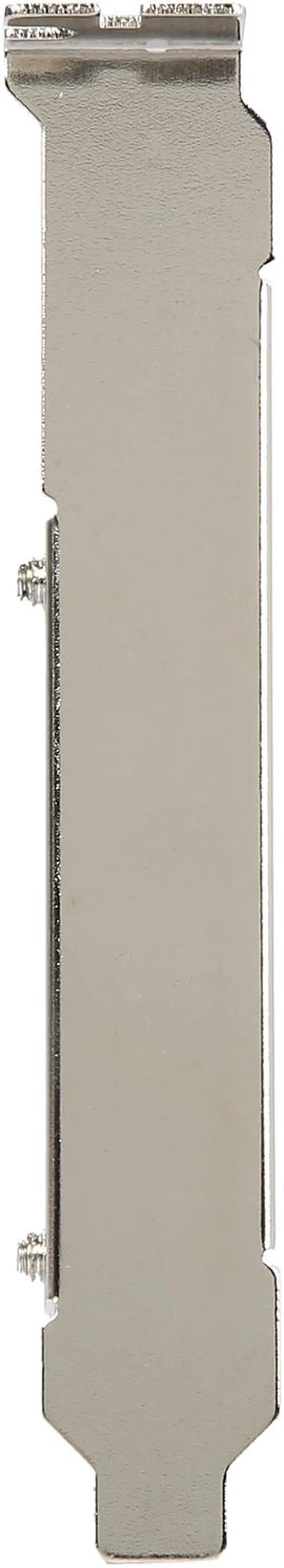

- Low Profile Bracket included
Specs
Reviews (6)
Learn more about the Vantec UGT-M2PC100
| Brand | VANTEC |
|---|---|
| Model | UGT-M2PC100 |
| Type | PCIe to M.2 |
|---|---|
| Internal Ports | 1 x M.2 (NGFF), M Key PCIe v3.0 or PCIe v2.0 x4 (4 lanes) |
| Operating Systems Supported | Windows 7/8/8.1/10, or Linux |
| Specifications | M.2 Type Support: NVMe or AHCI SSD using M Key only M.2 size: Length support 22x42mm, 22x60mm or 22x80mm Internal Interface: 1 x M.2 (NGFF), M Key PCIe Interface: PCIe v3.0 or PCIe v2.0 x4 (4 lanes) Power: PCIe Bus powered (3.3V) |
| Dimensions | 5.80" x 4.70" x 0.70" |
|---|---|
| Weight | 0.19 lbs. |

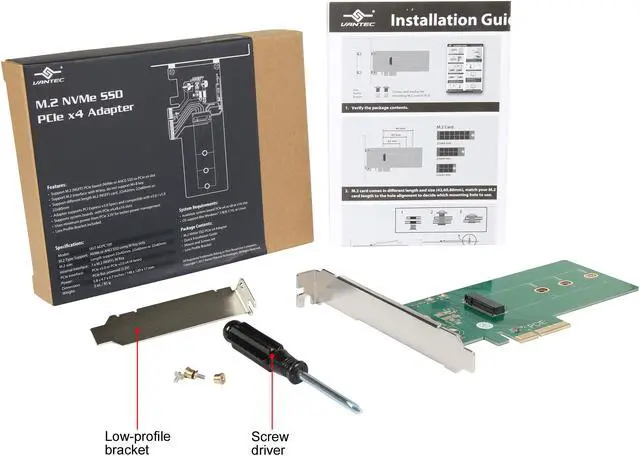

| Package Contents | M.2 NVMe SSD PCIe x4 Adapter Quick Installation Guide Mount and Screws set Low Profile Bracket |
|---|
| First Listed on Newegg | August 22, 2017 |
|---|
