Max. power budget: 200W @56V DC Max. power budget: 120W @24V DC
Power
Input: 24 - 56V DC Compatible power supply: TI-S24048 (sold separately) Max. consumption: 5.3W (no PoE)
Features
Features
PoE+ Power Budget Supplies up to 30W of PoE power per port on the industrial variable voltage switch with a 200W PoE power budget
Network Ports 8 x Gigabit PoE+ ports

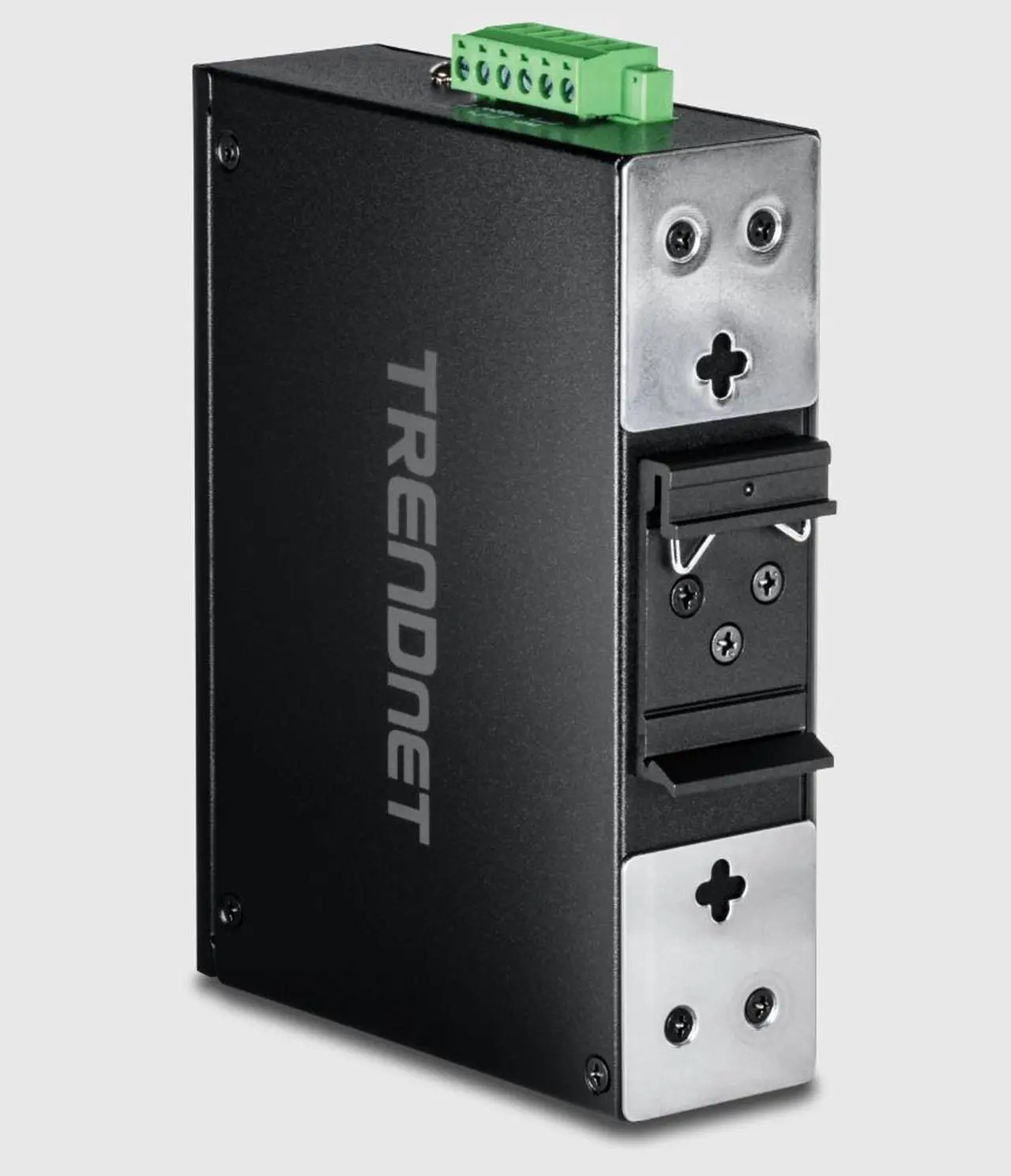

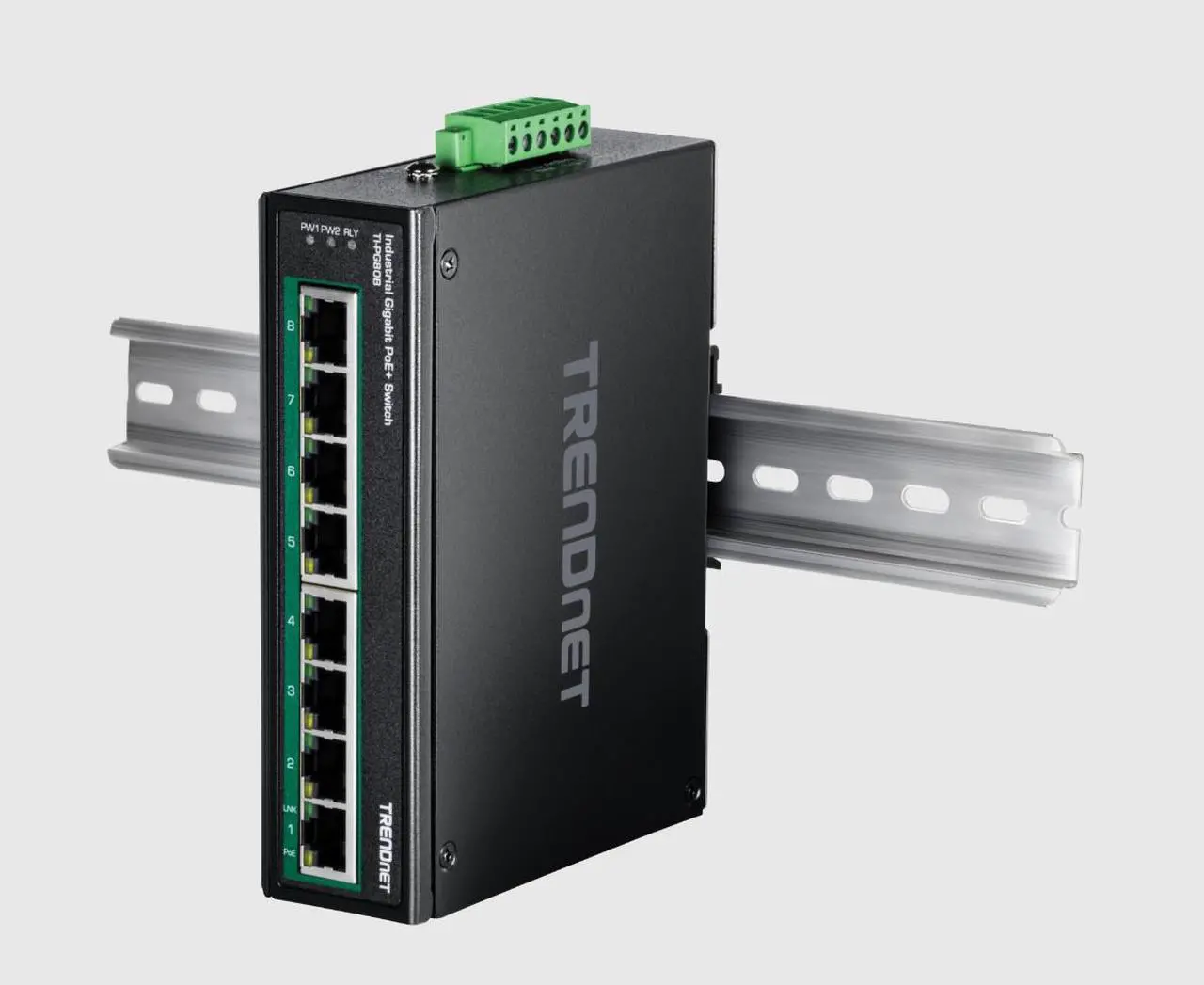

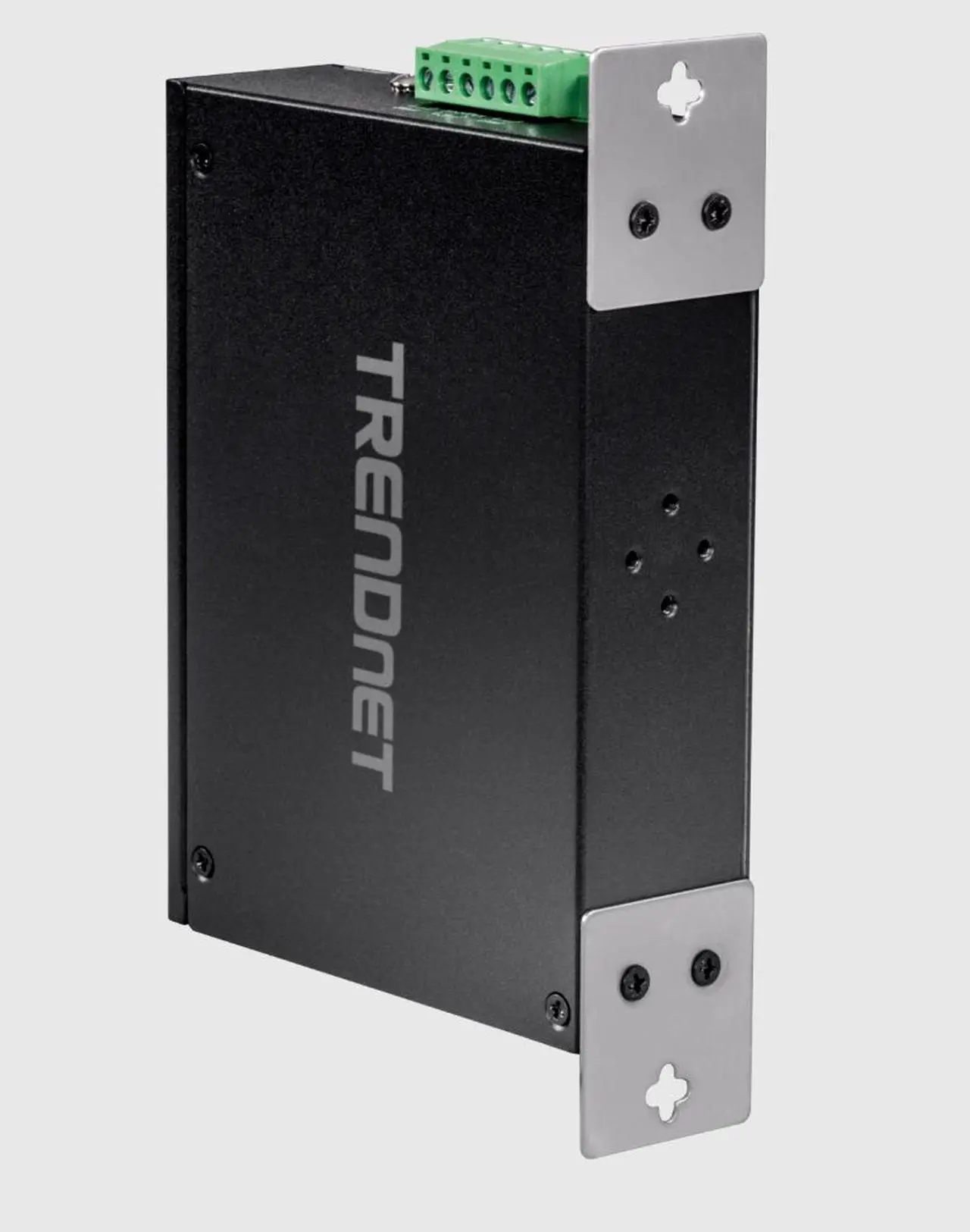

DIN-Rail/Wall Mounts IP30 rated metal enclosure with DIN-Rail and wall mount hardware included
Switching Capacity 16Gbps switching capacity
Redundant Power Dual 24V – 56V DC power inputs with overload current protection (compatible power supplies for this industrial variable voltage PoE+ switch sold separately, models: TI-S24048, TI-S12024)
Jumbo Frame Sends larger packets, or Jumbo Frames (up to 9KB), for increased performance on the variable voltage switch
Wide Operating Temperature Industrial variable voltage switch rated for an operating temperature range of -40° ~ 75° C (-40° ~ 167° F)
Shock and Vibration Resistant Rated for shock (EN 60068-2-27), freefall (EN 60068-2-32), and vibration (EN 60068-2-6)
Grounding Point Grounding point on the industrial variable voltage switch protects equipment from external electrical surges
Dimensions & Weight
Dimensions
1.40" x 4.60" x 4.10"
Weight
1.40 lbs.
Environmental
Temperature
-40 ~ 75°C (-40 ~ 167°F) Operating Temperature
Humidity
Max. 95 % non-condensing
Packaging
Package Contents
TI-PG80B Quick Installation Guide Removable terminal block DIN-Rail and wall mount kit
Additional Information
Date First Available
November 17, 2023
