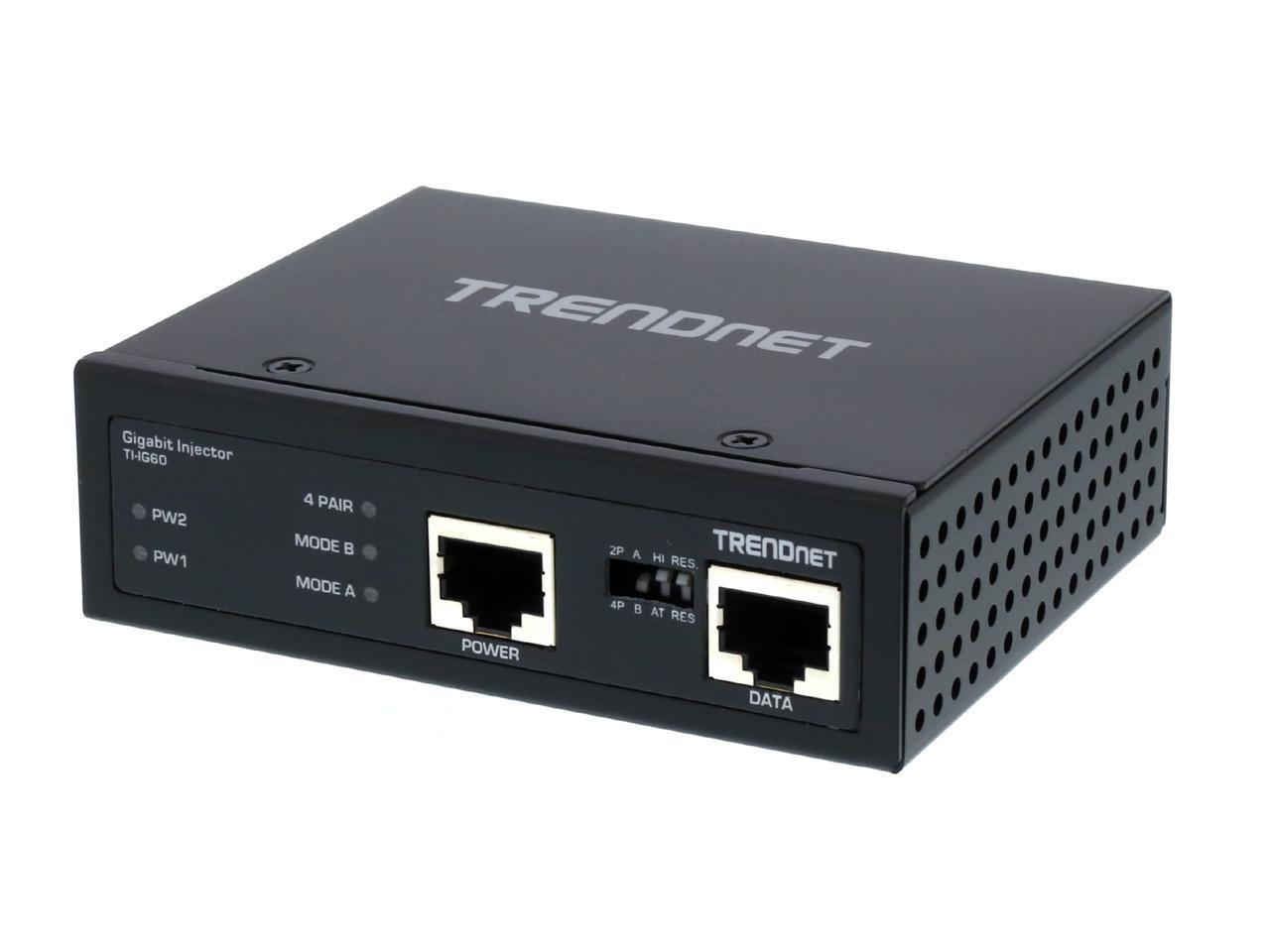

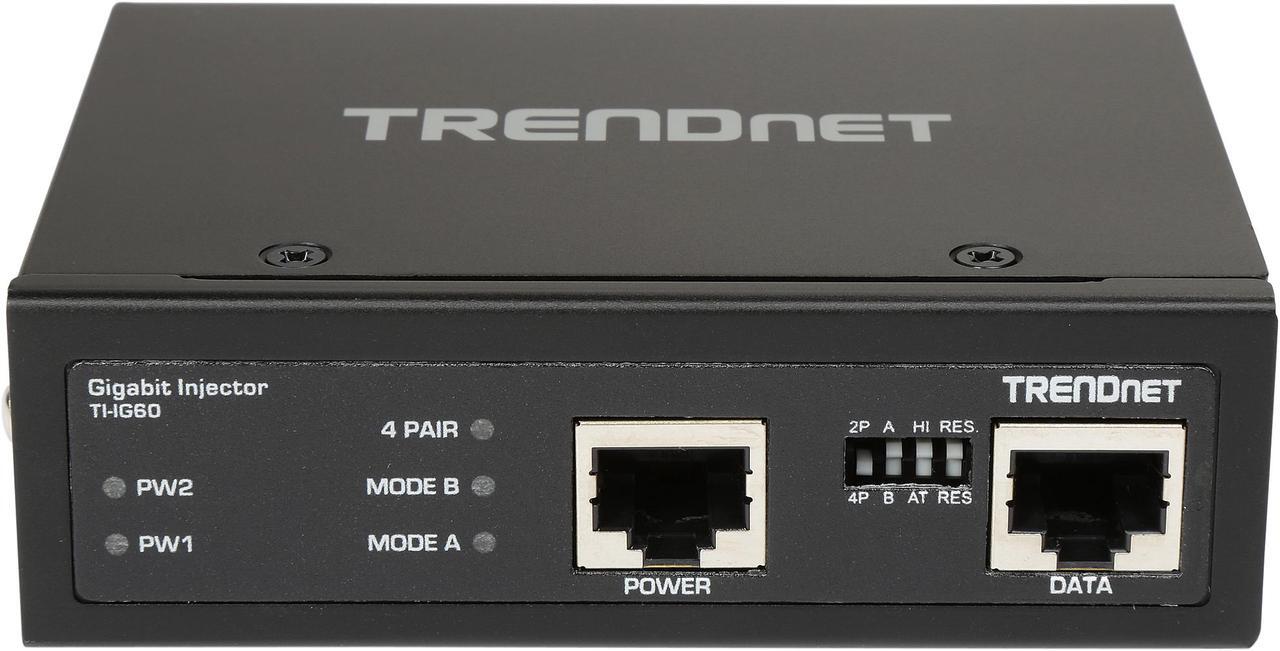

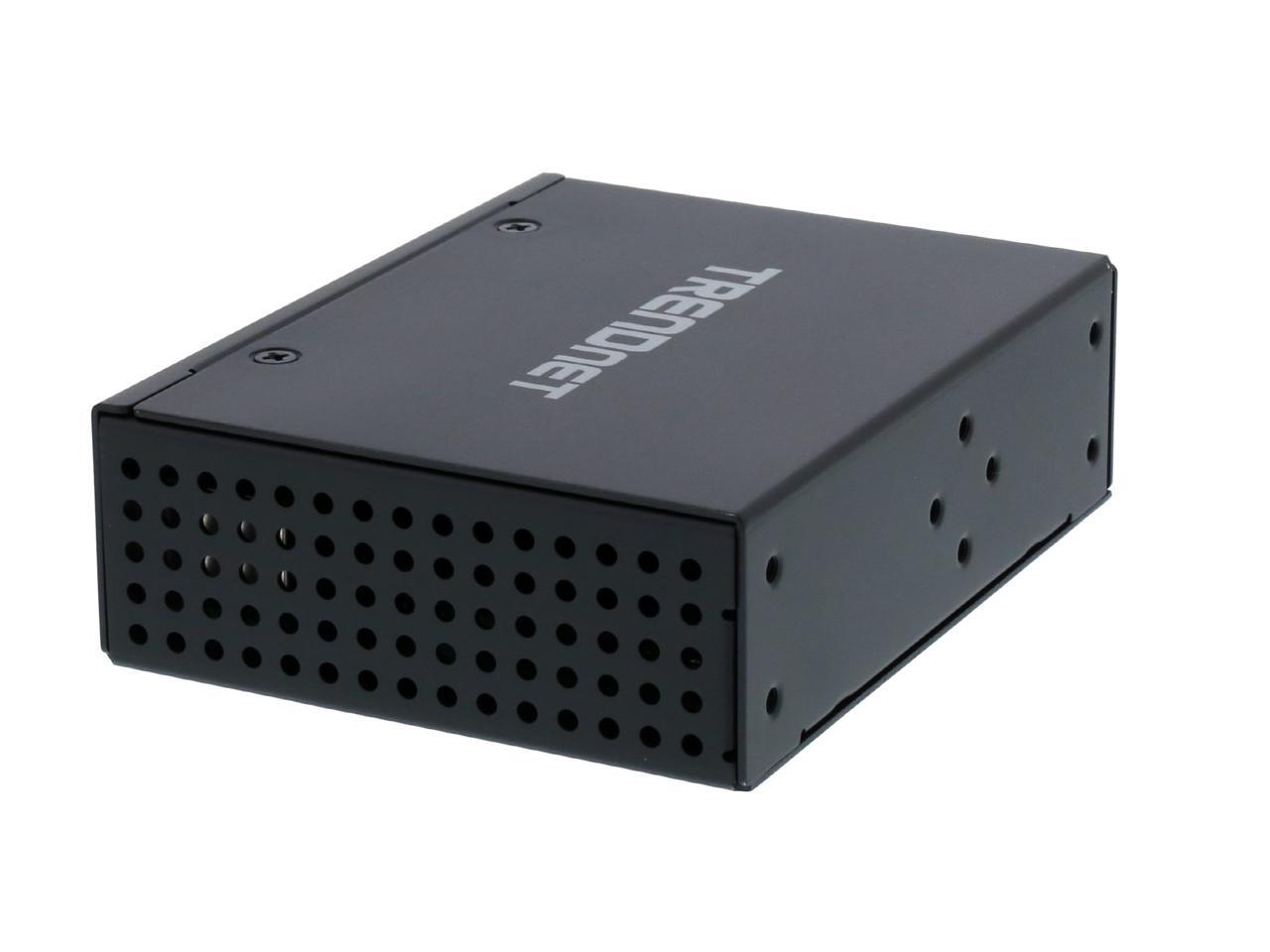

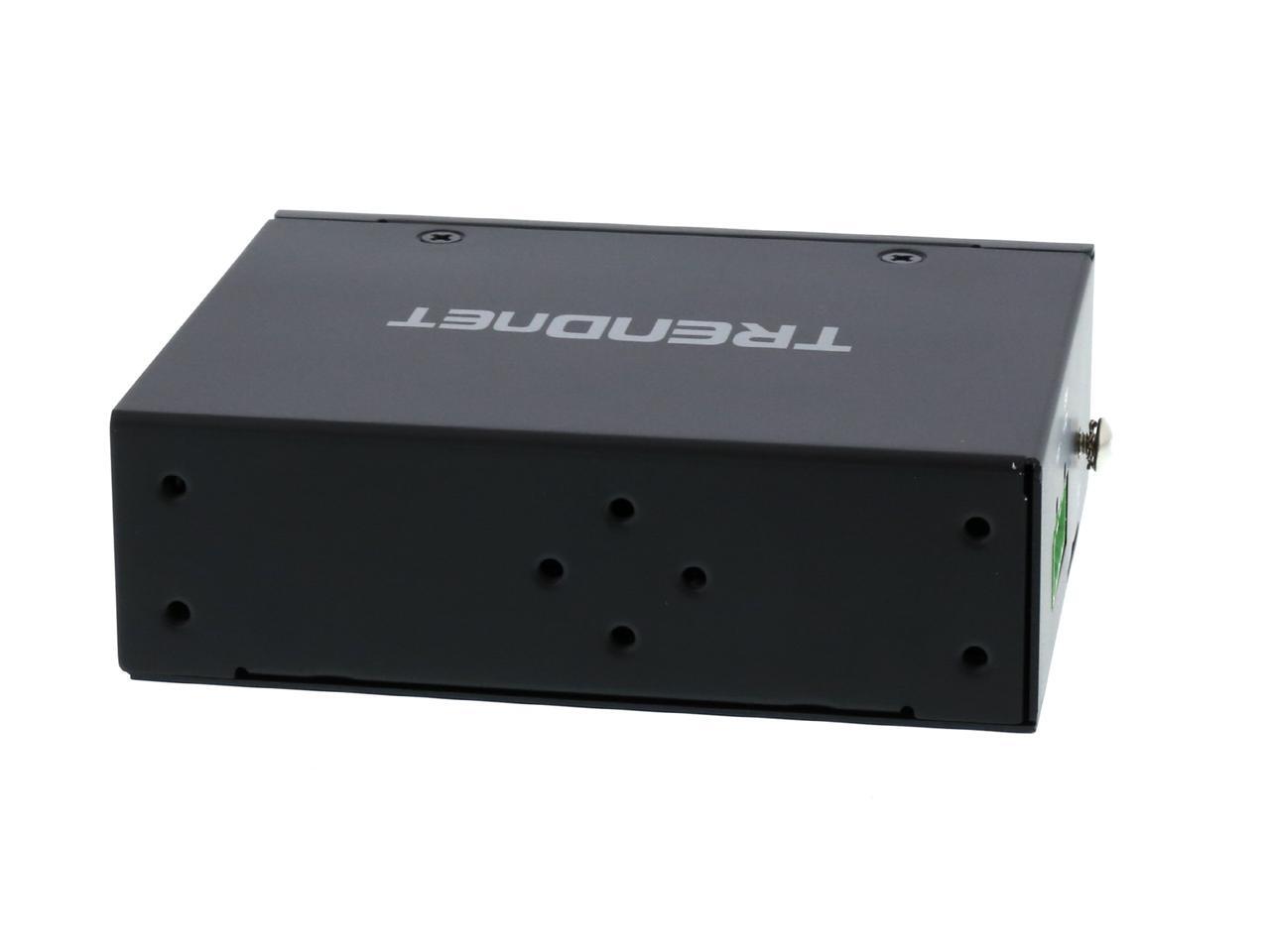

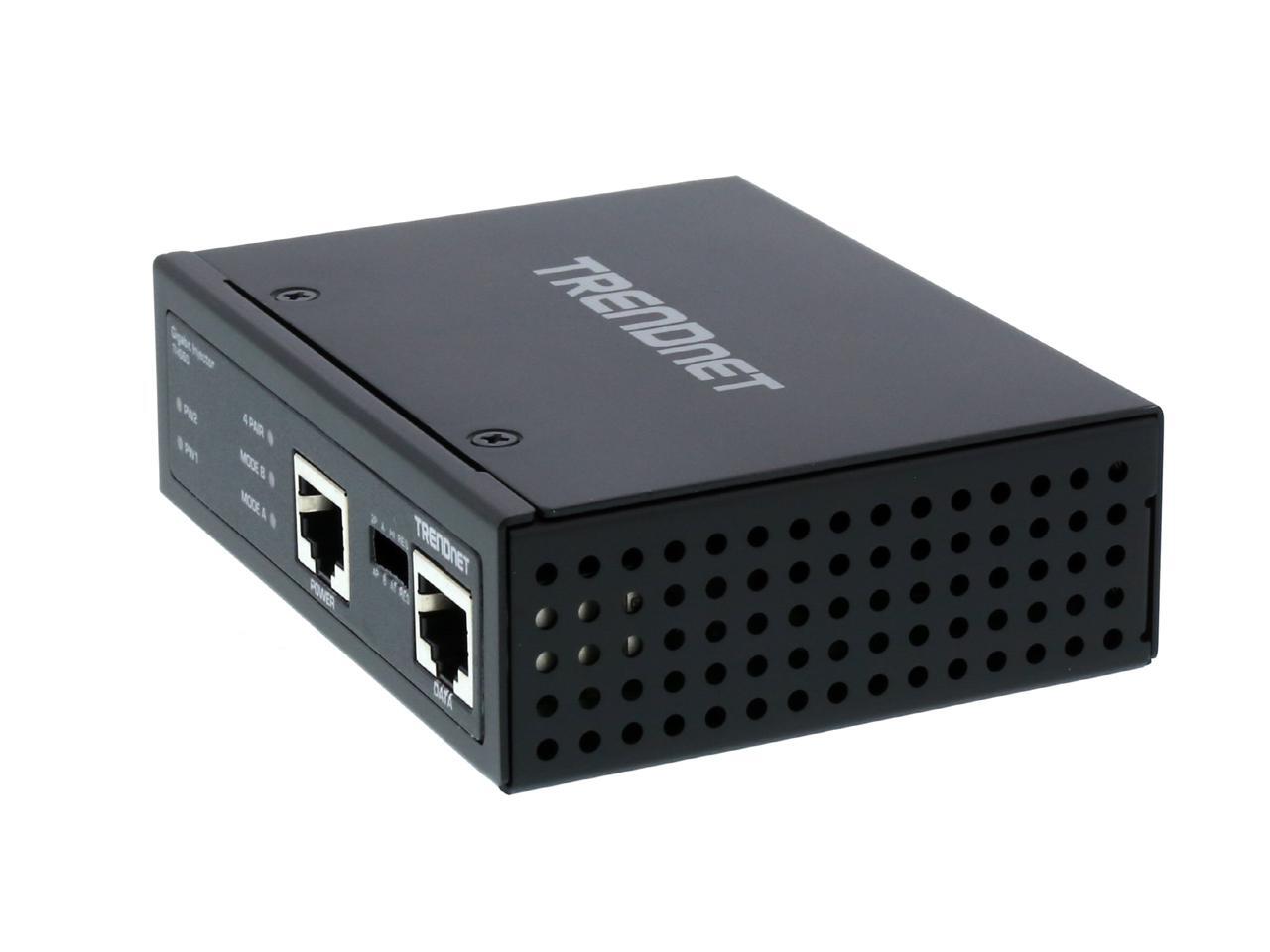

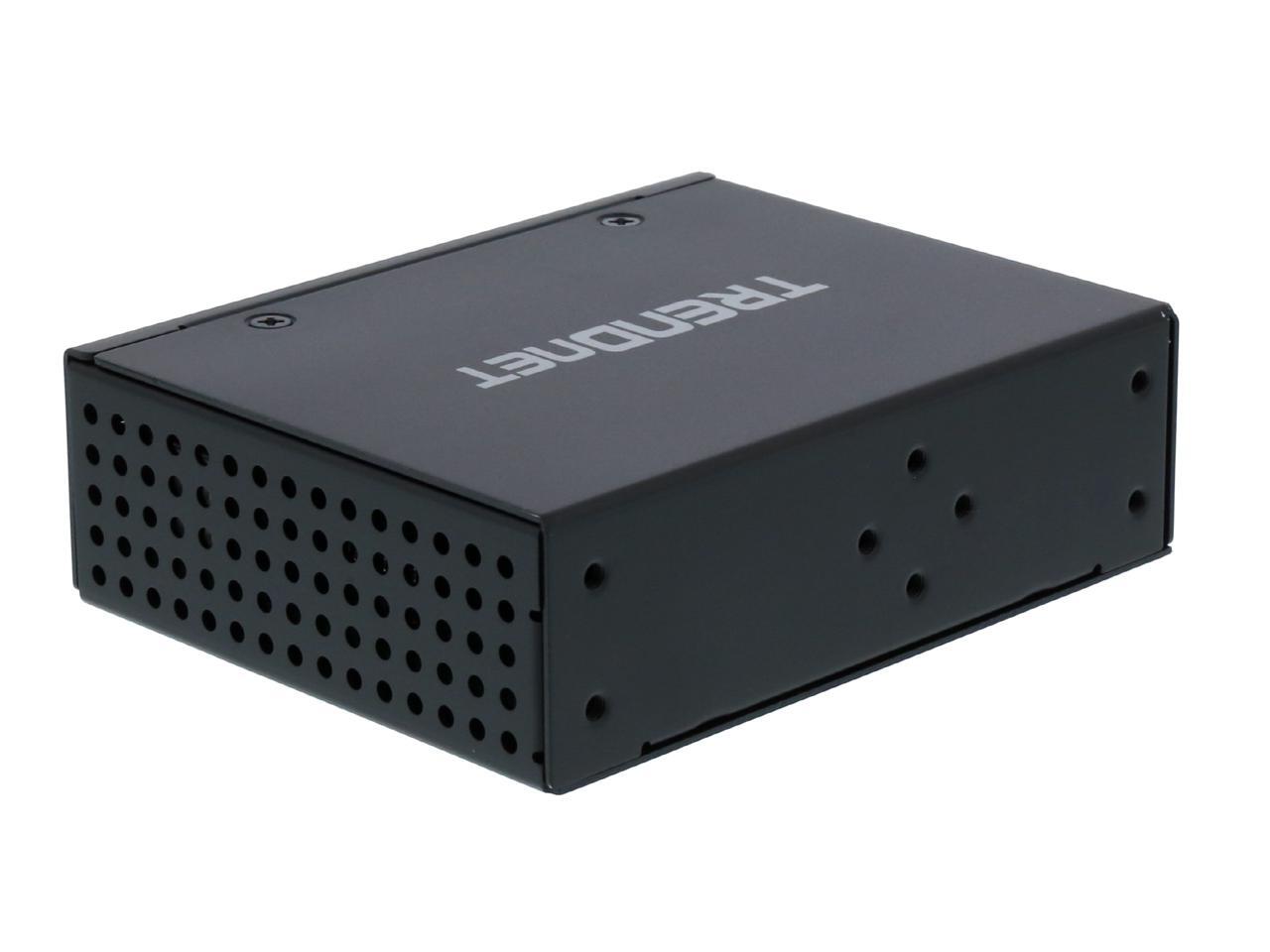

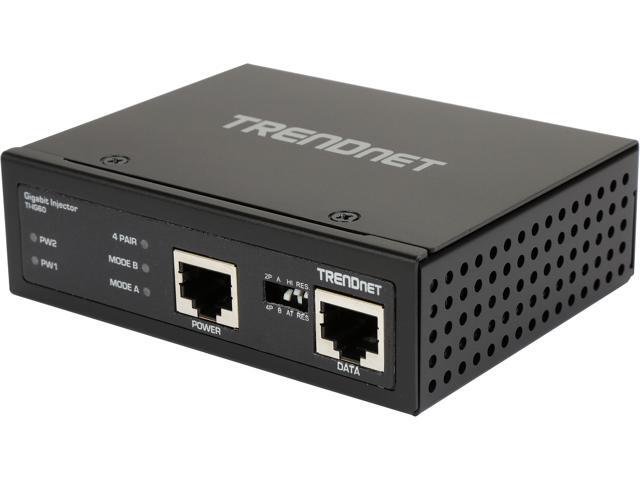

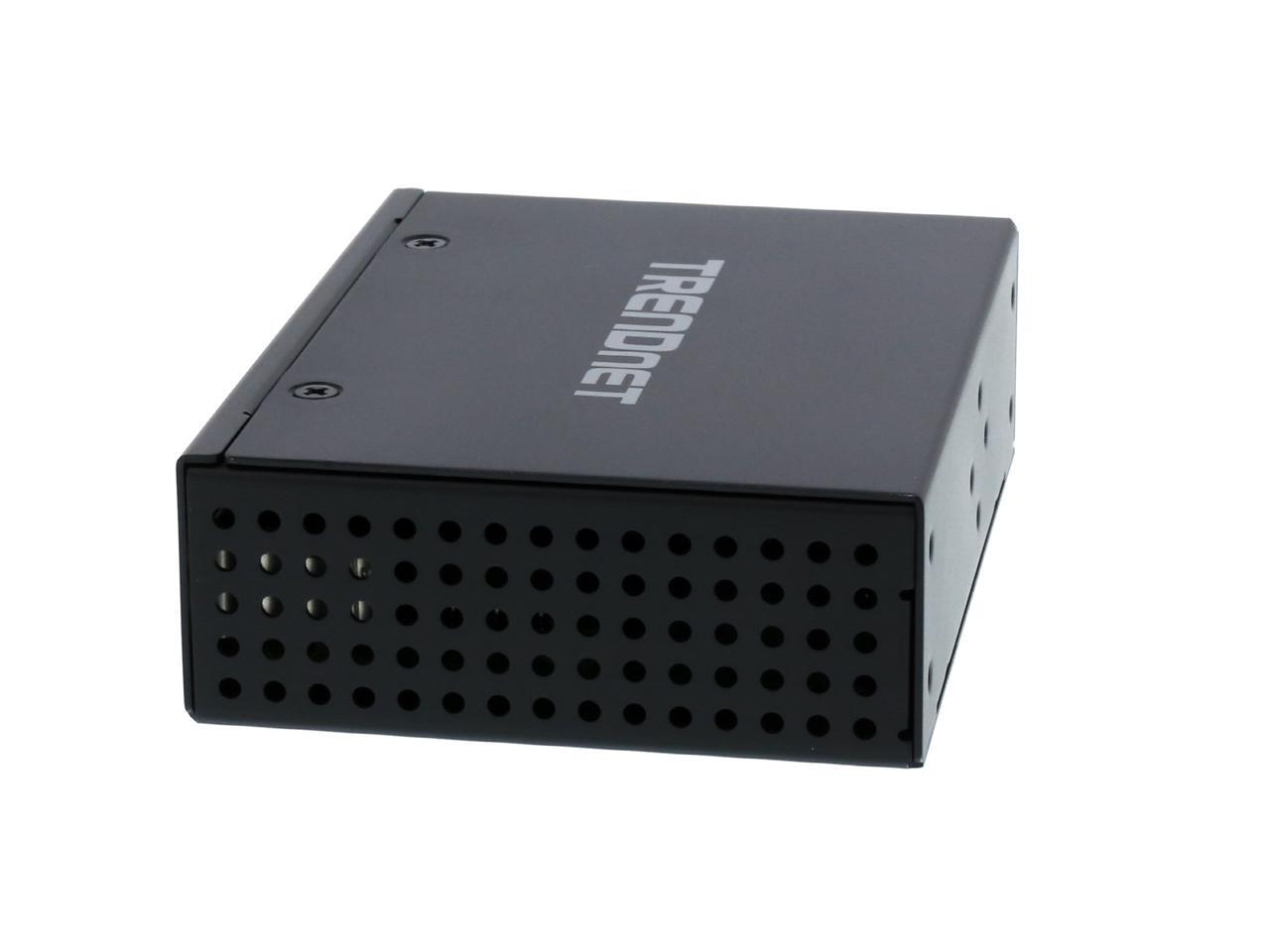

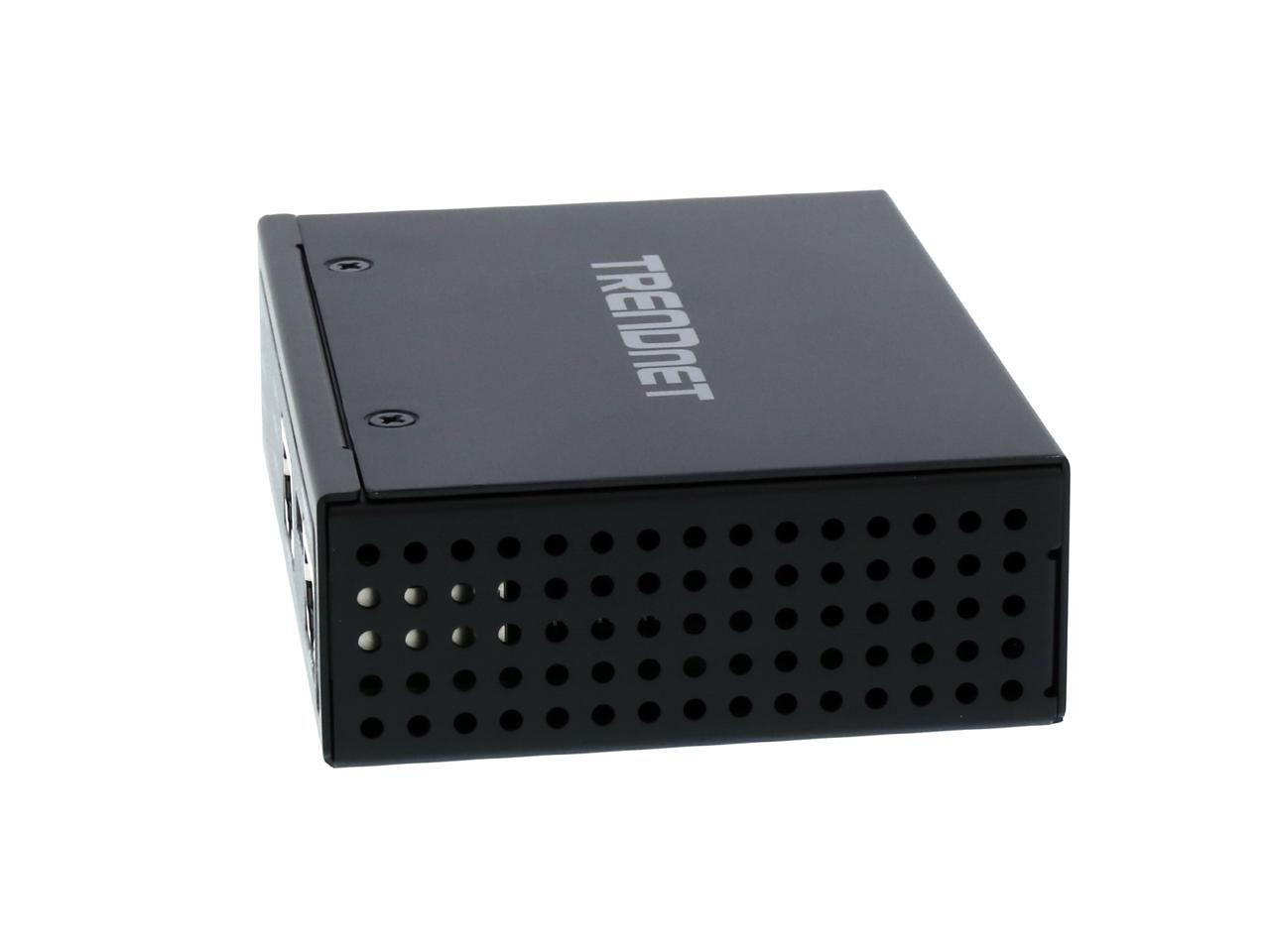

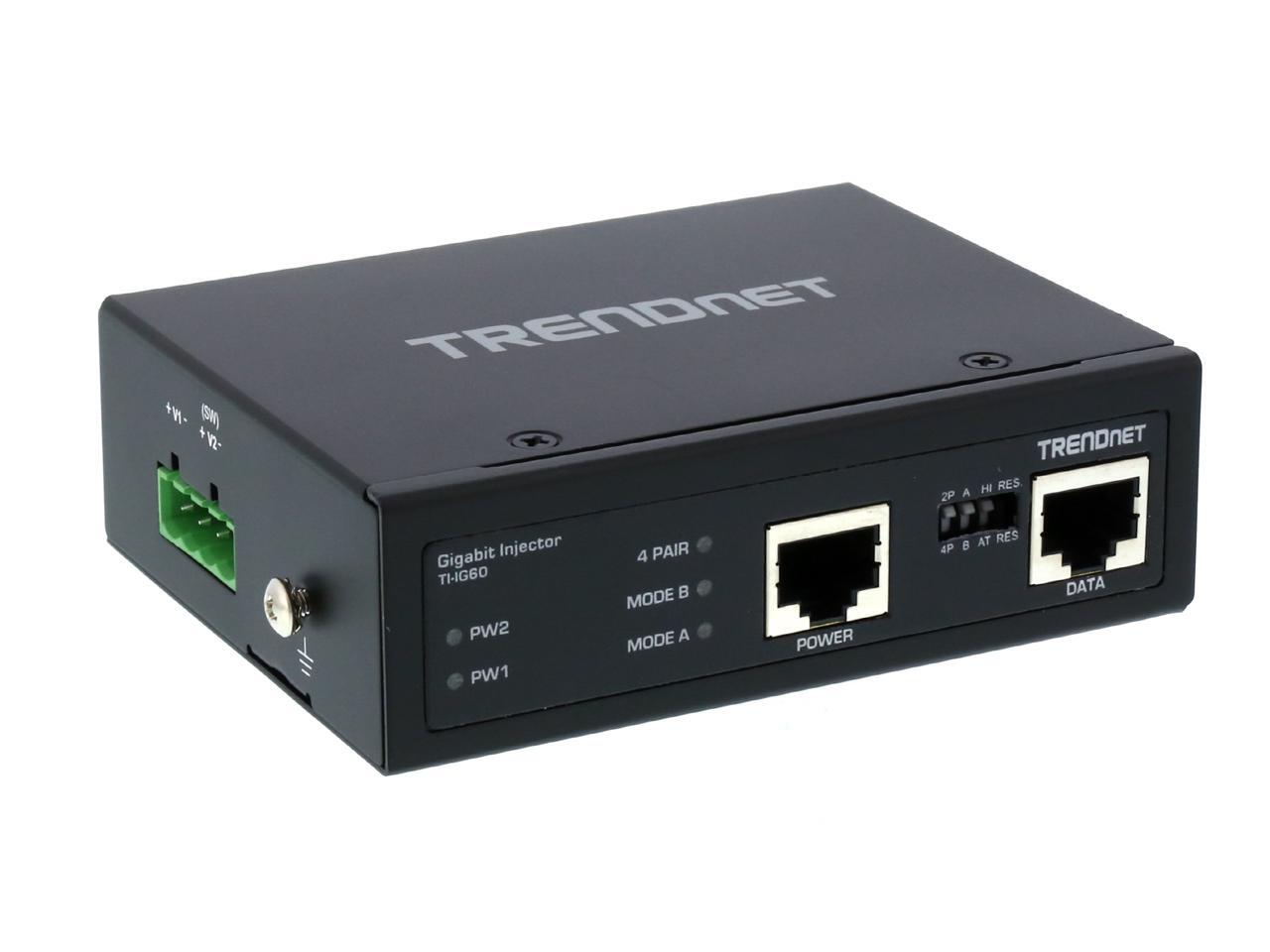

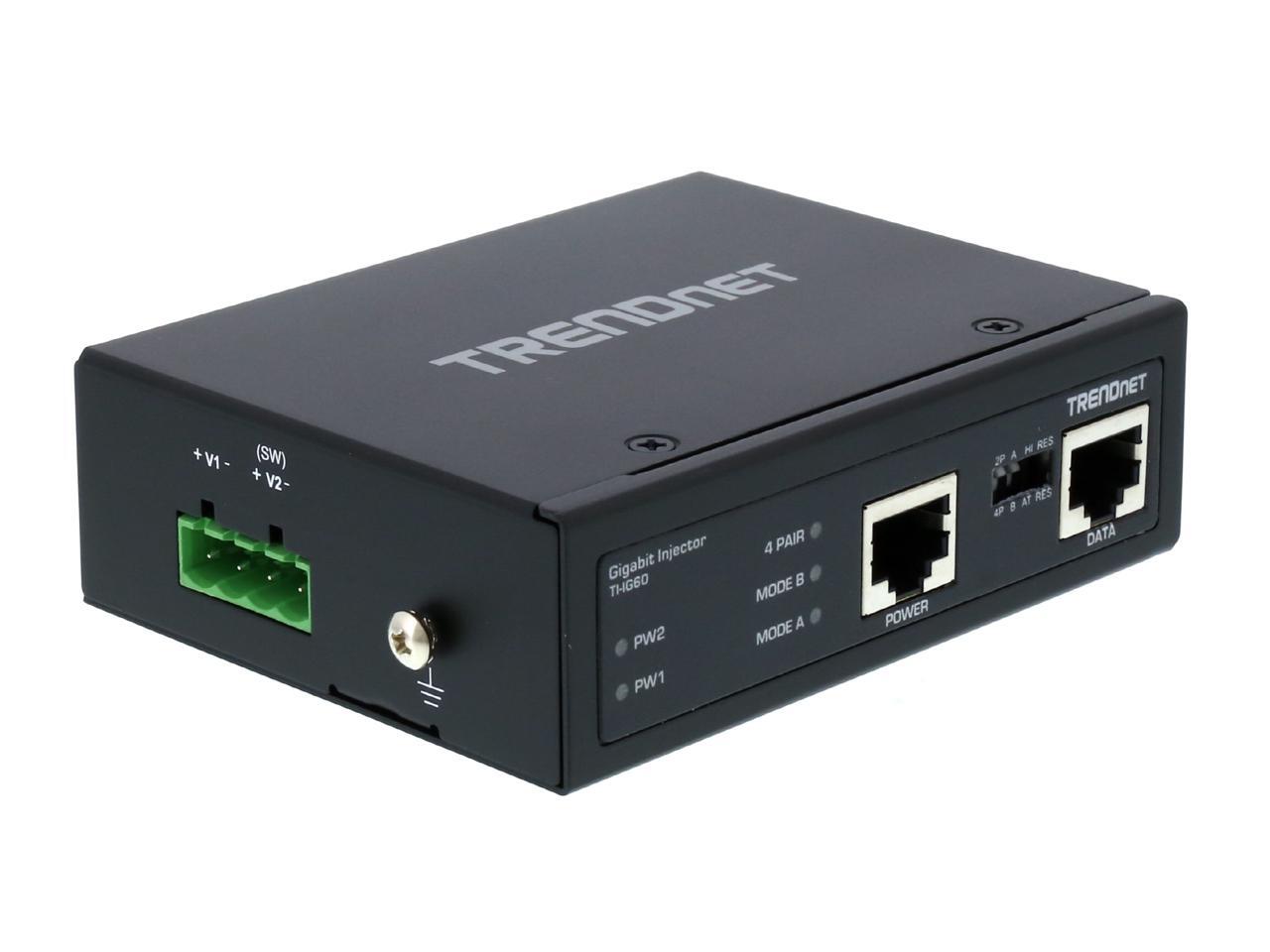

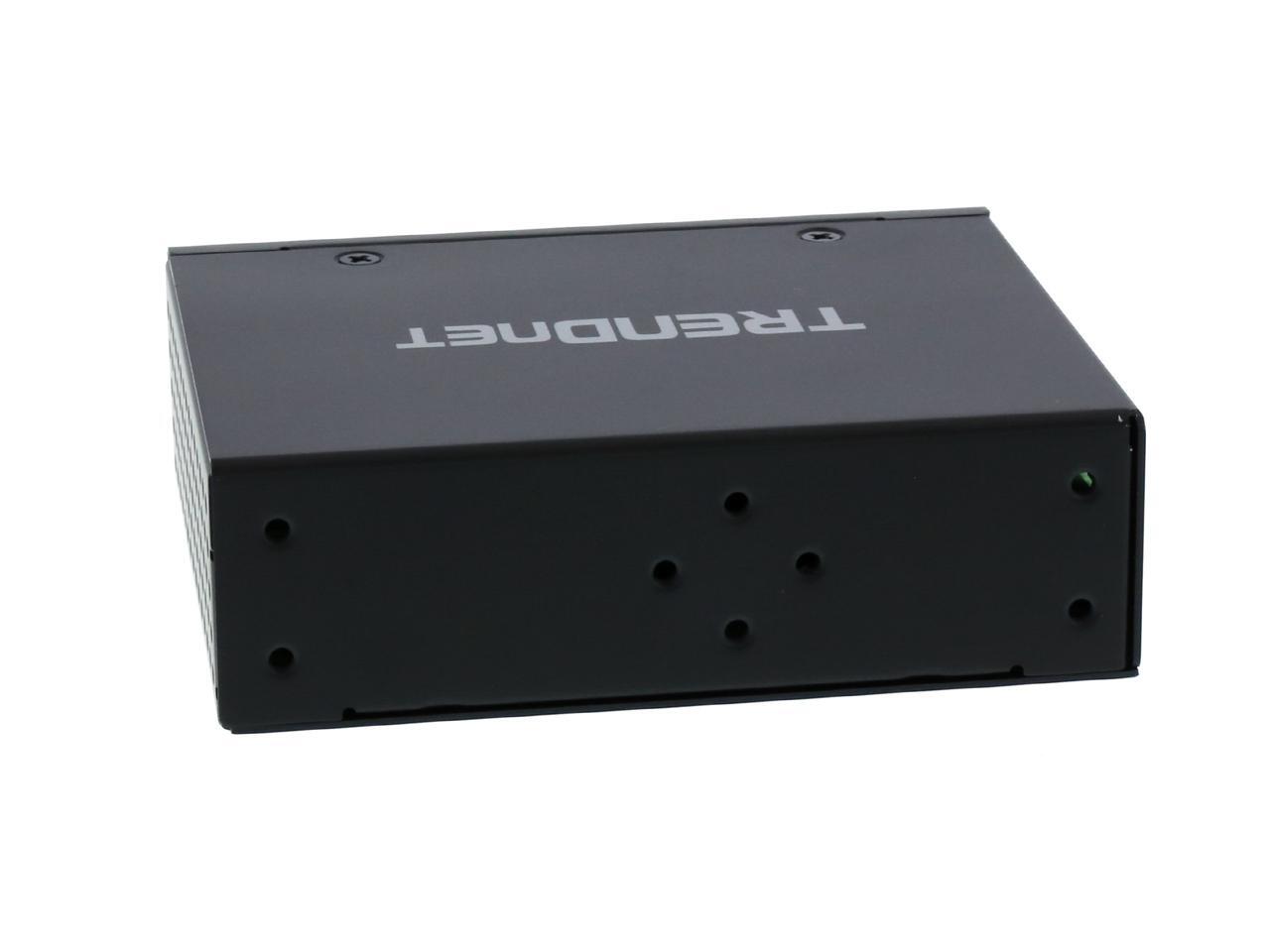

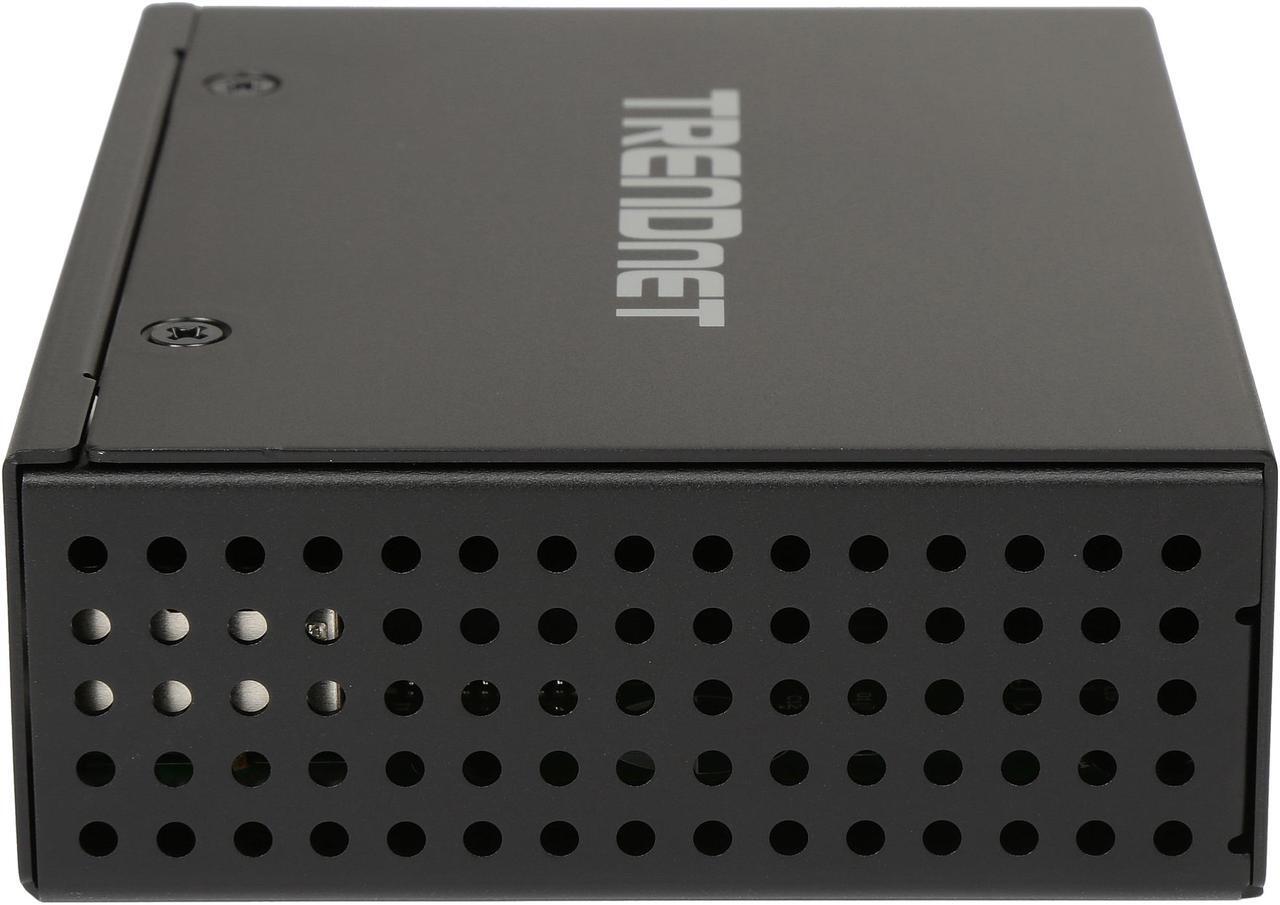

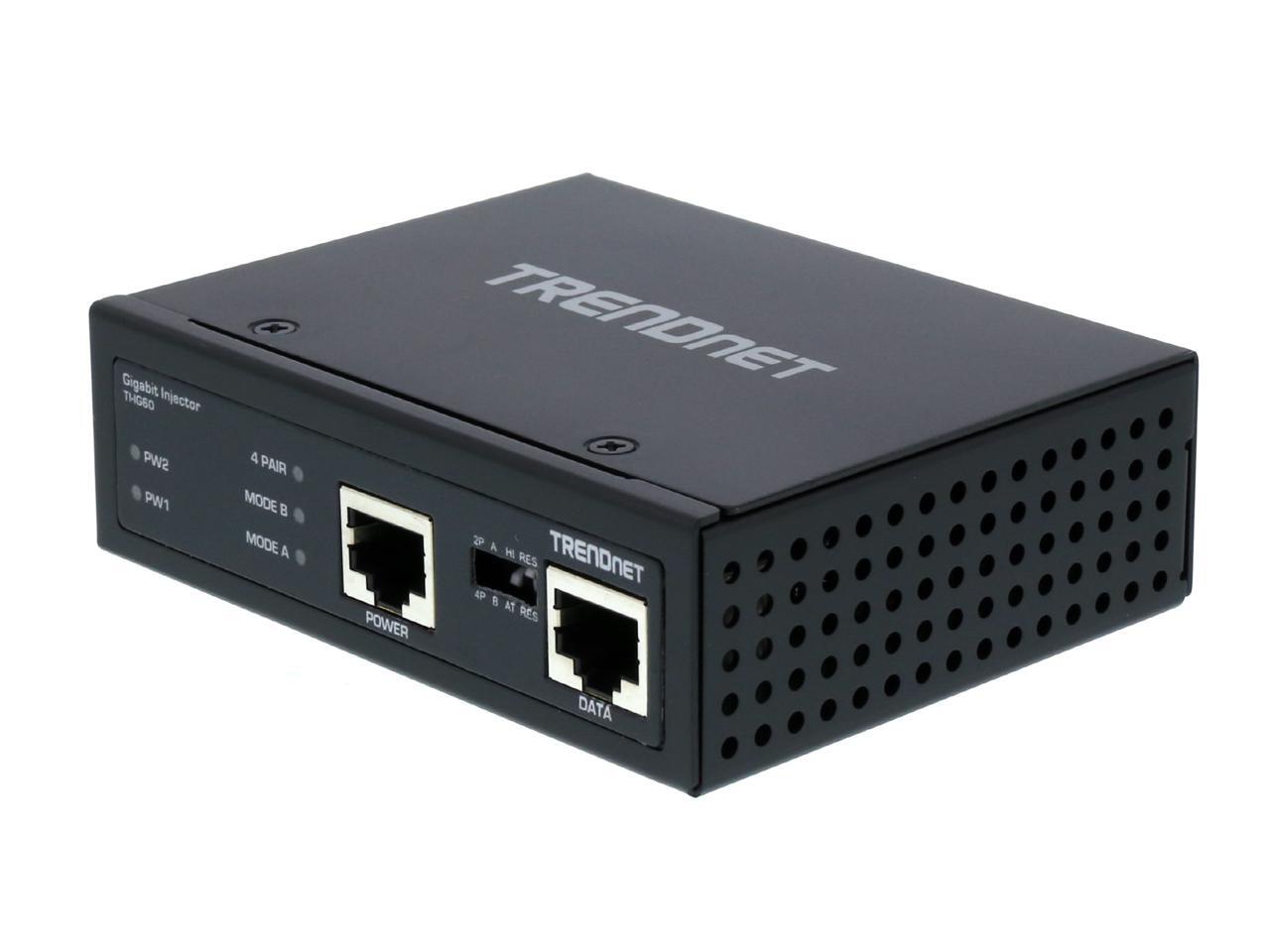

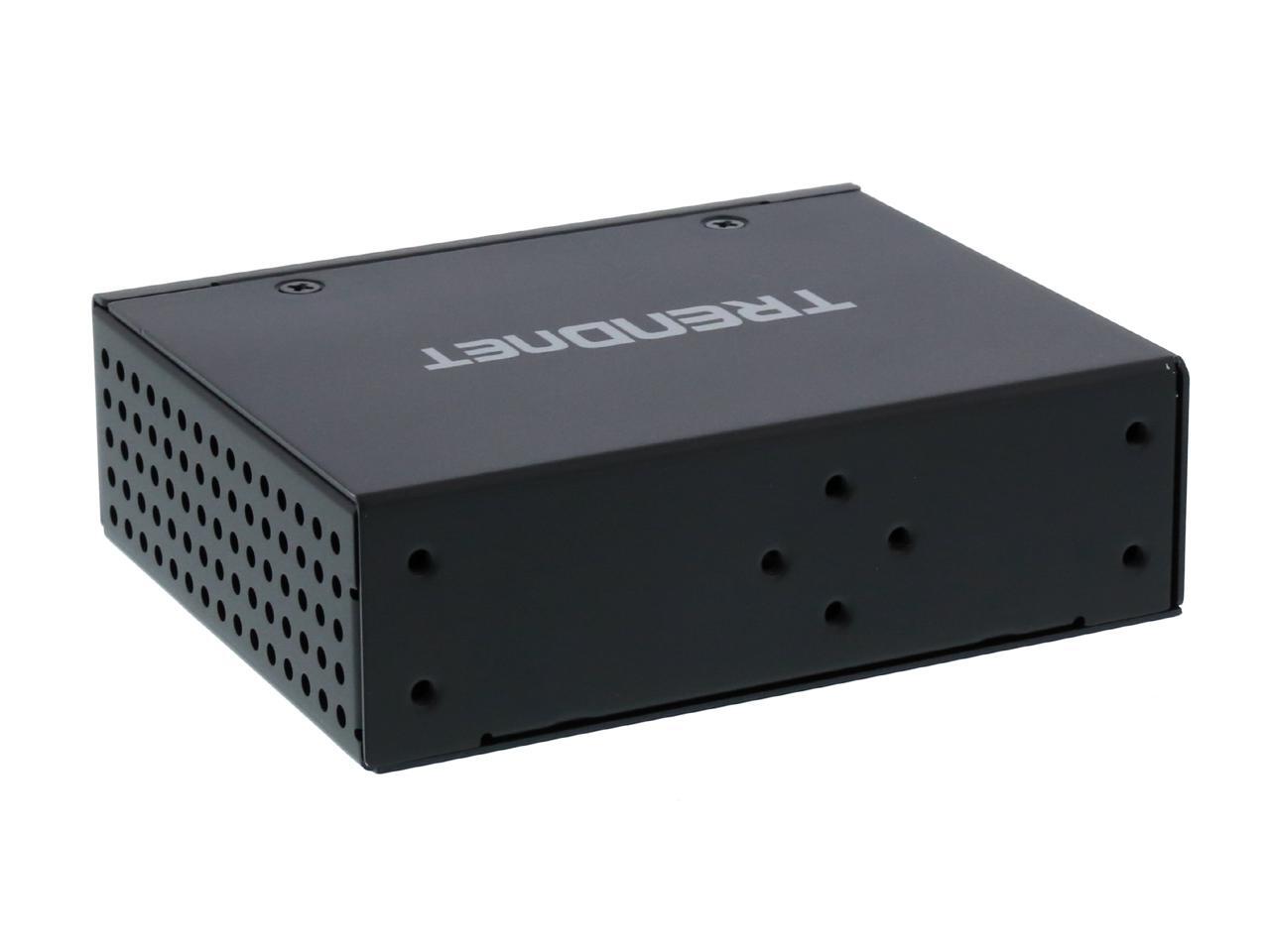

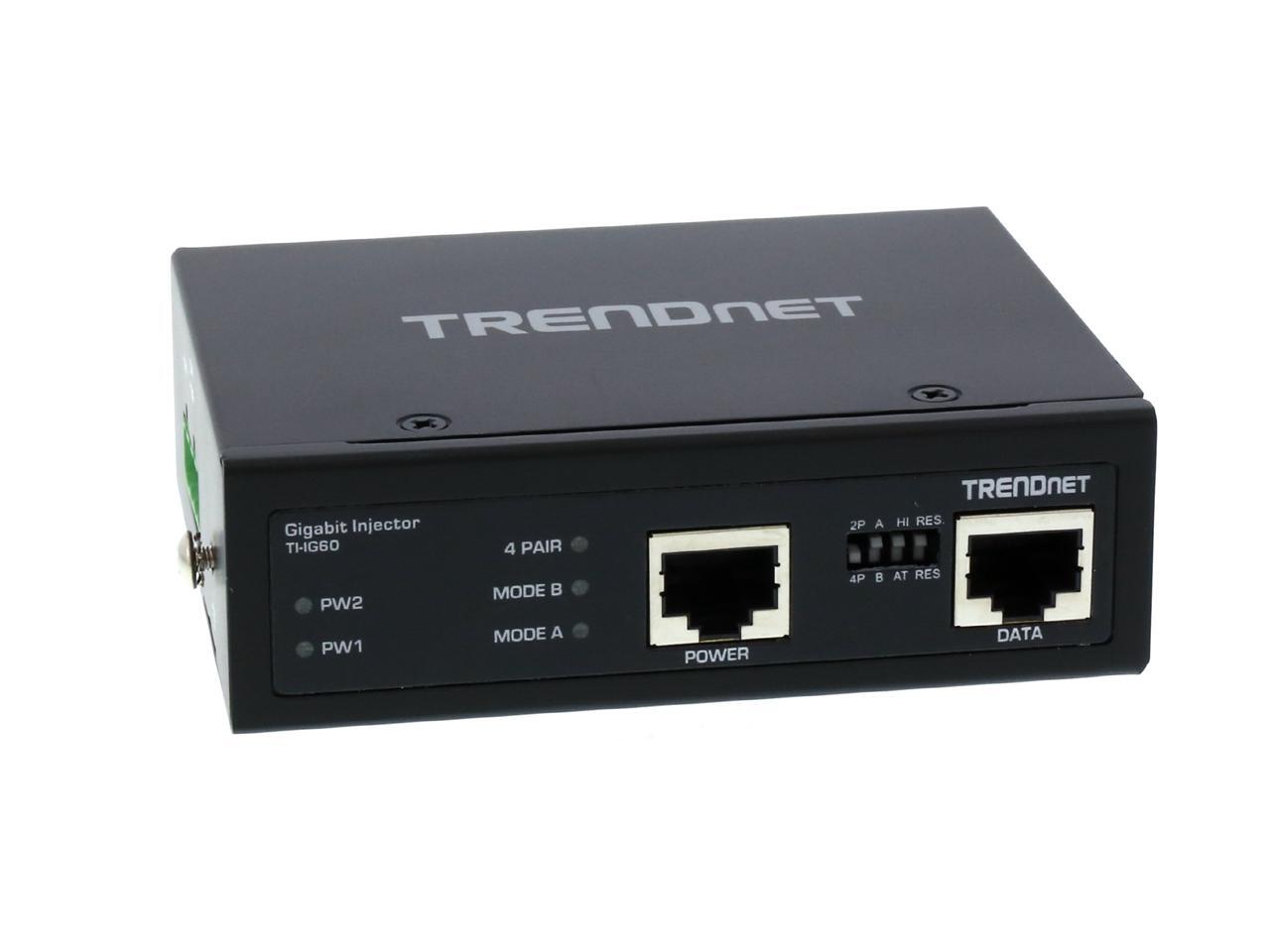

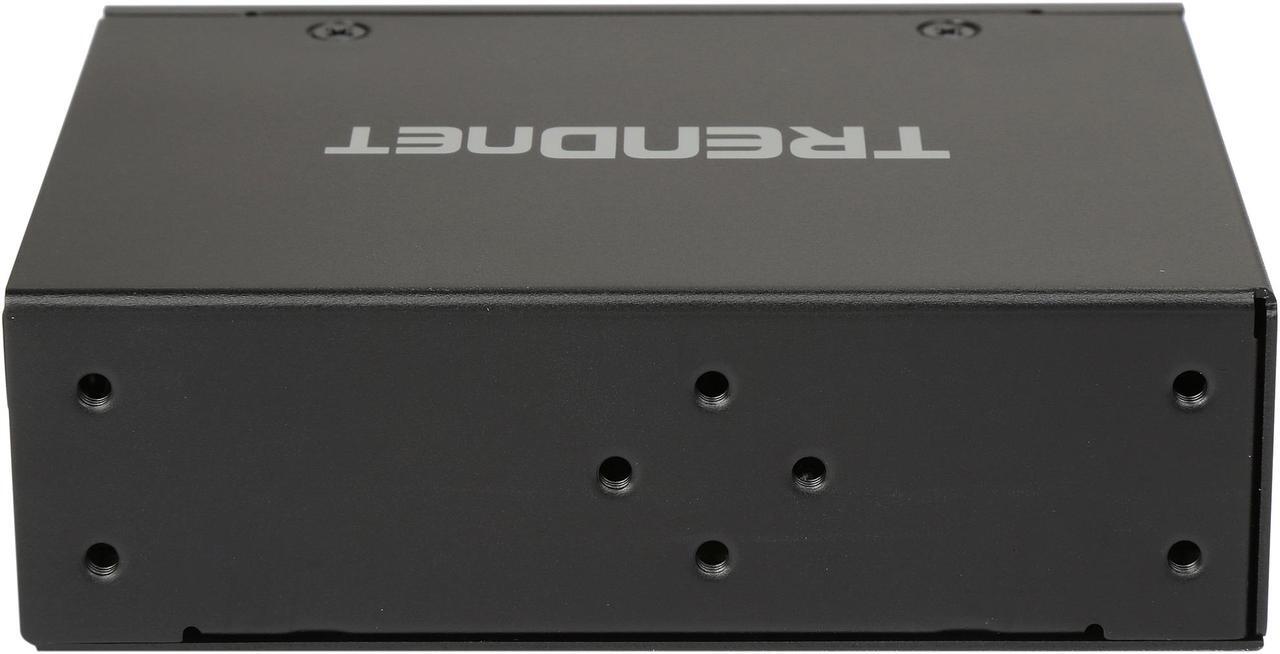

TRENDnet Hardened Industrial 60W Gigabit PoE+ Injector, DIN-Rail Mount, IP30 Rated Housing, Includes DIN-rail & Wall Mounts, TI-IG60
Be the first to review this product...
Hardened IP30 rated Gigabit PoE Injector
Supplies PoE (15 W), PoE + (30 W), high power PoE+ (36 W), or 60 Watt PoE power
Network a PoE device located up to 100 meters (328 feet) away
Extreme -40 to 75 °C (-40 to 167 °F) operating temperature range
Dual redundant power inputs with overload current protection

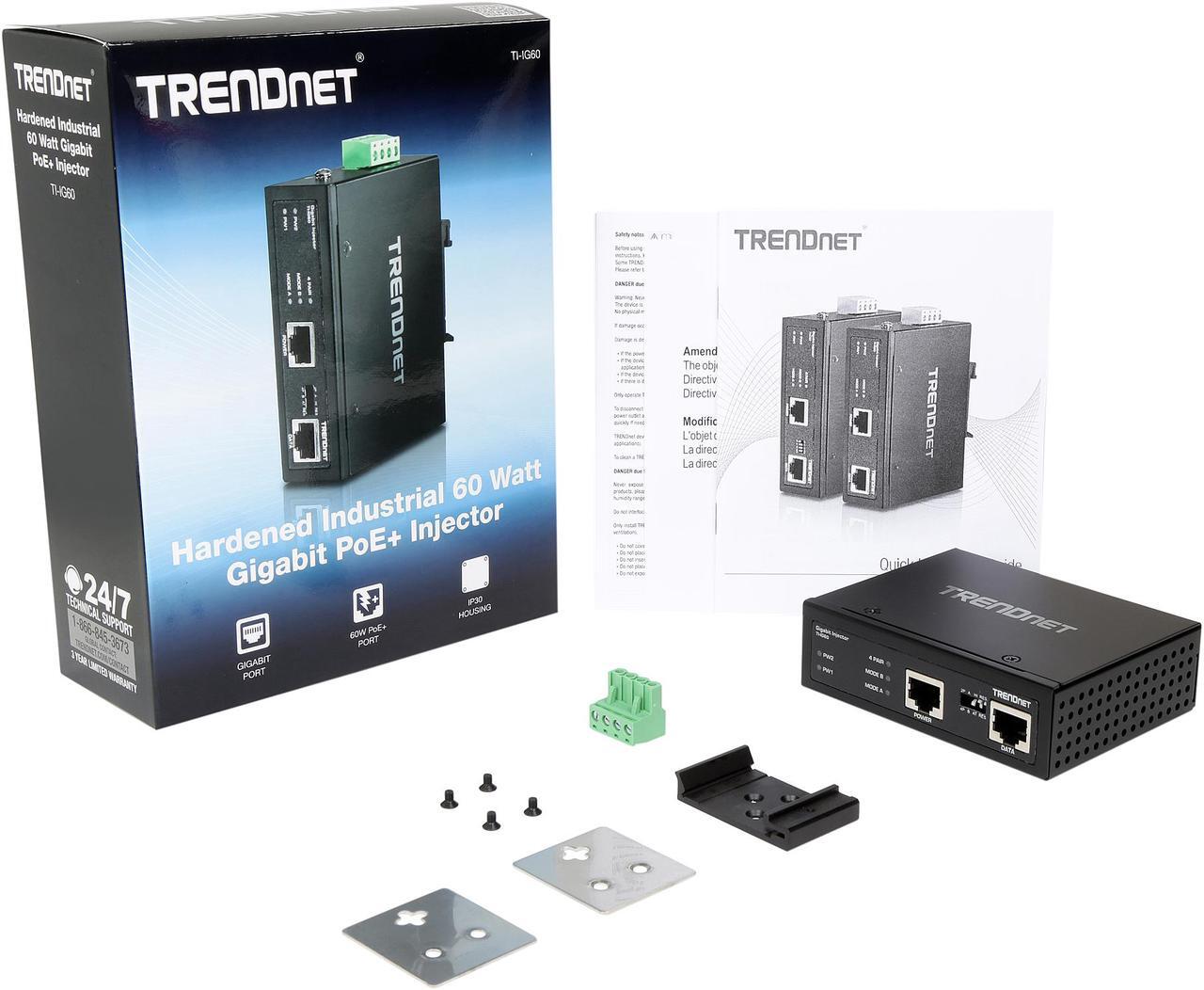

Includes DIN-Rail and wall mounts
Power supply sold separately (model TI-S15052, TI-S12048)
Overview
Specs
Reviews
HARDENED INDUSTRIAL 60 WATT GIGABIT POE
Learn more about the TRENDnet TI-IG60
Model
Brand
TRENDnet
Model
TI-IG60
Details
Type
PoE Injector
Color
Black
Specifications
Standards:
IEEE 802.3
IEEE 802.3u
IEEE 802.3ab
IEEE 802.3af
IEEE 802.3at

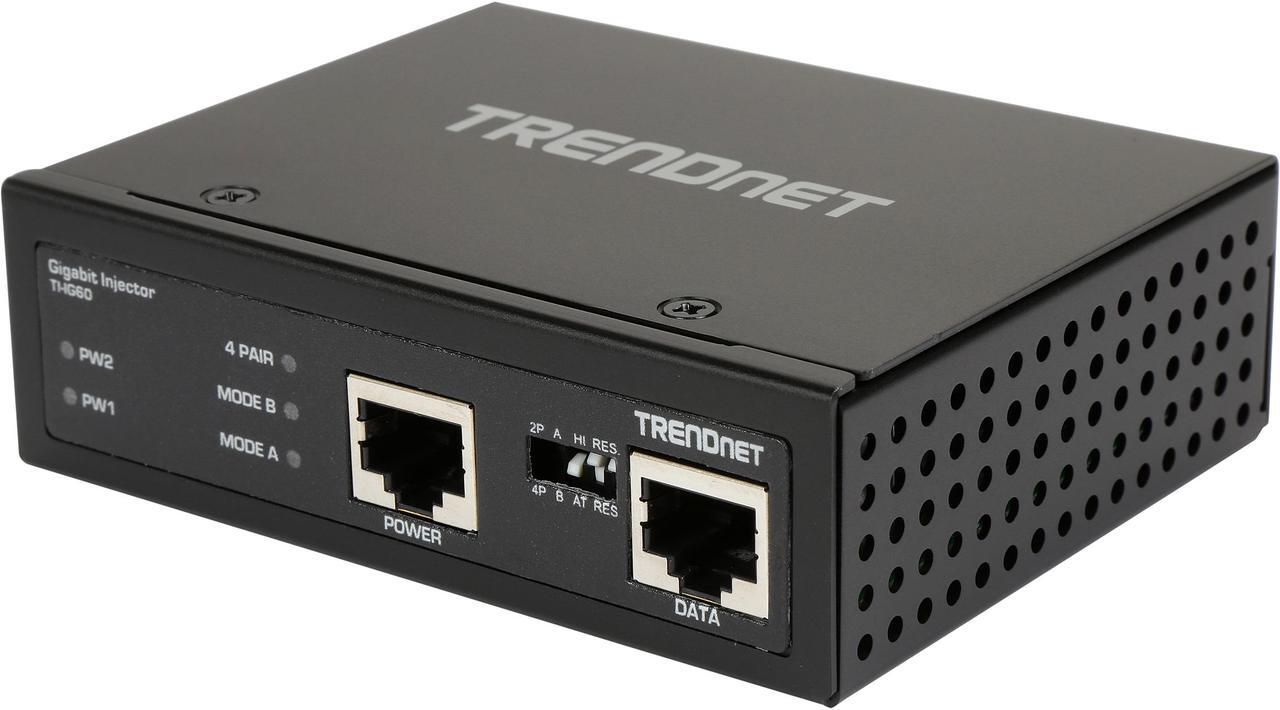

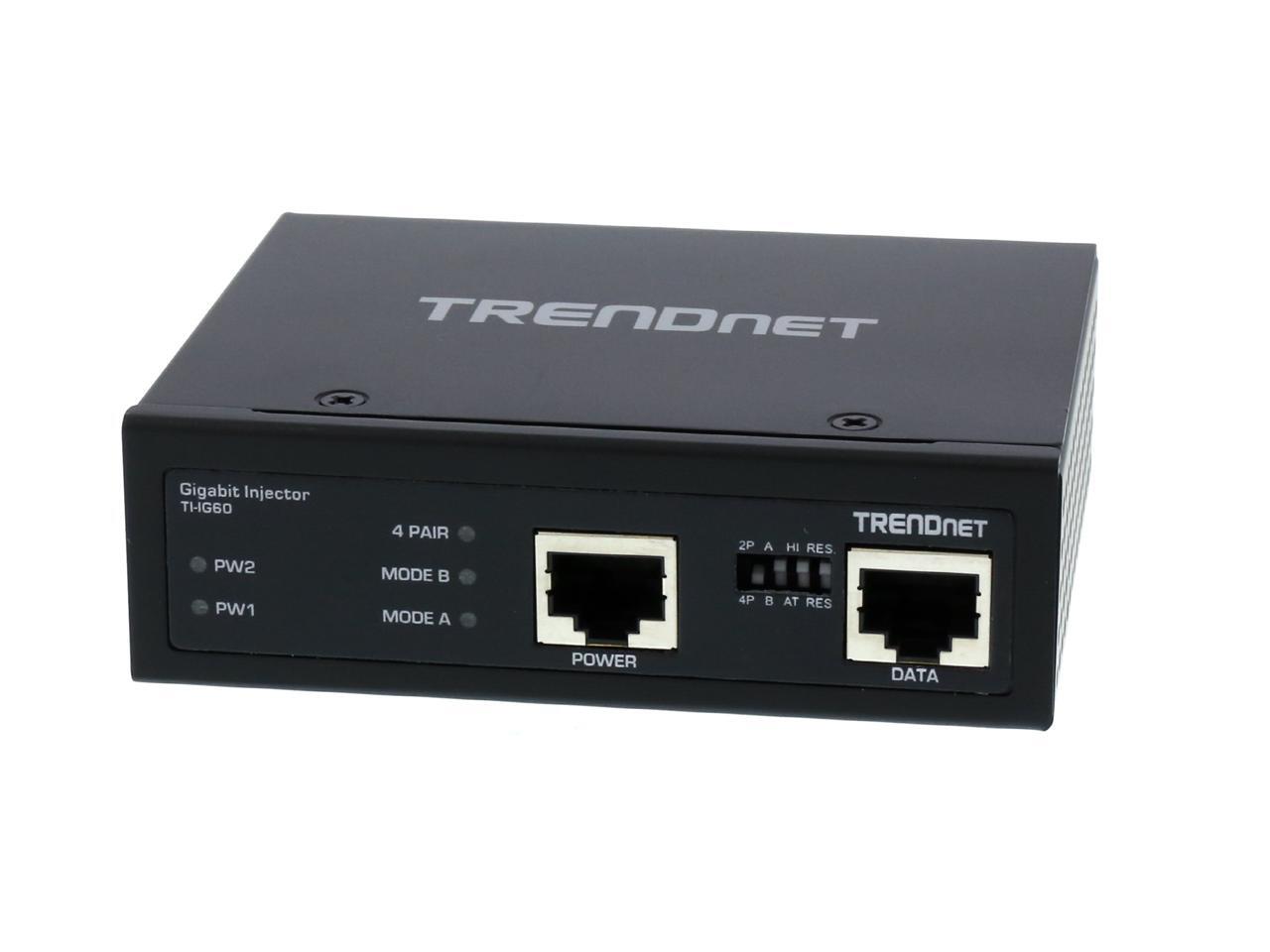

Device Interface:
1 x Gigabit port
1 x PoE+ Gigabit port

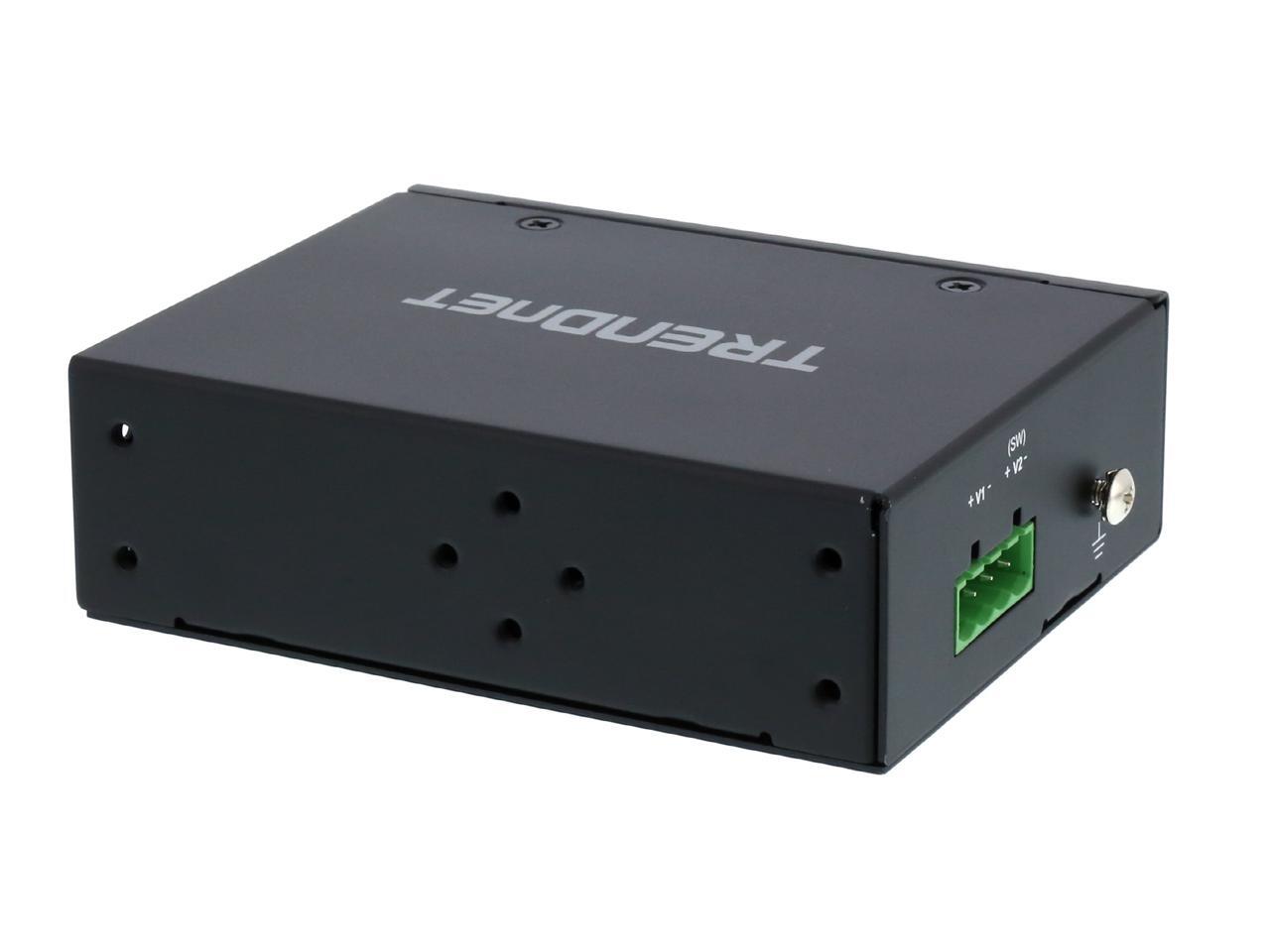

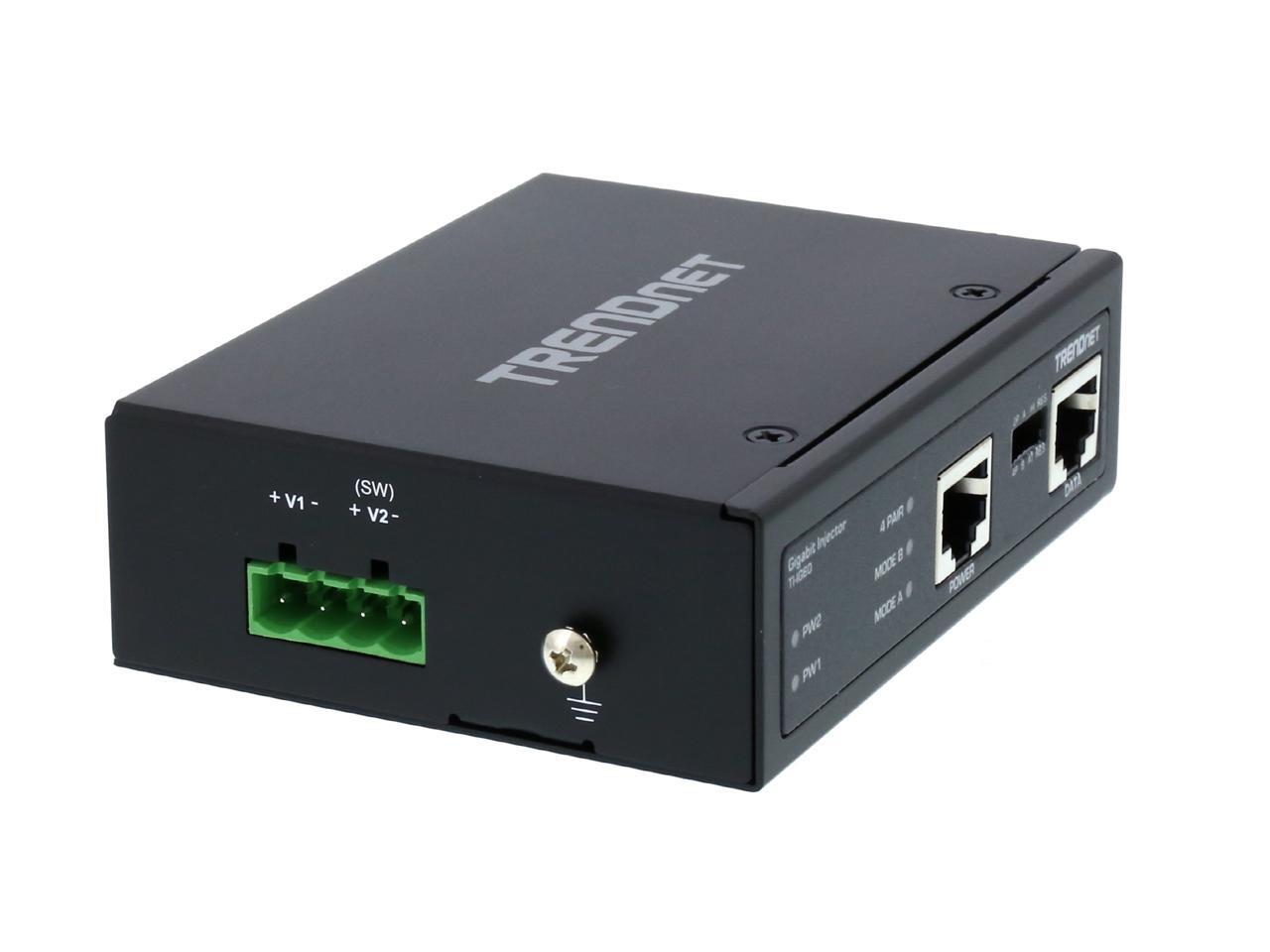

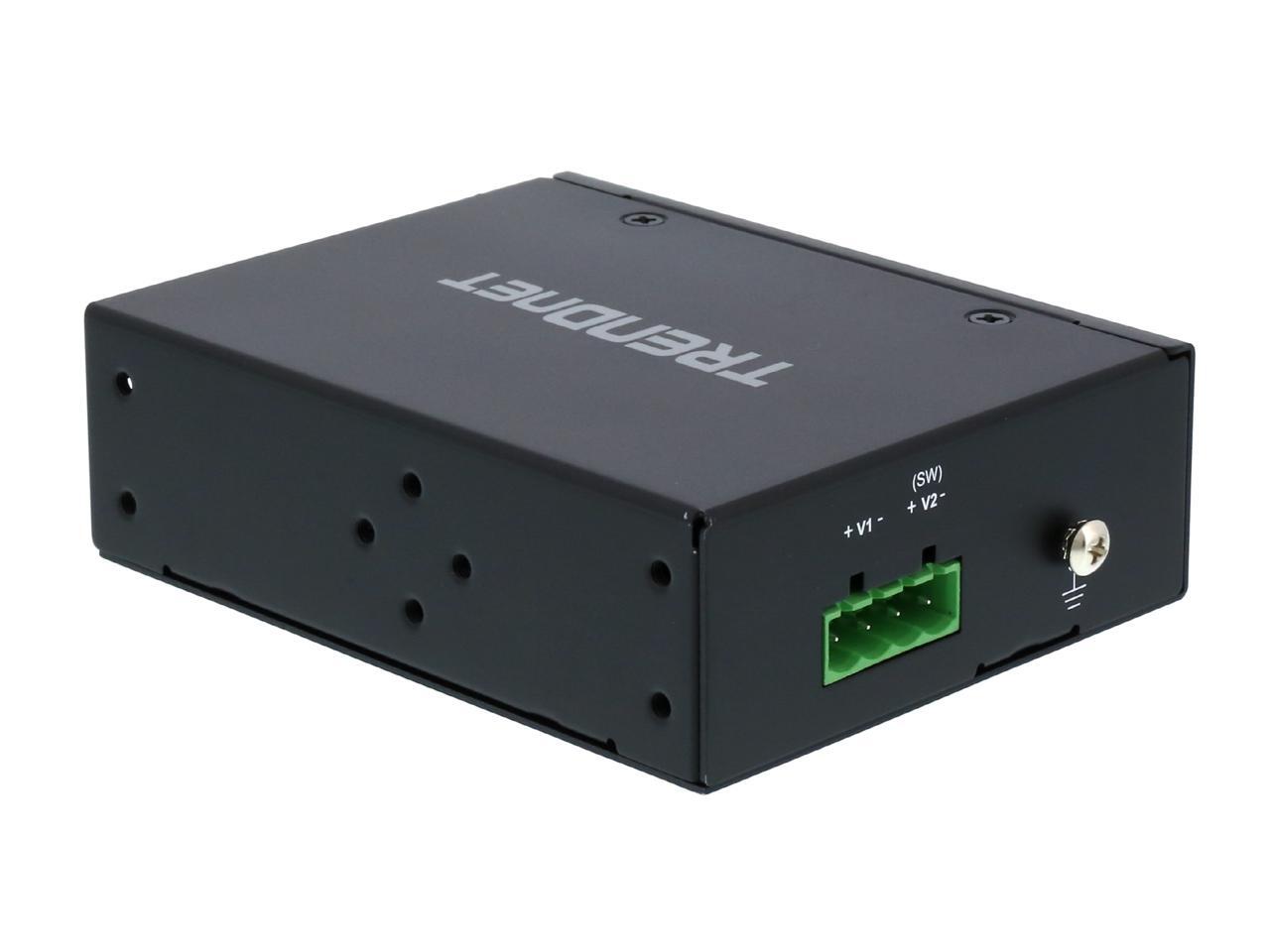

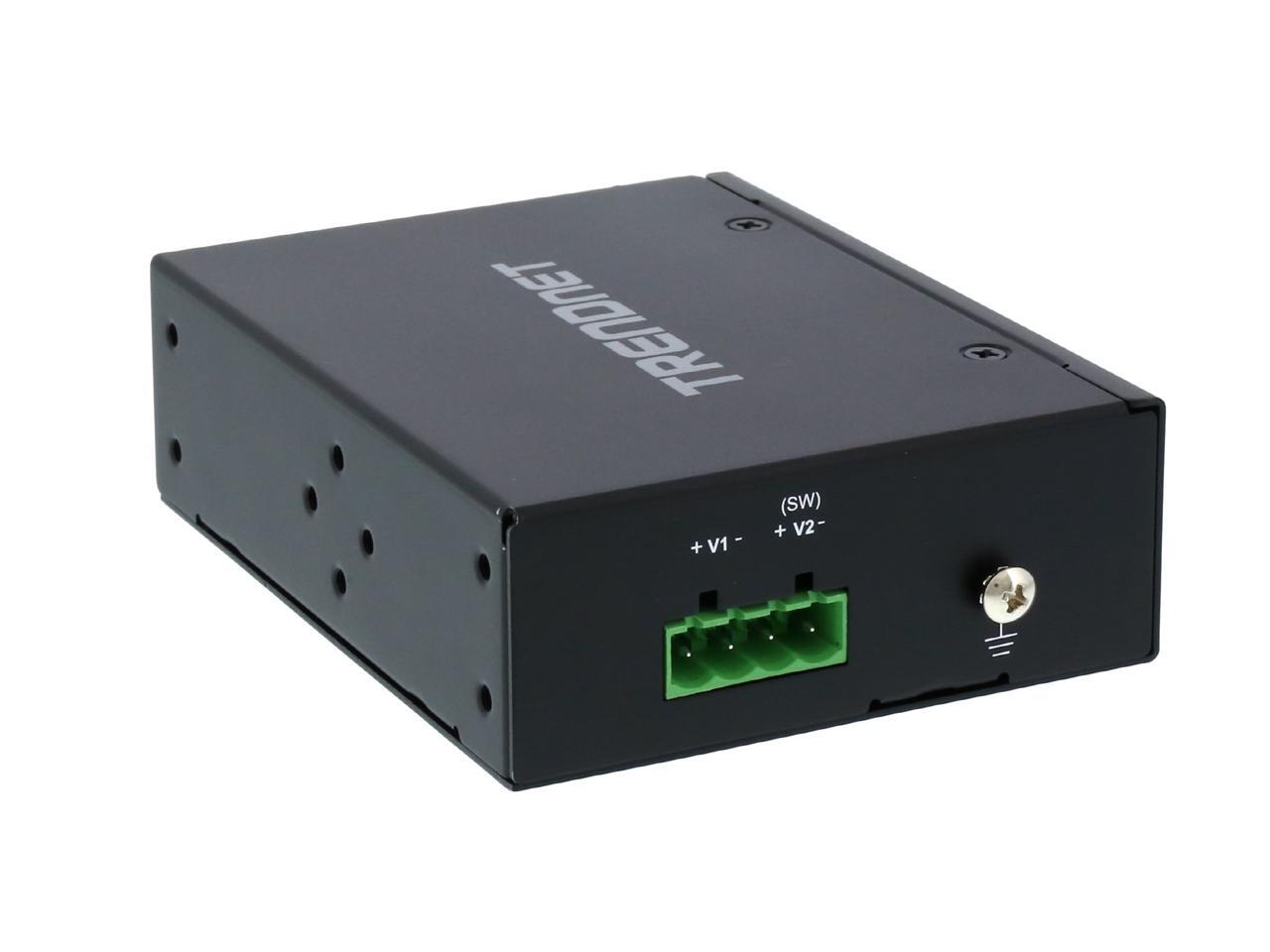

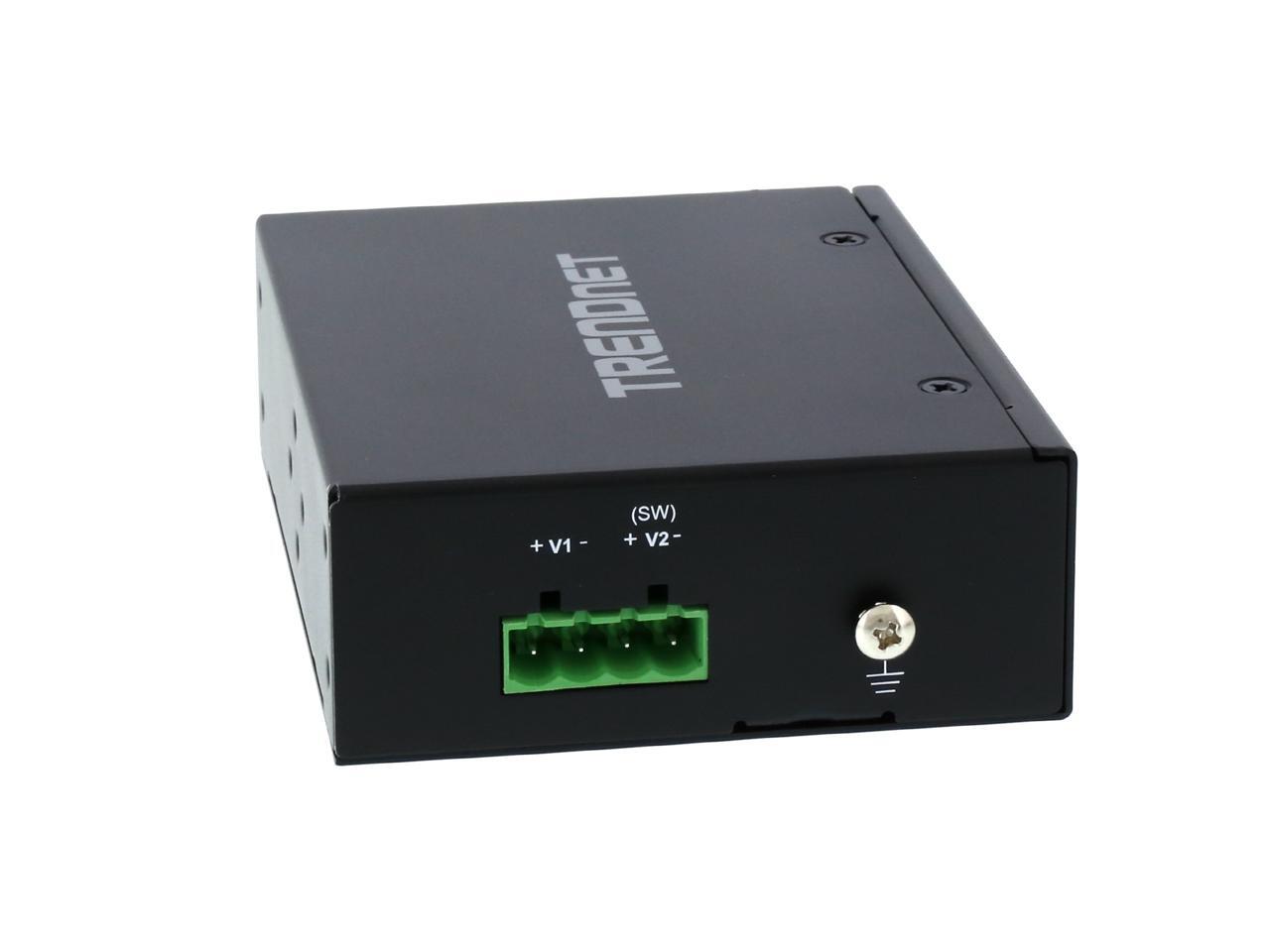

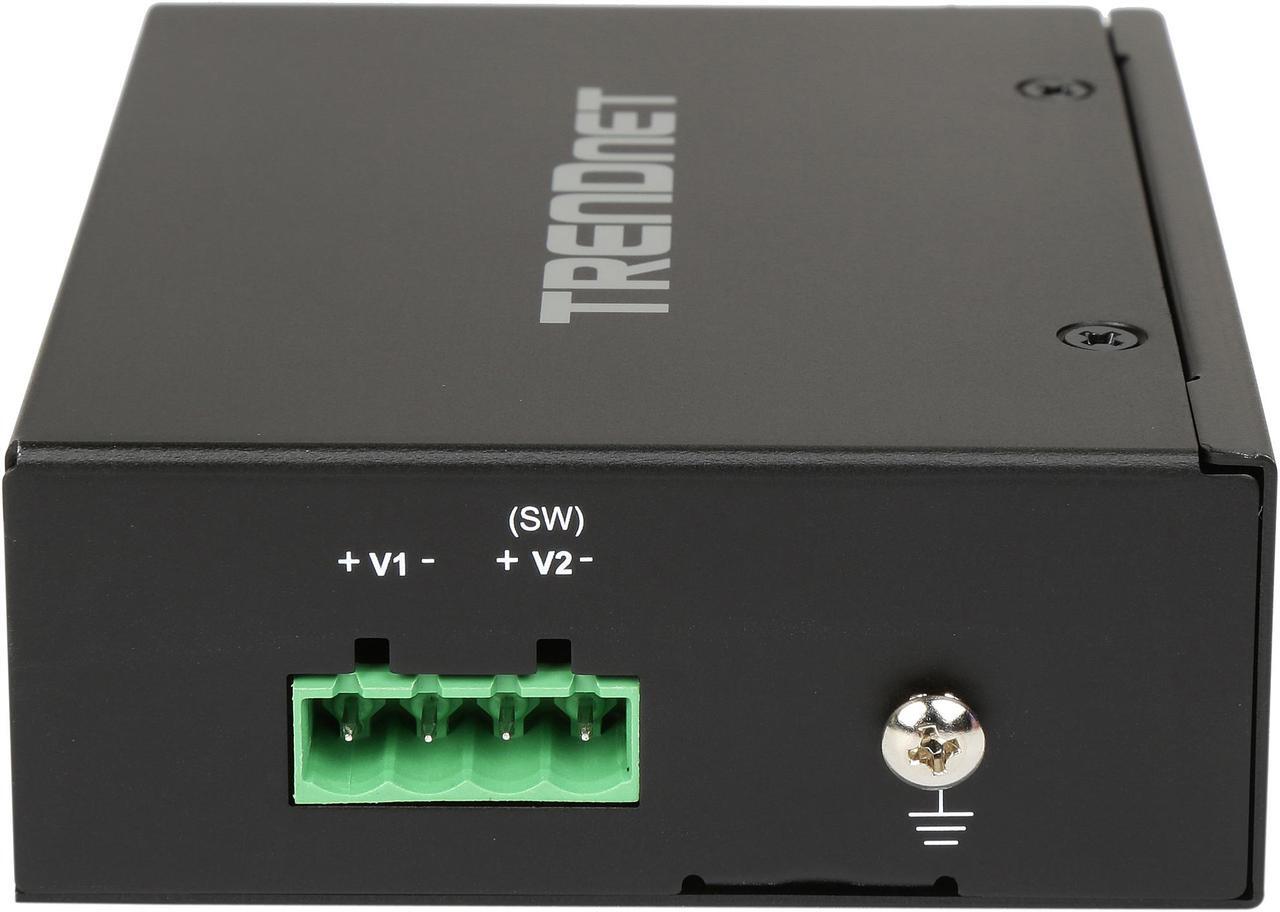

4-pin removable terminal block
LED indicators
DIN-Rail mount
Wall mount
Grounding point
Data Transfer:
RateEthernet: 10 Mbps (half duplex), 20 Mbps (full duplex)
Fast Ethernet: 100 Mbps (half duplex), 200 Mbps (full duplex)
Gigabit: 2000 Mbps (full duplex)
Power:
Input: 48 – 56 V DC
Compatible power supply: TI-S12048 (sold separately)
Consumption: Max. 72 Watts
PoE budget: 60 Watts
Pin 1,2 for power+ and pin 3,6 for power- (mode A)
Pin 4,5 for power+ and pin 7,8 for power- (mode B)
Features
Features
Hardened IP30 rated Gigabit PoE Injector
Supplies PoE (15 W), PoE + (30 W), high power PoE+ (36 W), or 60 Watt PoE power
Network a PoE device located up to 100 meters (328 ft.) away
Extreme -40 to 75 degree C (-40 to 167 degree F) operating temperature range
Dual redundant power inputs with overload current protection
Includes DIN-rail and wall mounts
Power supply sold separately (model TI-S12048)
