TRENDnet Wired & Wireless Accessories

• Type: MoCA Adapters
• Model #: TMO-311C2K

• Type: Gigabit PoE+ Injector
• Color: Black
• Specifications: Standard: IEEE 802.3/3u/3ab, IEEE 802.3af/3at Ports: 1 x 10/100/1000 Mbps Data-In (Data only), 1 x 10/100/1000 Mbps PWR+Data out (Data + Power) PoE Delivery: Pair 1: Pin 1, 2; Pair 2: Pin 3, 6 Power: Input: 100~240 V, 50~60 Hz, 0.65 A max. Power Consumption: Max 30 Watts Dimensions: 5.2" x 2.5" x 1.4" Weight: 162 g (5.7 oz.) Certifications: CE, FCC
• Parts: 3 Year Limited
• Model #: TPE-115GI

• Type: PoE+ Injector
• Color: Black
• Specifications: Standards: IEEE 802.3 IEEE 802.3u IEEE 802.3ab IEEE 802.3af IEEE 802.3at IEEE 802.3bt compatible Device Interface: 1 x Gigabit Data in port 1 x Gigabit Ultra PoE out port Metal Housing Power Input: 100-240V, 2A 50-60Hz Output: 52V, 1.38A PoE Budget: 60 watts max. Power Consumption: 5 watts max. (without PD) Temperature: 0 - 60 degree C (32 - 140 degree F) Humidity: Max. 95% non-condensing Dimension: 0.80" x 4.00" x 3.00" Weight: 0.41 lb.
• Parts: Manufacturers Limited Warranty: 3 Year / Parts Only
• Model #: TPE-117GI

• Brand: TRENDnet
• Type: PoE Injector
• Color: Black
• Features: Converts a non-PoE port to a PoE+ 2.5G port Supplies PoE (15.4W), or PoE+ (30W) 2.5GBASE-T compliant Integrated power supply Network a PoE device up to 100m (328 ft.) Save on installation and equipment costs IEEE 802.3af and 802.3at compliant Package Contents: 2.5G PoE+ Injector Quick Installation Guide Power cord
• Model #: TPE-215GI

• Brand: TRENDnet
• Type: PoE Injector
• Color: Black
• Specifications: Standards: - IEEE 802.3 - IEEE 802.3u - IEEE 802.3ab - IEEE 802.3af - IEEE 802.3at - IEEE 802.3bt Device Interface: - 1 x Gigabit Data in port - 1 x Gigabit PoE++ out port Data Transfer Rate: - Ethernet: 10Mbps (half duplex), 20Mbps (full duplex) - Fast Ethernet: 100Mbps (half duplex), 200Mbps (full duplex) - Gigabit: 2000Mbps (full duplex) Special Features: Wall-mountable PoE: Pin 1, 2, 4, 5 for power+ and pin 3, 6, 7, 8 for power Power - Input: 100 - 240V AC, 50/60Hz, internal power supply - Max. Consumption: 3W PoE Budget: Max. 95W Temperature: 0 - 40°C (32 - 104°F) Humidity: Max. 90% non-condensing
• Model #: TPE-119GI (v1.0R)

• Type: PoE Splitter
• Color: Black
• Specifications: Standards: IEEE 802.3 IEEE 802.3u IEEE 802.3x IEEE 802.3ab IEEE 802.3af Device Interface: 1 x Gigabit data/power in port 1 x Gigabit data out port 1 x Power out port LED indicators Adjustable output power DIP switch (5 V, 7.5 V, 9 V, 12 V) Data Transfer Rate: Ethernet: 10 Mbps (half duplex), 20 Mbps (full duplex) Fast Ethernet: 100 Mbps (half duplex), 200 Mbps (full duplex) Gigabit: 2000 Mbps (full duplex) Jumper Cable: 2.0 to 2.0 mm 2.0 to 2.5 mm Power: PoE network cable input: 48 V DC, 0.38 A Output: 5 V (2 A), 7.5 V (2 A), 9 V (1.7 A), 12 V (1.2 A) Consumption: 0.3 Watts (max.)
• Model #: TPE-104GS

• Brand: TRENDnet
• Type: PoE+ Injector
• Color: Black
• Specifications: Standards - IEEE 802.3 - IEEE 802.3u - IEEE 802.3ab - IEEE 802.3af - IEEE 802.3at Device Interface - 4 x Gigabit Data in ports - 4 x Gigabit Data + PoE+ out ports - Metal Housing - Power Switch PoE Budget: Max. 65W Power: - Input: 100 – 240V AC, 50/60 Hz - Output: 55V DC, 1.3A - Max. consumption: 70W Temperature: 0° - 40° C (32° - 104° F) Humidity: Max. 90% non-condensing Certifications - CE - FCC Dimensions : 126.4 x 73.95 x 32mm (5.00" x 2.90" x 1.26") Weight : 322g (11.30 oz.)
• Model #: TPE-147GI

• Type: Switches
• Features: • Industrial power supply with integrated DIN-rail mount • Provides up to 240 Watts of power (48 V, 5 A) • Built-in active PFC (PF > 0.93) • Short circuit/overload/over voltage/over temperature protection • High efficiency (94%) design • UL 508 approved • 100 % full load burn-in test • Extreme -25 to 70 °C (-13 to
• Model #: TI-S24048

• Type: Switches
• Features: • Converts a non-PoE port to a PoE++ 10G port • Supplies PoE (15.4W), PoE+ (30W), or PoE++ (90W) • 10GBASE-T compliant • Integrated power supply • Network a PoE device up to 100m (328 ft.) over cat6a or better cabling • Save on installation and equipment costs • IEEE 802.3af, 802.3at, and 802.3bt compliant
• Model #: TPE-319GI

• Type: Other
• Specifications: Materials : SPCC steel construction ABS plastics Dimensions: 0.40" x 19.00" x 1.77" Weight: 0.57 lb. Package Contents: TC-KP24 Mounting hardware Quick Installation Guide
• Model #: TC-KP24 (v1.0R)

• Type: PoE Injector
• Color: Black
• Specifications: Standard: IEEE 802.3/3u/3ab, IEEE 802.3af Power over Ethernet 1 x 10/100/1000Mbps DATA-IN (Data only) 1 x 10/100/1000Mbps PWR+DATA OUT (Data + Power) Network Media: 10Mbps: UTP/STP Cat. 5 and 5e up to 100 Meters 100Mbps: UTP/STP Cat. 5, and 5e up to 100 Meters Gigabit: UTP/STP Cat 5e and 6 up to 100 meters Data Lines: Pair 1: Pin 1, 2 Pair 2: Pin 3, 6 Power: Input: 100~240V, 50~60Hz, 0.4A max. Output: 48V DC, 0.4A 18W max. Power Consumption: 15.4 Watts (max.) Dimensions (W x D x H): 70 x 45 x 25mm (2.75 x 1.8 x 1 in.) Weight: 45 g (1.6 oz.)
• Model #: TPE-113GI

• Type: UPoE Splitter
• Color: Black
• Specifications: Standards: IEEE 802.3 IEEE 802.3u IEEE 802.3ab IEEE 802.3af IEEE 802.3at IEEE 802.3bt compatible Device Interface: 1 x Gigabit port 1 x Gigabit Ultra PoE in port 4-pin removable terminal block (dual DC output) Adjustable output power DIP switch (48V, 24V, 16V, 12V) LED indicator DIN-Rail mount Wall mount Grounding point Data Transfer Rate: Ethernet: 10 Mbps (half duplex), 20 Mbps (full duplex) Fast Ethernet: 100 Mbps (half duplex), 200 Mbps (full duplex) Gigabit: 2000 Mbps (full duplex) Special Features: Hardened components rated for extreme temperatures Dual DC power output Auto-Negotiation ESD 4kV and Surge 2kV protection Power: Input: 15.4W / 30W / 60W / 95W PoE power Max. Consumption: 7W (splitter only) Max. Combined DC Output: 48V (1.25A), 24V (2.3A), 16V (2.3A), 12V (2.3A) Package Contents...
• Model #: TI-SG104

• Type: Other
• Specifications: Materials : SPCC steel construction Nickel plated shielded construction Dimensions: 3.70" x 19.00" x 1.77" Weight: 1.40 lbs. Package Contents: TC-KP24S Mounting hardware Grounding wire Quick Installation Guide
• Model #: TC-KP24S v1.0R

• Type: Mounting
• Specifications: 0.5U design 220 x 97 x 25mm (8.66" x 3.80" x 0.98")
• Model #: TC-P12C6AS

• Type: Power Adapter
• Specifications: Input: 100 - 240 V AC, 50/60 Hz, 2.0 A Output: 48 V, 3.34 A, 160 W (max.)
• Model #: 48VDC3000

• Type: Switches
• Features: • Converts a non-PoE 2.5G port to a PoE++ 2.5G port • Supplies PoE (15.4W), PoE+ (30W), or PoE++ (90W) • Network a PoE device up to 100m (328 ft.) • Integrated power supply • 2.5GBASE-T compliant • IEEE 802.3af, 802.3at, and 802.3bt compliant
• Model #: TPE-219GI

• Type: PoE Injector
• Color: Black
• Specifications: Standards: IEEE 802.3 IEEE 802.3u IEEE 802.3ab IEEE 802.3af IEEE 802.3at Device Interface: 1 x Gigabit port 1 x PoE+ Gigabit port 4-pin removable terminal block LED indicators DIN-Rail mount Wall mount Grounding point Data Transfer: RateEthernet: 10 Mbps (half duplex), 20 Mbps (full duplex) Fast Ethernet: 100 Mbps (half duplex), 200 Mbps (full duplex) Gigabit: 2000 Mbps (full duplex) Power: Input: 48 – 56 V DC Compatible power supply: TI-S12048 (sold separately) Consumption: Max. 72 Watts PoE budget: 60 Watts Pin 1,2 for power+ and pin 3,6 for power- (mode A) Pin 4,5 for power+ and pin 7,8 for power- (mode B)
• Model #: TI-IG60

• Type: PoE Repeater
• Color: Black
• Specifications: Standards: IEEE 802.3 IEEE 802.3u IEEE 802.3x IEEE 802.3ab IEEE 802.3af IEEE 802.3at Device Interface: 1 x Gigabit PoE/PoE+ in port 1 x Gigabit PoE/PoE+ out port 1 x Power port (optional power adapter is not included) LED indicators Installation mounting points Data Transfer Rate: Ethernet: 10 Mbps (half duplex), 20 Mbps (full duplex) Fast Ethernet: 100 Mbps (half duplex), 200 Mbps (full duplex) Gigabit: 2000 Mbps (full duplex) Power: Powered by PoE/PoE+ Device Consumption: 2 Watts (max.)
• Model #: TPE-E110

• Brand: TRENDnet
• Part Number: TC-KP12V

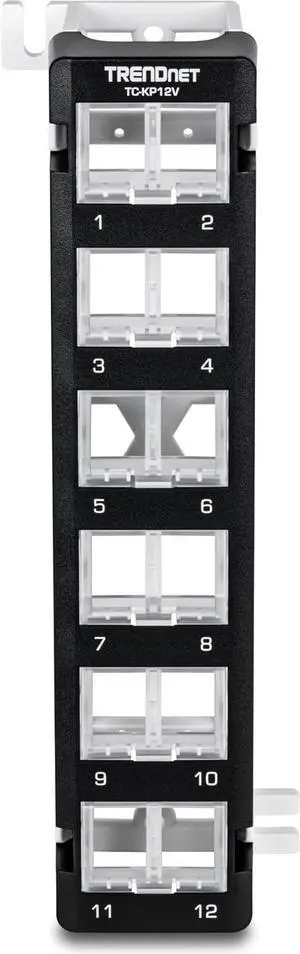

• Features: Package contains: 12-Port Blank Angled Wall Mount Keystone Patch Panel Quick Installation Guide 89D Wall Mount Bracket
• Model #: TC-KP12V

• Brand: TRENDnet
• Part Number: TCNTP1
• Type: PoE Tester
• Specifications: Device Function: PoE Testing Cable Signal Testing Interfaces/Ports PoE (RJ-45) Port: Yes Network (RJ-45): Yes Number of Network (RJ-45) Ports: 2 Media & Performance Media Type Supported: Twisted Pair Network & Communication Network Standard: 1000Base-T Ethernet Technology: Gigabit Ethernet Package Contents: Inline PoE Tester, Quick Installation Guide
• Model #: TC-NTP1

• Type: Adapter
• Color: Black
• Specifications: Standards - IEEE 802.3 - IEEE 802.3u - IEEE 802.3x - IEEE 802.3ab - IEEE 802.3af - IEEE 802.3at Device Interface - 1 x Gigabit PoE+ in port - 1 x Gigabit PoE+ out port - LED indicators - DIN-Rail mount - Wall mount - Grounding point Data Transfer Rate - Ethernet: 10Mbps (half duplex), 20Mbps (full duplex) - Fast Ethernet: 100Mbps (half duplex), 200Mbps (full duplex) - Gigabit: 2000Mbps (full duplex) Performance - Data RAM Buffer: 128KB - MAC Address Table: 2K J- umbo Frame: 9KB Special Features - Extends a PoE/PoE+ network connection an additional 100 meters - Cascade up to 2 units for a total distance of up to 300m (984 ft.) @50V power input - Cascade up to 3 units for a total distance of up to 400m (1312 ft.) @56V power input - ESD Contact 6kV/Air 8kV and Surge 2kV protection PoE - Power input: 15.4W/...
• Model #: TI-E100

• Features: • Mount two TRENDnet TL2-FG7120 switches together in 1U/RU rack space • Includes two metal mounting brackets with screws for connecting two TL2-F7120 switches • Rack installation requires TL2-F7120 short brackets (included only with TL2-F7120) • Compatible only with TRENDnet TL2-F7120 switches
• Weight: 0.8300
• Model #: ETH-F71

• Type: PoE Injector
• Color: Black
• Specifications: Standards: IEEE 802.3 IEEE 802.3u IEEE 802.3ab IEEE 802.3af IEEE 802.3at Device Interface: 1 x Gigabit port 1 x PoE+ Gigabit port 4-pin removable terminal block LED indicators DIN-Rail mount Wall mount Grounding point Data Transfer: RateEthernet: 10 Mbps (half duplex), 20 Mbps (full duplex) Fast Ethernet: 100 Mbps (half duplex), 200 Mbps (full duplex) Gigabit: 2000 Mbps (full duplex) Power: Input: 48 – 56 V DC Compatible power supply: TI-S12048 (sold separately) Consumption: Max. 36 Watts PoE: PoE budget: 30 Watts Pin 1,2 for power- and pin 3,6 for power+ (mode A)
• Model #: TI-IG30

• Type: Other
• Specifications: Standards ANSI/TIA/EIA-568-B.2-1 ANSI/ TIA/EIA-310-D EN50173-1: 2002 ISO/IEC 11801 2nd edition: 2002 Interface 16 x RJ-45 ports with 50 micron gold-plated 8P/8C contacts T568A/T568B wiring cards for Krone 110 termination with color-coded wiring diagram 90 degree IDC terminals Compatible with 22 – 26 AWG solid or stranded wire Integrated cable management SGCC steel construction 18 AWG grounding wire with screw terminal Electrical Specification Insulation resistance: >= 500M Ohms Dielectric Withstand Voltage: 1000V DC Contact resistance: <= 20M Ohms Current rating: 1.5A at 20 degree C (68 degree F) Mechanical Specification Contact force 99.2g (3.5 oz.) Plug retention force: 13.3kg (29.00 lbs.) 110/ Krone IDC insertion force: min. 4.5kg (9.90 lbs.) 110/ Krone IDC retention force: min. 0.5kg (1.10 lbs.) Dimensions: 1.75" x 17.30" ...
• Model #: TC-P16C6AS (V1.0R)

OUT OF STOCK

• Type: Blank Panel
• Specifications: Materials: SPCC steel construction ABS plastics Dimensions: 19.00" x 1.77" x 0.40" Weight: 0.57 lb. Package Contents: TC-KP24 Quick Installation Guide
• Model #: TC-KP24
