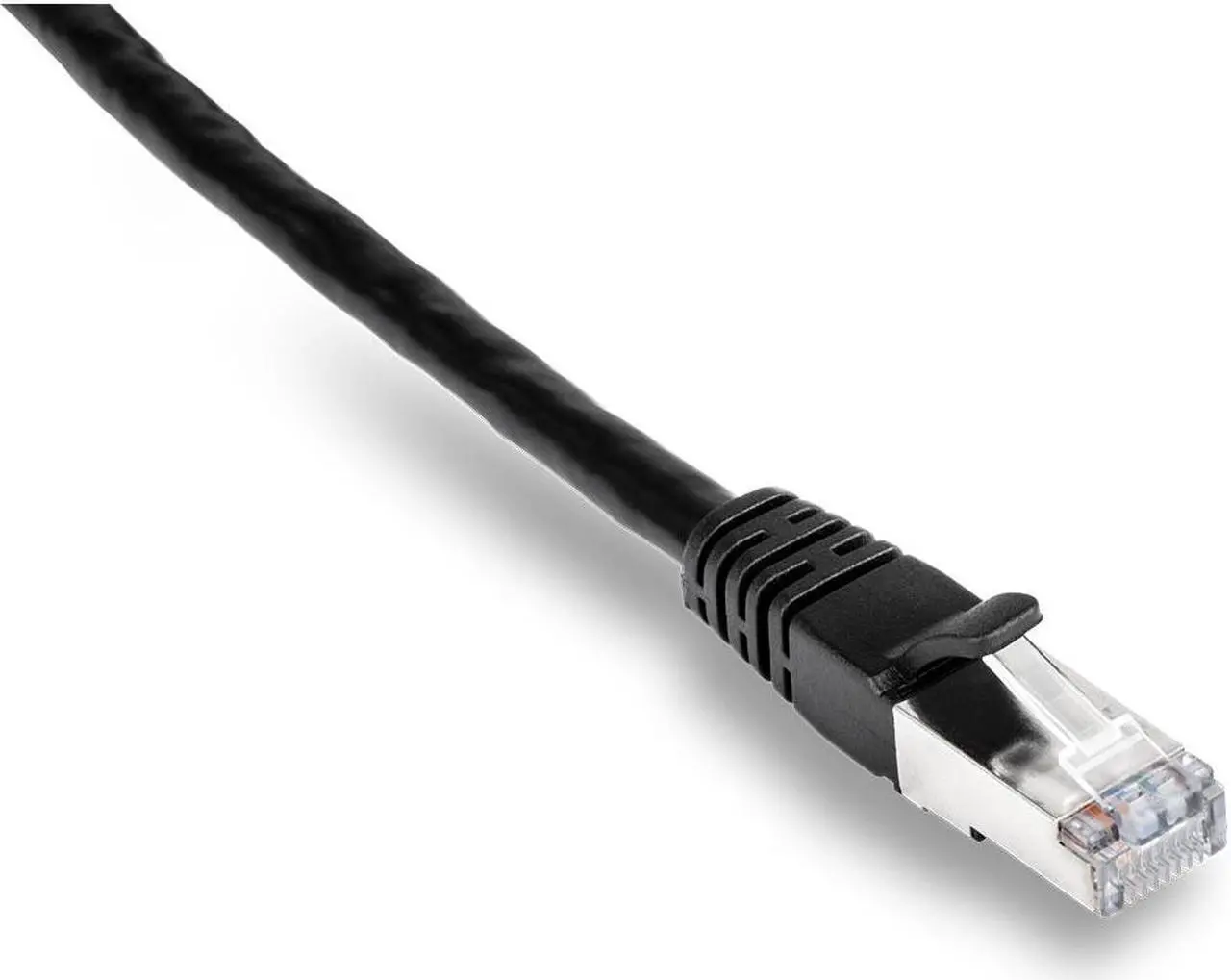

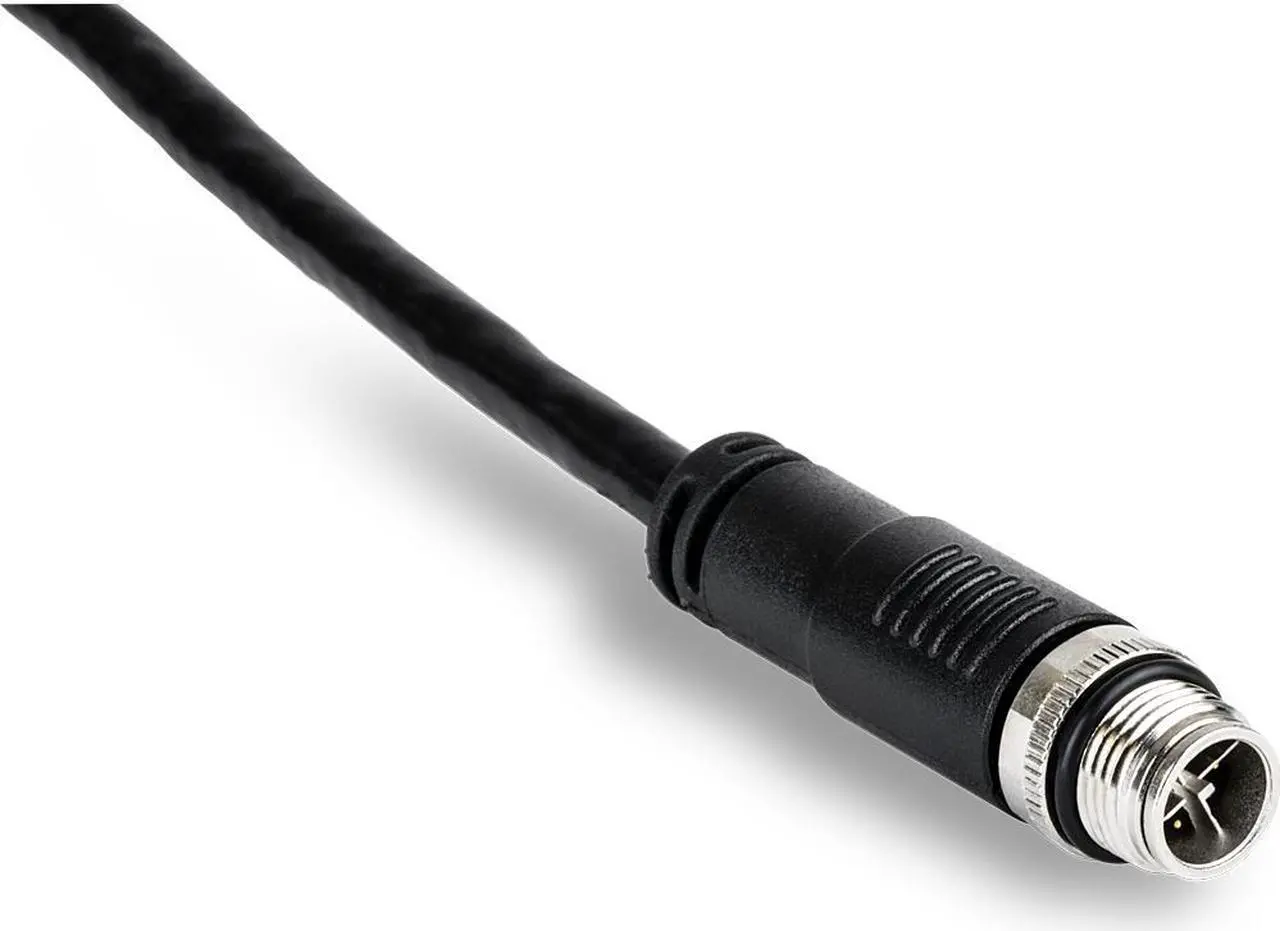

DEVICE INTERFACE: 1 x M12 8-pin A-code male interface; 1 x RJ-45 network interface; 2m (6.5 ft.) cable length.

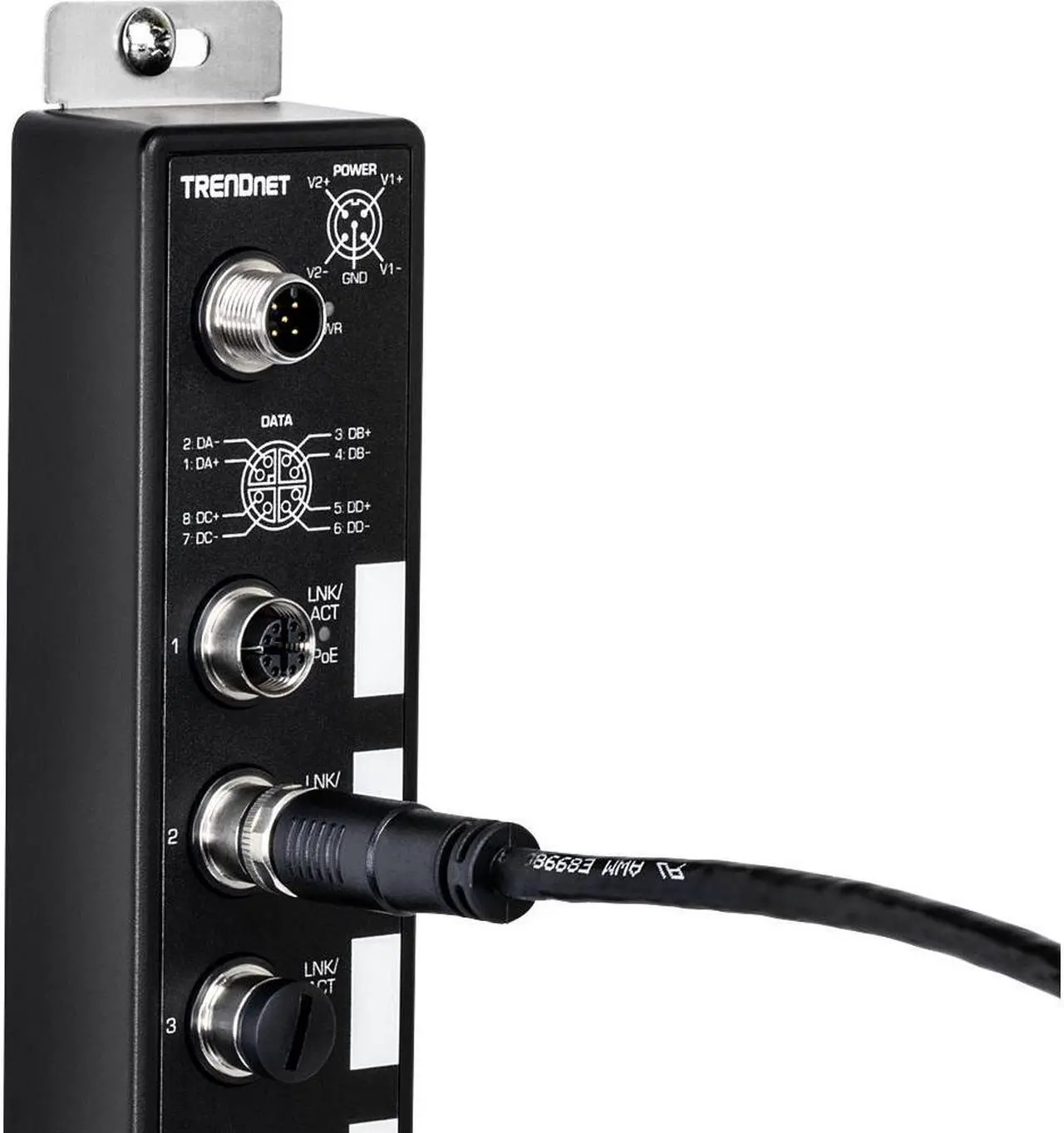

TRENDNET M12 RAILWAY SWITCHES: Designed to be compatible with the TRENDnet 5 Port Industrial M12 Gigabit PoE+ Railway Switch (TI-XPG50).
INDUSTRIAL RATED CABLE: The RJ-45 industrial Ethernet cable is IP67 weather rated -25° - 80° C (-13° - 176° F).
PUR JACKET: The ultra-durable polyurethane "PUR" jacket of the Industrial M12 to RJ-45 cable resists oil and other contaminants, has strong flame resistance, and high tensile strength, tear resistance, and abrasion resistance.
MAX CONTACT RESISTANCE: 20?.
Overview
Specs
Reviews

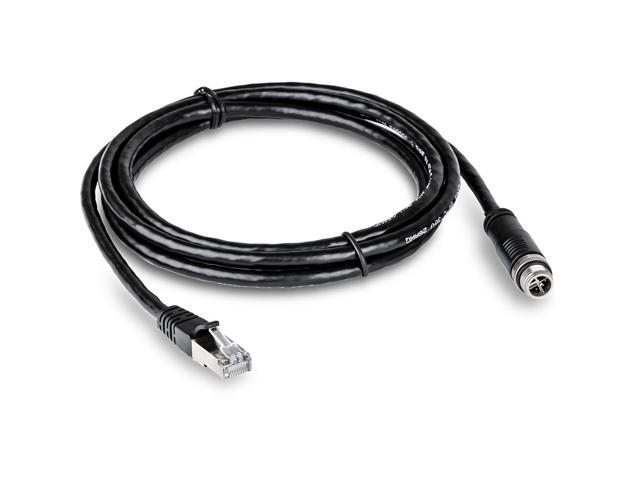

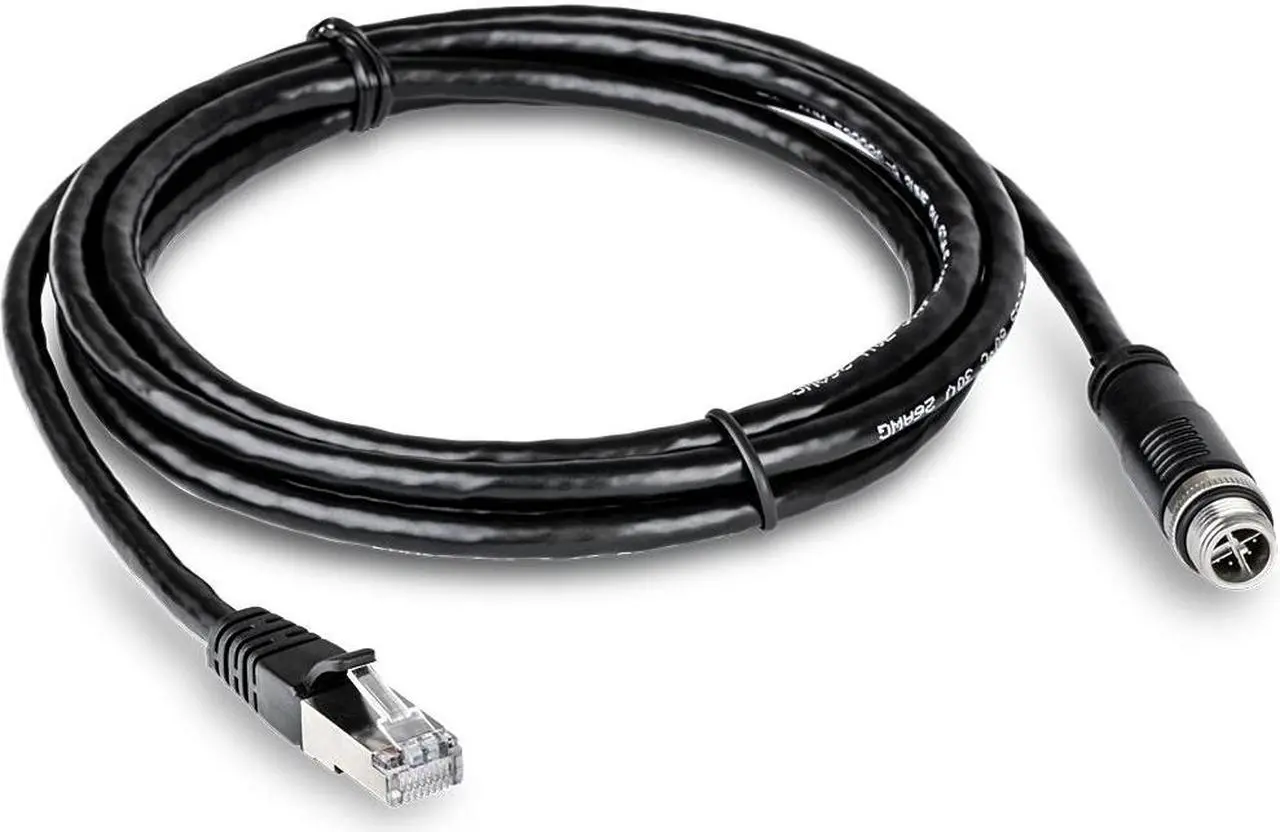

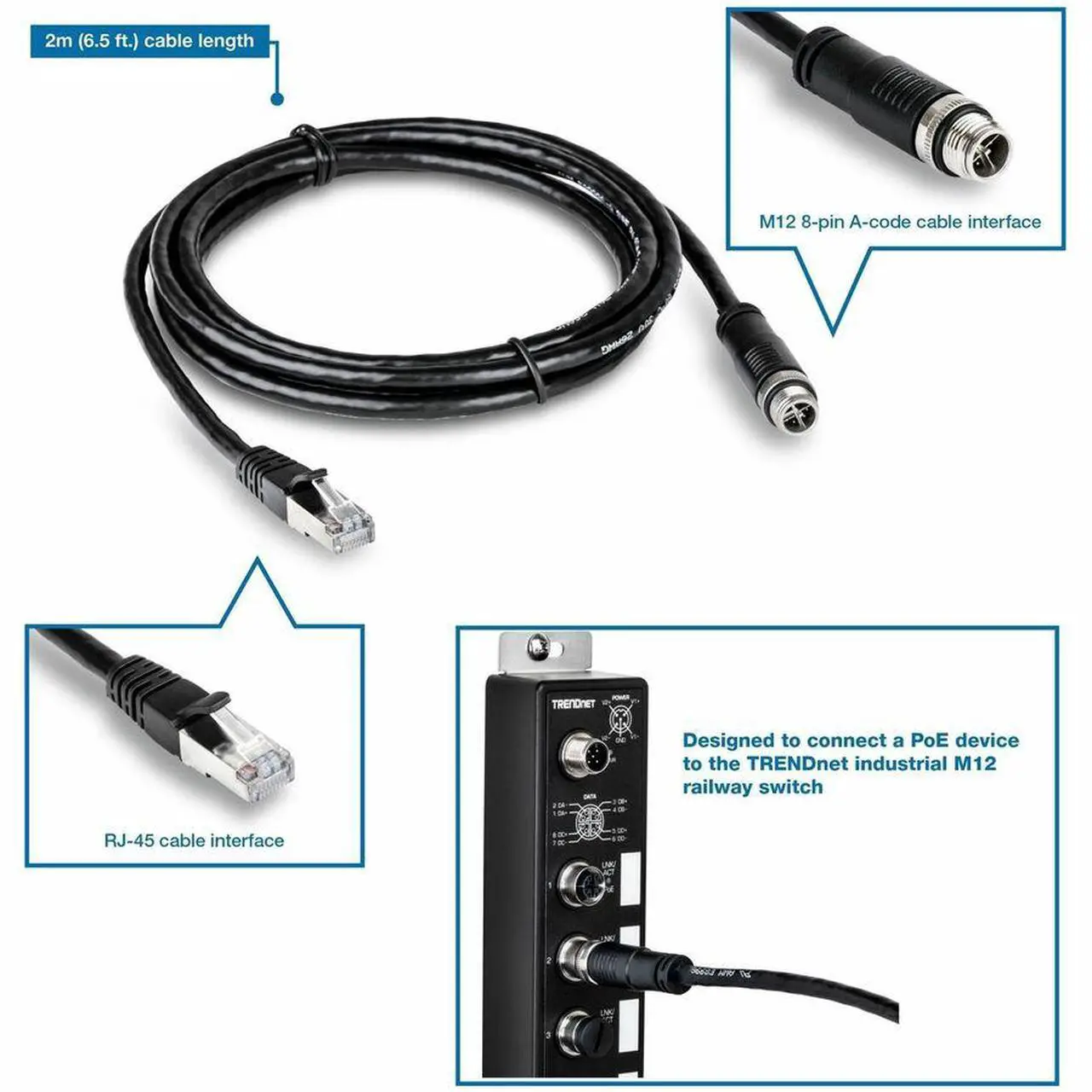

TRENDnets M12 to RJ-45 Industrial Ethernet Cable, 2m ( 6.5 ft. ), model TI-CD02, is designed to connect a PoE device to the TRENDnet industrial M12 railway switch. The M12 cable features one M12 interface, and one RJ-45 interface for a single device connection. This rugged IP67 rated M12 cable is specially designed for moving bus, train, and other rolling stock applications.
Learn more about the TRENDnet TI-CD02 (v1.0R)
Model
Brand
TRENDnet
Model
TI-CD02 (v1.0R)
Part Number
TI-CD02
Details
Type
Cable
Color
Black
Features
Features
Interface 1 x M12 8-pin A-code male interface 1 x RJ-45 network interface IP67 rated
Features Max. contact resistance: 20O Min. insulation resistance: DC 200V 10ms 10MO IP67 rating ensures protection from liquid moisture and fine particulates PUR jacket resists oil and other contaminants
Operating Temperature -25° – 80° C (-13° – 176° F)
Operating Humidity Max. 90 % non-condensing
Length 2m (6.5 ft.)
Weight 112g (4 oz.)
Package Contents TI-CD02
