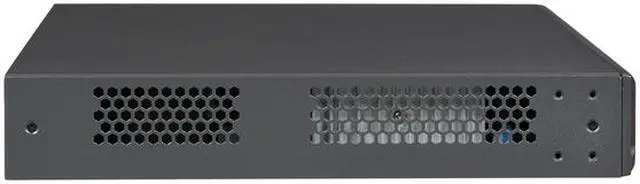

TP-LINK JetStream TL-SG5412F Managed 12-Port Gigabit SFP L2 Managed Switch with 4 Combo Ports

Specs

Reviews

Learn more about the TP-Link TL-SG5412F

Format & Standards
Format	Rackmount
Standards	IEEE 802.3i, IEEE 802.3u, IEEE 802.3ab, IEEE802.3z, IEEE 802.3ad, IEEE 802.3x, IEEE 802.1d, IEEE 802.1s, IEEE 802.1w, IEEE 802.1q, IEEE 802.1x, IEEE 802.1p
Network Management Type	Managed

Ports & Interface
Primary Ports	4 x RJ45 + 12 x SFP + 1 Console
Primary Port Speed	10/100/1000Mbps

Data Transmission
MAC Address Table	8K
VLAN Support	Supports up to 4K VLANs simultaneously (out of 4K VLAN IDs) Port/ MAC/Protocol-based VLAN GARP/GVRP Management VLAN configuration
Jumbo Frames	10KB

Details
Security	IP-MAC-Port-VID Binding IEEE 802.1X Port/MAC Based authentication, Radius,Guest VLAN DoS Defence Dynamic ARP inspection (DAI) SSH v1/v2 SSL v2/v3/TLSv1 Port Security Broadcast/Multicast/Unknown-unicast Storm Control
QoS	Support 802.1p CoS/DSCP priority Support 4 priority queues Queue scheduling: SP, WRR, SP+WRR Port/Flow- based Rate Limiting Voice VLAN
LACP	Yes
Port Mirroring	Yes
Power	100-240VAC, 50/60Hz

Dimensions & Weight
Dimensions	17.3 x 10.2 x 1.7 in. (440 x 260 x 44 mm)( W x D x H ) 19-inch Rack mount Steel Case, 1U Height

Environmental
Temperature	Operating Temperature: 0 Degree C-40 Degree C (32 Degree F-104 Degree F) Storage Temperature: -40 Degree C-70 Degree C (-40 Degree F-158 Degree F)
Humidity	Operating Humidity: 10%-90% non-condensing Storage Humidity: 5%-90% non-condensing

Packaging

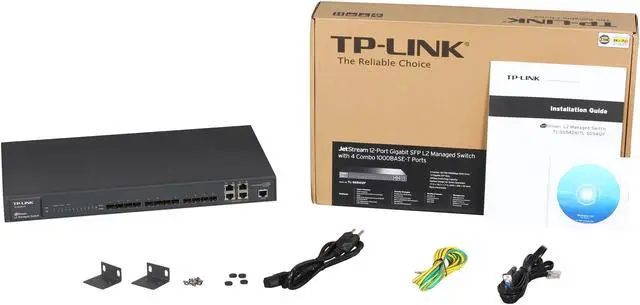

Package Contents	Switch; Power Cord; Quick Installation Guide; Resource CD; Rackmount Kit; Rubber Feet
