SYBA USB 3.0 3+1 Port PCI-e Card, Free Low Profile Bracket, Renesas Chipset Model SD-PEX20137

Name: SYBA USB 3.0 3+1 Port PCI-e Card, Free Low Profile Bracket, Renesas Chipset Model SD-PEX20137
Brand: Syba
SKU: N82E16815124119
Rating: 4 (30 reviews)

(30) Write a Review

See more "usb card"

OUT OF STOCK.

Fees for brokerage and duty included in price.

PCI Express to USB Card
USB 3.0
Based on Renesas USB 3.0 Host Controller IC

Overview

Specs

Reviews

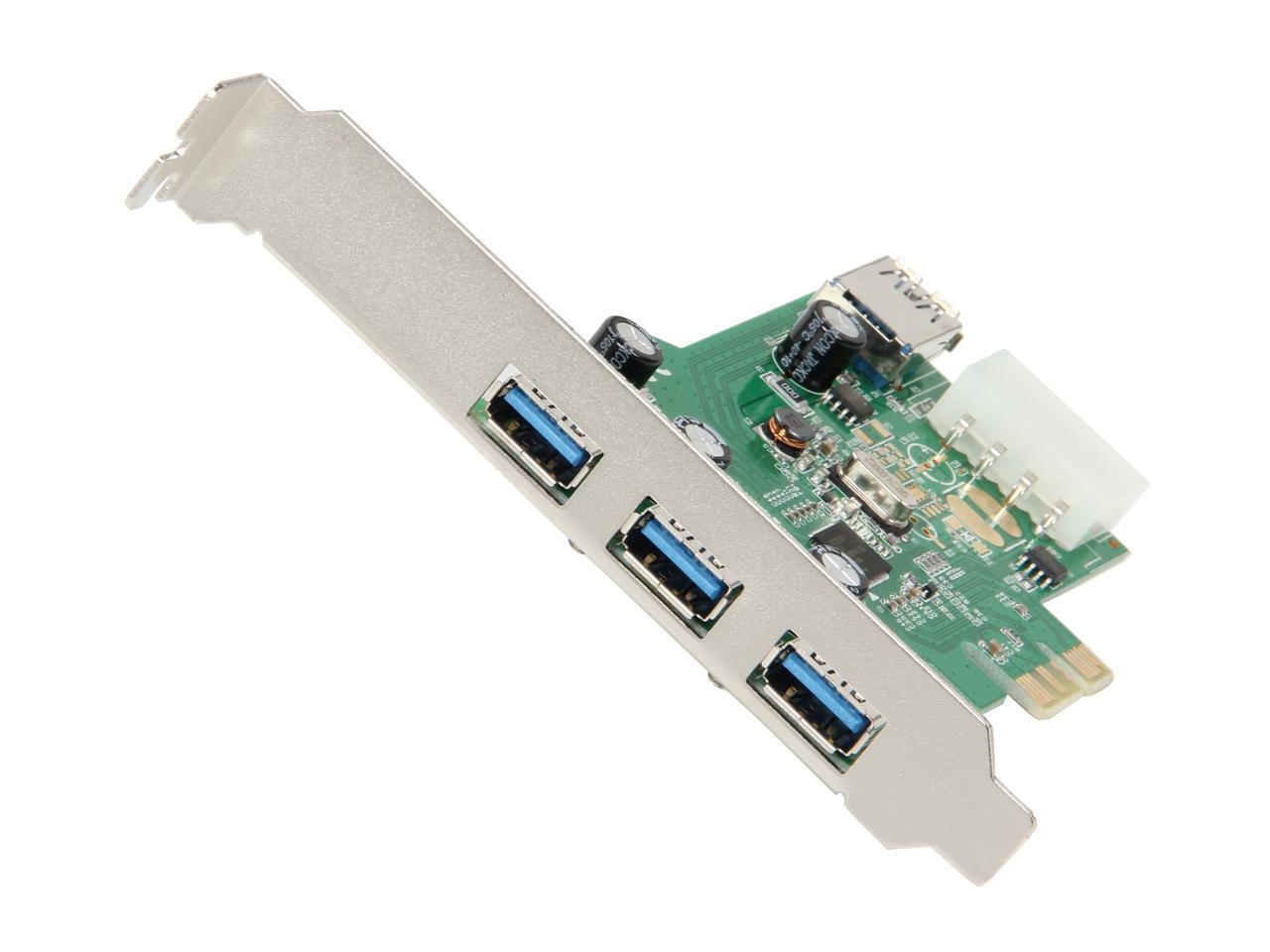

Syba SD-PEX20137 4-Port USB 3.0 PCI-e 2.0 x1 Card

Add three external and one internal USB 3.0 Super-Speed ports to any desktop computer with an available PCI-e slot. Enjoy up to 5Gbps of throughput speed for video backup and data intensive applications. This controller card is simple to use, just plug it in and turn on your computer.

The 4-Port USB 3.0 PCI-e 2.0 x1 Card is compatible with a broad range of operating systems including Windows® 2000/XP/2003/Vista/Windows 7/8 and Server 2008 R2 (32 and 64 bit).

Specification

Based on Renesas USB 3.0 Host Controller IC
Compliant with Intel's Extensible Host Controller Interface (xHCI) Specification Revision 1.0
Supports Standard and Low-profile Desktop Computer
Compliant with Universal Serial Bus 3.0 Specification Revision 1.0
USB 3.0 Super-Speed (5Gbps) Host Ports, Backward Compatible with USB 2.0 High-Speed (480Mbps), Full-Speed (12Mbps) and Low-Speed (1.5Mbps) Interface
Supports All USB Compliant Data Transfer Types

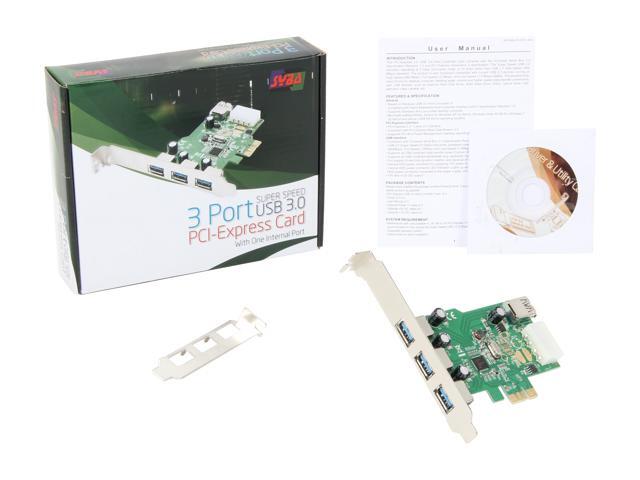

What's in the Box

PCI-Express USB 3.0 Host Controller Card
Driver CD
User Manual
Low Profile Bracket

Warranty & Returns

Warranty, Returns, And Additional Information

Warranty

Limited Warranty period (parts): 1 year
Limited Warranty period (labor): 1 year
Read full details

Return Policies

Return for refund within: 30 days

Return for replacement within: 30 days

This item is covered by Newegg.ca's Standard Return Policy. Read full return policy for details.

Type	PCI Express to USB Card
External USB Ports	3x USB Ports
Internal USB Ports	1x USB Port
Internal Ports	1 Molex Power Feed Connector
Standard	USB 3.0
Operating Systems Supported	Microsoft Certified WHQL Drivers for: Windows 7 32/64-bit Vista 32/64-bit Windows XP 32/64-bit Server 2008 R2 64-bit
Specifications	Based on Renesas USB 3.0 Host Controller IC Compliant with Intel's Extensible Host Controller Interface (xHCI) Specification Revision 1.0 Supports Standard and Low-profile Desktop Computer PCI-Express Interface: - PCI-Express 2.0 1-Lane (x1) Interface - Compliant with PCI Express Base Specification 2.0 - Supports PCI-Bus Power Management Interface Specification Revision 1.2 USB Interface: - Compliant with Universal Serial Bus 3.0 Specification Revision 1.0 - USB 3.0 Super-Speed (5Gbps) Host Ports, Backward Compatible with USB 2.0 High-Speed (480Mbps), Full-Speed (12Mbps) and Low-Speed (1.5Mbps) Interface - Supports All USB Compliant Data Transfer Types (Control/Bluk/Interrupt/Isochronous) - Supports All USB Compliant Peripherals (e.g. Keyboard, Mouse, Monitor, Joystick, Etc.) - Full Support of Real Time Dynamic Insertion and Removal of USB Devices - Internal HDD Power Connector for Supplying +5V Power to the USB Ports
