Flow Control: No support flow control (Ports are all pin to pin pass)

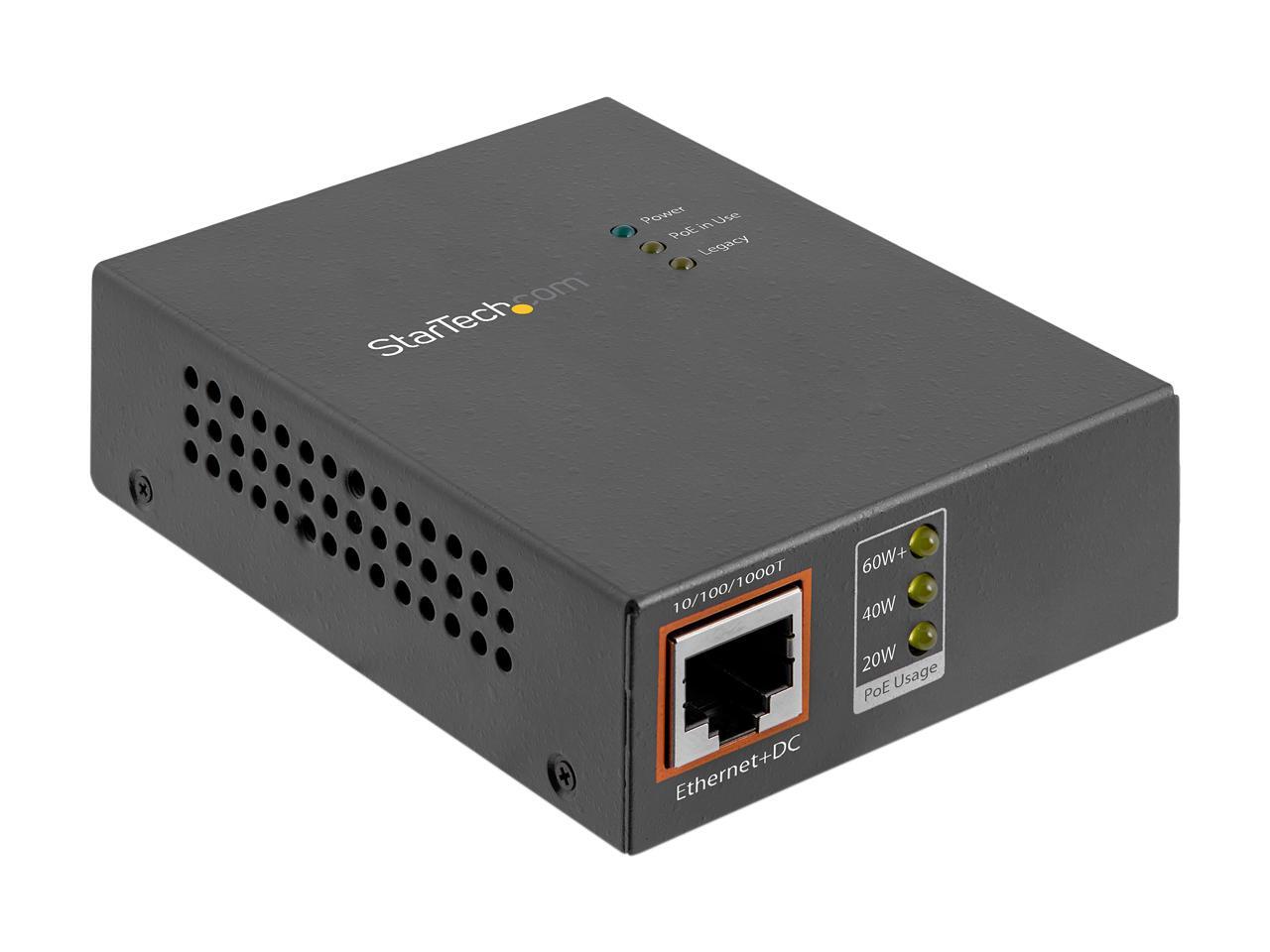

PoE Usage: 60W+ / 40W / 20W
Supported Voltage: 12V / 19V / 24V
Connectors
Connector A
1 x RJ-45 (PoE+) Female 4 x RJ-45 (PoE+) Female
Connector B
1 x RJ-45 Female
Features
Features

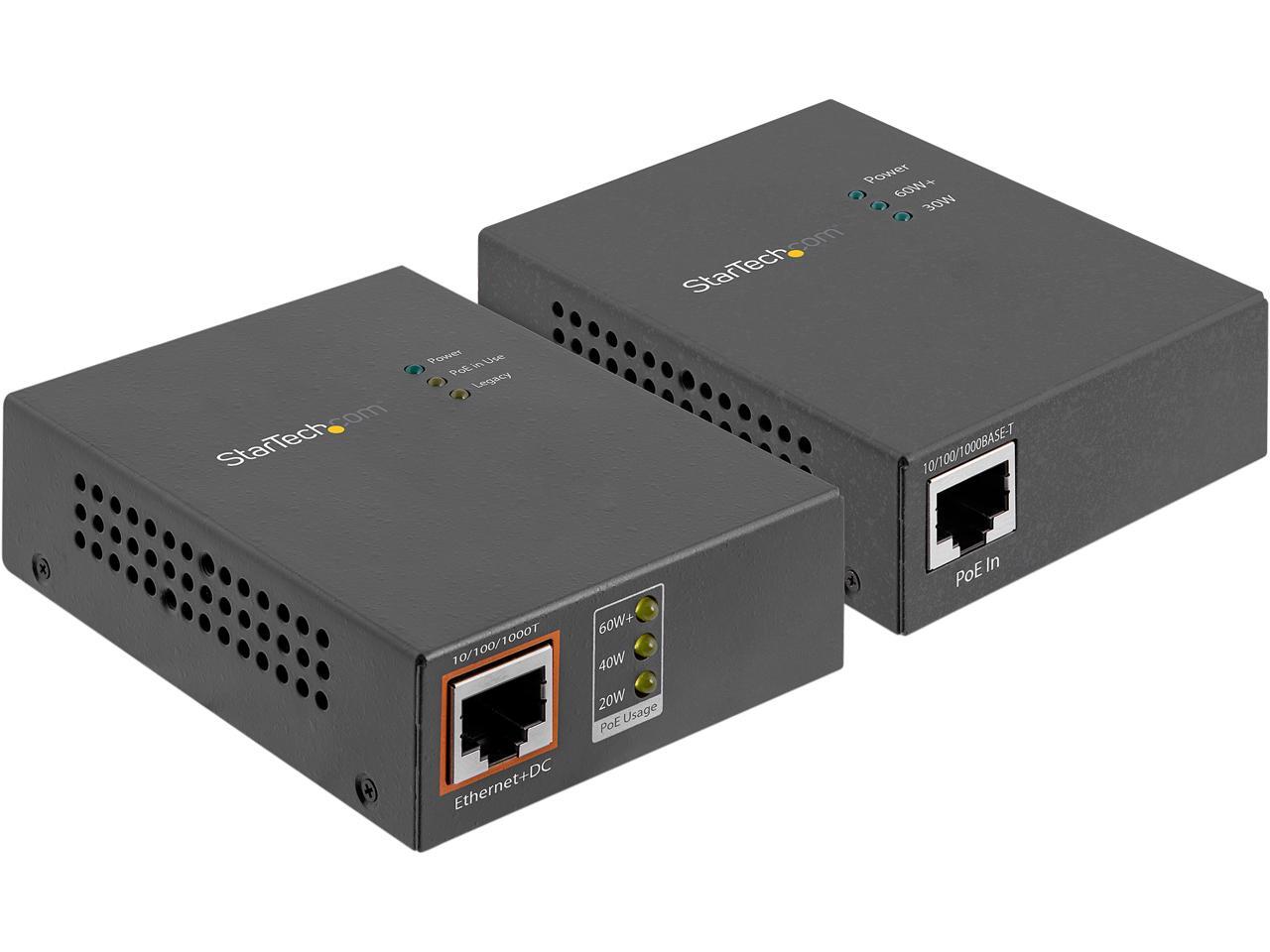

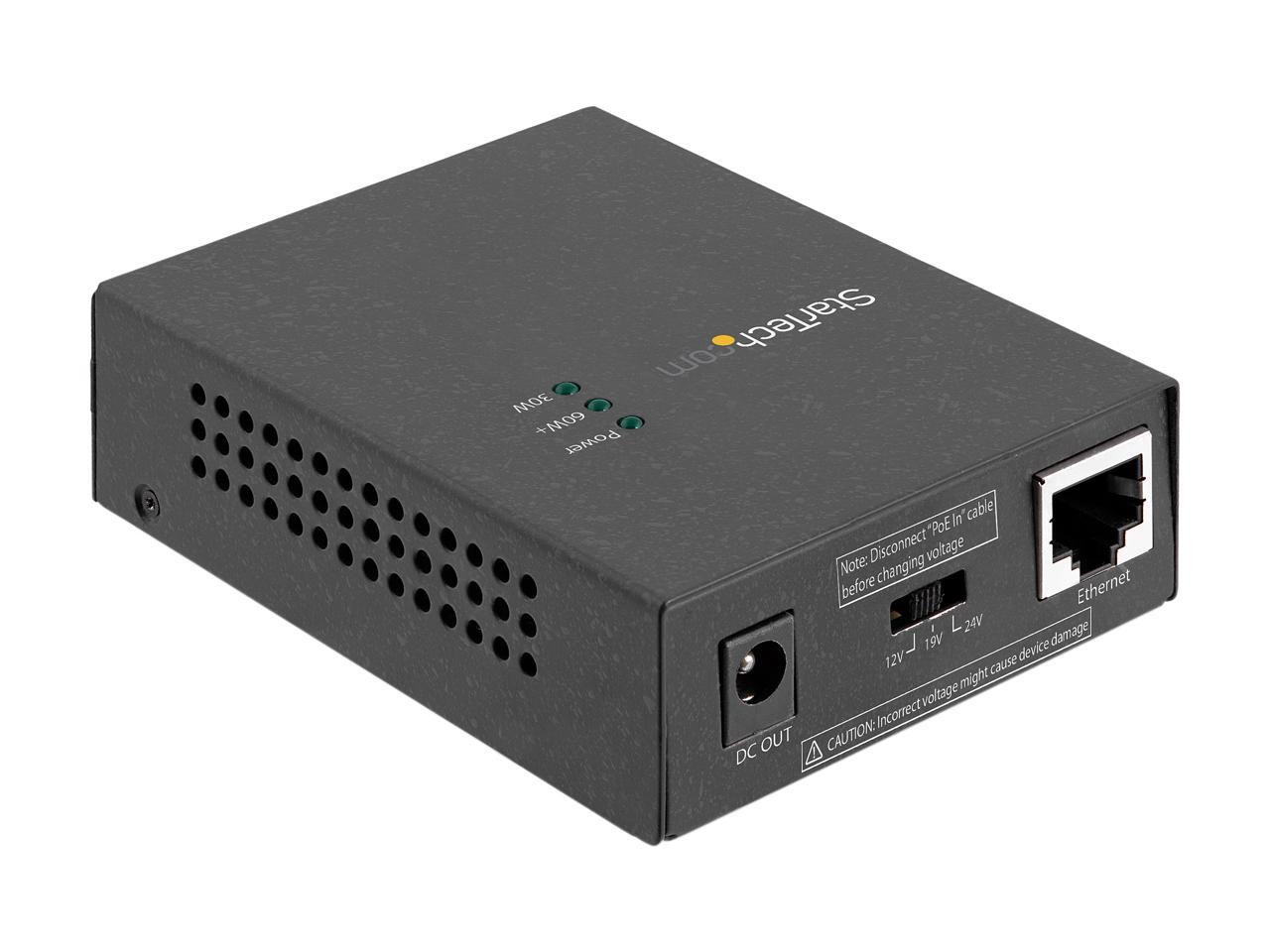

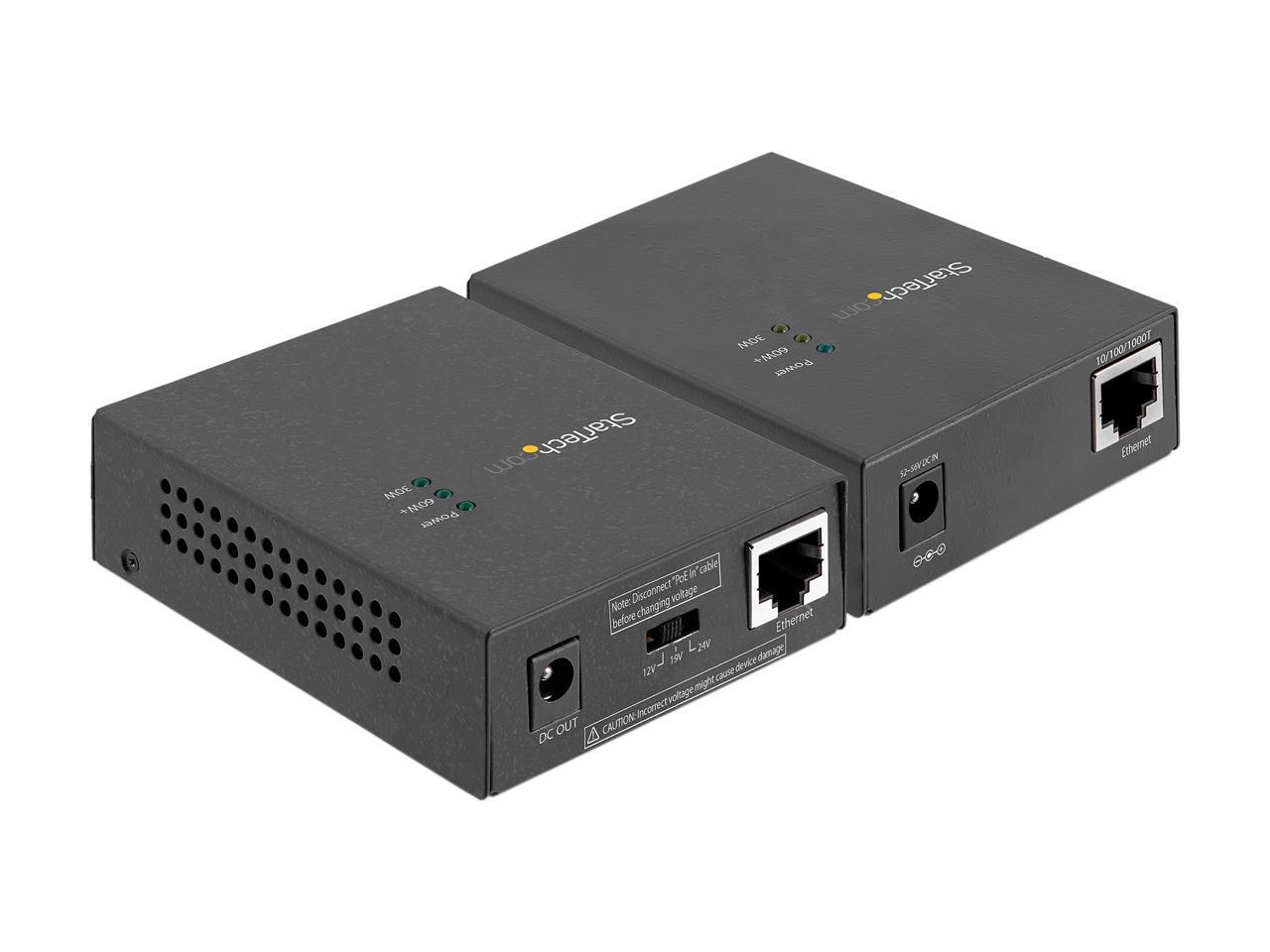

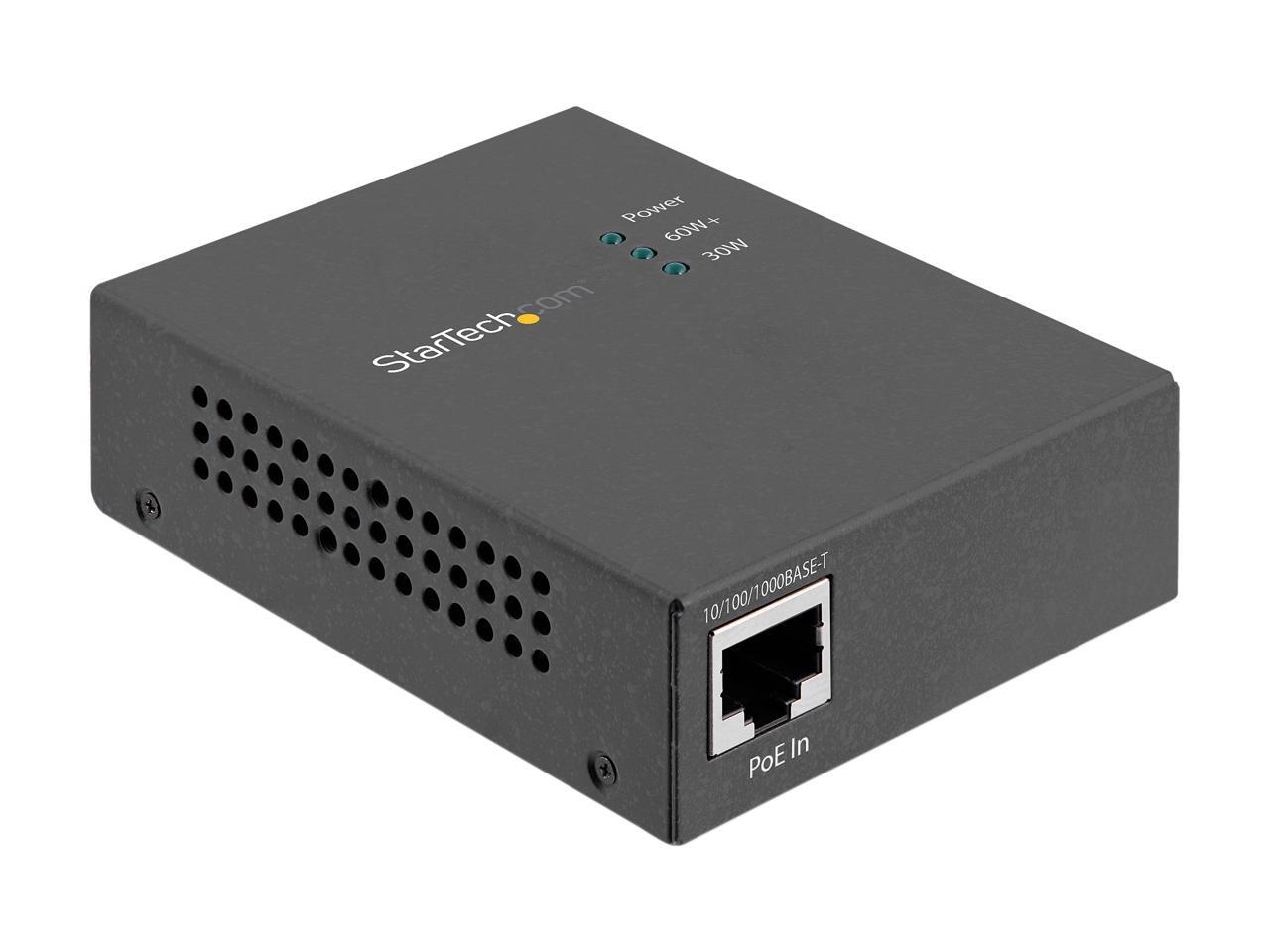

Splitter separates the PoE power from the data over RJ45 Ethernet cable into 12V/19V/24V DC output

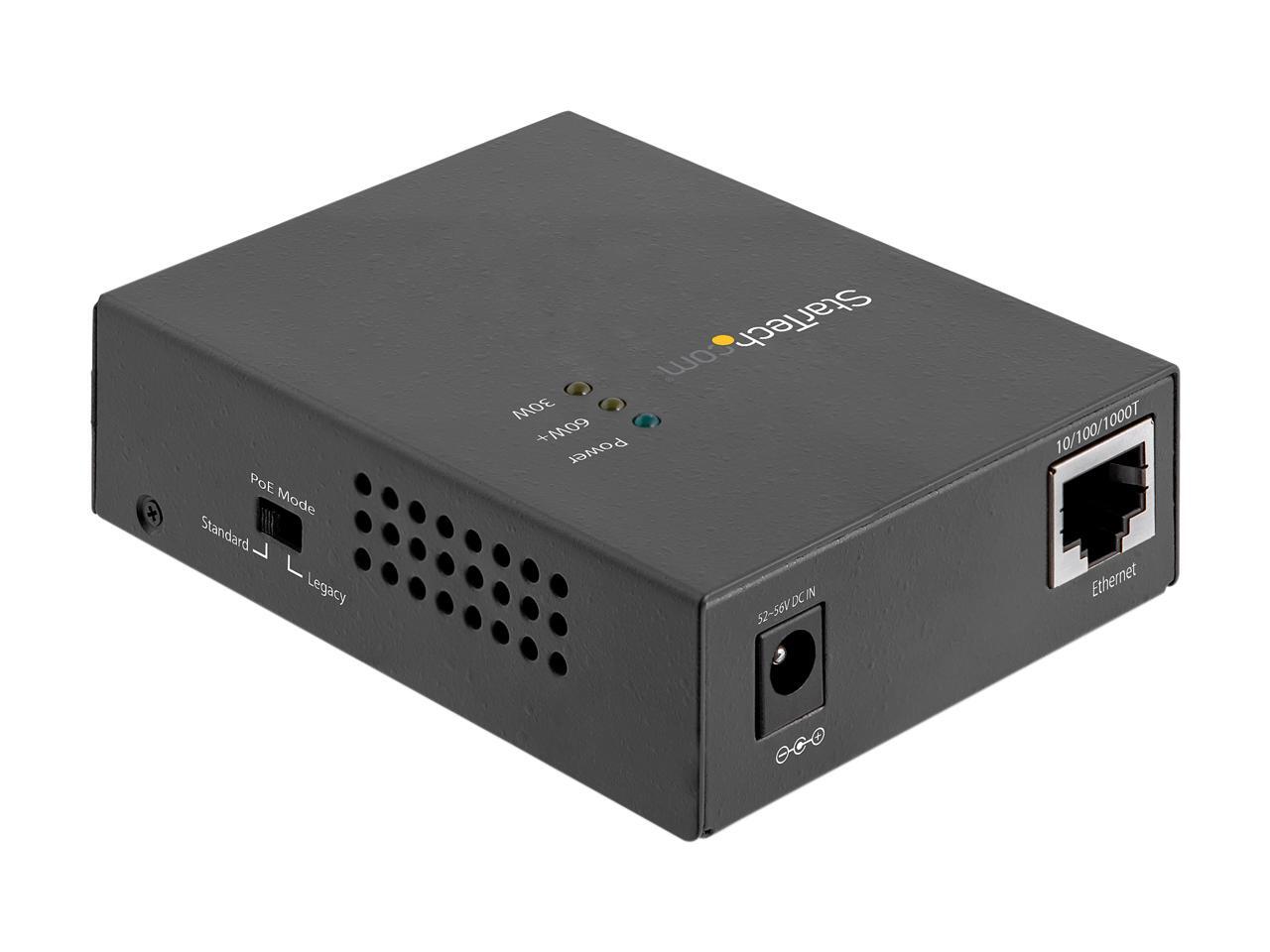

Injector delivers Ethernet digital data with 54V DC power over twisted-pair cables
Supports 10/100/1000Mbps speeds over a distance of up to 100 meters
Injector complies with IEEE 802.3af/at/bt PoE end-span/mid-span PSE
Splitter complies with IEEE 802.3af/at standard with 802.3bt compatibility
Dimensions & Weight
Dimensions
3.30" x 9.20" x 15.40"
Weight
10.60 oz.
Package Contents
Package Contents
1 x PoE Splitter 1 x PoE Injector 1 x Universal Power Adapter 4 x Power Cords (NA/JP, UK,EU,AU) 2 x DC Plug Cables 1 x RJ45 Network Cable 1 x User Manual
