Specifications: ConnectX-Virtual Protocol Interconnect (VPI) is a groundbreaking addition to the Mellanox ConnectX series of industry-leading adapter cards. Providing two ports of 200Gb/s for InfiniBand and Ethernet connectivity, sub-600ns latency and 215 million messages per second, ConnectX-6 VPI enables the highest performance and most flexible solution aimed at meeting the continually growing demands of data center applications.
In addition to all the existing innovative features of past versions, ConnectX-6 offers a number of enhancements to further improve performance and scalability.
ConnectX-6 VPI supports HDR, HDR100, EDR, FDR, QDR, DDR and SDR InfiniBand speeds as well as 200, 100, 50, 40, 25, and 10Gb/s Ethernet speeds.

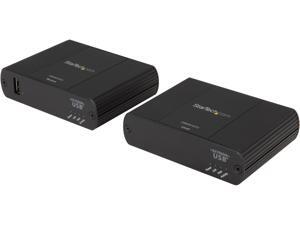

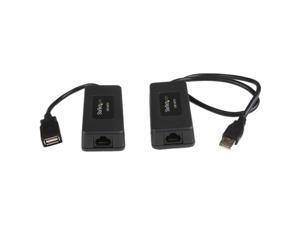

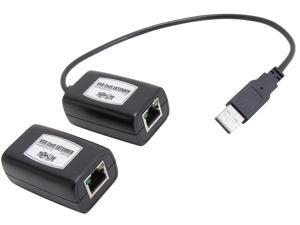

Specifications: Long-Distance Data Transfer to 1 Device—Up to 164 ft. (50 m) from the Source
Send data to a USB 2.0 device located up to 164 ft. from the source
USB signals travel over a single user-supplied Cat5/Cat6 cable
Includes transmitter with built-in USB-A cable and a 1-port receiver
Supports data transfer rates up to 480 Mbps
Greater Distance over Cat5/Cat6 Cable Provides Greater Flexibility
Cat5/Cat6 cabling exceeds the 16 ft. distance limitation of USB cables
Allows connection to devices that lack network connectivity in areas beyond the reach of standard USB cables
Makes connections in areas without network availability
Allows source to be in a secure location, separate from peripherals
Cat5/Cat6 cabling is cost-effective and readily available
For best resul...

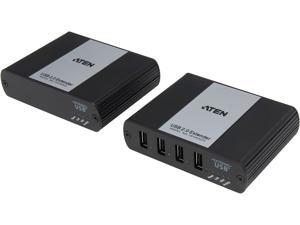

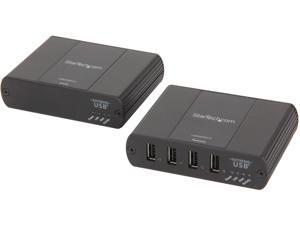

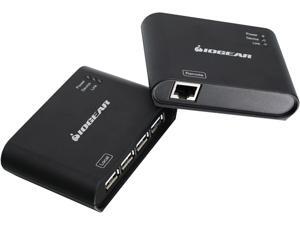

Specifications: Function
Operating System Requirements
Windows Windows Vista, Windows 7, Windows 8, Windows 8.1
Mac Mac OS X10.3+
USB Specification USB 2.0
Cable Connections
Input Transmitter: USB Type B Female x 1; Receiver: RJ45 Ethernet Connector
Output Transmitter: RJ45 Ethernet connector; Receiver: USB Type A Female x 4
Transfer Rate Up to 480 Mbps
Cable Length Transmitter: USB cable 1ft (included); Receiver: Cat 5, Cat 5e or Cat 6 cable (not included) up to 164ft (50m)
Cable Distance Maximum cable distance from Transmitter to Receiver: 164ft (50m)
Cable Type Ethernet Cat 5, Cat 5e or Cat 6 required for connection between receiver and transmitter.
Connectors
AC Power Inlets Barrel type
Max Output Power 500mA @ 5V
Power Supply 2A @ 5VDC
LEDs
Power On
Operating Te...

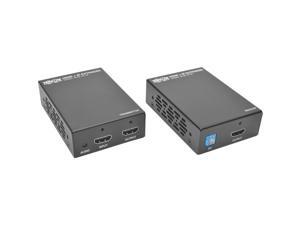

Specifications: Audio: Yes
AV Input: HDMI
AV Output: HDMI
Cabling: Cat 6 UTP
Chipset ID: Norelsys NS 5730, NS5731
Audio Specifications: 7.1 Surround Sound
Max Distance: 140 m / 460 ft
Wide Screen Supported: Yes
Supported Resolutions:
3840x2160 (4K) 60Hz
2560x1600 60Hz
1920x1200 60Hz
1920x1080 (1080p) 60Hz
1280x720 (720p) 60Hz
*Lower resolutions and refresh rates, not stated but below the maximum, may also be supported
Center Tip Polarity: Positive
Input Voltage: 110V-240V AC
Output Current: 3 A
Output Voltage: 5V DC
Plug Type: M
Power Source: 2 AC Adapters Included

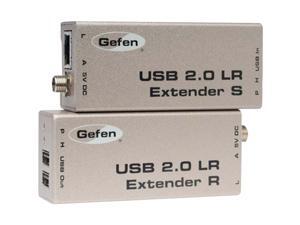

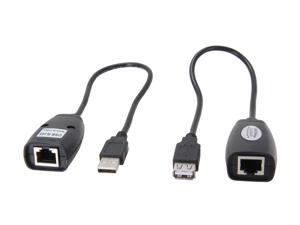

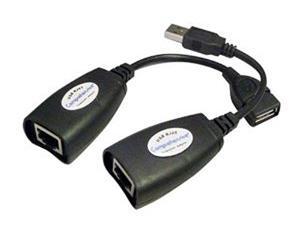

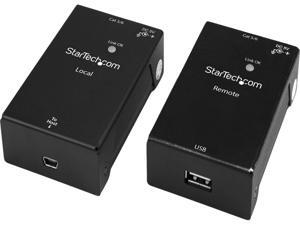

Specifications: Cabling: Cat 5 UTP or better
Ports: 1
Max Distance: 50 m / 165 ft
Maximum Data Transfer Rate: 480Mbps
MTBF: 72,000 Hours
OS Compatibility: OS Independent; No additional drivers or software required
System and Cable Requirements:
A host computer with an available USB-A port (USB Type-A)
Terminated RJ45 Cat5e or better Ethernet cable
LED Indicators: 1 x Power / Link
Center Tip Polarity: Positive
Input Current: 0.6 A
Input Voltage: 100 - 240 AC
Output Current: 2 A
Output Voltage: 5 DC
Plug Type: N
Power Consumption (In Watts): 10
Power Source: AC Adapter Included
Enclosure Type: Steel

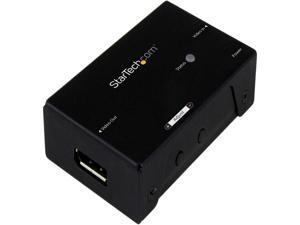

Specifications: Audio: Yes
Cabling: DisplayPort
Rack-Mountable: Yes
Max Distance: 66 ft.
Maximum Cable Length: 65.6 ft.
Maximum Digital Resolutions: At 7m Up to 4K at 60Hz / At 13m Up to 4K at 30Hz / At 15m Up to 2560 x 1600 at 60Hz / At 20m Up to 1080p
Supported Resolutions: 3840 x 2160 (4K), 2560 x 1600, 1920 x 1200, 1920 x 1080 (1080p), 1280 x 720 (720p)
Wide Screen Supported: Yes
Power Source: AC Adapter Included

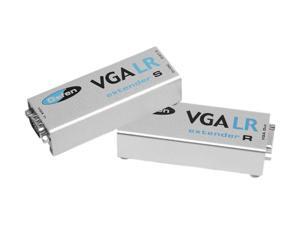

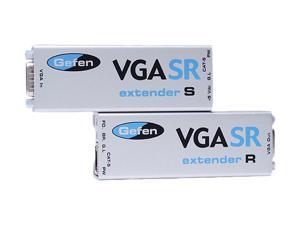

Specifications: Signal Types Supported: VGA, SVGA, XGA, UXGA, and Multisync
Video Bandwidth: 350 MHz
Maximum Resolution Supported: 1920 x 1440 at 80 Hz
Maximum Cable Length Supported: 210 ft.
Power Input: 120 VAC 60 Hz
Power Output: 9 VAC, 600mA
Pin Diameter: 5.5mm
Center Pin Polarity: Positive

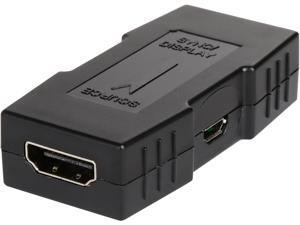

Specifications: Audio Specifications: 7.1 surround Sound
Max Distance: 35 m / 115 ft
Maximum Cable Length: 114.8 ft [35 m]
Maximum Digital Resolutions: 1920 x 1080 at 60Hz
Supported Resolutions: 1920 x 1080, 1680 x 1050, 1600 x 900, 1440 x 900, 1360 x 768, 1280 x 800, 1280 x 768, 1280 × 720
Wide Screen Supported: Yes
System and Cable Requirements:
The HDMI cable connected to your video source must be longer or equal to the length of the cable connected to your display.
The maximum supported video source cable length is 82 ft. (25m).
The maximum supported display cable length is 33 ft. (10m).
LED Indicators:
1 - power LED (blue)
1 - video source LED (blue)

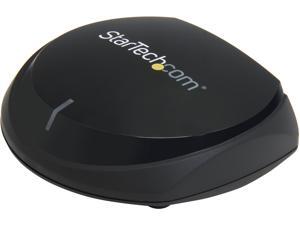

Connector A: RX: 3.5mm input / RCA input / Optical input on stereos, car stereos and stereo receivers
Bluetooth enabled sources such as smartphones, tablets and computers
Connector B: TX: 3.5mm output / RCA output / Optical output on TVs and stereo receivers
Bluetooth enabled devices such as headsets and speakers

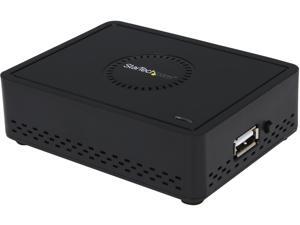

Specifications: Audio: Yes
Cabling: Wireless Ethernet
Output Signal: HDMI
Ports: 1
Maximum Digital Resolutions: 1920x1080/1080p
Wide Screen Supported: Yes
OS Compatibility: Windows 8 (32/64), Windows 7(32/64), Windows Vista (32/64)
Enclosure Type: Plastic
LED Indicators: 1 - Power/Activity LED
Input Voltage: 100~240V
Output Current: 1A
Output Voltage: 5 DC
Power Adapter Included: Yes

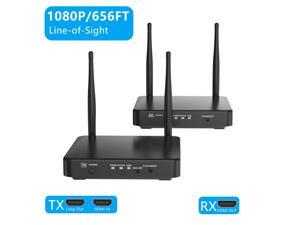

Specifications: Wirelessly Extends an HDMI Audio/Video Signal Up to 200 m (650 ft.)
Easy no-fuss, no-mess setup with no costly cabling infrastructure
Ideal for homes, offices, digital signage applications, trade shows and anywhere else where connecting long video cables is impractical
Enhanced Technical Features
Supports video resolutions up to 1920 x 1080 (1080p) @ 60 Hz
Extends IR control signals that control an HDMI source from the remote display
Compatible with HDMI 1.3 and HDCP 1.2
Supports 24-bit Deep Color (8 bits per channel) and stereo audio
Supports 300 MHz/3.4 Gbps per channel bandwidth (10.2 Gbps total)
AES 128 encryption protects transmissions
Uses a 5GHz wireless frequency
LEDs indicate power, data transmission and connection status
Plug-and-Play F...

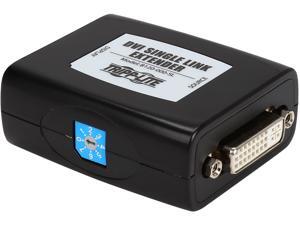

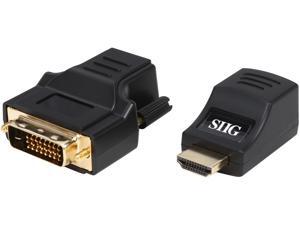

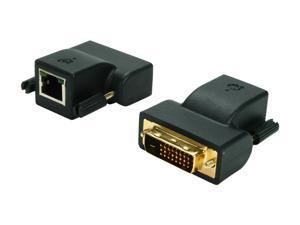

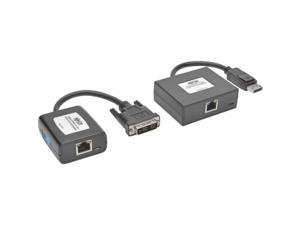

Specifications: Cable Type: Solid CAT5e/6 Cable
Cable Distance: Up to 100ft (30m)
Link: 1 x CAT5e/6
ACT (Activity): 1 (Each Unit)
Power On: 1 (Each Unit)
Video Resolution: Up to 1920x1200
DVI-D(Single Link): Male Connection
Data Rate: Up to 1.65Gbps
Specifications: Max 1024 x 768 Range (ft): 150 ft.
Max 480P Range (ft): 154 ft.
Max 1440 x 900 Range (ft): 150 ft.
Max 1080i Range (ft): 150 ft.
Max 1080P Range (ft): 150 ft.
Max 480i Range (ft): 154 ft.
Max 640 x 480 Range (ft): 150 ft.
Max 800 x 600 Range (ft): 150 ft.
Max 1600 x 1200 Range (ft): 150 ft.
Max 720P Range (ft): 150 ft.

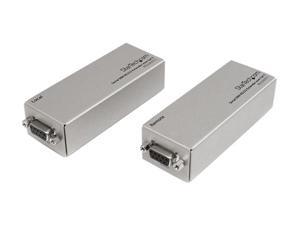

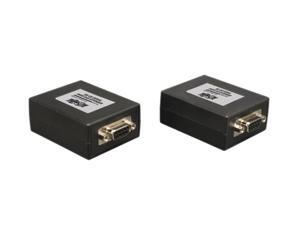

Specifications: RS-232 Input Connector: DB-9 female
RS-232 Output Connector: DB-9 male
Link Connector: RJ-45 Shielded
Conforms to the full 9-pin RS-232 standard
Maximum data transfer rate: 115,200 baud
Operating temperature range: +5 to +45 deg. Celsius
Operating humidity range: 5 to 65% RHL, non-condensing
Storage temperature range: -20 to +70 deg. Celsius
Storage humidity range: 5 to 95% RHL, non-condensing
Power Supply: 5V DC
Power Consumption: 5W (max)
