Specifications: Audio: Yes
AV Input: HDMI
AV Output: HDMI
Cabling: Cat 6 UTP
Chipset ID: Norelsys NS 5730, NS5731
Audio Specifications: 7.1 Surround Sound
Max Distance: 140 m / 460 ft
Wide Screen Supported: Yes
Supported Resolutions:
3840x2160 (4K) 60Hz
2560x1600 60Hz
1920x1200 60Hz
1920x1080 (1080p) 60Hz
1280x720 (720p) 60Hz
*Lower resolutions and refresh rates, not stated but below the maximum, may also be supported
Center Tip Polarity: Positive
Input Voltage: 110V-240V AC
Output Current: 3 A
Output Voltage: 5V DC
Plug Type: M
Power Source: 2 AC Adapters Included
Specifications: Audio Specifications; DTS / Dolby Digital
Bandwidth: 18Gbps
Max Distance: 14 m / 45 ft
Video Revision: HDMI 2.0
Wide Screen Supported: Yes
Plug Type: USB Micro-B
Power Consumption (In Watts): <2.5
Power Source: Not Included (not required for standard applications)
Specifications: Audio: Yes
Cabling: DisplayPort
Rack-Mountable: Yes
Max Distance: 66 ft.
Maximum Cable Length: 65.6 ft.
Maximum Digital Resolutions: At 7m Up to 4K at 60Hz / At 13m Up to 4K at 30Hz / At 15m Up to 2560 x 1600 at 60Hz / At 20m Up to 1080p
Supported Resolutions: 3840 x 2160 (4K), 2560 x 1600, 1920 x 1200, 1920 x 1080 (1080p), 1280 x 720 (720p)
Wide Screen Supported: Yes
Power Source: AC Adapter Included
Specifications: Audio Specifications: 7.1 surround Sound
Max Distance: 35 m / 115 ft
Maximum Cable Length: 114.8 ft [35 m]
Maximum Digital Resolutions: 1920 x 1080 at 60Hz
Supported Resolutions: 1920 x 1080, 1680 x 1050, 1600 x 900, 1440 x 900, 1360 x 768, 1280 x 800, 1280 x 768, 1280 × 720
Wide Screen Supported: Yes
System and Cable Requirements:
The HDMI cable connected to your video source must be longer or equal to the length of the cable connected to your display.
The maximum supported video source cable length is 82 ft. (25m).
The maximum supported display cable length is 33 ft. (10m).
LED Indicators:
1 - power LED (blue)
1 - video source LED (blue)

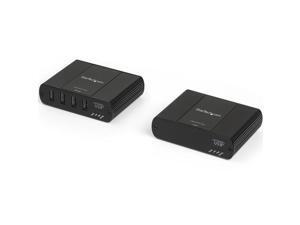

Specifications: Cabling: Cat 5 UTP or better
Ports: 1
Max Distance: 50 m / 165 ft
Maximum Data Transfer Rate: 480Mbps
MTBF: 72,000 Hours
OS Compatibility: OS Independent; No additional drivers or software required
System and Cable Requirements:
A host computer with an available USB-A port (USB Type-A)
Terminated RJ45 Cat5e or better Ethernet cable
LED Indicators: 1 x Power / Link
Center Tip Polarity: Positive
Input Current: 0.6 A
Input Voltage: 100 - 240 AC
Output Current: 2 A
Output Voltage: 5 DC
Plug Type: N
Power Consumption (In Watts): 10
Power Source: AC Adapter Included
Enclosure Type: Steel
Specifications: Audio: Yes
Cabling: Wireless Ethernet
Output Signal: HDMI
Ports: 1
Maximum Digital Resolutions: 1920x1080/1080p
Wide Screen Supported: Yes
OS Compatibility: Windows 8 (32/64), Windows 7(32/64), Windows Vista (32/64)
Enclosure Type: Plastic
LED Indicators: 1 - Power/Activity LED
Input Voltage: 100~240V
Output Current: 1A
Output Voltage: 5 DC
Power Adapter Included: Yes
Specifications: Max Distance: 150 m / 500 ft
Supported Resolutions:
1600x1200 @ 150ft(50m)
1280x1024 @ 300ft(100m)
1024x768 @ 500ft(150m)
The ST1218T 8 Port VGA Video Extender over Cat 5 is designed for use with our ST121 VGA over Cat 5 extension series, offering convenient VGA video distribution at distances of up to 492 feet (150 meters) using standard Cat 5 (or better) cabling.
Comprised of the transmitter unit only, the ST1218T requires one Receiver Unit (ST121R) per display that you are connecting.
For added versatility, the VGA over Cat 5 Repeater (ST121EXT) can be used to extend the distance between the transmitter and receiver by an additional 492-feet (150 meters), for a total distance of 984-feet (300 meters). Similarly, up to 3 repeater units can be used betwe...
Specifications: Audio: Yes
Cabling: Cat 5e UTP or better
Daisy-Chain: Yes
Rack-Mountable: Yes
Audio Specifications: 7.1 Channel Surround
Max Distance: 100 m / 330 ft
Maximum Digital Resolutions: 1920x1080 @60Hz
Supported Resolutions:
1920 x 1080 @60Hz
1280 x 720
1680 x 1050
1600 x 900
1440 x 900
1360 x 768
1280 x 800
1280 x 768
Lower resolutions and refresh rates may also be supported
Wide Screen Supported Yes
Specifications: Audio: Yes
AV Input: HDMI
Cabling: Cat 5 UTP or better
Daisy-Chain: No
Ports: 1
Audio Specifications: Supports Dolby TrueHD, DTS-HD MA
IR Interface: Bi-directional, 38Khz / +/-10° / 5M
Max Distance: 50 m / 165 ft
Maximum Data Transfer Rate : HDMI - 3.4Gbps, RS232 - 115200bps baud
Maximum Digital Resolutions: 1080p @ 60Hz, 48-bit
Wide Screen Supported: Yes
Specifications: Audio: Yes
Cabling: Fiber Optic
Daisy-Chain: No
Ports: 1
Rack-Mountable: Optional
Audio Specifications: Supports Dolby TrueHD, DTS-HD MA, Atmos
IR Interface: Bi-directional, 38Khz / +/-10° / 5M
Max Distance: 1 km (0.6 mi)
Maximum Cable Length: 3.3 ft [1 m]
Maximum Data Transfer Rate: 18 Gbps
Wide Screen Supported: Yes
Maximum Digital Resolutions: 4096 x 2160 (4K) @ 60 Hz
Supported Resolutions:
Single Mode:
1000 Meters at 4096 x 2160 60Hz
Multimode:
300 Meters at 4096 x 2160 60Hz
Center Tip Polarity: Positive
Input Voltage: 100 - 240 AC
Output Current: 1A
Output Voltage: 5V DC
Plug Type: M
Power Consumption (In Watts): 3
Power Source: 2 AC Adapters Included
