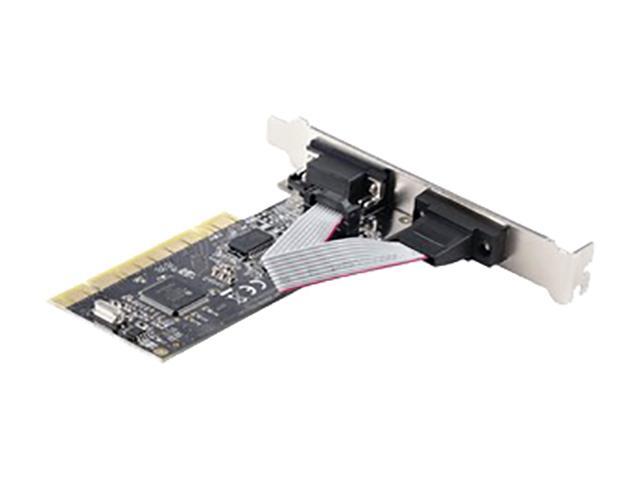

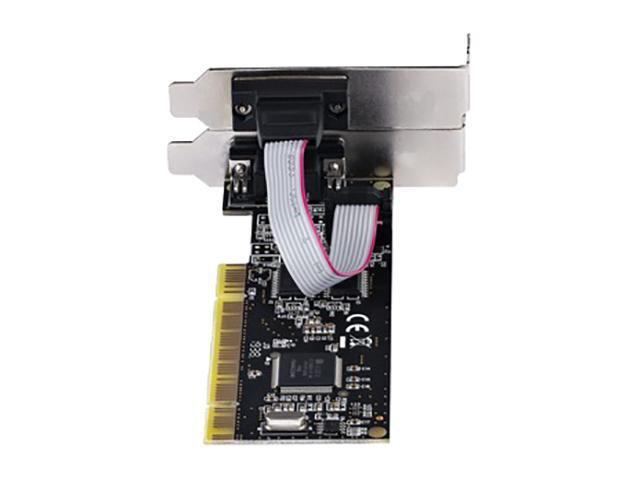

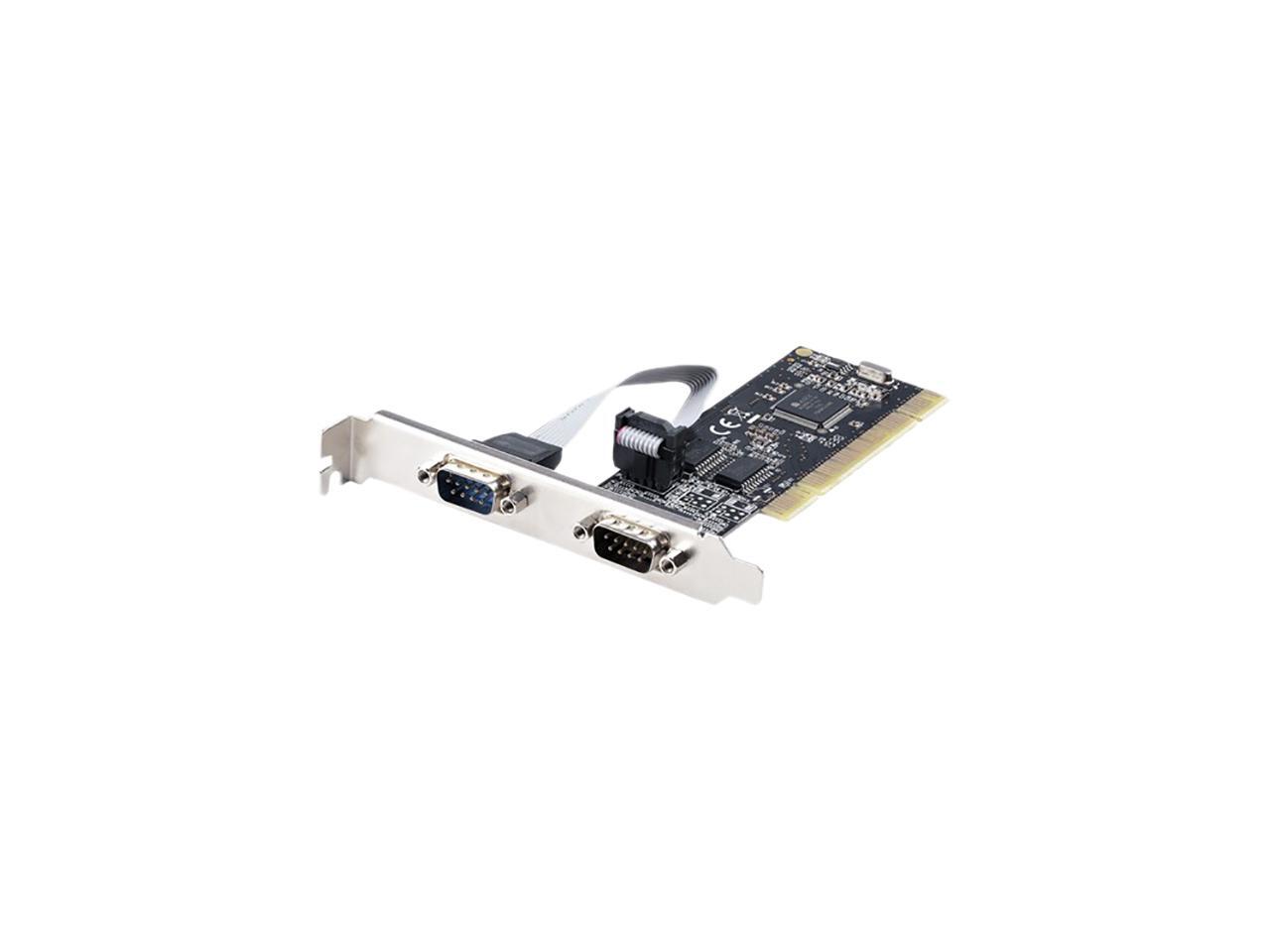

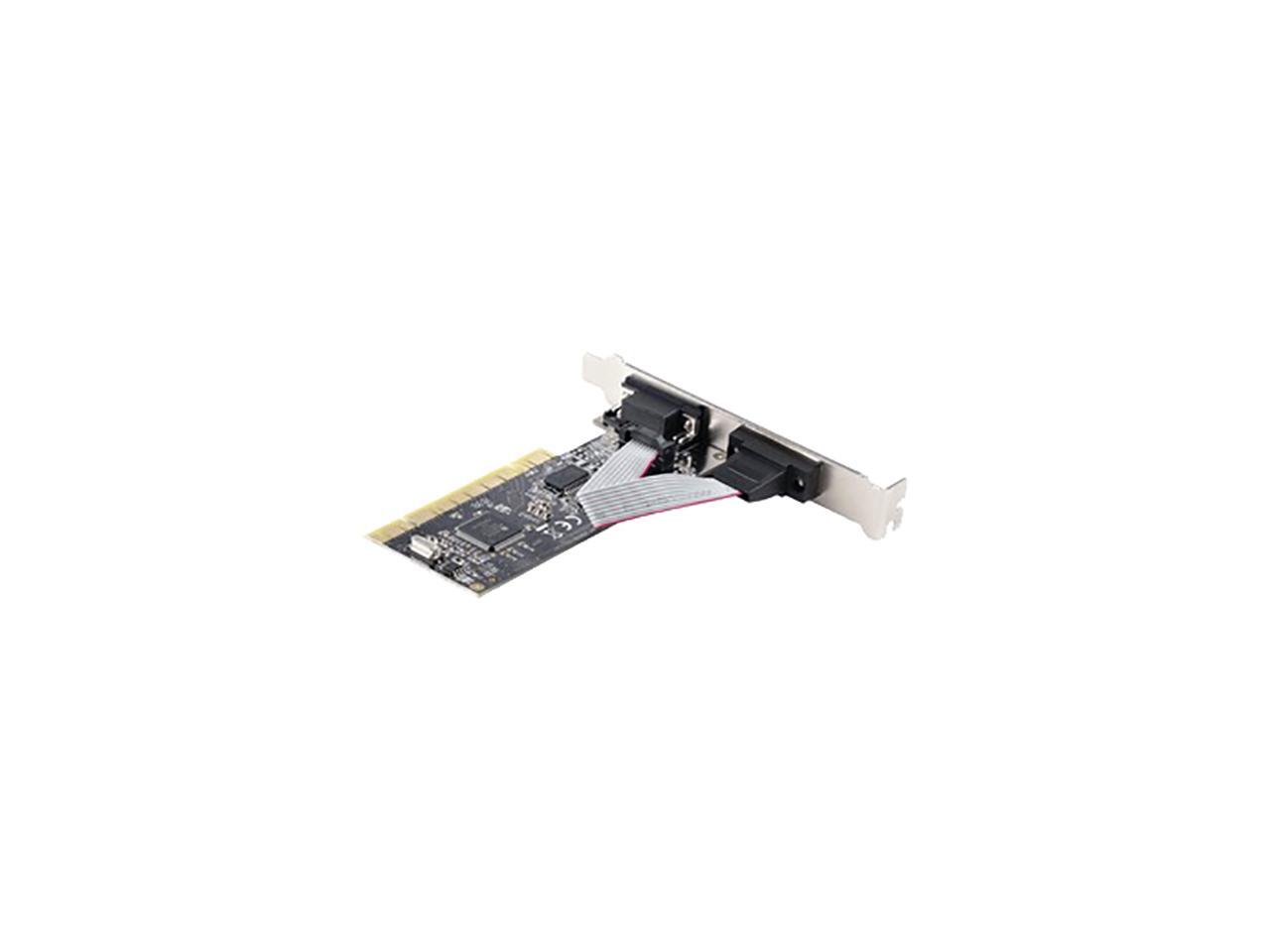

StarTech PCI2S5502 2-Port PCI RS232 Serial Adapter Card, Dual Serial DB9 Ports, Expansion/Controller Card, Windows/Linux, Standard/Low Profile

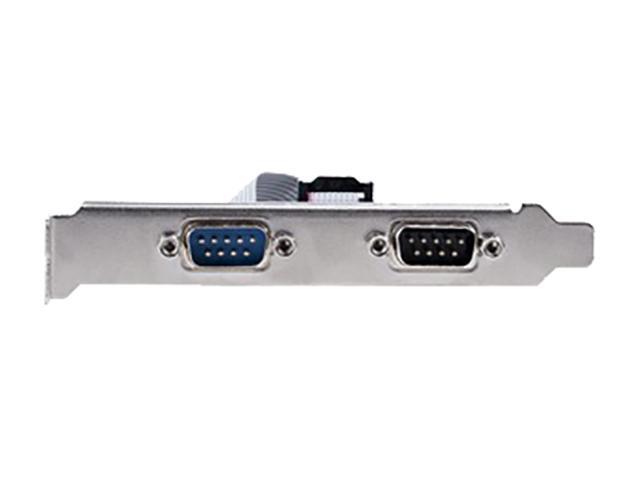

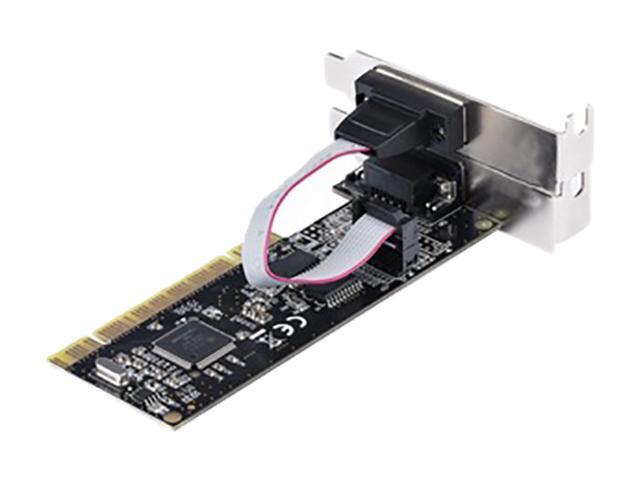

2 PORT PCI RS232 SERIAL ADAPTER CARD: Controller card w/ 16C550 UART based on ASIX MCS9865, 2x DB9 ports w/bi-directional RS232 speeds up to 115.2Kbps/port, 256 byte FIFO buffer & 9th data bit | Upgraded version of our popular cards PCI2S550_LP & PCI2S550
TECH SPECS: Speeds up to 115.2Kbps | 16C550 UART | 256 byte FIFO buffer | 5,6,7,8 and 9 bit character | Even, Odd, No, Space or Mark Parity | Auto IRQ & IO assignment | Supports IRQ Sharing | ASIX MCS9865 Chip

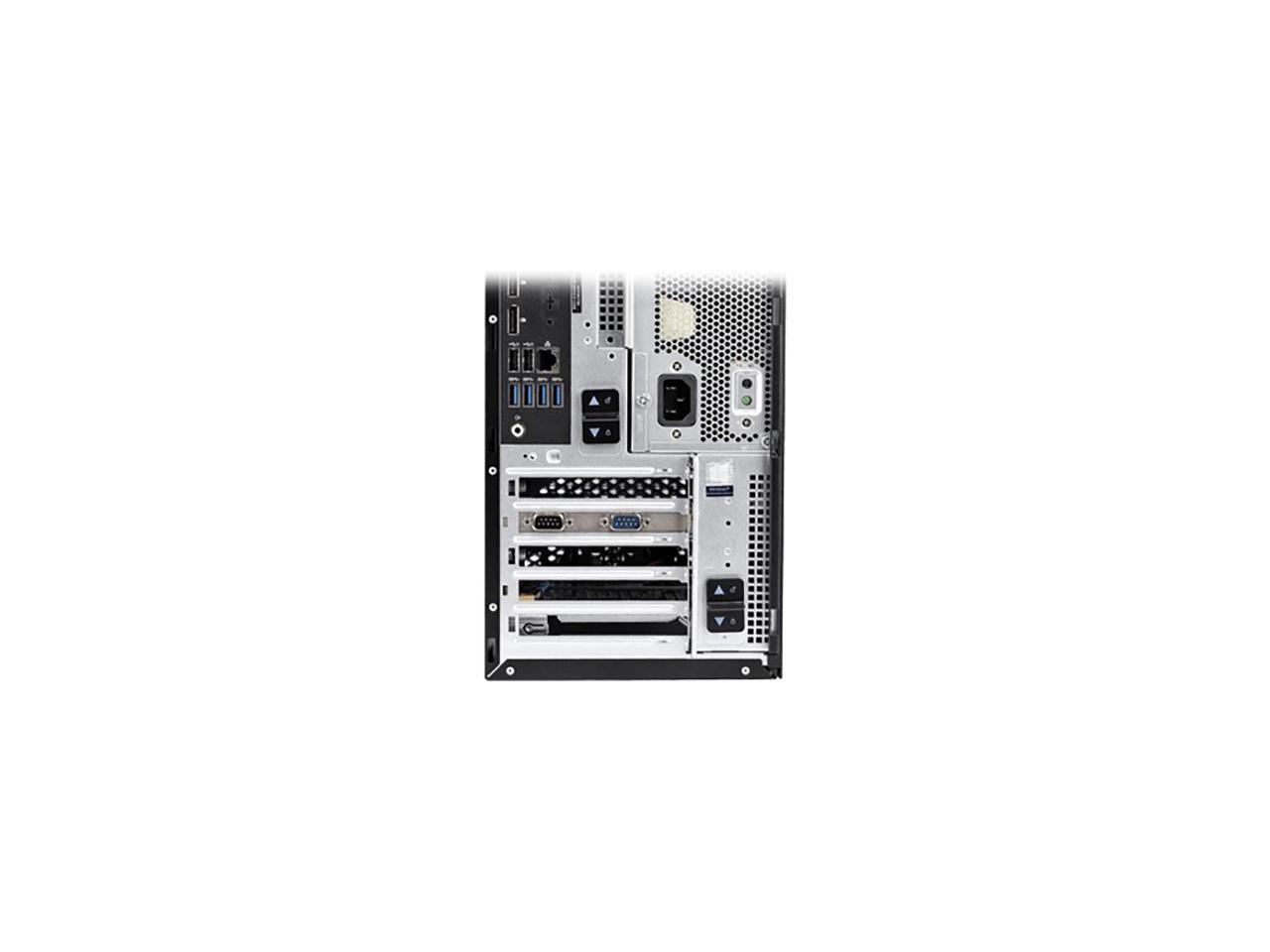

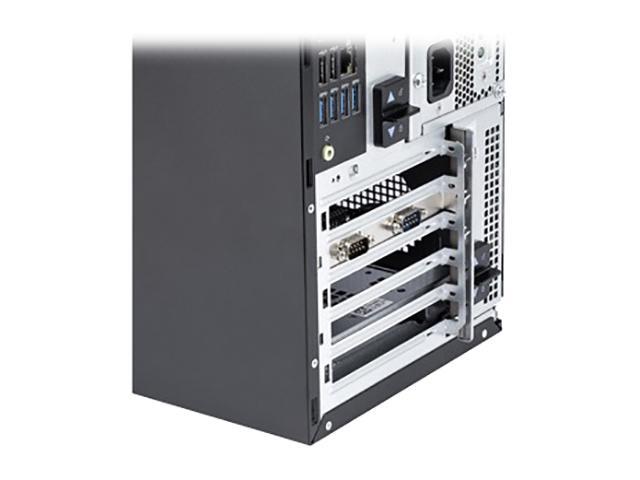

VERSATILE APPLICATIONS: Dual Serial Port PCI Card for PCI desktops/servers used in point of sale terminals, PLCs, CNC Machines, control/automation in factories, scientific sensors, medical equipment, scanners, oscilloscope

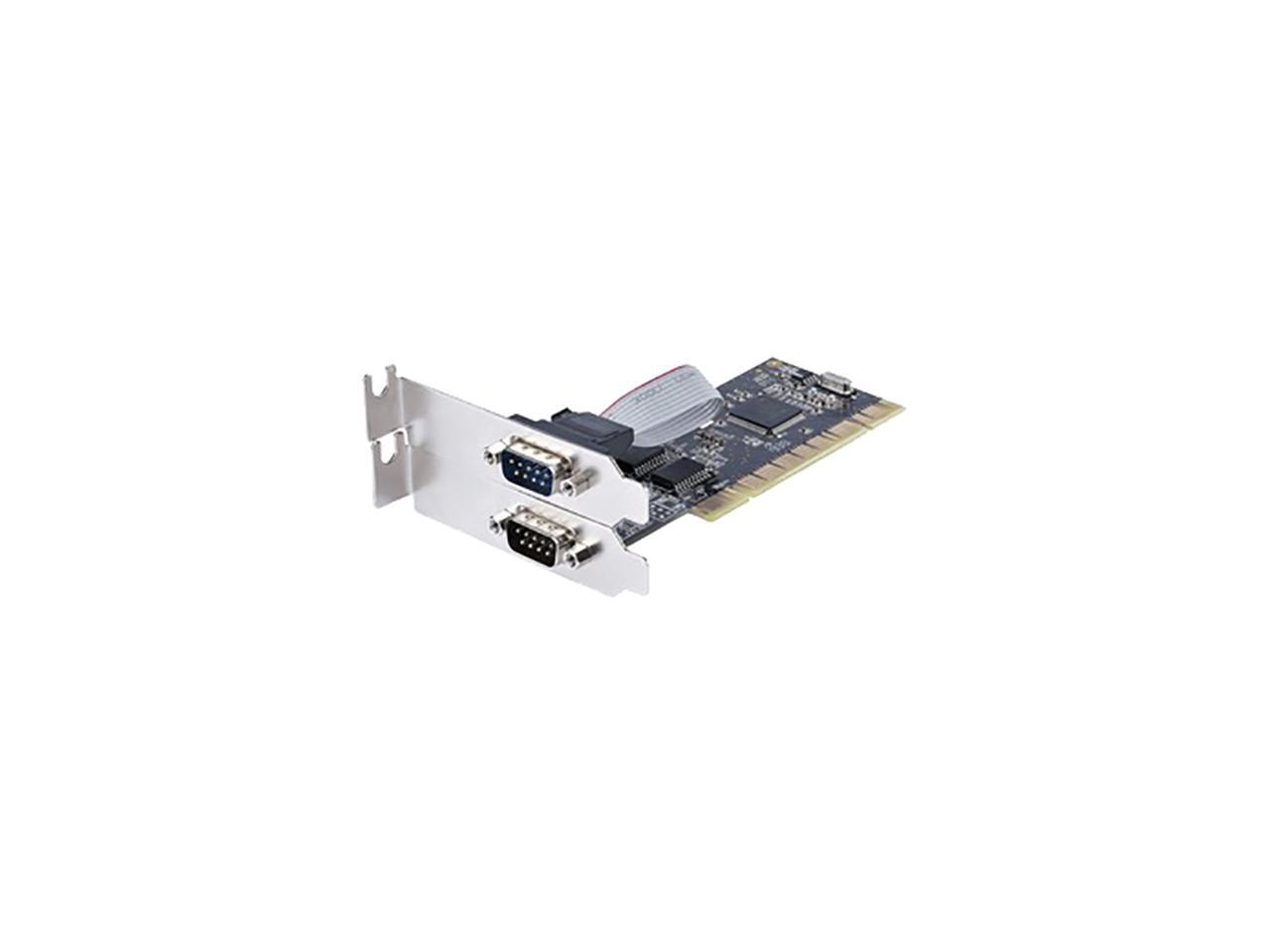

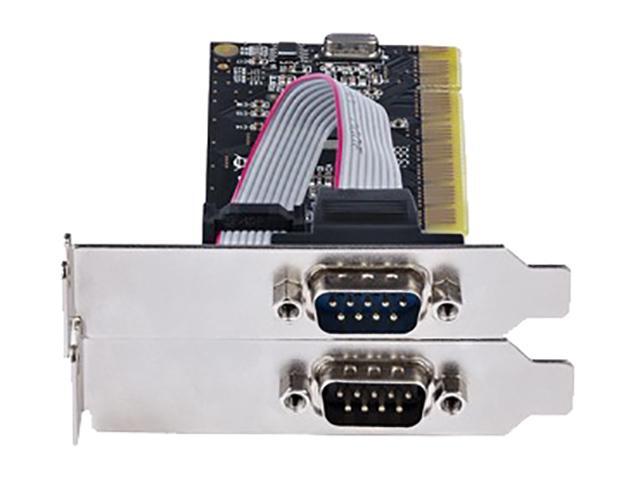

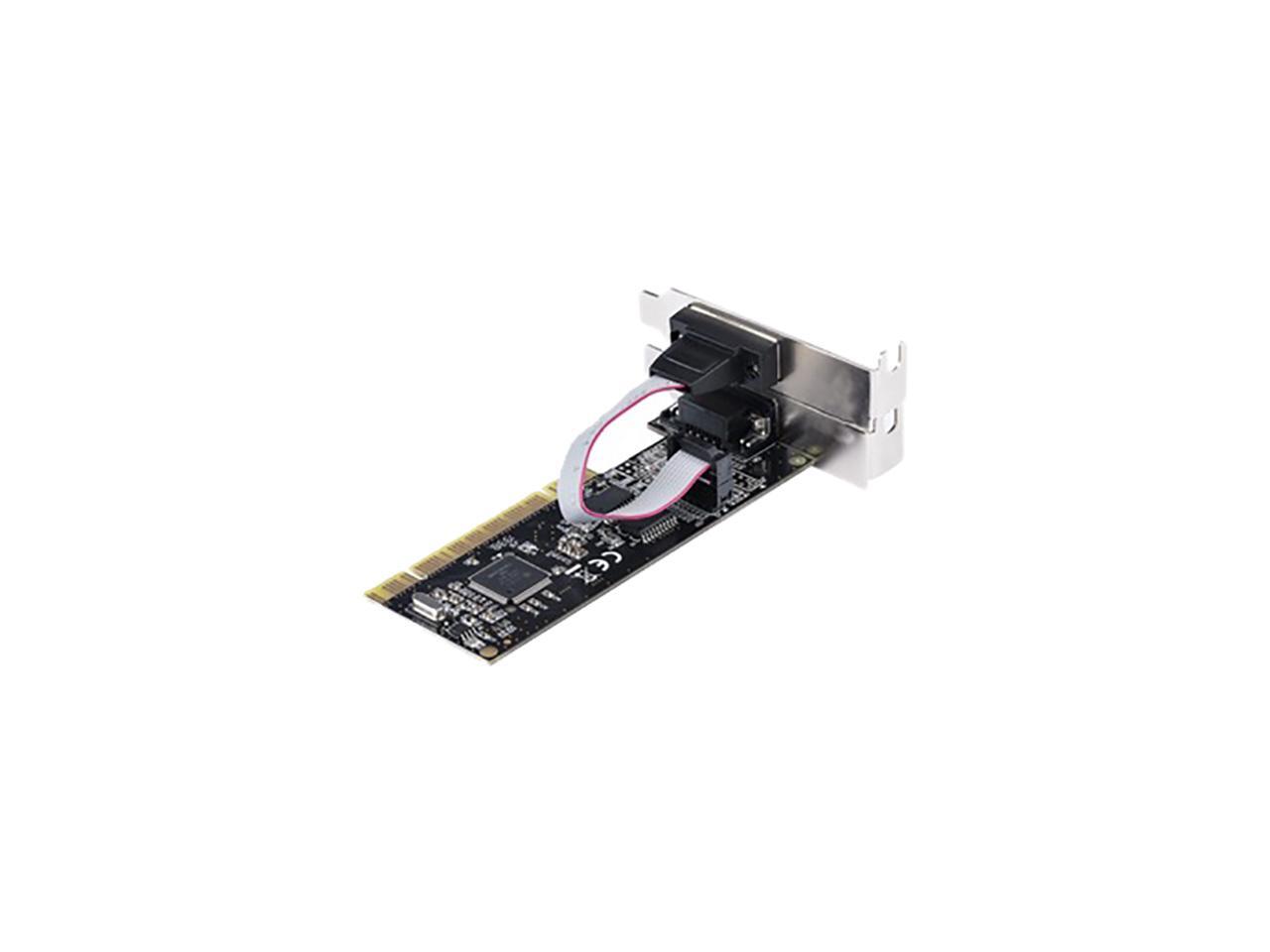

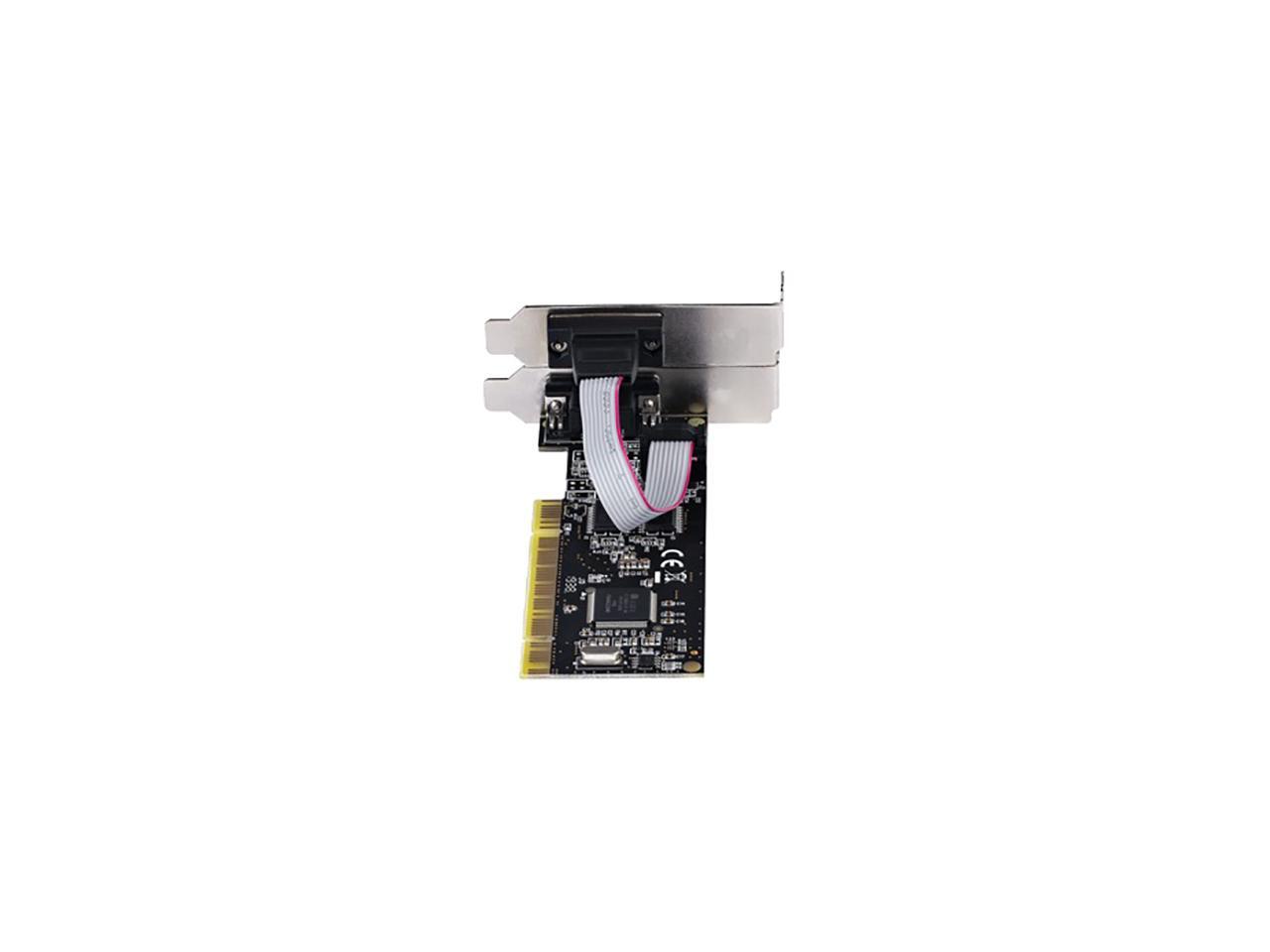

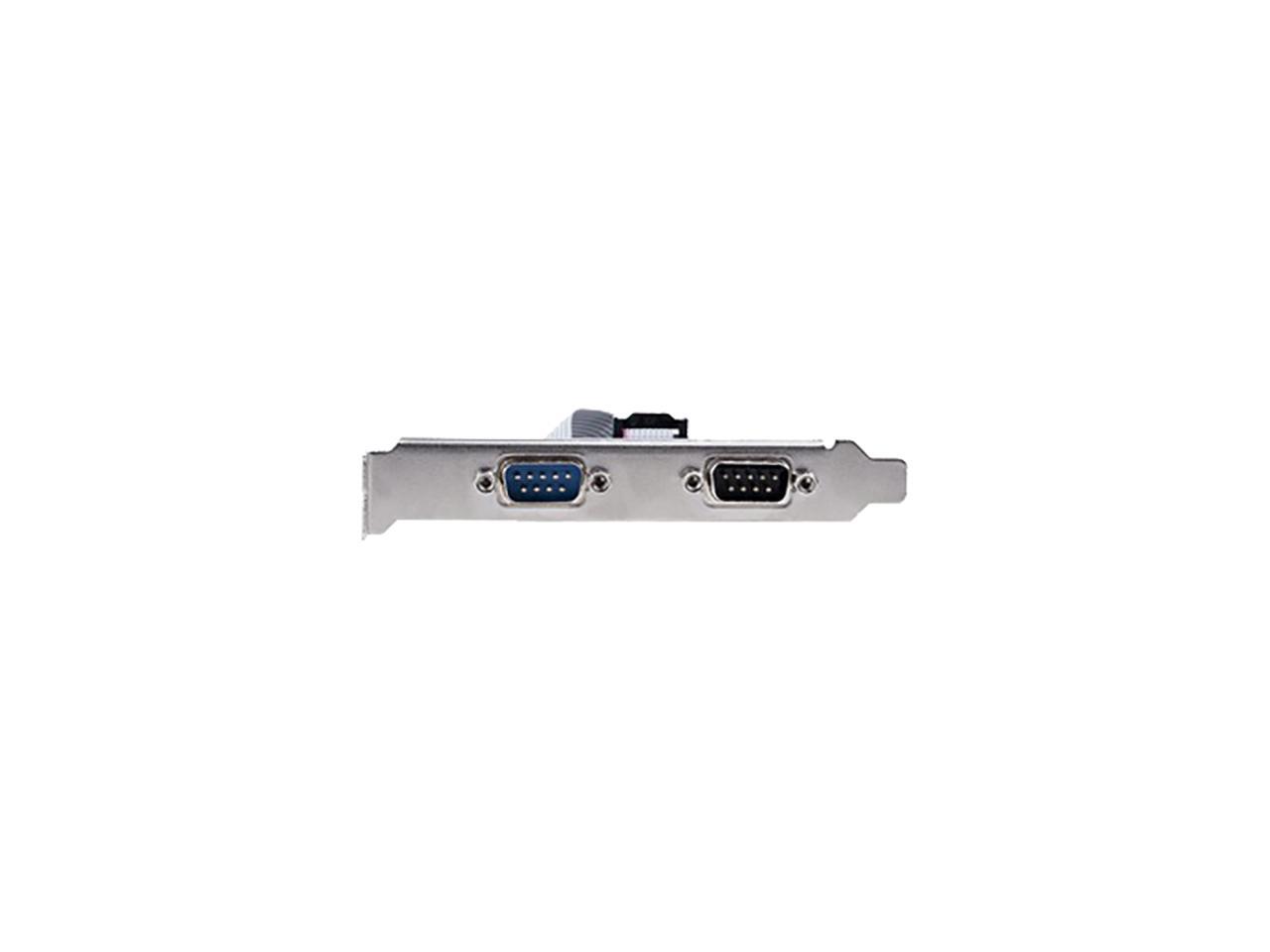

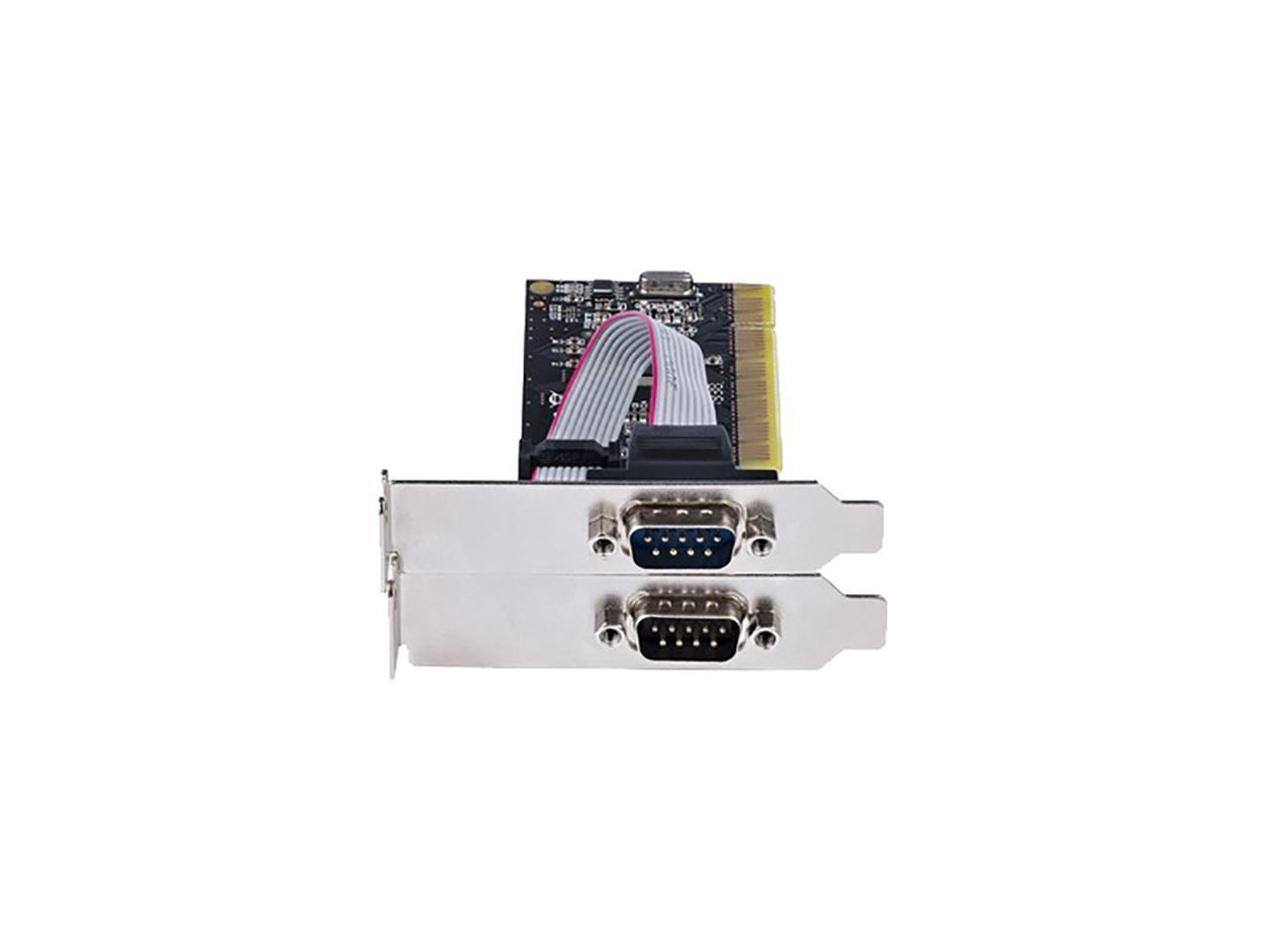

STANDARD PROFILE & LOW PROFILE BRACKET: PCI multiport serial COM card installs using 1x standard bracket (pre-installed) or 2x low profile brackets (incl); Supports Windows 7 and up, Linux 2.6.x to 5.x

Overview

Specs

Reviews

Model
Brand	StarTech.com
Model	PCI2S5502

Details
Operating Systems Supported	Windows 7, 8, 8.1, 10 Windows Server 2003, 2008 R2, 2012, 2012 R2, 2016, 2019 Linux 2.6.x to 5.x LTS Versions only

Features
Features	Industry standard 16C550 UART compatible Supports baud rate up-to 115.2Kbps 256-byte depth FIFO cache per transmitter and receiver Supports 9, 8, 7, 6, 5 data bits (one per port) Asix MCS9865 chipset Low and full-profile brackets included

Dimensions & Weight
Weight	0.31 lb.

Packaging
Package Contents	Serial Protocol RS-232 Max Baud Rate 115.2 Kbps Data Bits 5, 6, 7, 8, 9 FIFO 256 Bytes Flow Control None, Xon/Xoff, RTS/CTS Parity None, Odd, Even, Space, Mark Stop Bits 1, 1.5, 2

Additional Information
First Listed on Newegg	April 21, 2022

Warranty & Returns

Return for refund within: 30 days

Return for replacement within: 30 days
