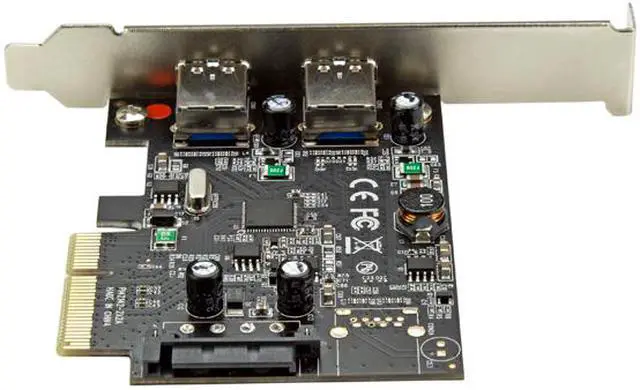

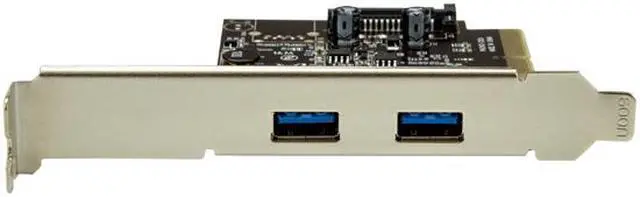

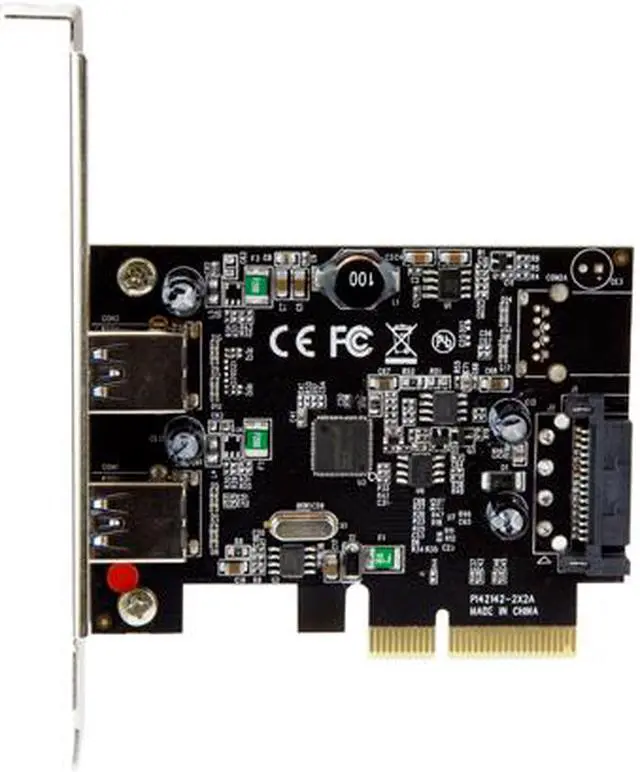

StarTech PEXUSB312A2 StarTech.com Dual Port USB 3.1 Card - 2x USB-A - 10Gbps per port - Expansion Card - PCI Express USB Card - PCI-e to USB

Be the first to review this product...
  • Add two 10Gbps USB Type-A ports to your computer through a PCI Express slot- USB 3.1 PCI-e card perfect for PC upgrades or builds
  • Expand the USB capabilities of your system with 2 new USB ports
  • Works with older USB 3.0 & 2.0 devices
  • PCI-e to USB card w/ SATA power connector provides up to 900mA per port
  • USB 3.1 Expansion Card w/ UASP
  • PCI Express USB Card / 2 Port USB Expansion Card / PCI-e USB 3.1 Card / PCI to USB Adapter /10Gbps PCI e Card
Specs
Reviews

Learn more about the STARTECH PEXUSB312A2

Model
Brand StarTech.com
Model PEXUSB312A2
Details
Type 2x USB-A - PCIe
External USB Ports 2 - USB 3.1 USB Type-A (9 pin, Gen 2, 10 Gbps) Female
Internal Ports 1 - SATA Power (15 pin) Plug
Operating Systems Supported Windows 7, 8, 8.1, 10
Windows Server 2008 R2, 2012, 2012 R2, 2016
Linux 3.5 to 4.4.x LTS version only
Specifications Bus Type: PCI Express
Card Type: Standard Profile (LP bracket incl.)
Industry Standards:
USB 3.1 Specification Rev. 1.0
USB Specification Rev. 2.0
PCI Express Base Specification Rev. 3.0
Intel xHCI Specification Rev. 1.1
UASP (USB Attached SCSI Protocol) Rev. 1.0
Interface : USB 3.1 Gen 2
Port Style: Integrated on Card
Ports: 2
Features
Features Transfer files and access USB 3.1 devices faster, with up to 10Gbps throughput

Optional SATA power connector provides up to 900mA per USB port

Cost-effective backward compatibility

PCIe x4 interface compliant with PCI Express Base Specification Revision 3.0

Fits into standard or low-profile systems with a dual-profile design

Compliant with UASP (USB Attached SCSI Protocol) Revision 1.0

Compliant with Universal Serial Bus 3.1 Specification Revision 1.0, and Universal Serial Bus Specification Revision 2.0
Dimensions & Weight
Dimensions 0.80" x 4.80" 4.30"
Weight 0.11 lbs.
Packaging

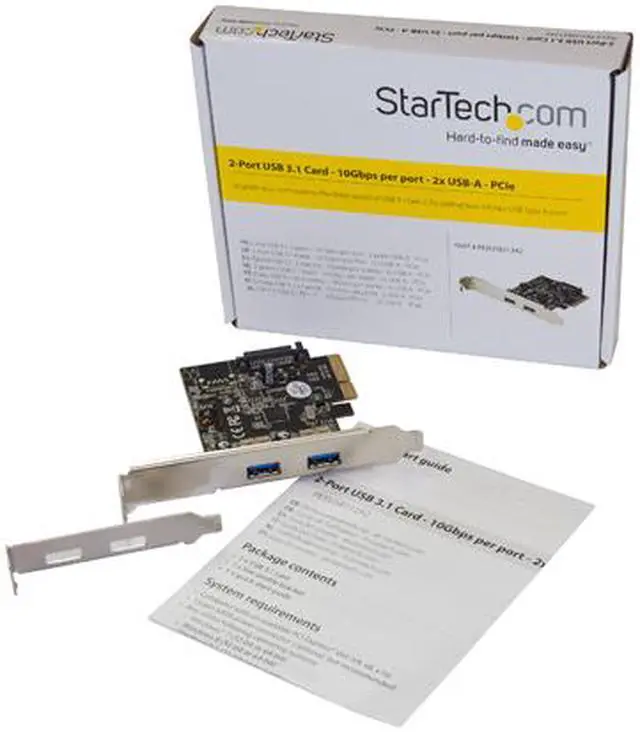

Package Contents 1 - USB 3.1 card
1 - low-profile bracket
1 - quick-start guide
Additional Information
First Listed on Newegg August 03, 2017

Warranty & Returns

Warranty, Returns, And Additional Information

Warranty

  • Limited Warranty period (parts): 1 year
  • Limited Warranty period (labor): 1 year
