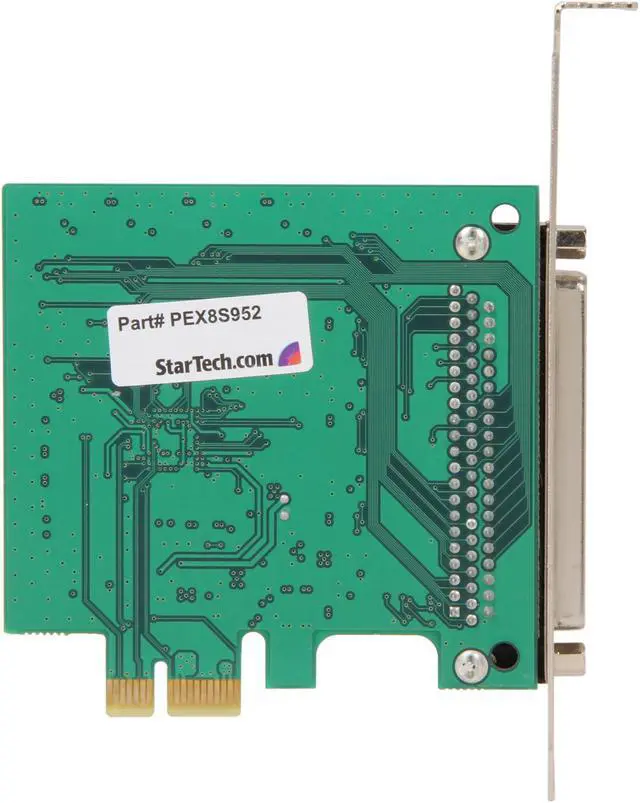

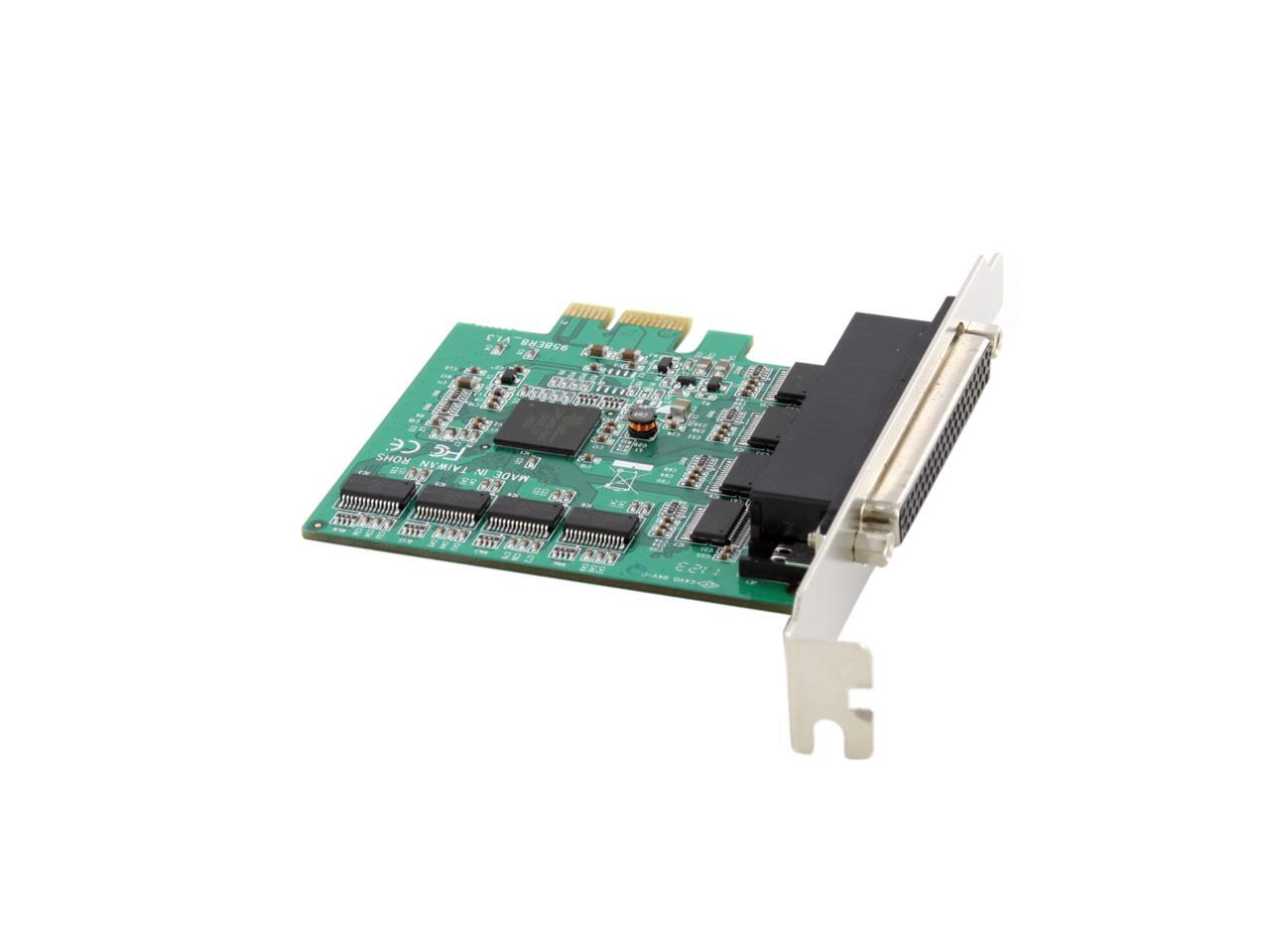

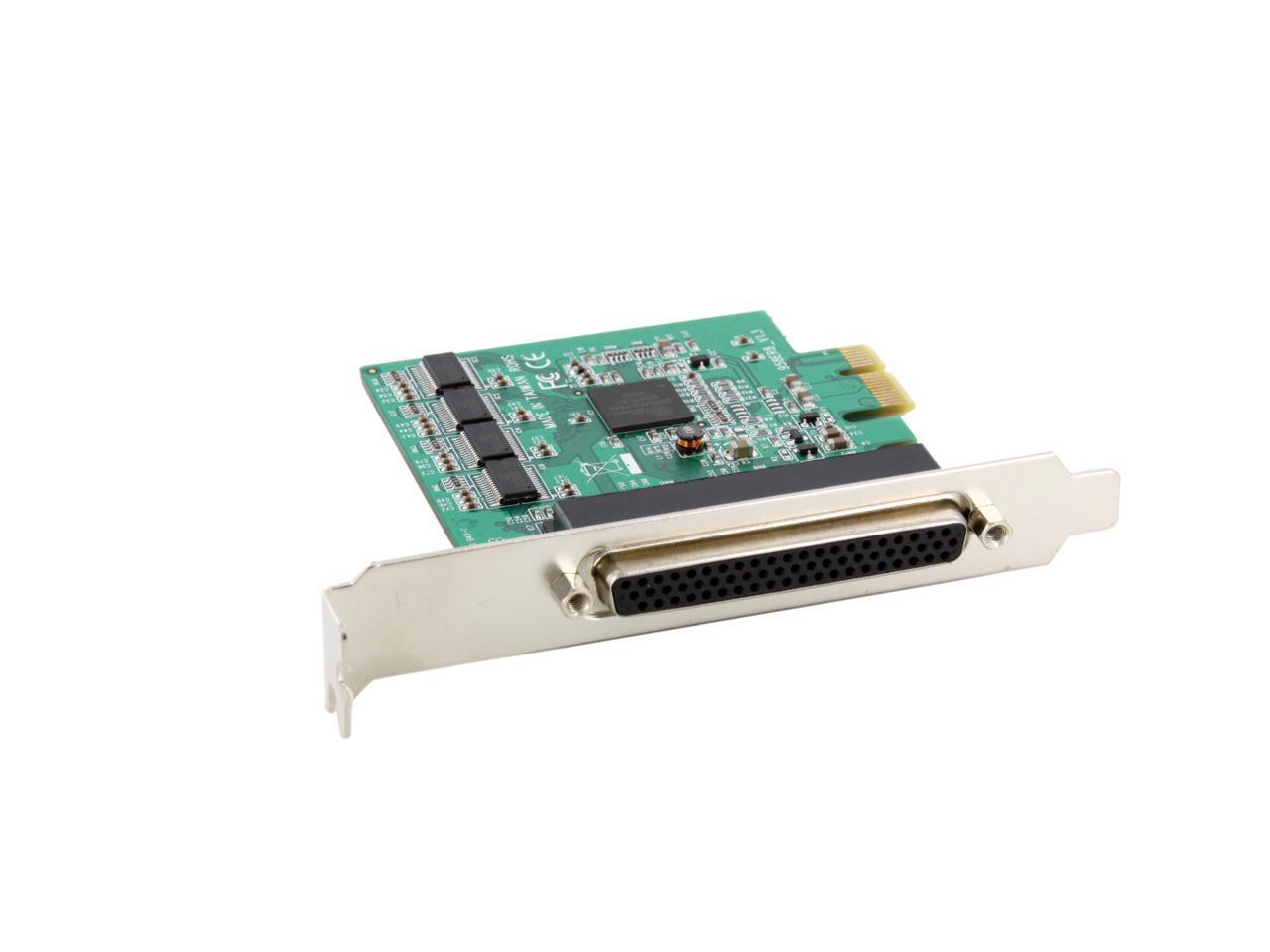

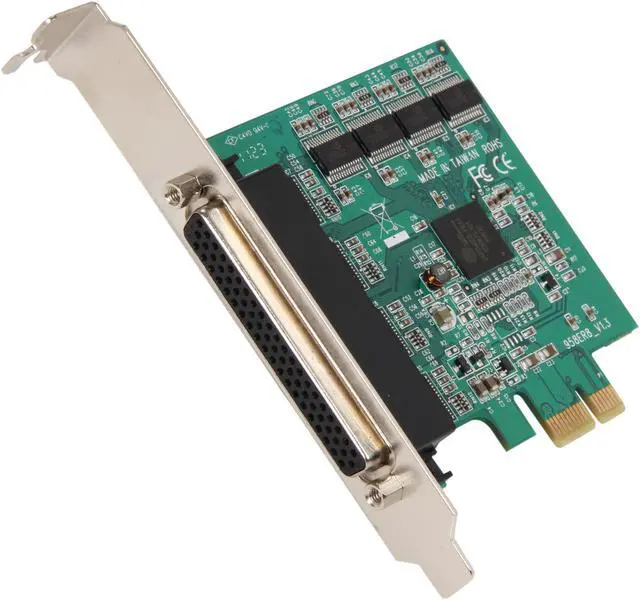

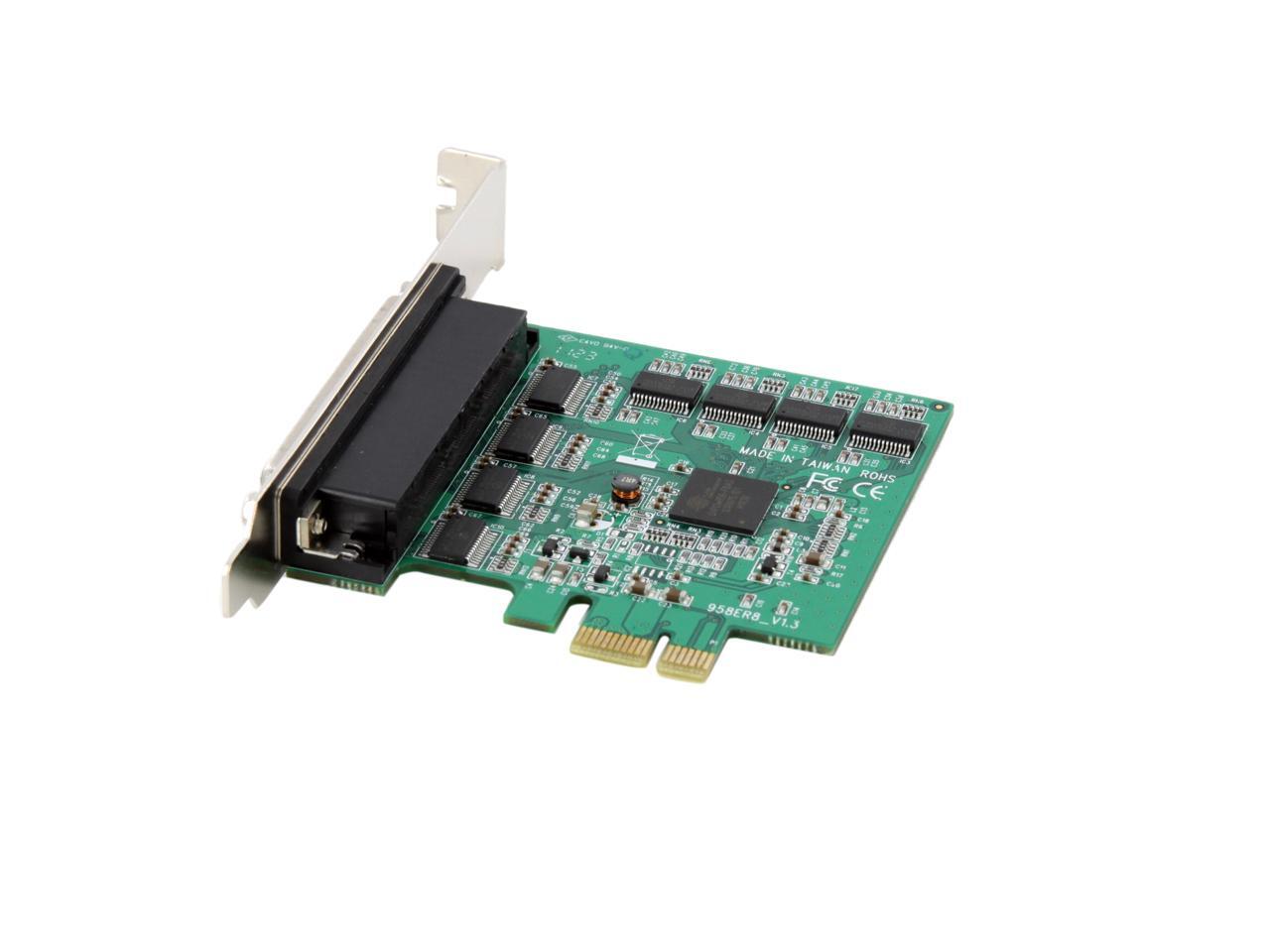

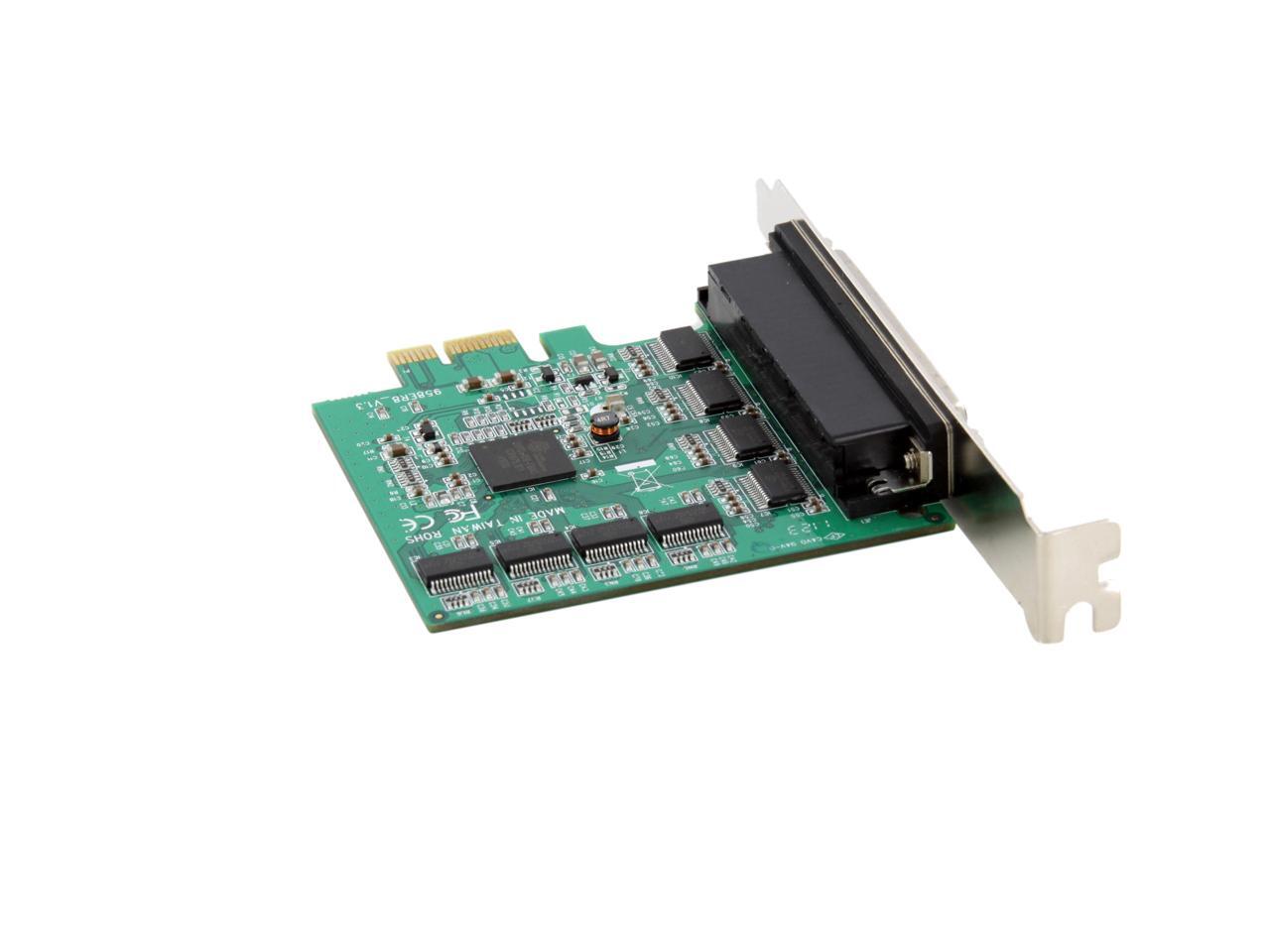

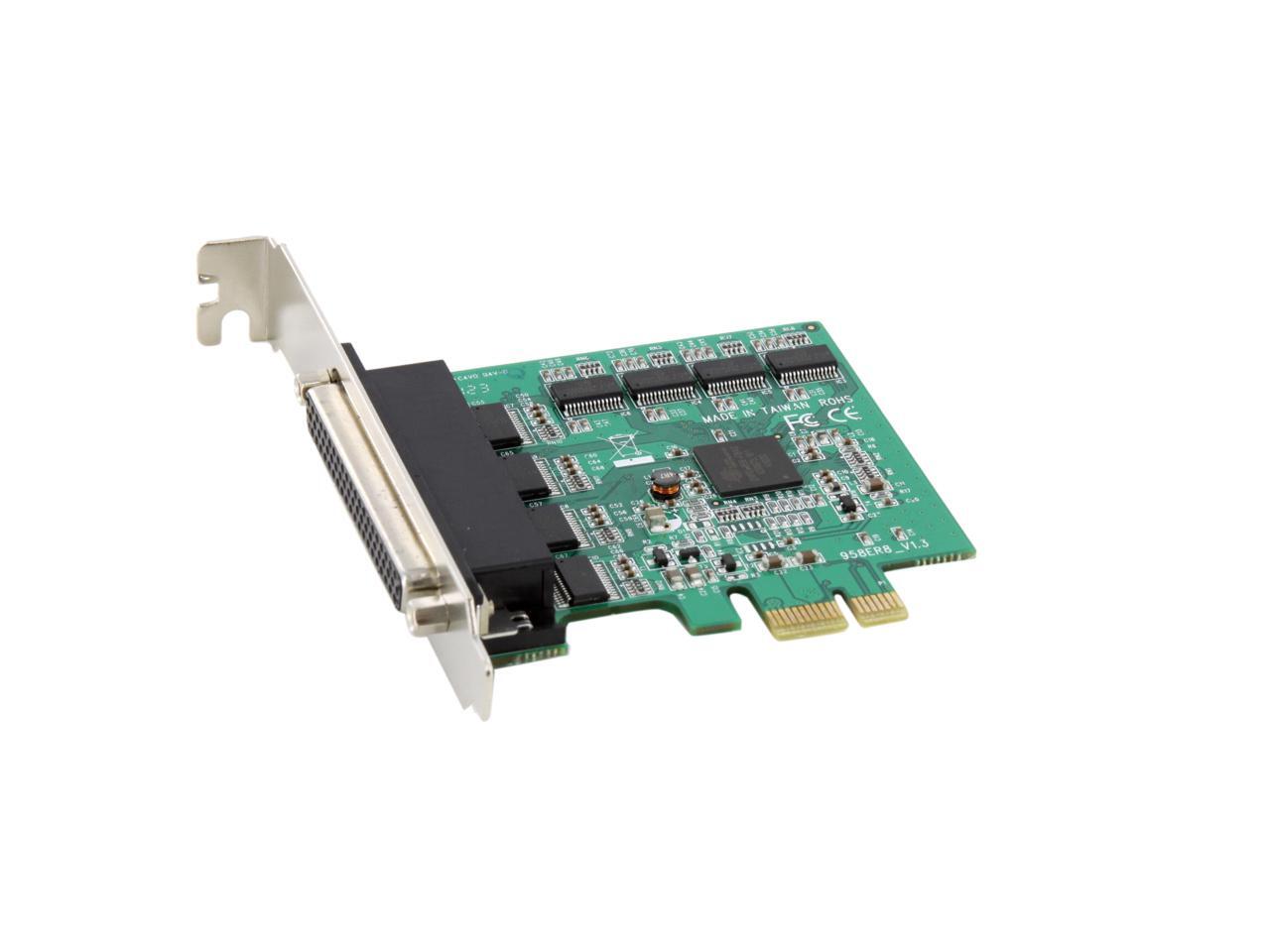

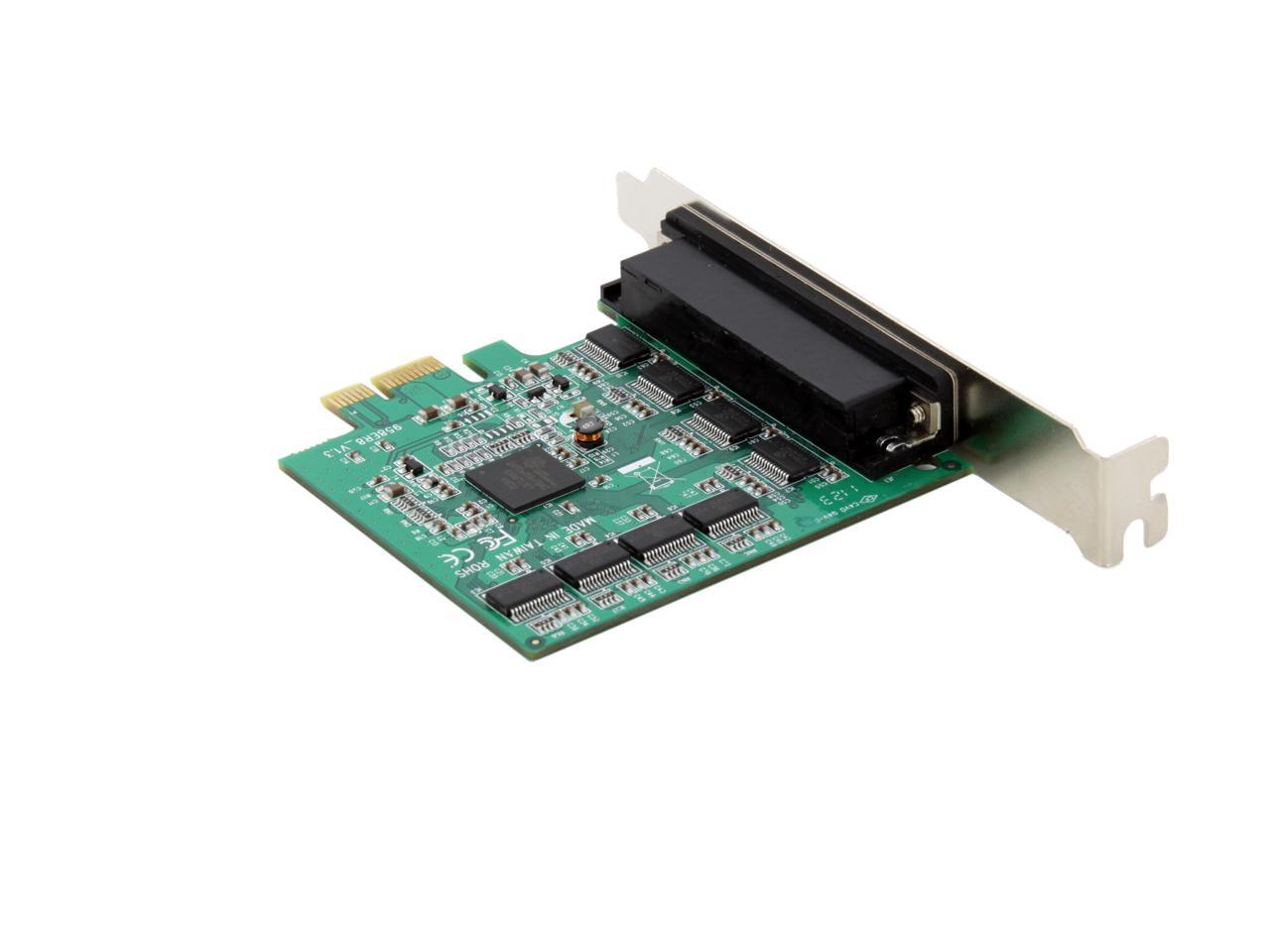

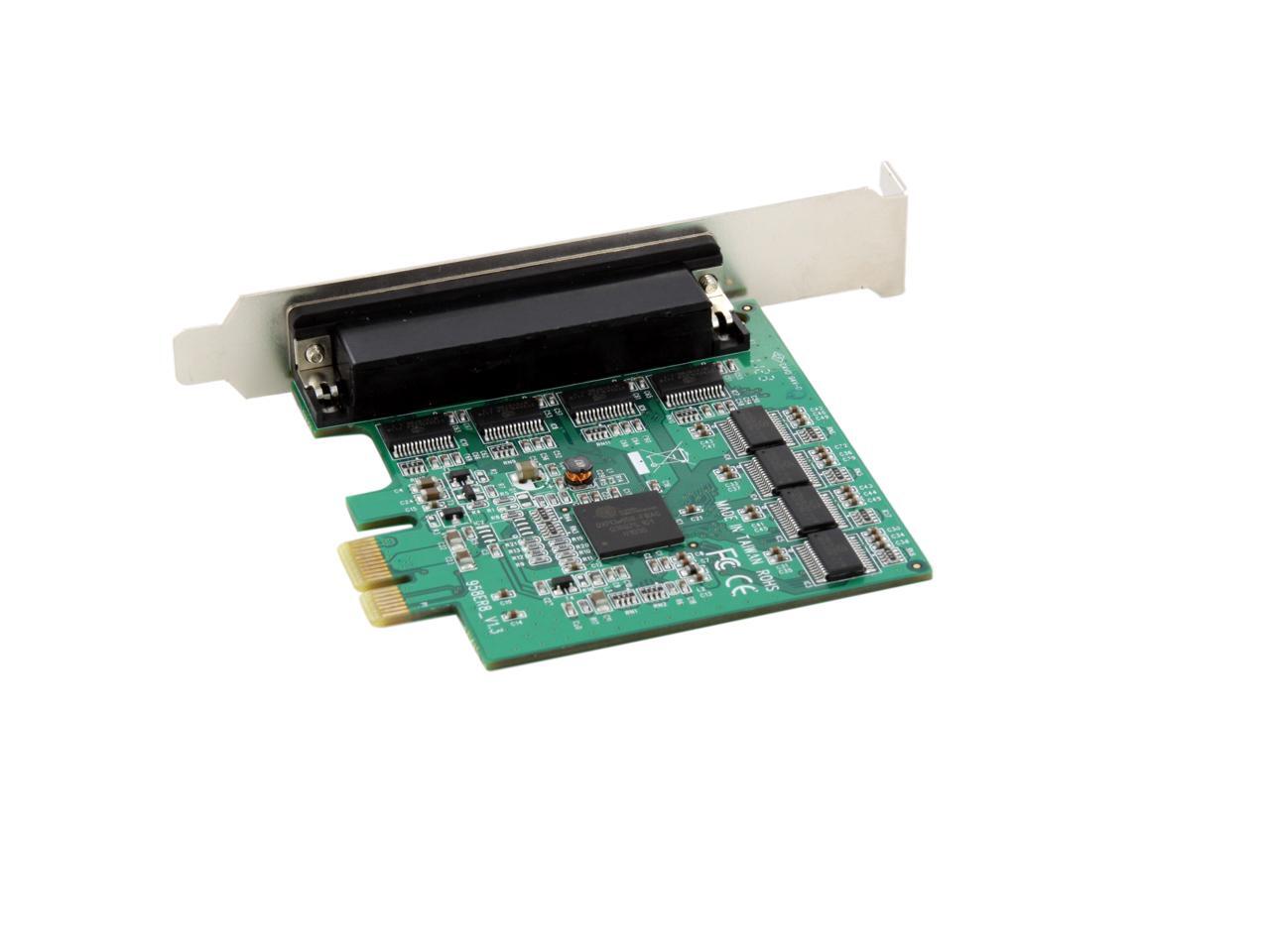

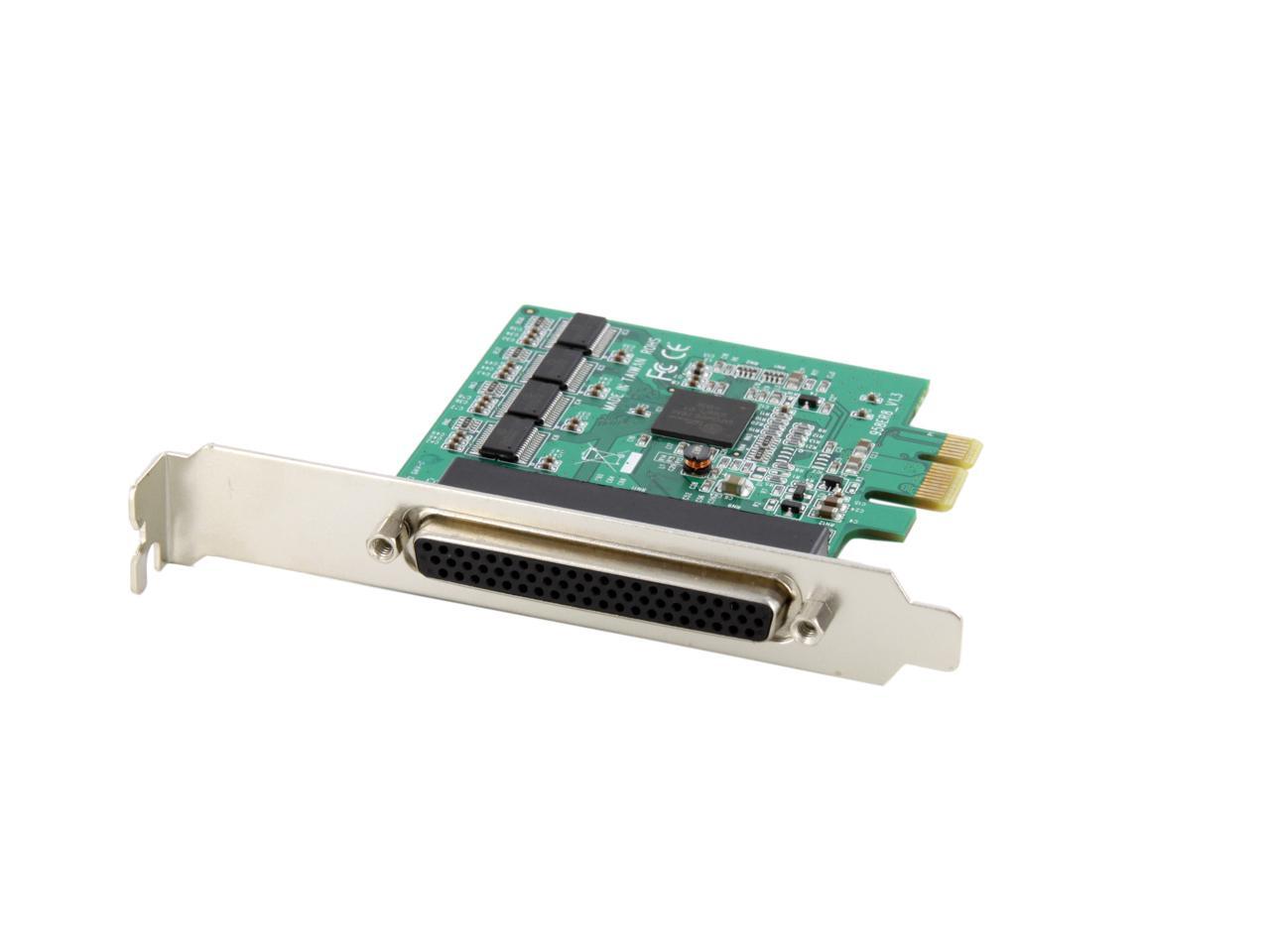

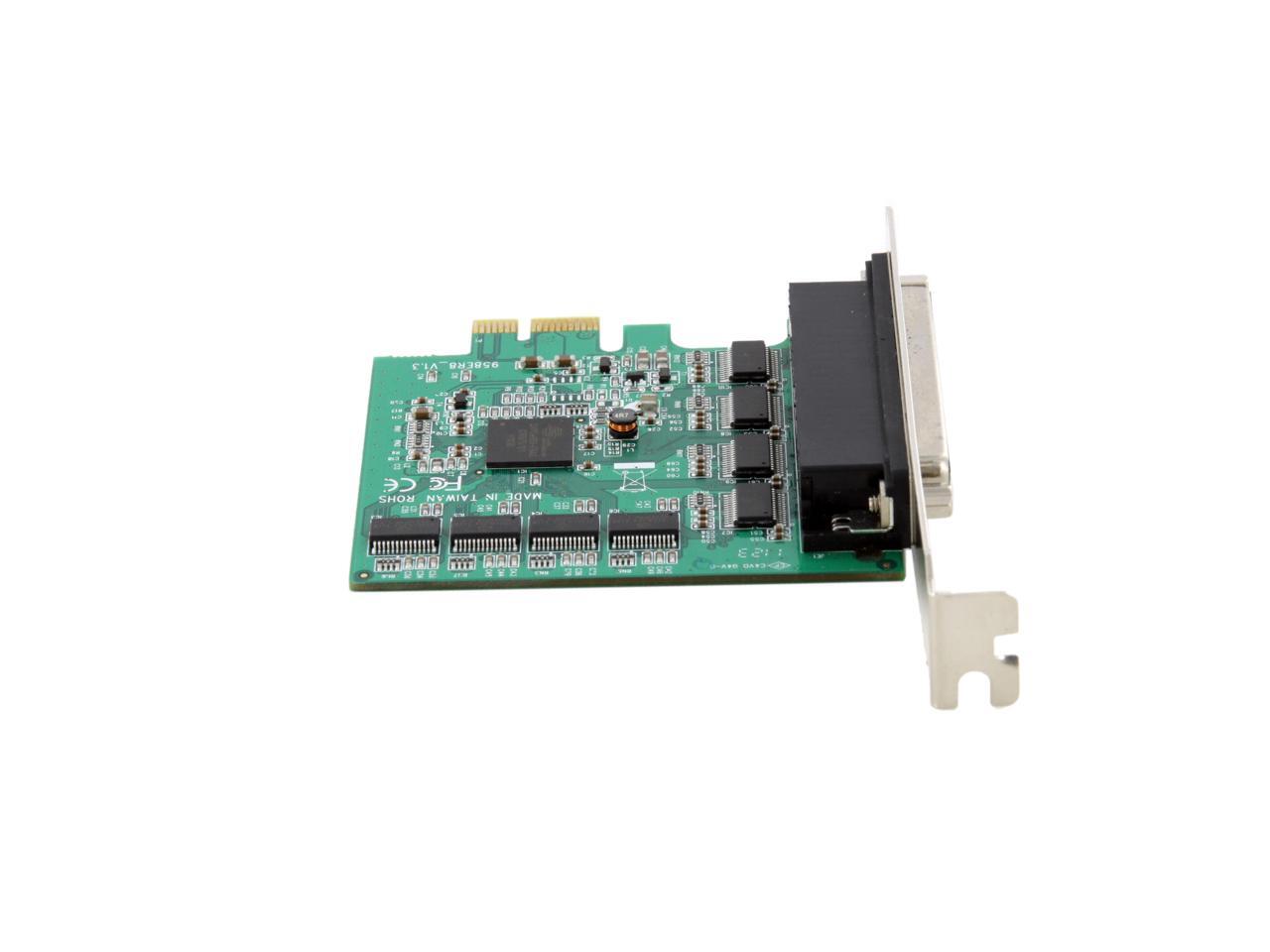

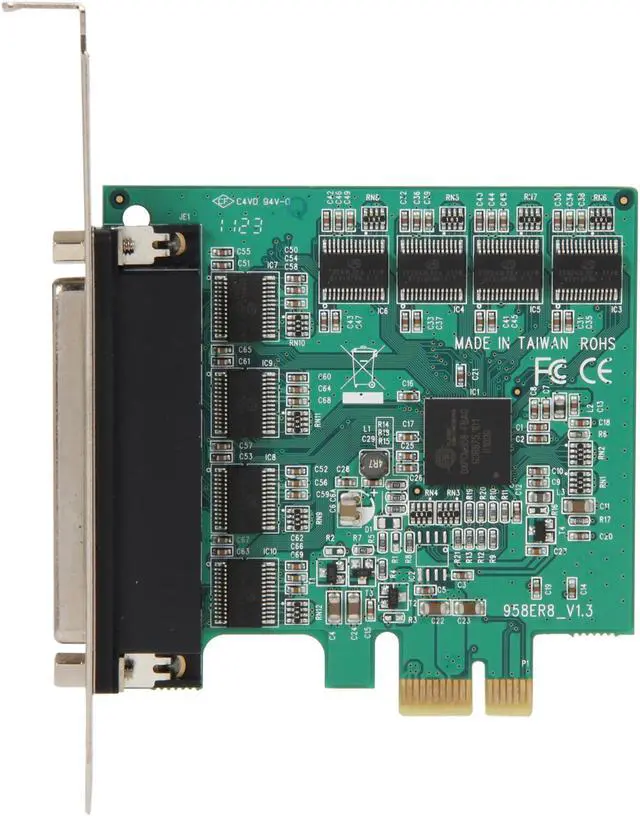

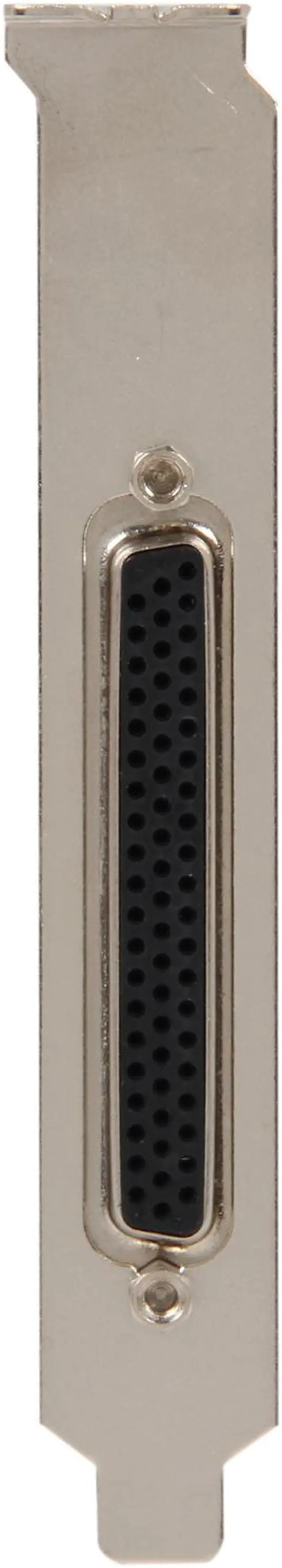

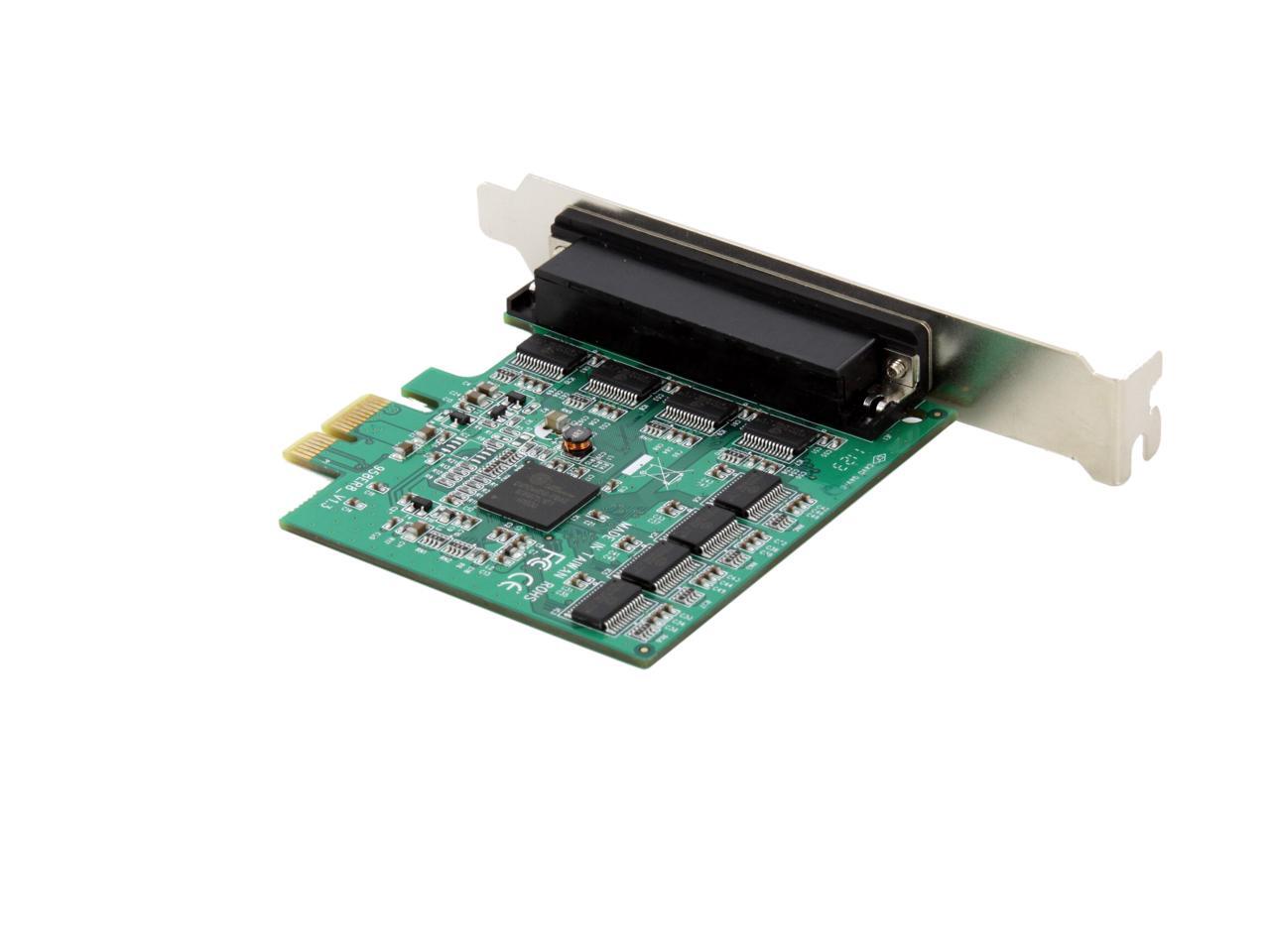

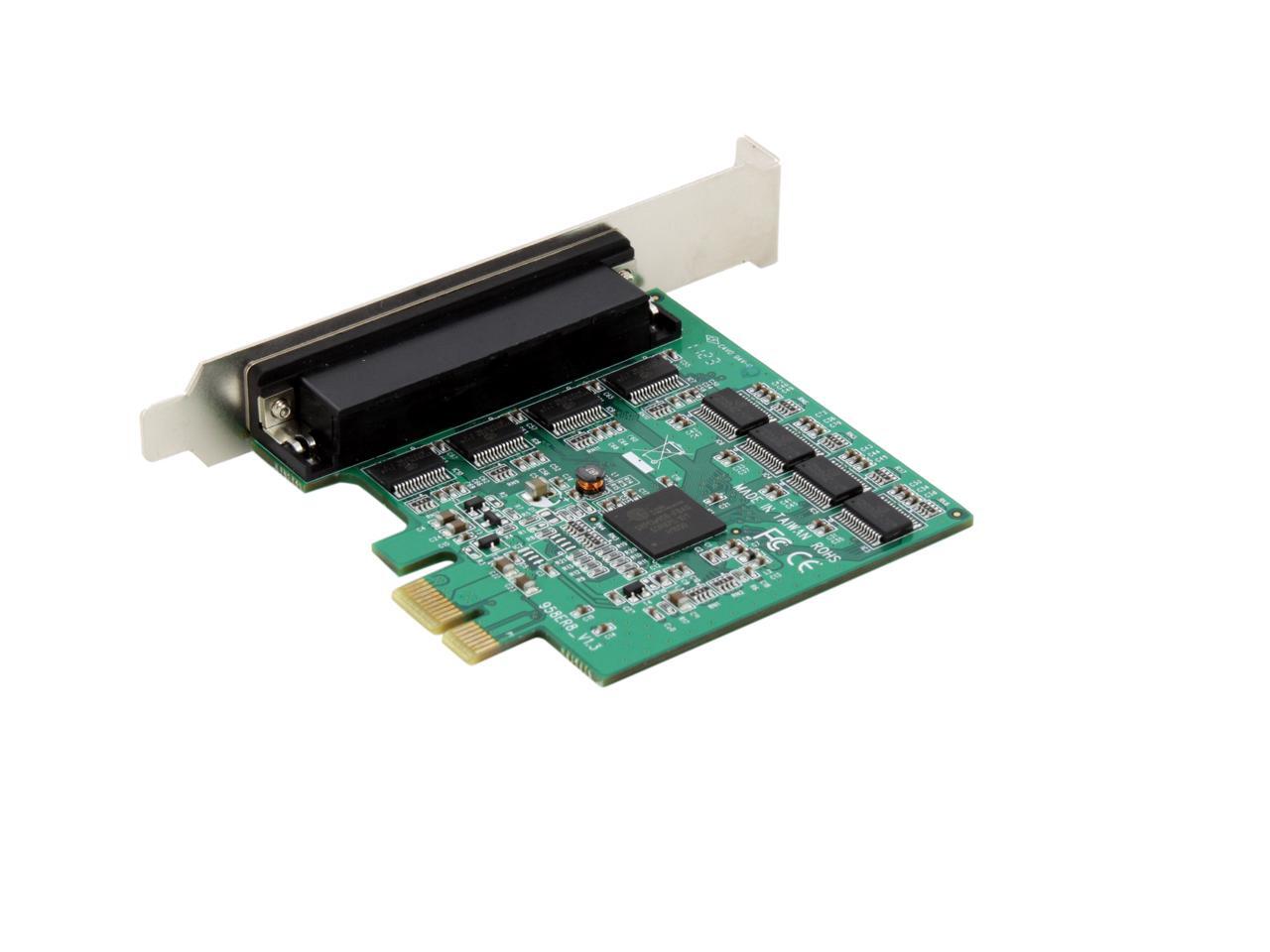

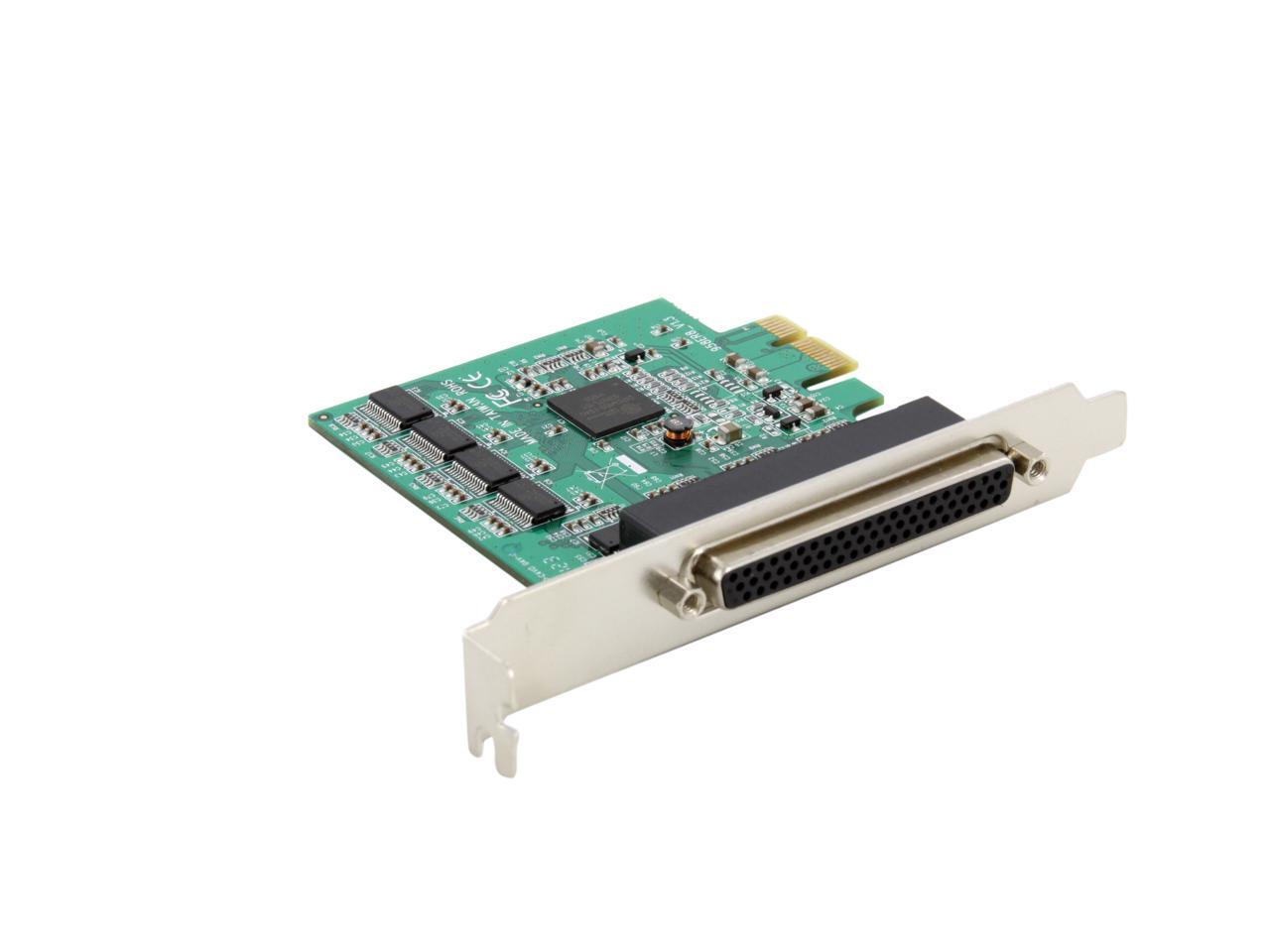

Main image of StarTech.com 8 Port Native PCI Express RS232 Serial Adapter Card with 16950 UART Model PEX8S952

100%

Alt view image 2 of 5 - StarTech.com 8 Port Native PCI Express RS232 Serial Adapter Card with 16950 UART Model PEX8S952

Alt view image 3 of 5 - StarTech.com 8 Port Native PCI Express RS232 Serial Adapter Card with 16950 UART Model PEX8S952

Alt view image 4 of 5 - StarTech.com 8 Port Native PCI Express RS232 Serial Adapter Card with 16950 UART Model PEX8S952

Alt view image 5 of 5 - StarTech.com 8 Port Native PCI Express RS232 Serial Adapter Card with 16950 UART Model PEX8S952

360^°

Shop All STARTECH Products

StarTech.com 8 Port Native PCI Express RS232 Serial Adapter Card with 16950 UART Model PEX8S952

Be the first to review this product...

PCI Express to Serial Port Card

Overview

Specs

Reviews

The PEX8S952 8 Port Native PCI Express RS232 Serial Adapter Card with 16950 UART allows you to turn a PCI Express slot into eight RS232 (DB9) serial connections using the included breakout cable.

The serial card is based on a native single chip design that allows you to harness the full capability of PCI Express(PCIe), providing optimum reliability and speed, and reducing the load applied to CPU by as much as 48% over conventional serial cards.

The RS232 Serial Adapter Card is compatible with a broad range of operating systems, including Windows, Linux, and MAC OS for easy integration into mixed environments.

Model
Brand	StarTech.com
Model	PEX8S952

Details
Type	PCI Express to Serial Port Card
External Ports	8 x Serial Ports
Operating Systems Supported	Windows 2000, XP (32-bit, 64-bit), Vista (32-bit, 64-bit), Linux Kernel 2.4.x and 2.6.x

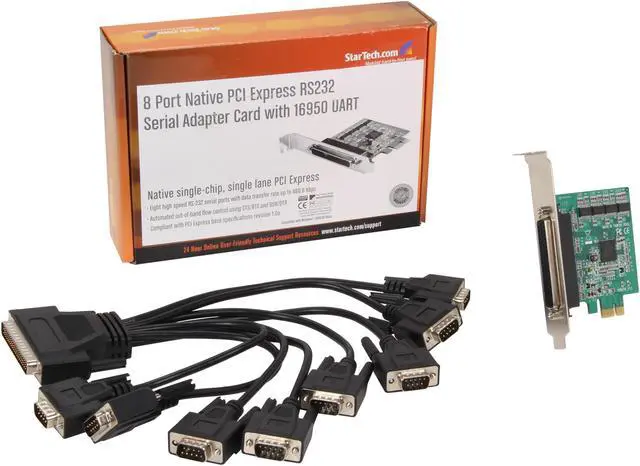

Specifications	Bus Type: PCI Express Card Type: Standard Profile Chipset ID: PLX/Oxford - OXPCIe958 Connector Type(s): PCI Express x1 Male External Ports: DB-9 (9 pin ; D-Sub) Male FIFO: 128 Bytes Humidity: 5~85% RH Included in Package: 8 Port DB9 Break-out cable 8 Port Serial Card Driver CD Instruction Manual Interface: Serial Max Baud Rate: 460.8 Kbps Operating Temperature: -10°C to 80°C (14°F to 176°F) OS Compatibility: Windows® 8 / 8.1 (32/64bit), 7 (32/64), Vista (32/64), XP (32/64), XP Embedded, CE 4.2/5.0/6.0, 2000, ME, 98SE Windows Server® 2012, 2008 R2, 2003 Linux Port Style: Dongle (Included) Ports: 8 Product Height: 20 mm [0.8 in] Product Length: 90 mm [3.5 in] Product Weight: 58 g [2 oz] Product Width: 65 mm [2.6 in] Serial Protocol: RS-232 Shipping (Package) Weight: 0.7 kg [1.4 lb] Storage Temperature: -20°C to 100°C (-4°F to 212°F)

Features
Features	128-byte deep FIFO per transmitter and receiver Automated in-band software flow control using programmable Xon/Xoff in both directions Automated out-of-band hardware flow control using Tx/Rx/RTS/CTS/DSR/DTR/DCD/RI/GND Compliant with IEEE1284, SPP/EPP/ECP parallel port Compliant with PCI Express base specifications revision 1.0a Eight high speed RS-232 serial ports with data transfer rate up to 460.8 Kbps High Performance Dual Channel Oxford 950 UART Native single-Chip, single lane PCI Express Selectable power output on pin 9 for the serial port

Dimensions & Weight
Weight	1

Additional Information
First Listed on Newegg	August 05, 2010
