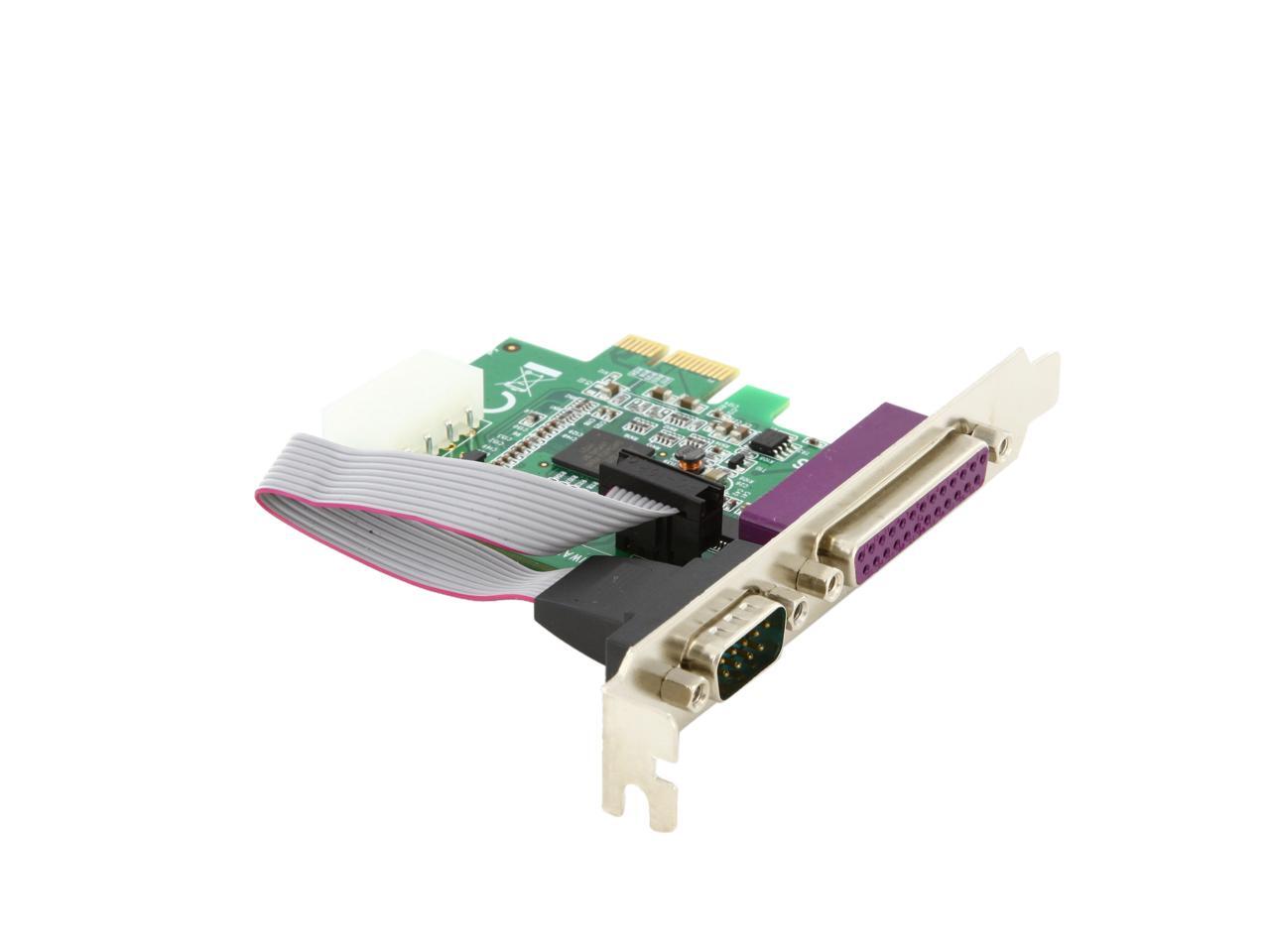

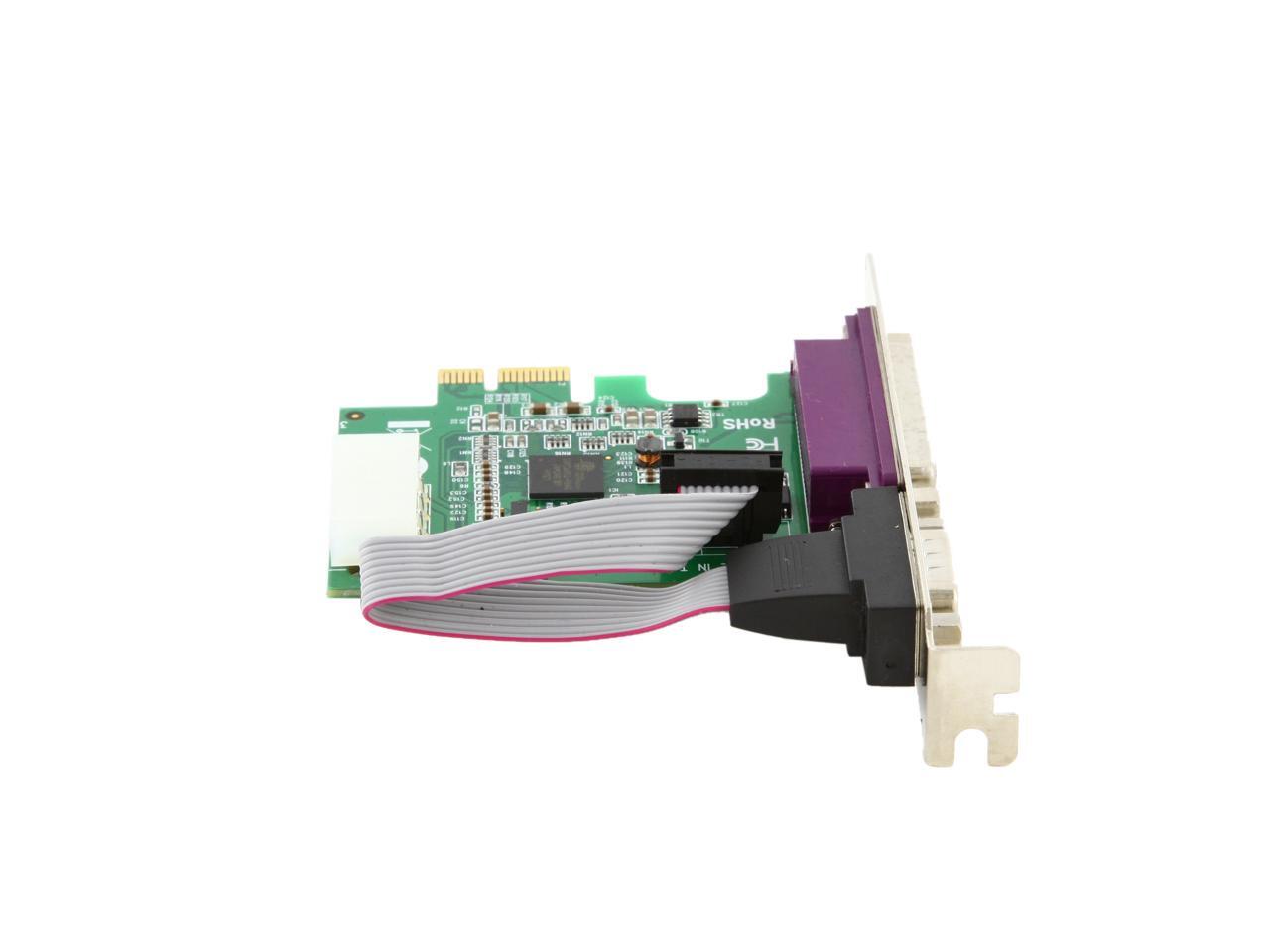

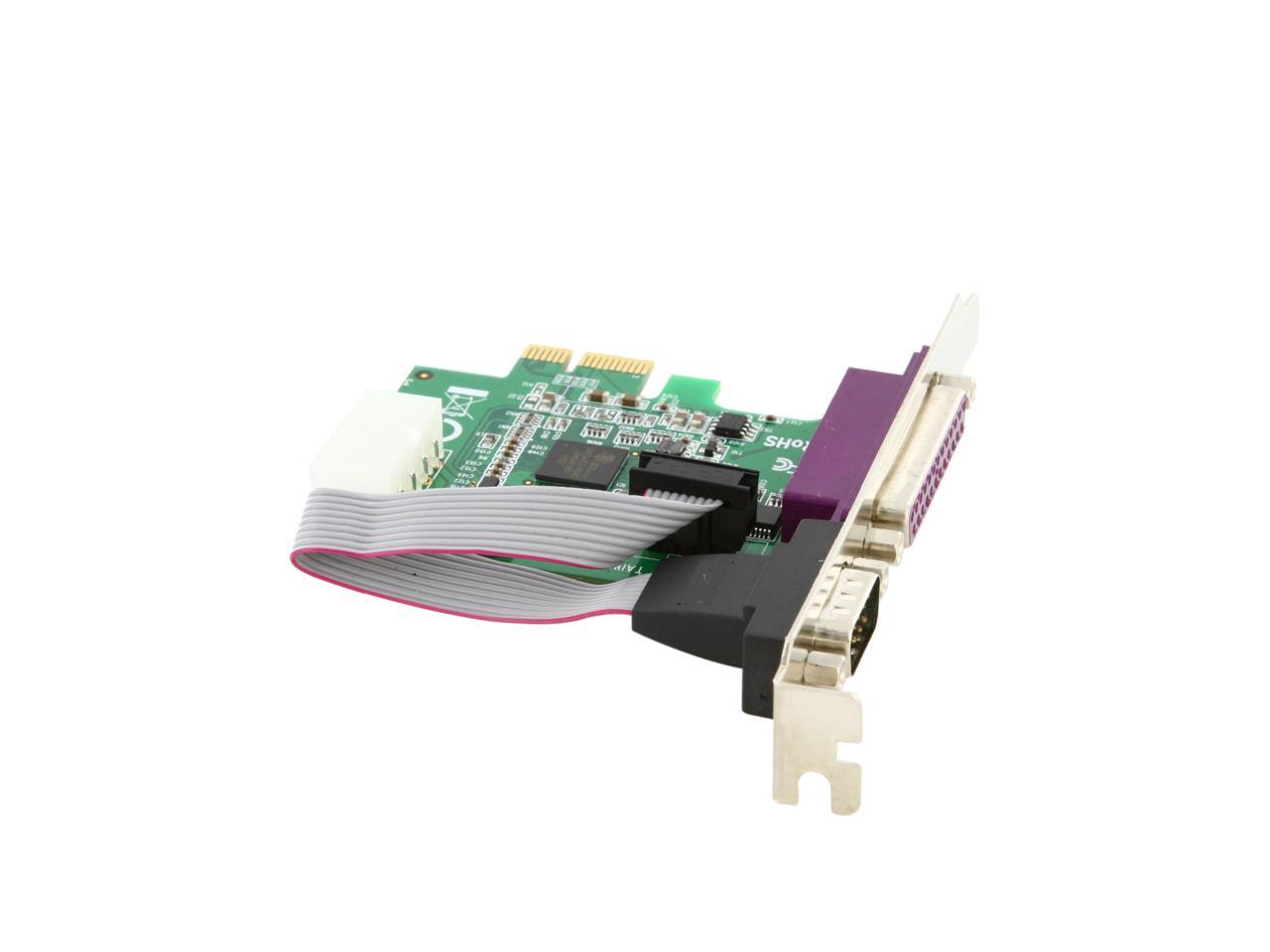

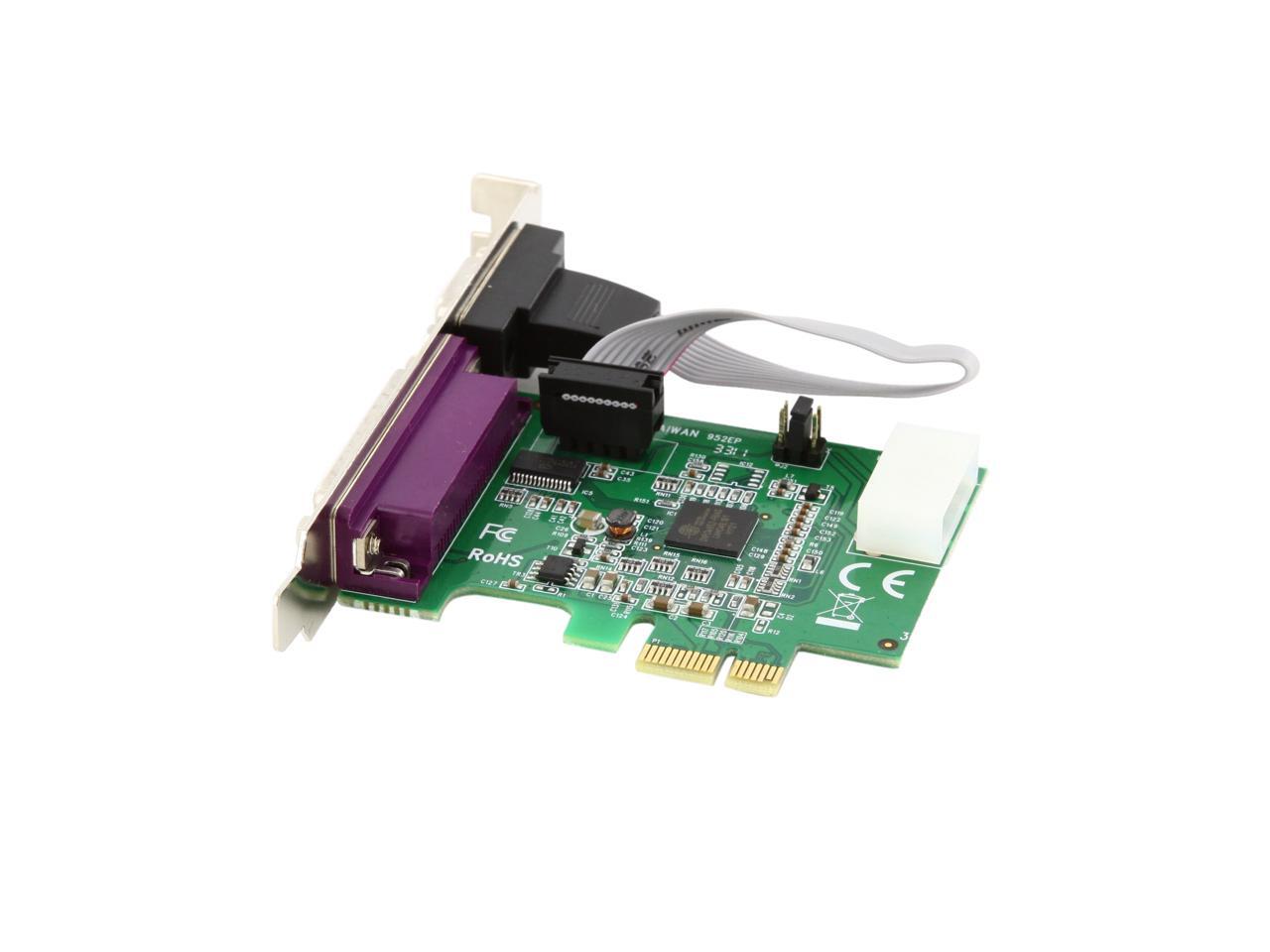

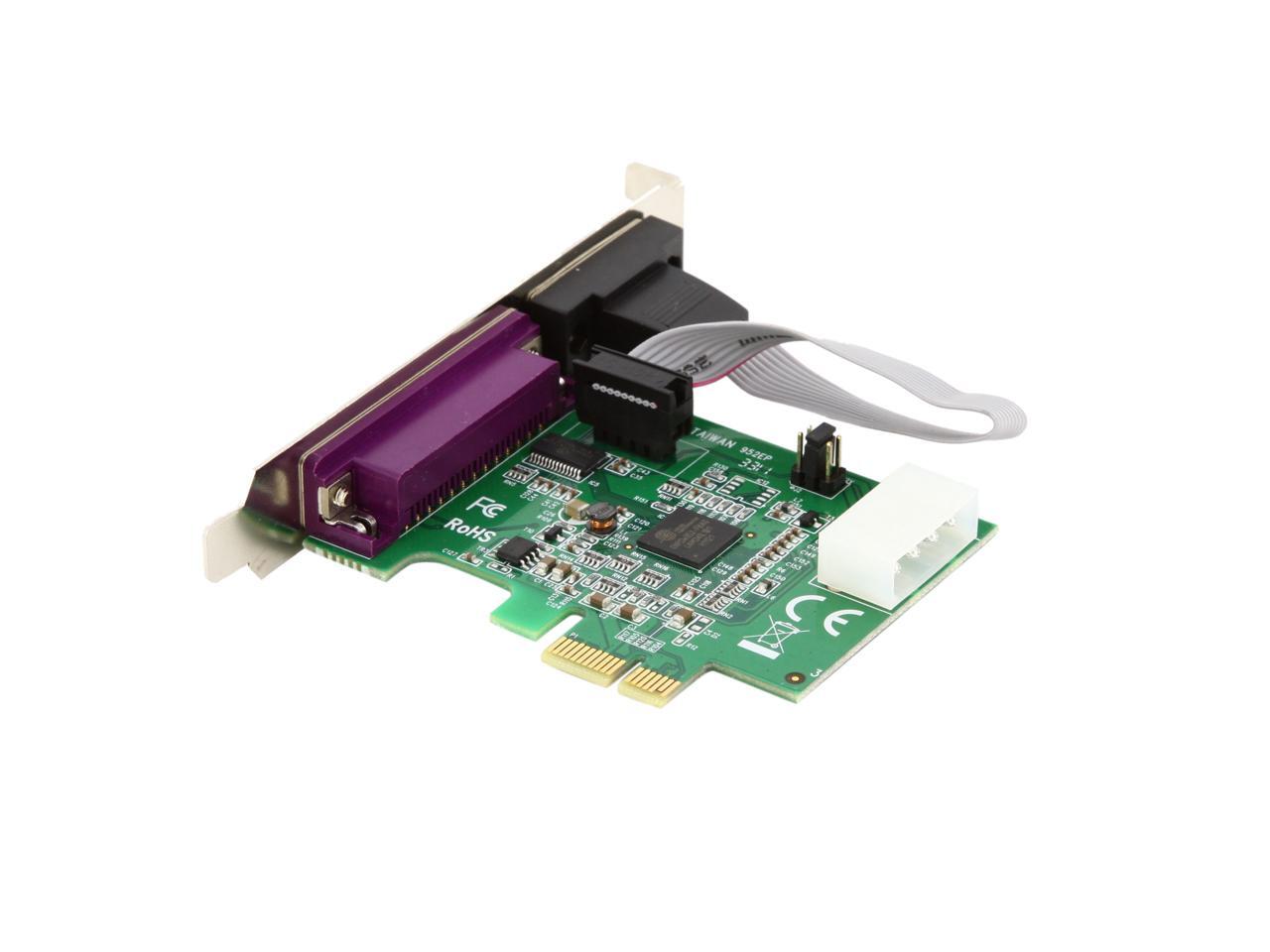

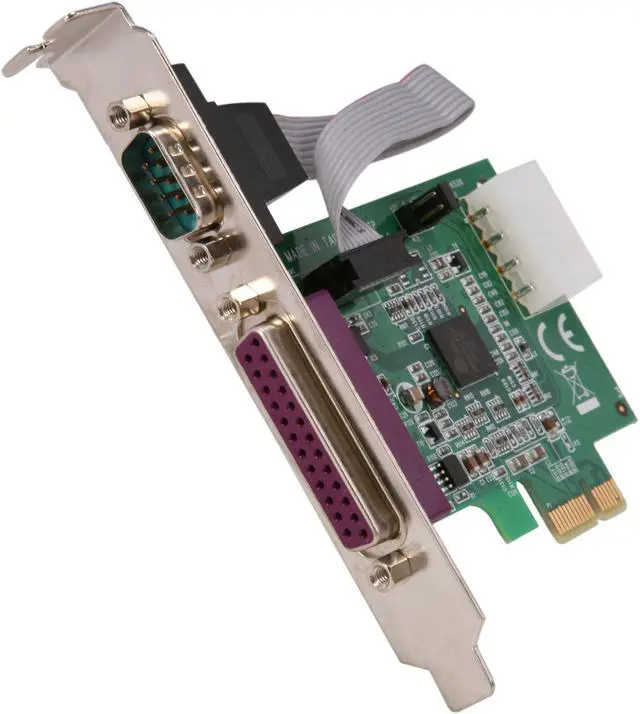

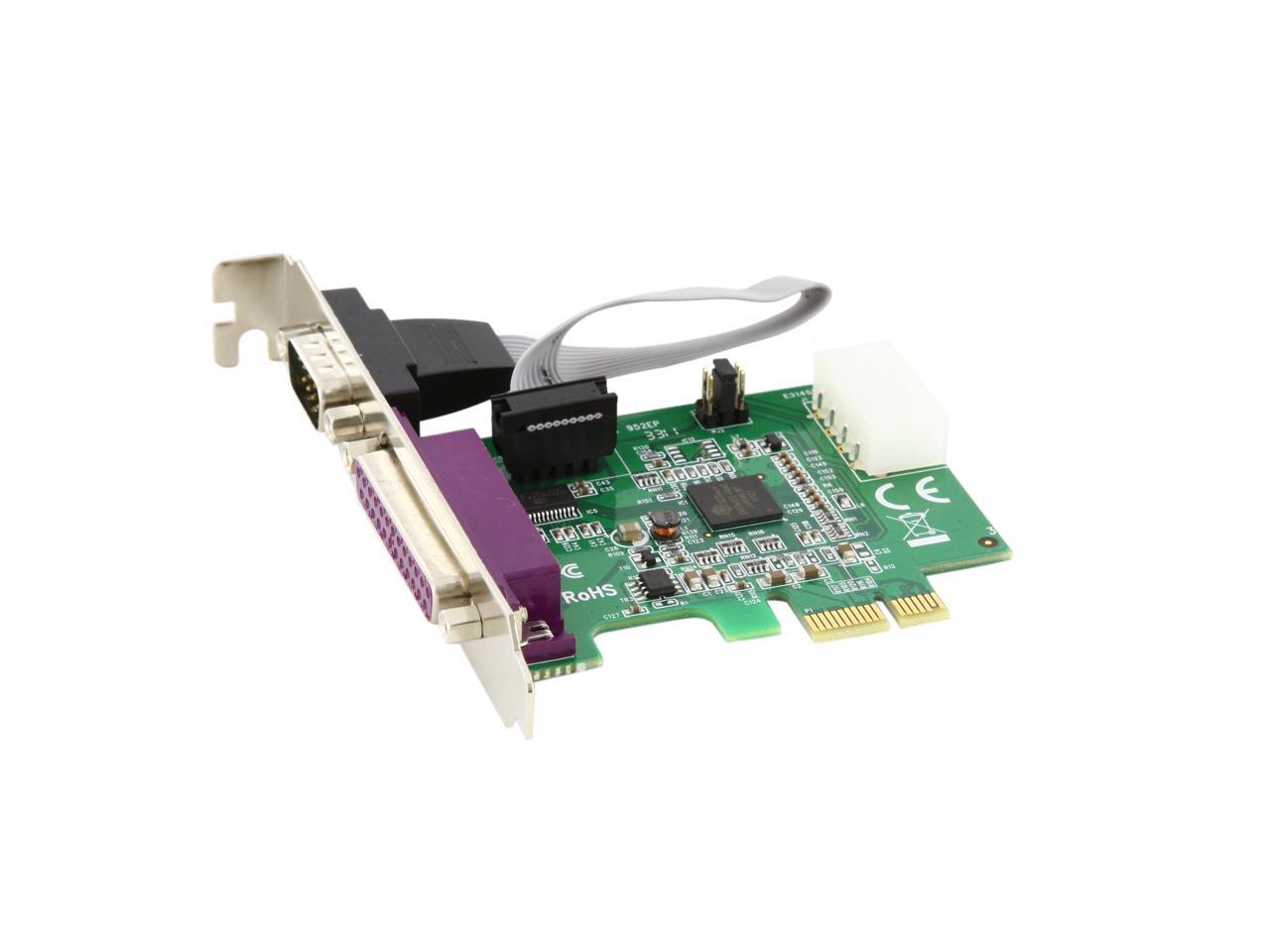

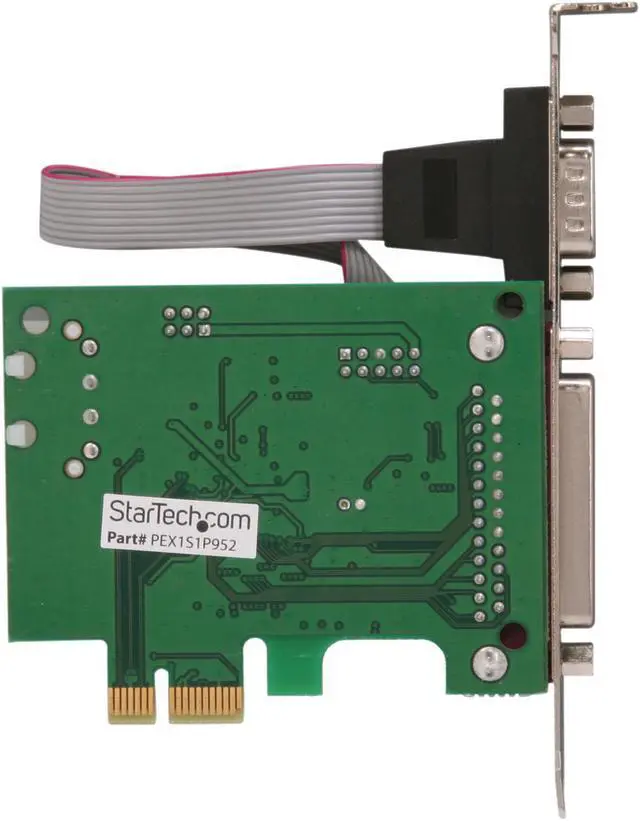

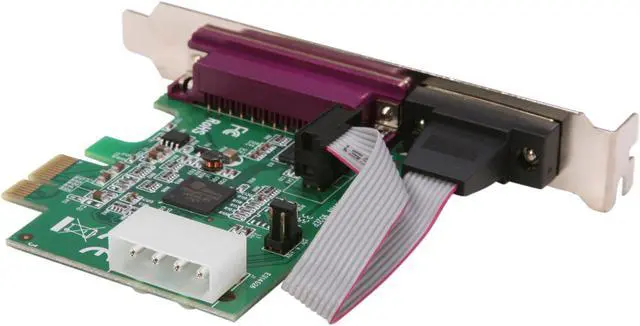

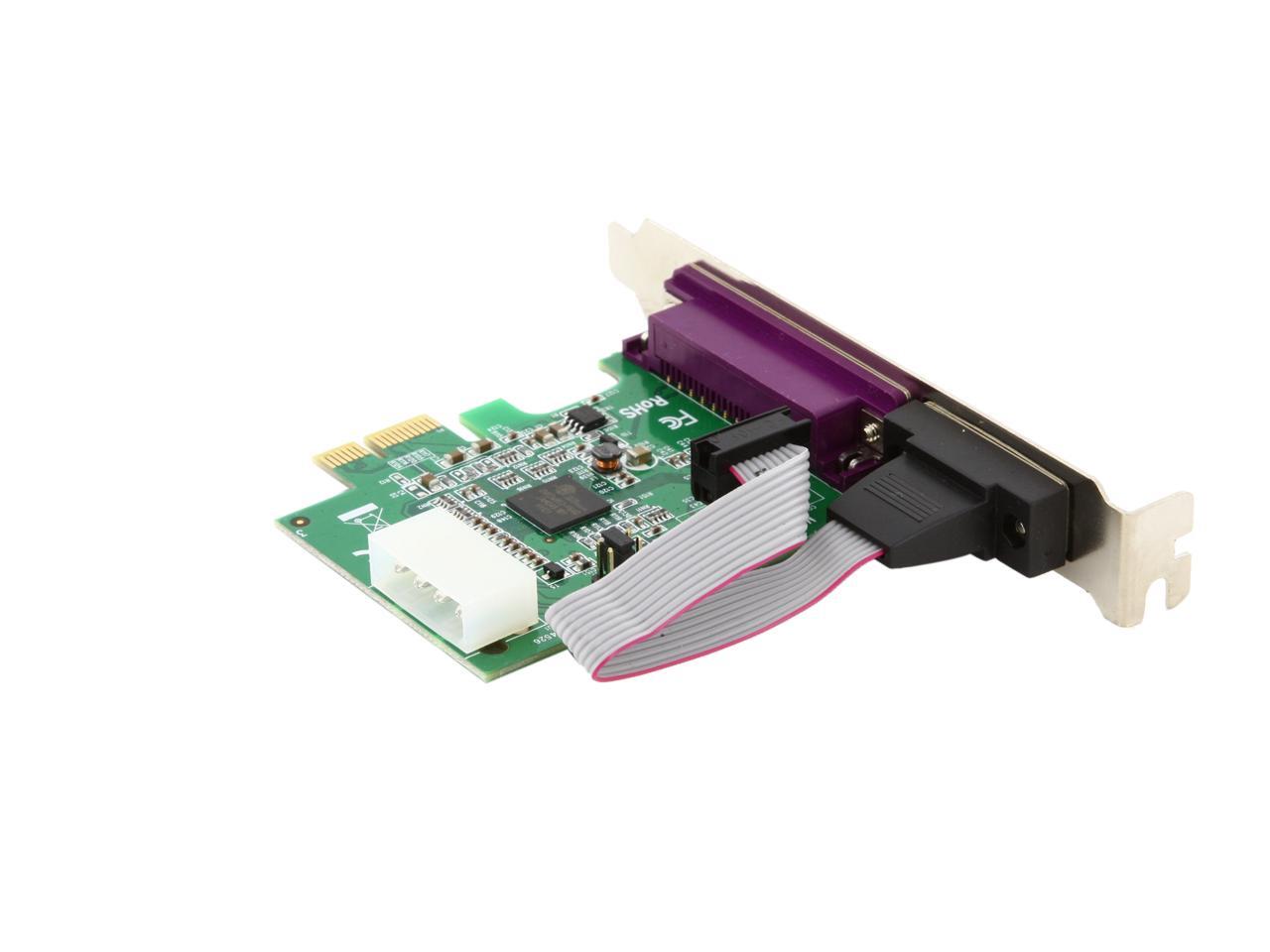

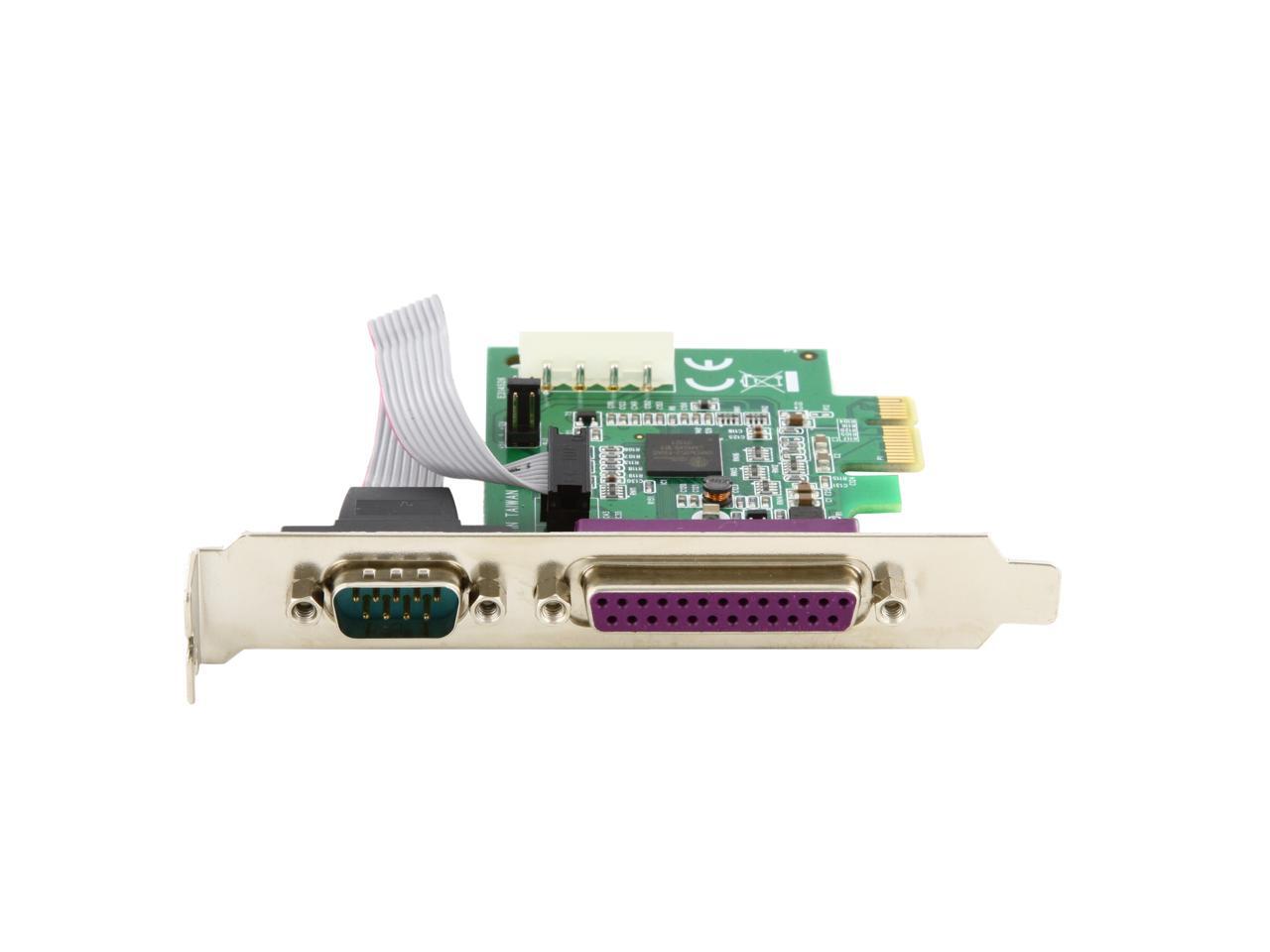

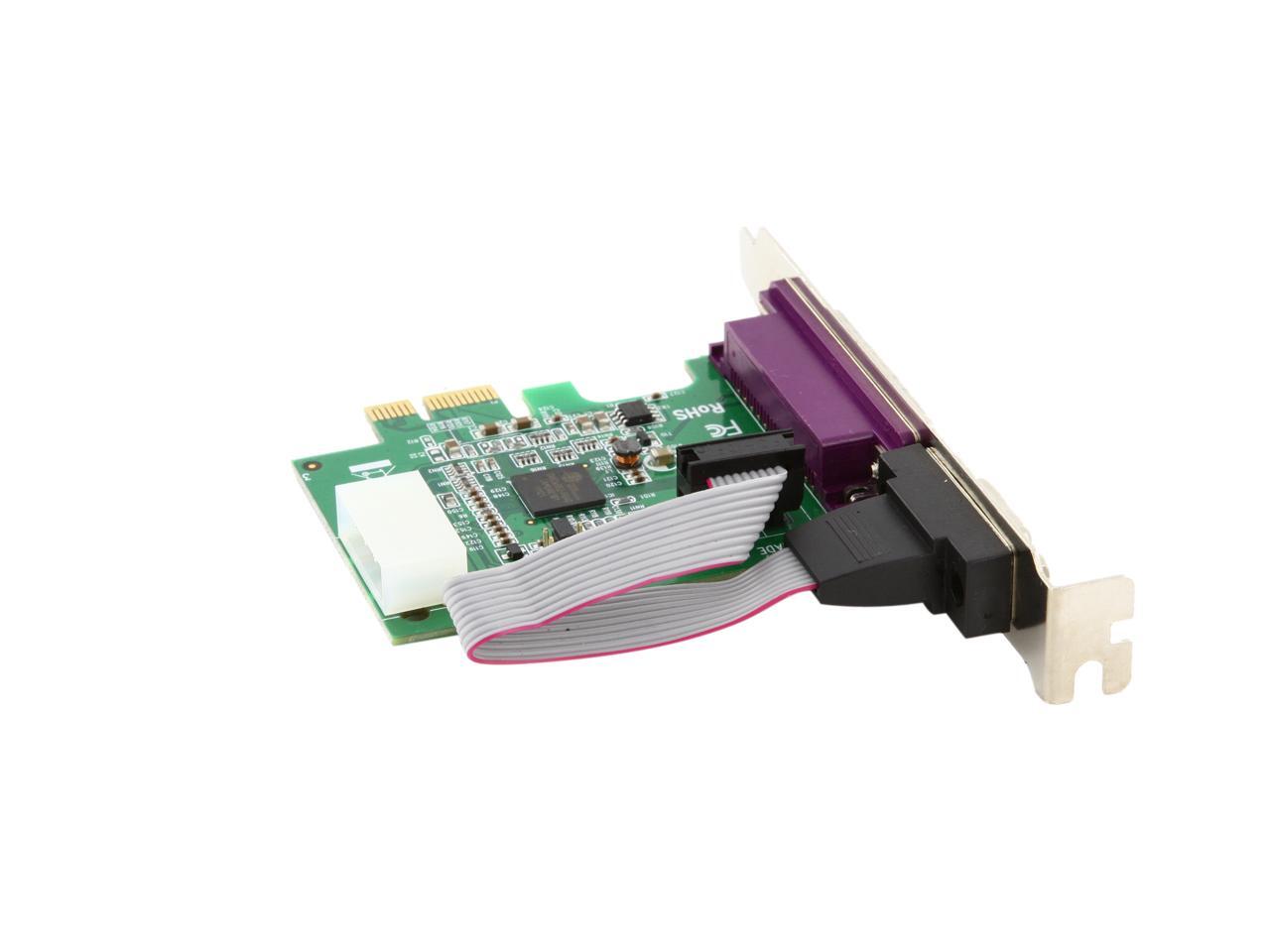

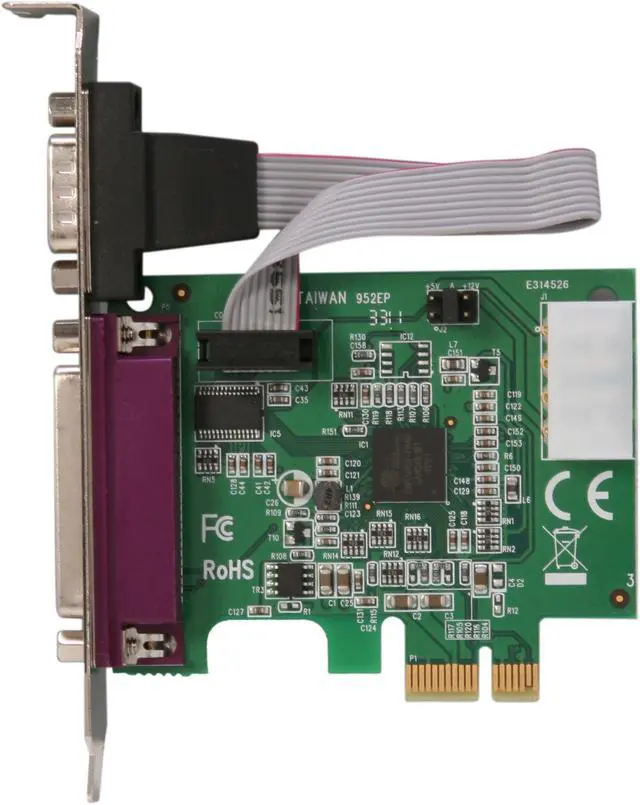

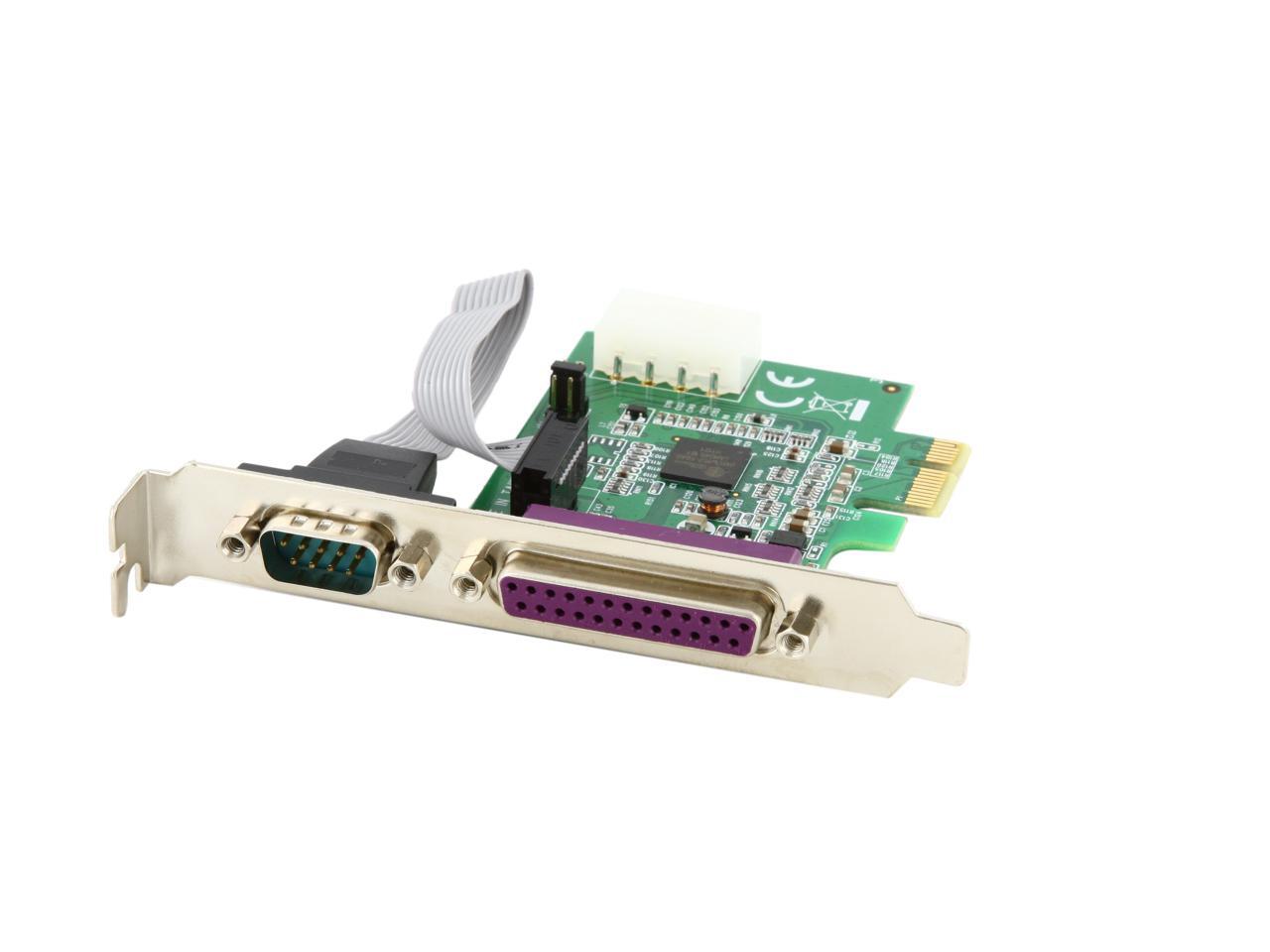

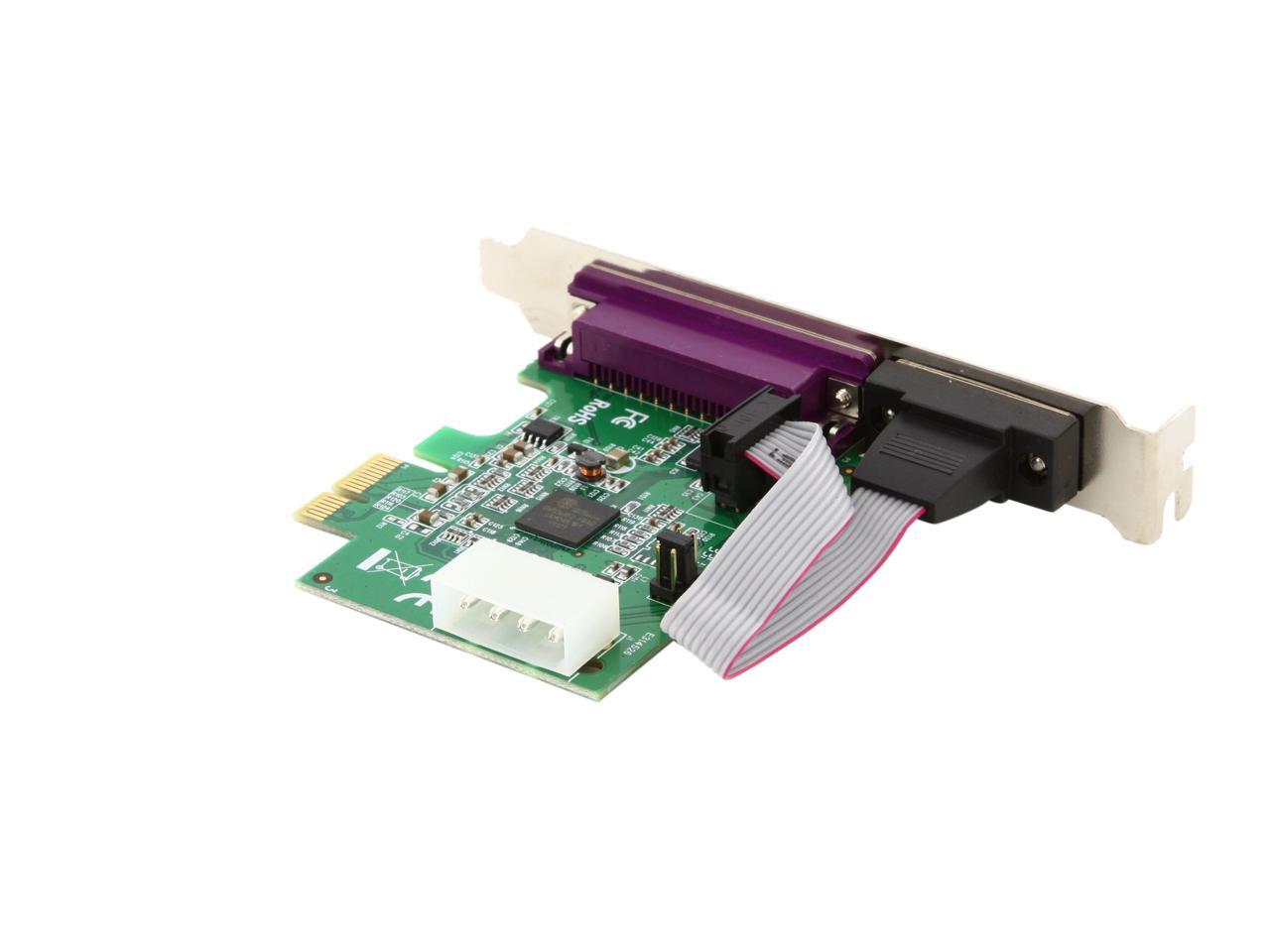

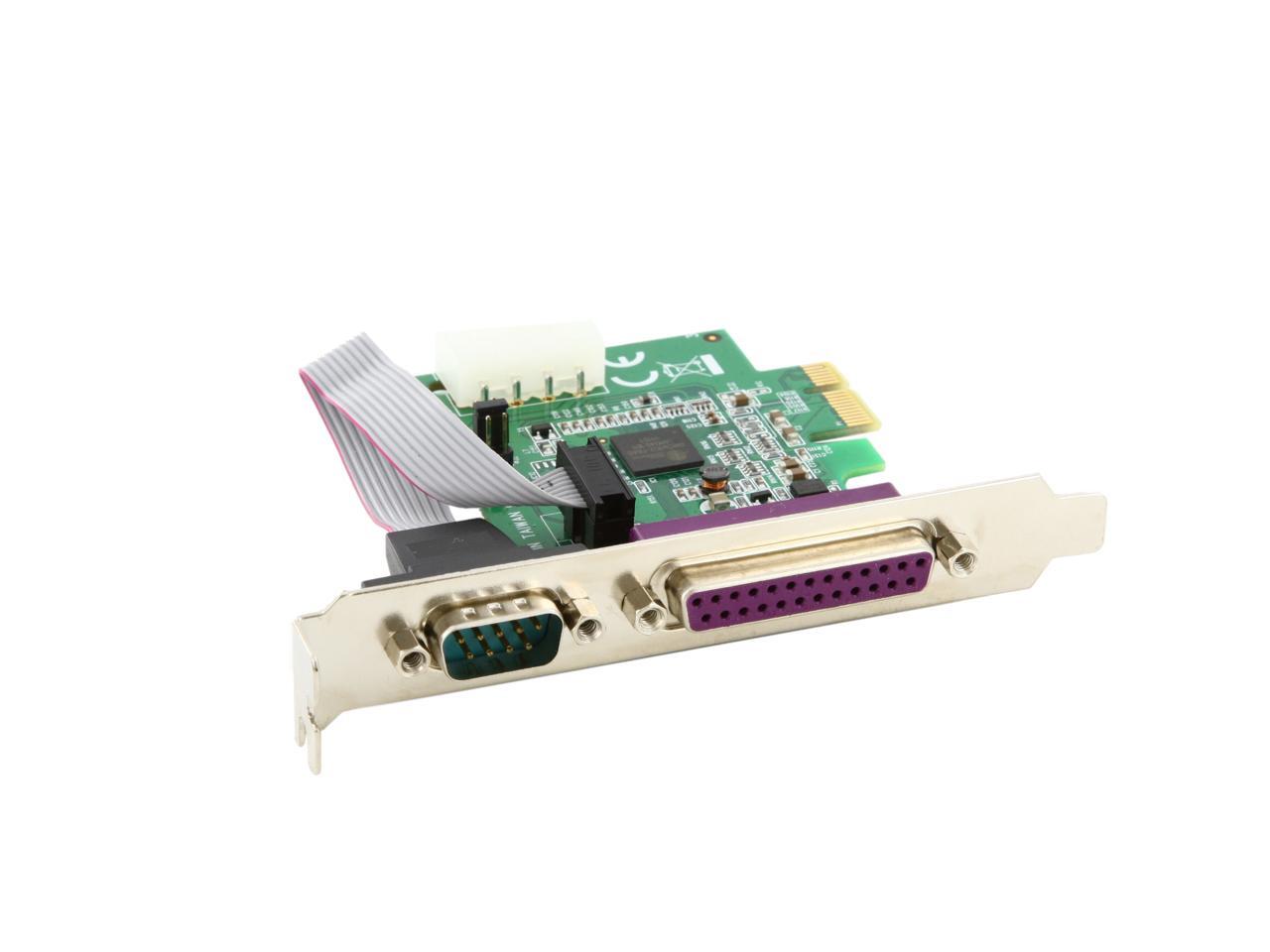

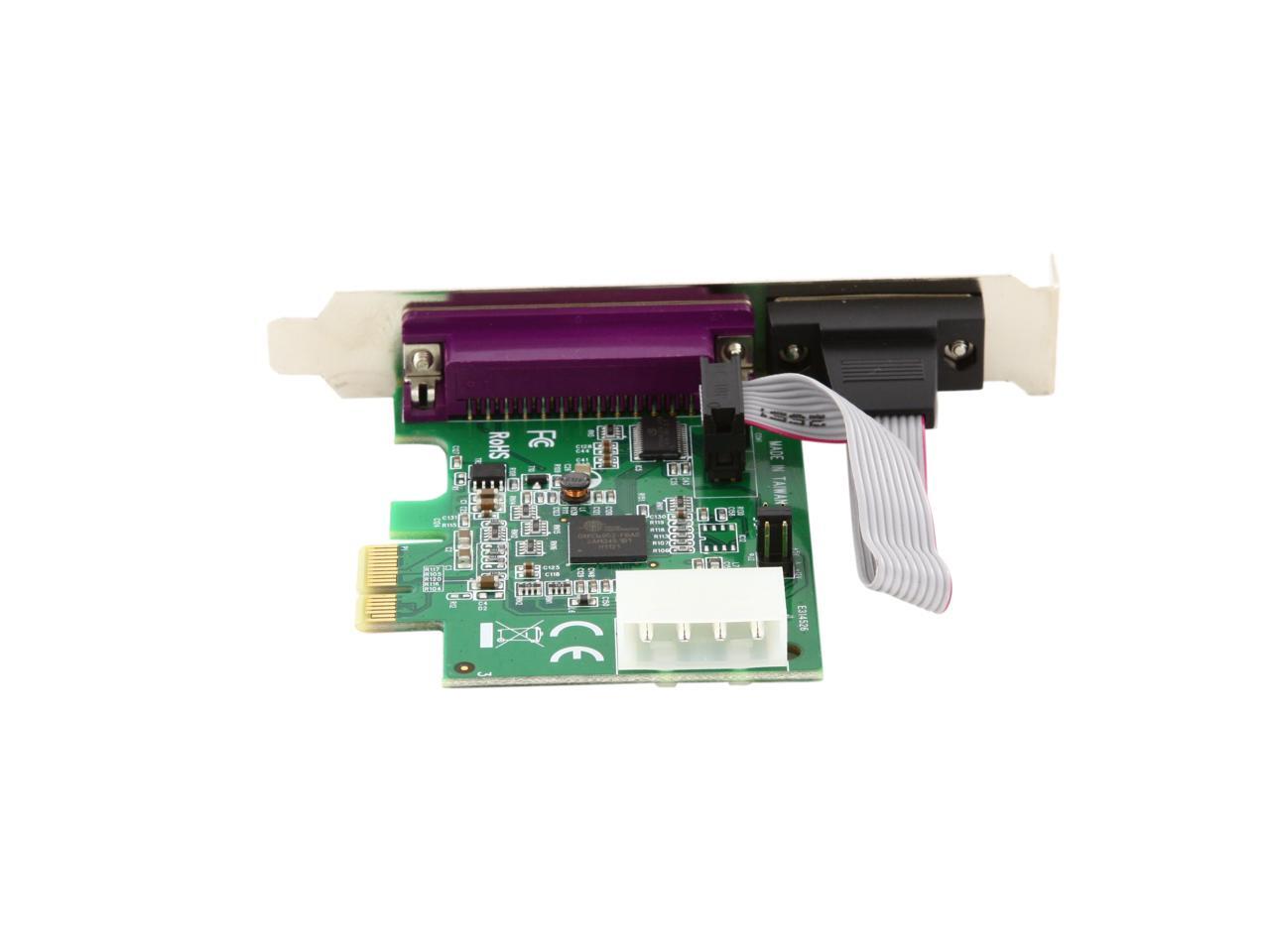

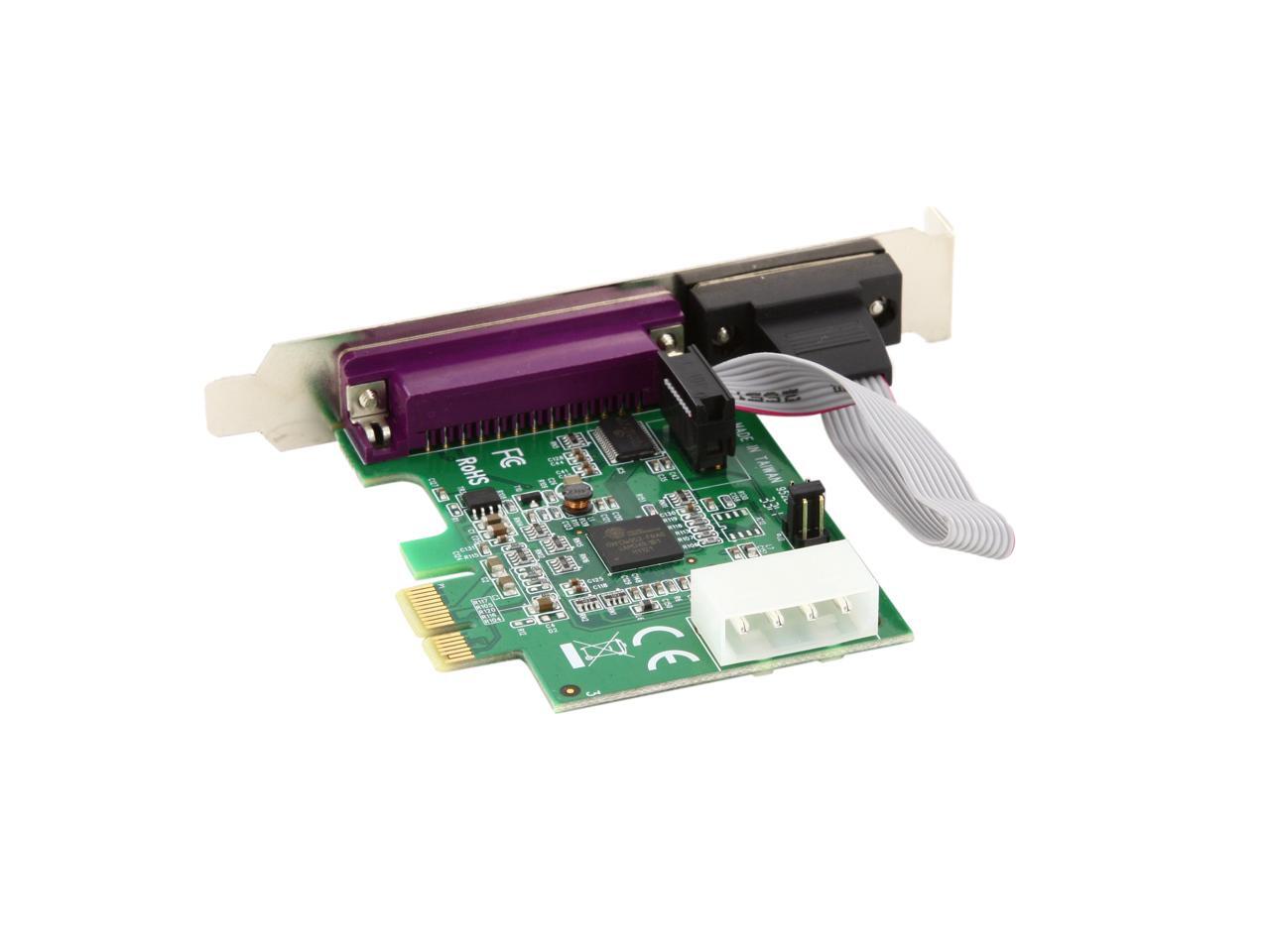

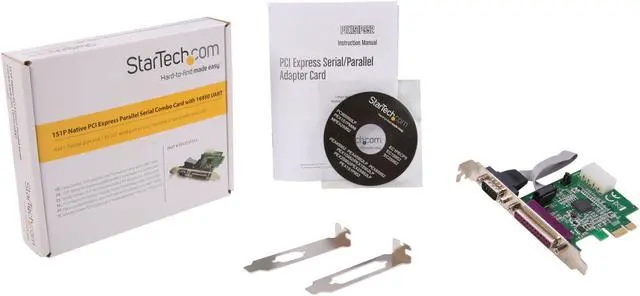

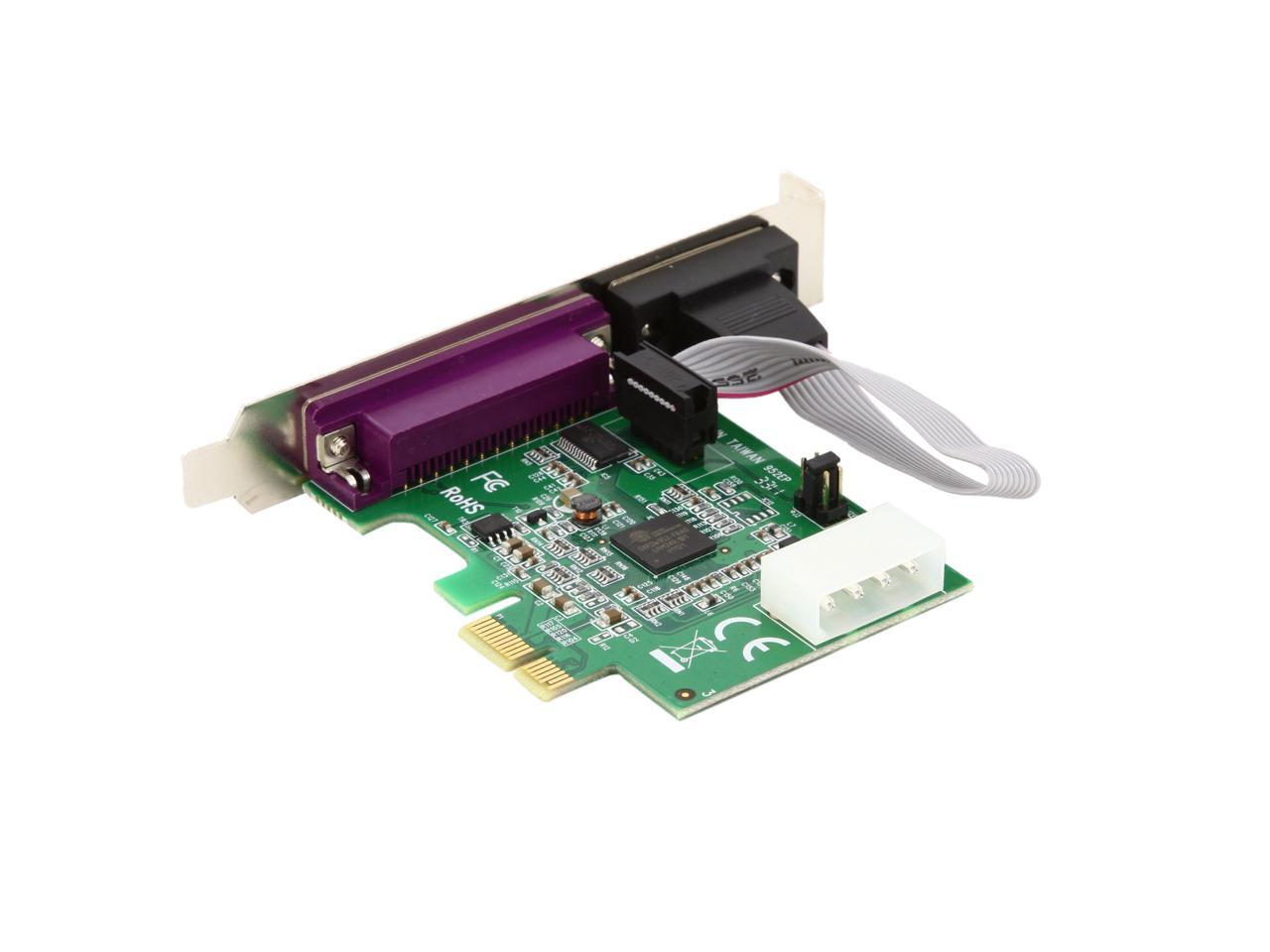

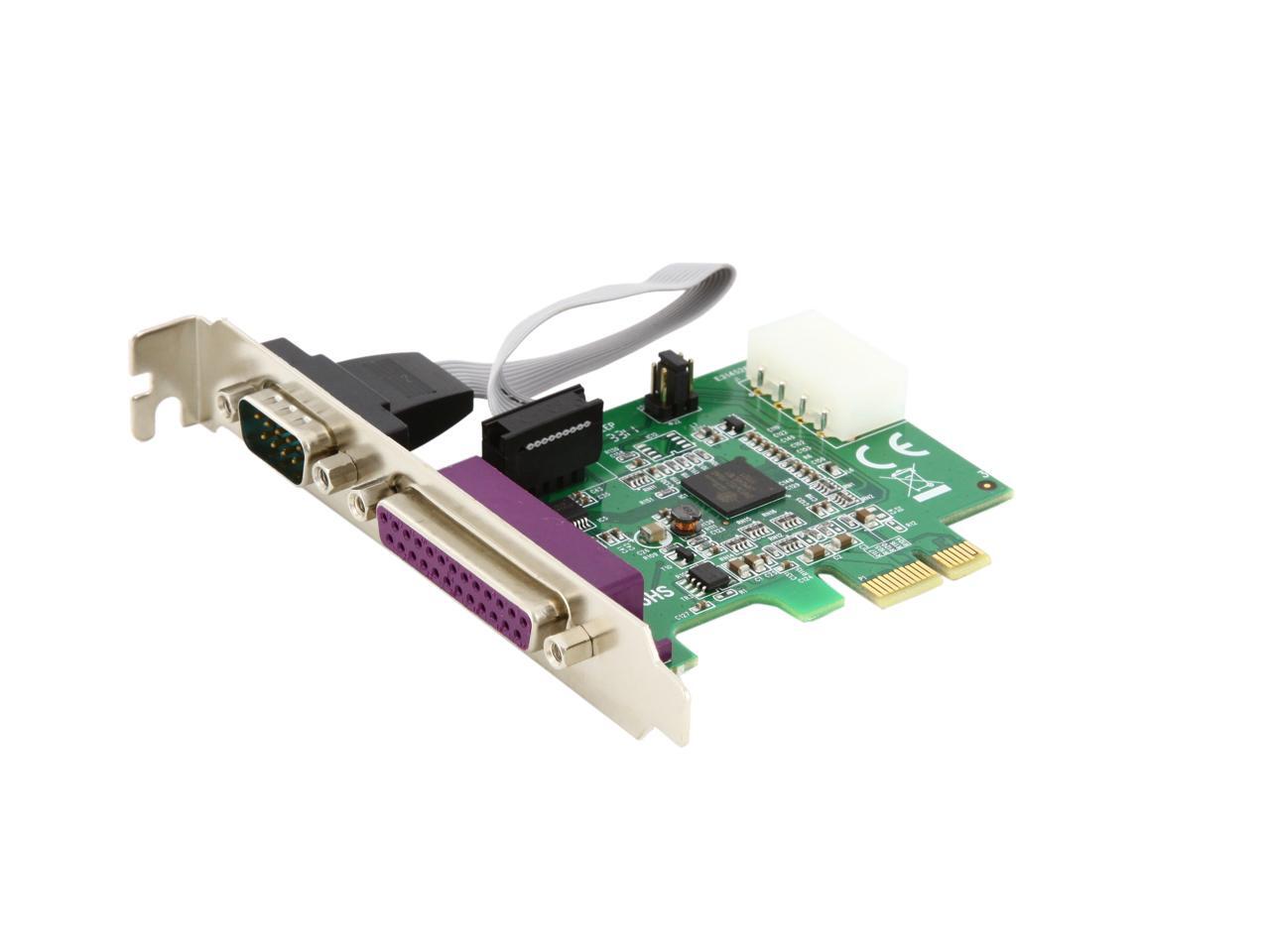

StarTech.com 1S1P Native PCI Express Parallel Serial Combo Card with 16950 UART Model PEX1S1P952
(5)
Write a Review
Add a parallel and serial port through a standard or low-profile PCI Express slot
PCI Express Serial Parallel Card
PCI Express Serial Card
PCI Express Parallel Card
PCIe Serial Parallel
PCI Express RS232
Native PCI Express Parallel Serial Combo Card 16950
Overview
Specs
Reviews
(5)
Add a parallel and serial port through a standard or low-profile PCI Express slo
Learn more about the STARTECH PEX1S1P952
Model
Brand
StarTech.com
Model
PEX1S1P952
Details
Type
PCI Express to Parallel/Serial Port
External Ports

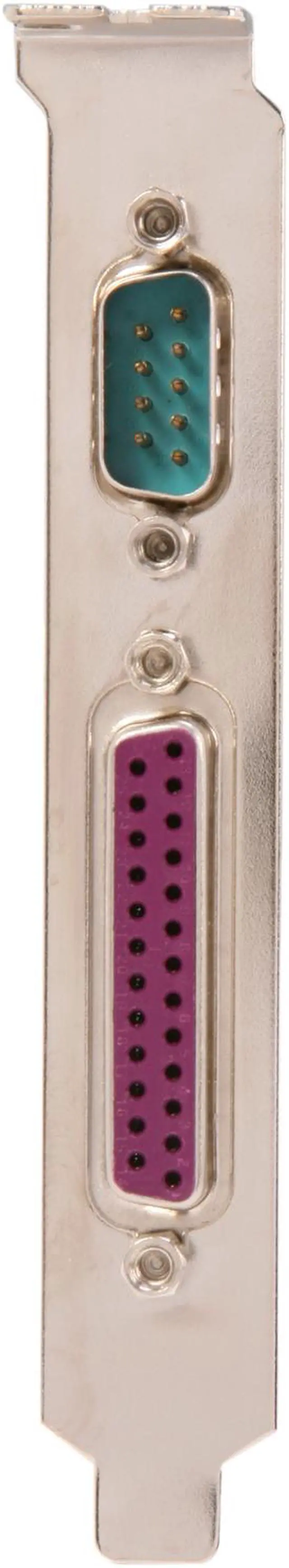

1 x Parallel + 1 x Serial
Operating Systems Supported
Windows 7(32/64bit)/ Server 2008 R2/ Vista(32/64bit)/ XP(32/64bit)/ Server 2003(32/64bit)/ Server 2000 and Linux 2.6.x
Specifications
Card Type: Low / Standard Profile
Maximum Data Transfer Rate: 1.5Mbps - Parallel
115.2Kbps - Serial
Data Bits: 5, 6, 7, 8, 9
Stop Bits: 1, 1.5, 2
FIFO: 128-Byte
Parity: Even, Odd, Mark, Space, None
Flow Control: Automated in-Band, Xon/Xoff
Power Consumption: 200mW
Industry Standards: PCI Express base spec 1.1
PCI Power Management 1.2
IEEE 1284-compliant SPP/EPP/ECP
Humidity: 0~60% RH
Operating Temperature: -40°C to 85°C (-4deg;F to 185°F)
Storage Temperature: -40°C to 125°C (-40deg;F to 257°F)
Chipset ID: PLX OXPCIe952
Microsoft WHQL Certified: Yes
Note
Selectable power output on pin 9 of the serial port
Features
Features
Native single chip, single lane PCI Express
1 high-speed RS232 serial port and 1 IEEE 1284 parallel port
Compliant with PCI Express base specifications revision 1.1
Automated in-band flow control using programmable Xon/Xoff
128-byte deep FIFO per transmitter and receiver
Supports x1,x2,x4,x8,x16(lane)PCI-Express connectors
Selectable power output on pin 9 of the serial port
Dimensions & Weight
Dimensions
3.15" x 2.56" x 0.47"
Weight
0.35
Additional Information
First Listed on Newegg
August 18, 2011
