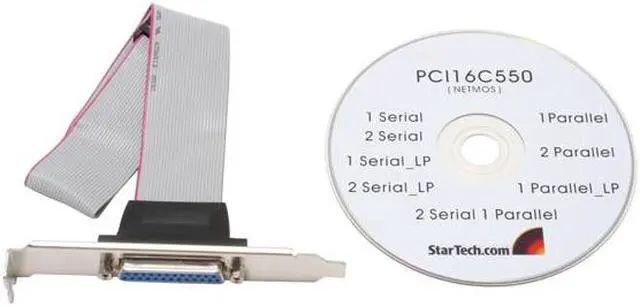

| Specifications | Bus Type: PCI / PCI-X (5 / 3.3V) Card Type: Standard Profile (LP bracket incl.) Chipset ID: ASIX/MosChip - MCS9835CV Connector Type(s): PCI / PCI-X (Universal 3.3 & 5V ; 32-bit) Male External Ports: DB-25 (25 pin ; D-Sub) Female DB-9 (9 pin ; D-Sub) Male FIFO: Serial: 32 BytesParallel: 16-Bytes Humidity: 5~85% RH Included in Package: DB9 Ribbon Cable Driver CD Instruction Manual Low Profile Brackets PCI 2S1P Card Interface: Parallel Serial Max Baud Rate: 115.2 Kbps Maximum Data Transfer Rate: Up to 1.5 Mbits/sec. Operating Temperature: -10°C to 80°C (14°F to 176°F) OS Compatibility: Windows® 8 / 8.1 (32/64bit), 7 (32/64), Vista (32/64), XP (32/64), XP Embedded, POS Ready 2009, Embedded System 2009, CE 5.0 / 6.0, 2000, 98SE, 95, DOS Windows Server® 2012, 2008 R2, 2003 Linux Port Style: Integrated on Card Ports: 2 Product Height: 120 mm [4.7 in] Product Length: 120 mm [4.7 in] Product Weight: 70 g [2.5 oz] Product Width: 20 mm [0.8 in] Serial Protocol: RS-232 Shipping (Package) Weight: 0.2 kg [0.5 lb] Storage Temperature: -20°C to 100°C (-4°F to 212°F) |
|---|
