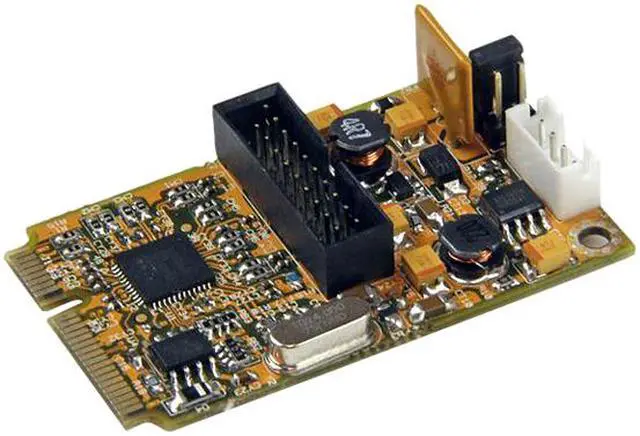

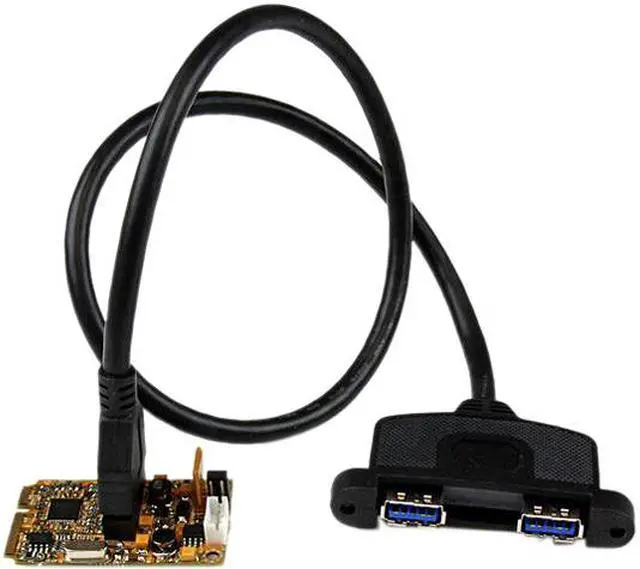

| Type | Mini PCI Express to USB Card |
|---|
| External USB Ports | 2x USB Ports |
|---|

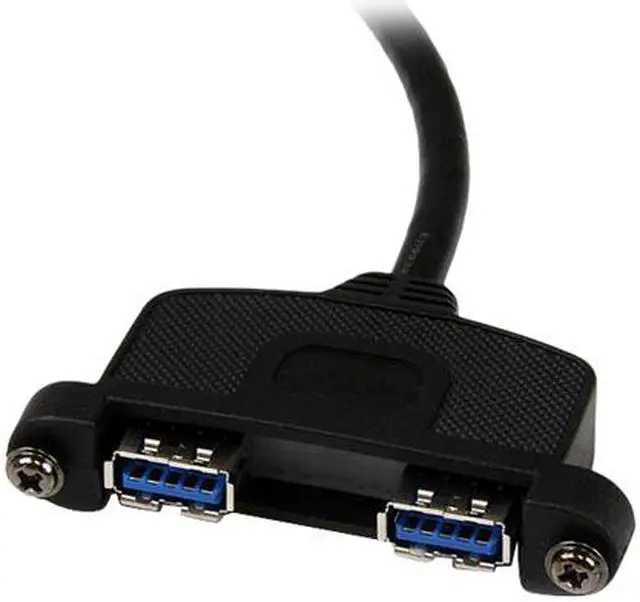

| External Ports | 2 x USB 3.0 A (9 pin; SuperSpeed) Female |
|---|

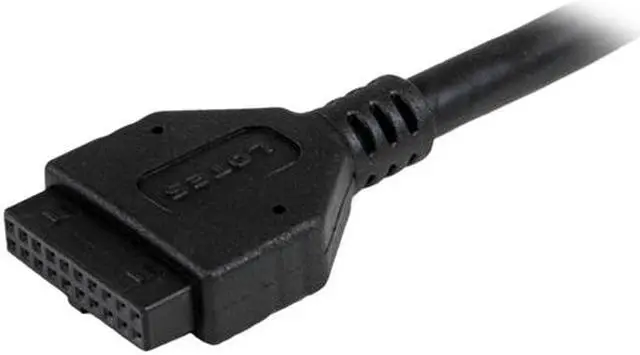

| Internal Ports | 1 x IDC (20 pin; USB 3.0; Motherboard Header) Male 1 x SP4 (4 pin; Small Drive Power) Male
1 x Mini PCI Express x1 (52 pin) Male |
|---|
| Standard | USB 3.0 |
|---|
| Data Transfer Rate | Up to 5.0 Gbps |
|---|
| Operating Systems Supported | Windows 8 (32/64bit), 7 (32/64), Vista(32/64), XP(32/64) Windows Server 2008 R2, 2003(32/64) Linux |
|---|

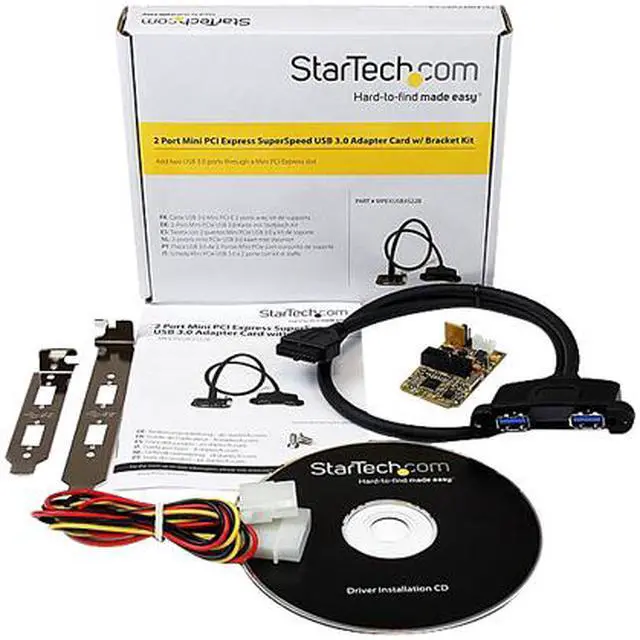

| Specifications | Bus Type: Mini PCI Express Cable Length: 600 mm [23.6 in] Card Type: Embedded Chipset ID: Renesas - uPD720202 Connector Type(s): Mini PCI Express x1 (52 pin) Male External Ports: USB 3.0 A (9 pin ; SuperSpeed) Female Humidity: 5~95% RH Included in Package: Driver CD Instruction Manual Low Profile Bracket LP4 Power Cable Mini PCIe USB 3.0 Card Screw Kit Standard Profile Bracket USB Header to 2 Port Cable Industry Standards: Intel xHCI PCI Express Base Specification 2.0 (backward compatible with 1.0a/1.1) USB 3.0 Interface: USB 3.0 Internal Ports: IDC (20 pin ; USB 3.0 ; Motherboard Header) Male ; SP4 (4 pin ; Small Drive Power) Male Maximum Data Transfer Rate: 5 Gbps Operating Temperature: 0°C to 55°C (32°F to 131°F) OS Compatibility: Windows® 8 / 8.1 (32/64), 7 (32/64), Vista (32/64), XP (32/64) Windows Server® 2012, 2008 R2, 2003 Ports: 2 Product Length: 51 mm [2 in] Product Weight: 61 g [2.2 oz] Product Width: 30 mm [1.2 in] Shipping (Package) Weight: 207 g [7.3 oz] Storage Temperature: -20°C to 85°C (-4°F to 185°F) System and Cable Requirements: Available Mini PCI Express expansion slot (full length) Case/Chassis with available Low or Full profile expansion card slot Type and Rate: USB 3.0 - 5 Gbit/s UASP Support: Yes |
|---|
