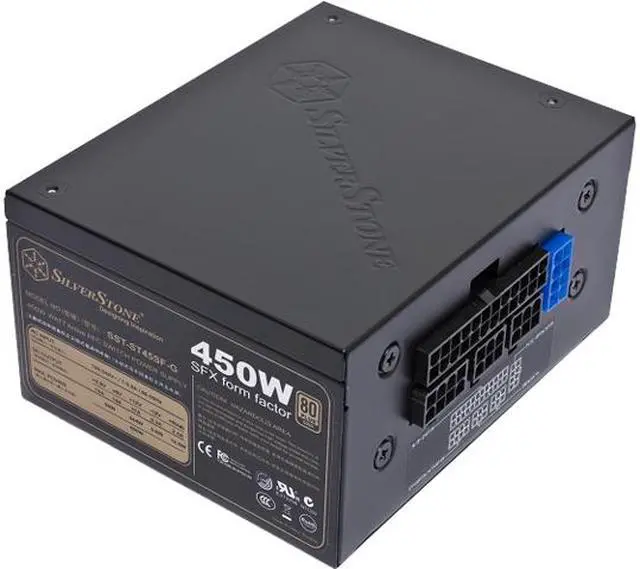

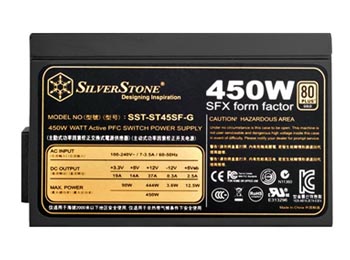

SILVERSTONE SFX SST-ST45SF-G 450W SFX12V 80 PLUS GOLD Certified Active PFC (PF>0.90 at full load) PFC Power Supply
- SFX12V
- 80 PLUS GOLD Certified
- 90 - 264 V 47 - 63 Hz
- +3.3V@19A, +5V@14A, +12V@37A, [email protected], [email protected]
+
+
Overview
Specs
Reviews
SilverStone Technology 450W SFX Form Factor 80 PLUS GOLD Full Modular Power Supply with +12V single rail, Active PFC (ST45SF-G)
- Supports standard SFX form factor and ATX via included bracket
- 80 PLUS Gold level efficiency (87%~90% efficiency at 20%~100% loading)
- 100% modular cables
- 450W continuous power output at 40? operating temperature rated for 24/7 operation
- Class-leading single +12V rail with 37A
- Strict ±3% voltage regulation and low ripple & noise

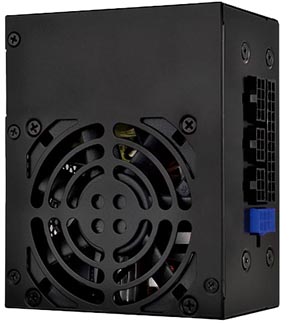

- Silent running 80mm fan with 18dBA minimum
- Single PCI-E 8pin and dual PCI-E 6pin connectors support
- Active PFC
OVERVIEW
After successfully expanding and leading SFF(small form factor) cases and SFX PSU into the DIY (do it yourself) market, SilverStone engineers have continued their push for advancement in these categories by releasing a true upgrade-worthy small form factor power supply, the ST45SF-G. Despite being half the size of a regular ATX power supply, the ST45SF-G can still produce continuous power output of 450W. Its 80 PLUS Gold level efficiency is a great leap from the previous SFX best of 80 PLUS Bronze and the full modular cables is also the first of its kind for this form factor. To enable users to easily take advantage of this excellent SFX power supply, an adapter is included to convert ST45SF-G to mount in any ATX case in addition to ones that fit only SFX. For SFF users and for SilverStone, the ST45SF-G is more than just an upgrade, it is an important milestone for DIY desktop computer.
Remark

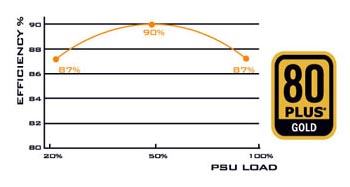

Designed for 80 PLUS Gold level of efficiency to reduce wasted heat and save on electricity.

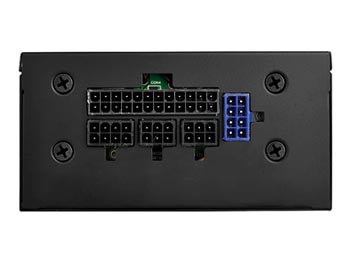

100% modular cable design for easy removal in a case with cable routed and tied down.
Powerful single +12V rail design, perfect for future high-end component upgrade.

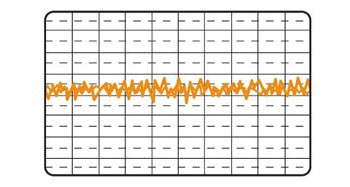

±3% regulation and low ripple & noise performance for high stability

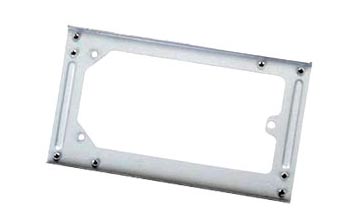

Included SFX to ATX bracket for use in ATX case.

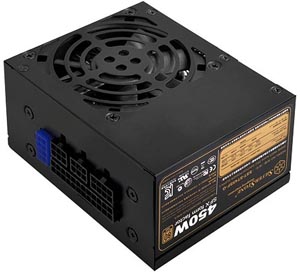

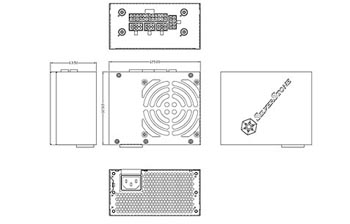

Standard 125mm(W) x 63.5mm(H) x 100mm(D) SFX Form-Factor size take up less space for easier installation.

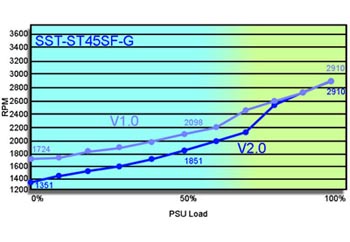

Fan speed curve difference between V1.0 and V2.0
FEATURE PHOTOS

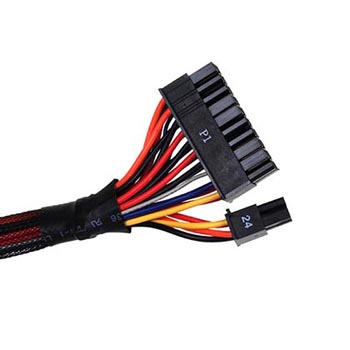

24 / 20-Pin motherboard connector Image

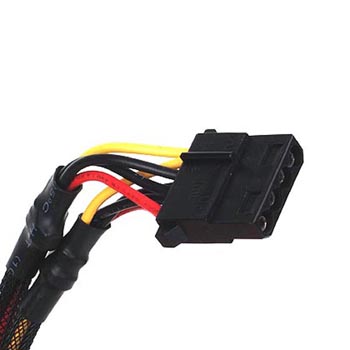

4-Pin Peripheral connector

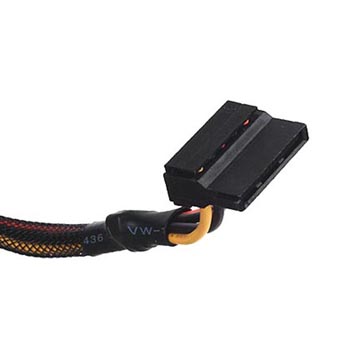

SATA connector

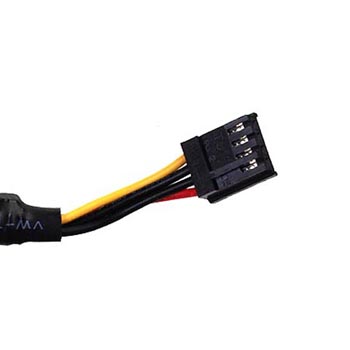

4-Pin Floppy connector
6-Pin PCIE connector

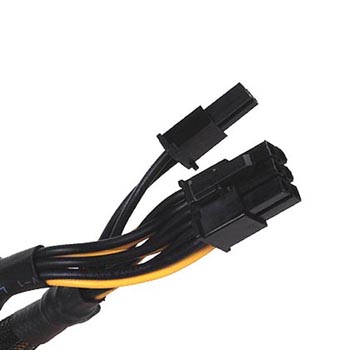

8/ 4-Pin EPS / ATX 12V connector

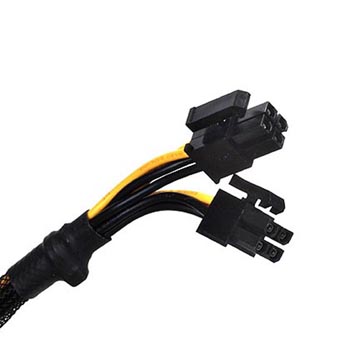

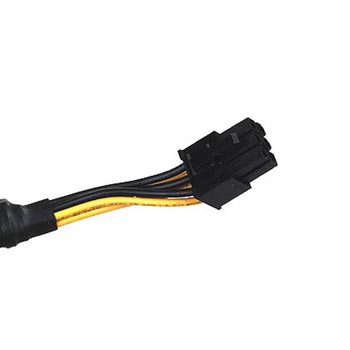

8/6-Pin PCIE connector
Specifications
| Model No. | SST-ST45SF-G | ||||
| Max. DC Output | 450W | ||||
| Power density | 567W per liter | ||||
| Load Range | |||||
| +3.3V | +5V | +12V | +5VSB | -12V | |
| Max.(Amps) | 19A | 14A | 37A | 2.5A | 0.3A |
| Peak (Amps) | / | / | / | 3A | / |
| Min.(Amps) | 0A | 0A | 0A | 0A | 0A |
| Range (%) | ±3% | ±3% | ±3% | ±5% | ±10% |
| Line Reg.(%) | ±1% | ±1% | ±1% | ±1% | ±1% |
| Ripple(mVp-p) | 50mA | 50mA | 120mV | 50mV | 120mV |
| Color | Black(Lead-Free Paint) | ||||
| combined +3.3, +5V | 90W | ||||
| combined +12V | 444W / 37A | ||||
| Input Voltage | 90V ~ 264V | ||||
| Input Frequency Range | 47Hz ~ 63Hz | ||||
| PFC | Active PFC(PF>0.90 at full load) | ||||
| Efficiency | 87%~90%(20% to 100% loading) | ||||
| MTBF | 100,000 hours at 25°C, full load | ||||
| Operating temperature | 0°C ~ 40°C | ||||
| Protection |
|
||||
| Connectors |
|
||||
| Cooling System | Single 80mm silent fan | ||||
| Noise Level | 18dBA minimum | ||||
| Dimension | 125 mm (W) × 63.5 mm (H) × 100 mm (D) | ||||
| Weight | 1.45 Kg | ||||
| Form factor | SFX | ||||
| Certification | 80 PLUS Gold | ||||
| Other | Includes SFX to ATX bracket for use in ATX case GPU Support list Compatible with ATX12V v2.4 |
||||
