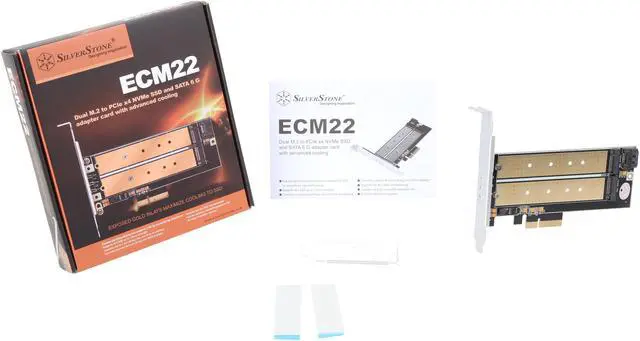

Silverstone SST-ECM22 Dual M.2 to PCIe x4 NVMe SSD and SATA 6 G Adapter Card with Advanced Cooling
- Exposed gold inlays efficienty cool installed M.2 SSD for consistently high performance
- Supports M.2 SSD up to 110mm in length
- Converts one M.2 port (M key) into one PCIe x4 interface
- Converts a second M.2 port (B key) into SATA interface
- Supports two M.2 SSD simultaneously
- Includes optional Low-profile expansion slot
- No driver installation required
+
+
Specs
Reviews (16)
Learn more about the Silverstone SST-ECM22
| Brand | Silverstone |
|---|---|
| Model | SST-ECM22 |
| Type | PCI Express to SATA Card |
|---|---|
| Internal Ports | 1 x PCI Express x4 interface 1 x SATA 6 Gbps interface 2 x M.2 (NGFF) |
| Data Transfer Rate | up to 32 Gbps (PCIe) 6 Gbps (SATA) |
| Operating Systems Supported | Microsoft Windows 7 (32bit/64bit), 8/8.1/10 (32bit/64bit) or future release version Mac OS 10.2.8 or above Linux |
| Specifications | LED Indicator: Power LED: Red SATA M.2 SSD Read / Write LED: Orange PCIe M.2 SSD Read / Write LED: Blue Module Key: SATA-based B key PCIe x4 NVMe-based M key Note: 1. ECM22’s 'M' key is for use only with PCIe SSD, 'B' key is for use with only SATA SSD 2. B key SSD requires SATA 7 pin cable connected to motherboard to function 3. For B+M Key SATA M.2 SSD, please use B key slot 4. M.2 PCIe NVMe mode SSD requires the use of Intel® 9 series (Z97 H97 Z170 X99) or higher version chipset motherboard with Windows 8 or higher version operating system 5.If you wish to boot off using M.2 SSD, your motherboard needs to support it. Due to BIOS limitations, not all motherboards support booting off M.2 SSD so please consult your motherboard manual or vendor for more details on how to enable this function 6.Before installing M.2 SSD to ECM22, please make sure to remove protective film covering the gold inlays to ensure optimal heat transfer performance |
| Features | Exposed gold inlays efficienty cool installed M.2 SSD for consistently high performance Supports M.2 SSD up to 110mm in length Converts one M.2 port (M key) into one PCIe x4 interface Converts a second M.2 port (B key) into SATA interface Supports two M.2 SSD simultaneously Includes optional Low-profile expansion slot No driver installation required |
|---|
| First Listed on Newegg | April 24, 2019 |
|---|
