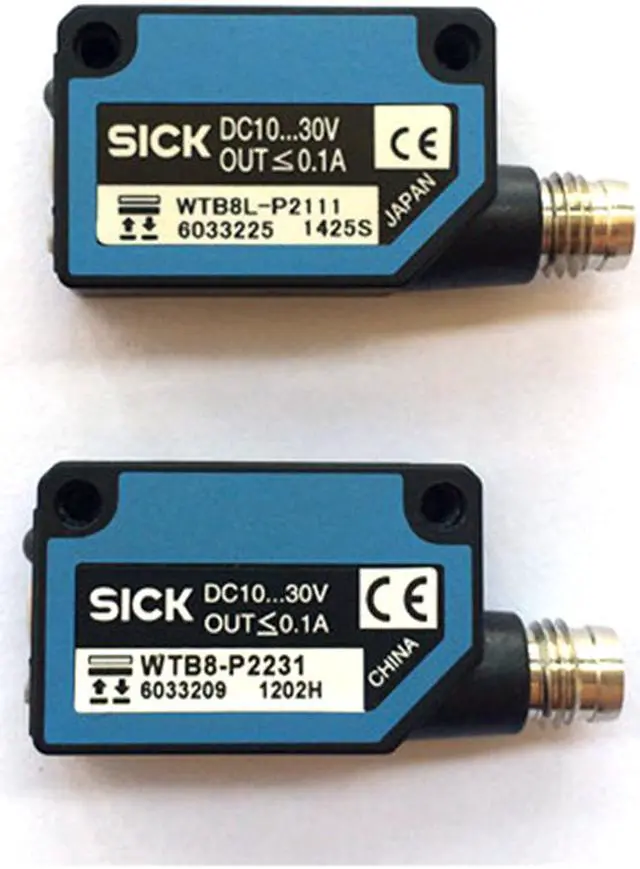

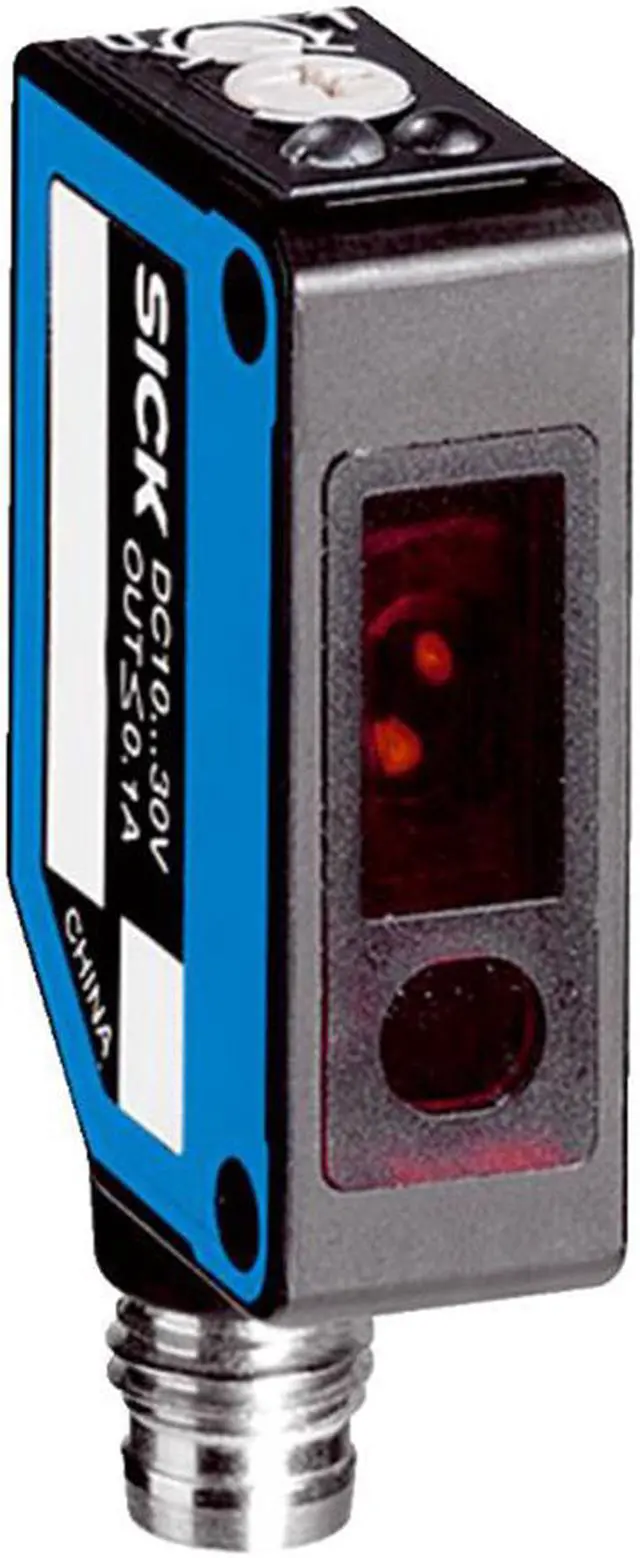

SICK WTB8-P2231 Photoelectric Proximity Sensor ,PNP,New

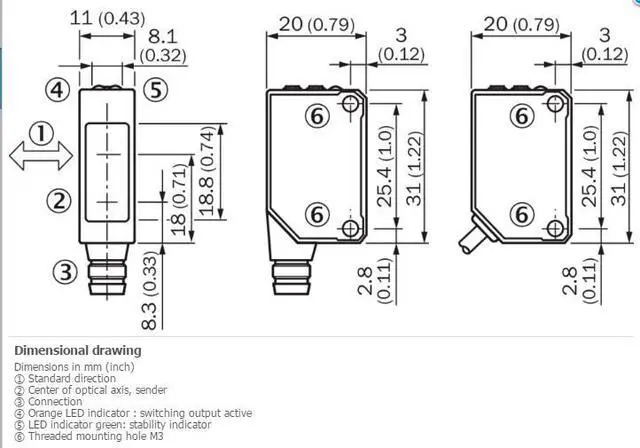

FEATURES Sensor/ detection principle Photoelectric proximity sensor, Background suppression Dimensions (W x H x D) 11 mm x 31 mm x 20 mm Housing design (light emission) Rectangular Sensing range max. 30 mm... 300 mm 1) Sensing range 40 mm... 300 mm 1) Type of light Visible red light Light source LED 2) Light spot size (distance) Ø 20 mm (300 mm) Wave length 650 nm Adjustment Potentiometer, 4 turns MECHANICS/ELECTRONICS Supply voltage 10 V DC... 30 V DC 1) Ripple ± 10 % 2) Power consumption 30 mA 3) Switching output PNP Switching mode Light/dark switching Switching mode selector Selectable via light/dark rotary switch Signal voltage PNP HIGH/LOW Approx.

VS – 1.8 V / 0 V Output current Imax. = 100 mA Response time = 0.5 ms 4) Switching frequency 1, 000 Hz 5) Connection type Male connector M8, 4-pin Circuit protection A 6) B 7) D 8) Weight 10 g Housing material Plastic, ABS Optics material Plastic, PMMA Enclosure rating IP67 Items supplied Stainless steel mounting bracket ( 1.4301 /304) BEF-W100-A Ambient operating temperature –25 °C... +55 °C Ambient storage temperature –40 °C... +70 °C
