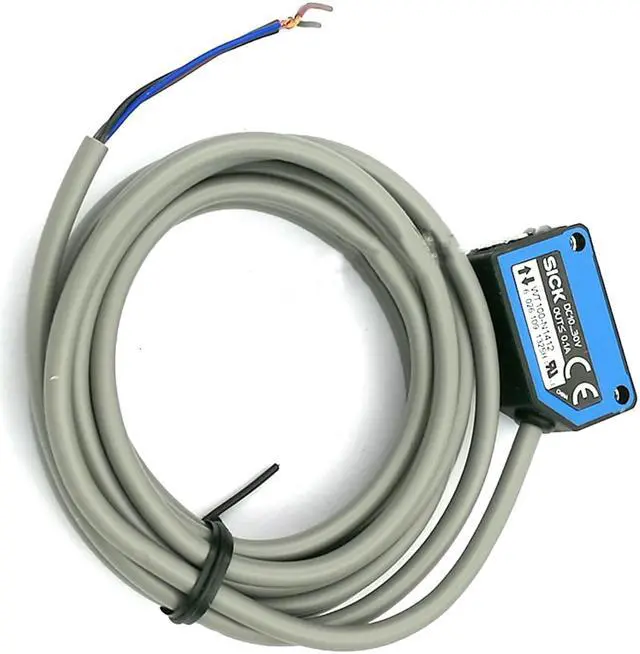

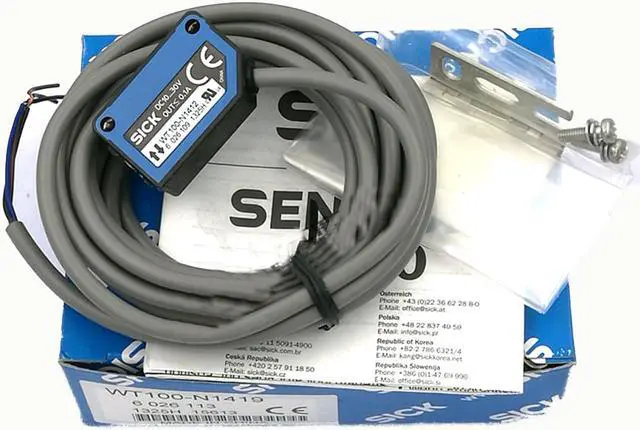

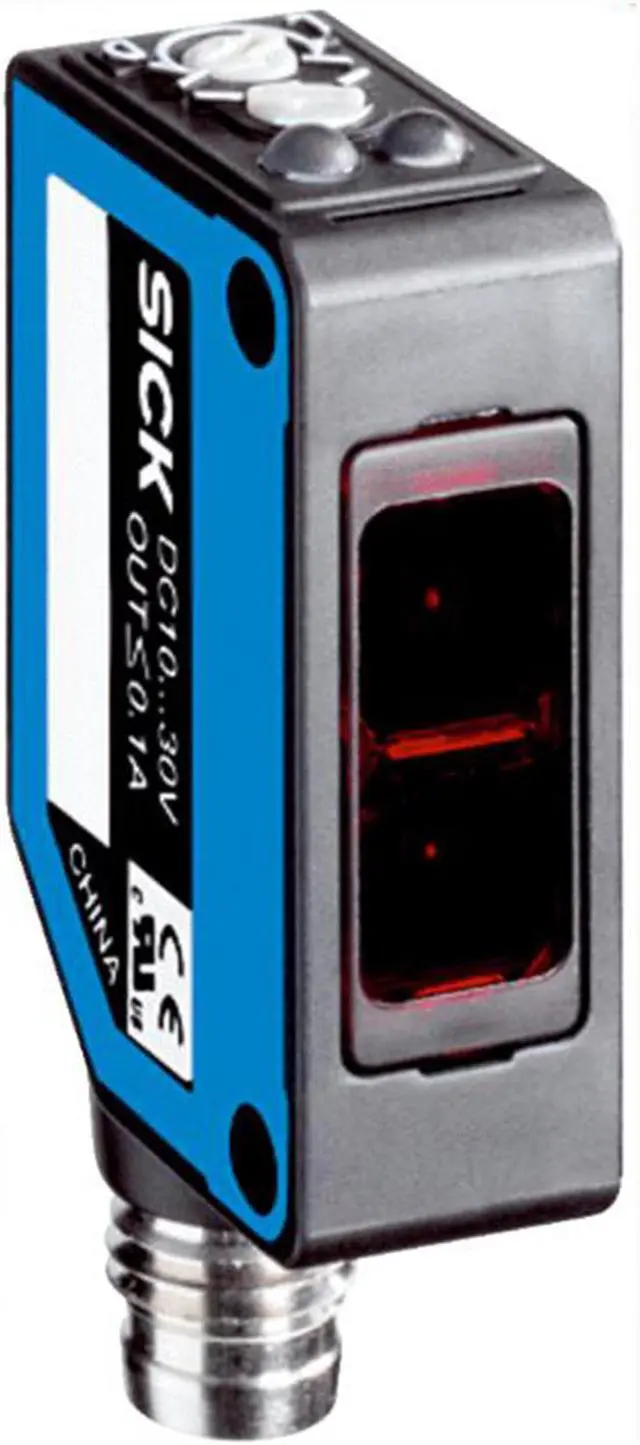

SICK WT100-N1412 Photoelectric proximity sensor ,NPN New
Limited time offer, ends 02/01 By Tech Frontier Electronics
- SICK WT100-N1412 Photoelectric proximity sensor ,NPN New
+
+
Overview
Specs
Reviews
FEATURES
Sensor/ detection principle Photoelectric proximity sensor, Background blanking

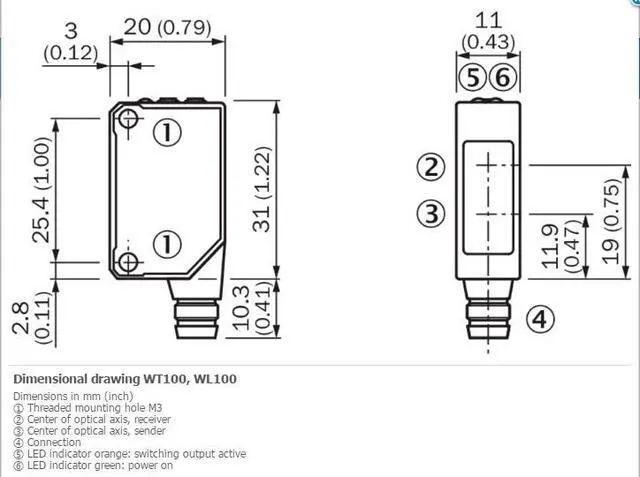

Dimensions (W x H x D) 11 mm x 31 mm x 20 mm
Housing design (light emission) Rectangular
Sensing range max. 4 mm ... 140 mm 1)
Sensing range 10 mm ... 100 mm
Type of light Visible red light
Light source LED 2)
Light spot size (distance) Ø 8 mm (90 mm)
Wave length 680 nm
Adjustment Potentiometer, 270°
MECHANICS/ELECTRONICS
Supply voltage 10 V DC ... 30 V DC 1)
Ripple ± 10 % 2)
Power consumption 30 mA 3)
Switching output NPN
Switching mode Light/dark switching
Switching mode selector Selectable via light/dark rotary switch
Signal voltage NPN HIGH/LOW Approx. VS / < 1.8 V
Output current Imax. = 100 mA
Response time = 0.5 ms 4)
Switching frequency 1,000 Hz 5)
Connection type Cable, 3-wire, 2 m 6)
Cable material PVC
Conductor cross-section 0.18 mm²
Circuit protection
A 7)
B 8)
D 9)
Weight 53 g
Housing material Plastic, ABS/PC/POM
Optics material Plastic, PMMA
Enclosure rating IP65
Ambient operating temperature –25 °C ... +55 °C
Ambient storage temperature –40 °C ... +70 °C
Sensor/ detection principle Photoelectric proximity sensor, Background blanking
Dimensions (W x H x D) 11 mm x 31 mm x 20 mm
Housing design (light emission) Rectangular
Sensing range max. 4 mm ... 140 mm 1)
Sensing range 10 mm ... 100 mm
Type of light Visible red light
Light source LED 2)
Light spot size (distance) Ø 8 mm (90 mm)
Wave length 680 nm
Adjustment Potentiometer, 270°
MECHANICS/ELECTRONICS
Supply voltage 10 V DC ... 30 V DC 1)
Ripple ± 10 % 2)
Power consumption 30 mA 3)
Switching output NPN
Switching mode Light/dark switching
Switching mode selector Selectable via light/dark rotary switch
Signal voltage NPN HIGH/LOW Approx. VS / < 1.8 V
Output current Imax. = 100 mA
Response time = 0.5 ms 4)
Switching frequency 1,000 Hz 5)
Connection type Cable, 3-wire, 2 m 6)
Cable material PVC
Conductor cross-section 0.18 mm²
Circuit protection
A 7)
B 8)
D 9)
Weight 53 g
Housing material Plastic, ABS/PC/POM
Optics material Plastic, PMMA
Enclosure rating IP65
Ambient operating temperature –25 °C ... +55 °C
Ambient storage temperature –40 °C ... +70 °C
