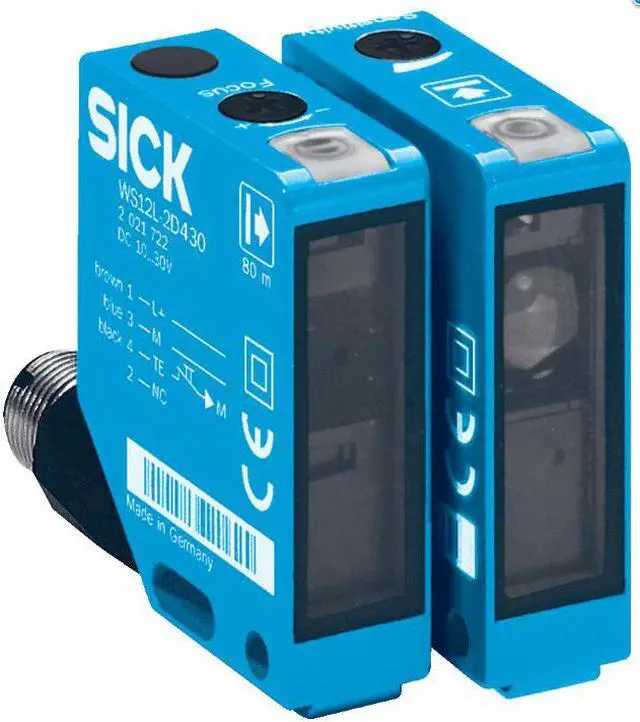

SICK WS / WE12L-2P430 Small Photoelectric Sensors ,PNP,New

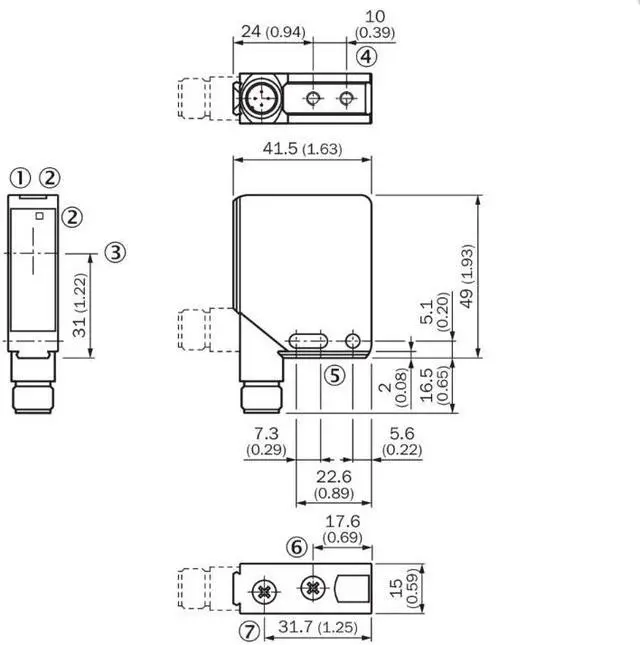

FEATURES Sensor/ detection principle Through-beam photoelectric sensor Dimensions (W x H x D) 15 mm x 49 mm x 41.5 mm Housing design (light emission) Rectangular Sensing range max. 0 m... 80 m Type of light Visible red light Light source Laser 1) Light spot size (distance) Ø 150 mm (60 m) Wave length 650 nm Laser class 2 (EN 60825- 1:2014, IEC 60825- 1:2007 ) 2) Adjustment Potentiometer Special applications Detecting small objects, Detection of objects moving at high speeds MECHANICS/ELECTRONICS Supply voltage 10 V DC... 30 V DC 1) Ripple = 5 Vpp 2) Power consumption, sender = 45 mA 3) Power consumption, receiver = 15 mA 3) Switching output PNP Switching mode selector Selectable via L/D control cable Signal voltage PNP HIGH/LOW Uv - < 2.9 V, Uv V / 0 V <= 1.5 V Signal voltage NPN HIGH/LOW Uv - < 2.9 V, Uv V / 0 V <= 1.5 V Output current Imax.

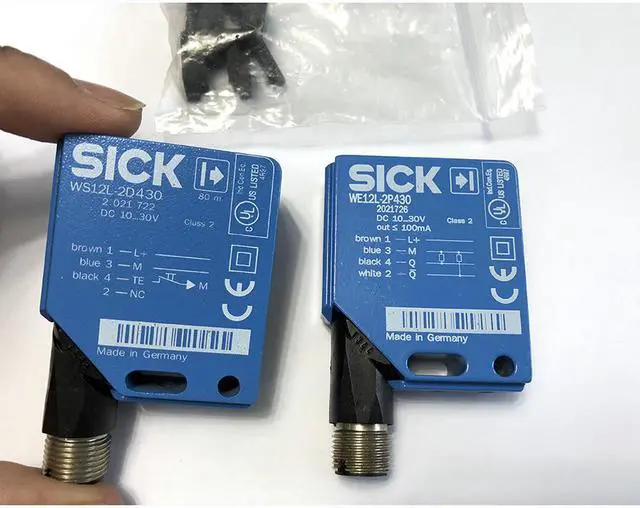

100 mA Response time = 200 µs 4) Switching frequency 2, 500 Hz 5) Connection type Male connector M12, 4-pin Circuit protection A 6) C 7) D 8) Protection class III Weight 260 g Housing material Metal Optics material Plastic, PMMA Enclosure rating IP67 IP69K Items supplied 2 x clamps incl. screws Ambient operating temperature –10 °C... +50 °C Ambient storage temperature –25 °C... +75 °C UL File No. NRKH. E181493 & NRKH7. E181493 Part number of individual components 2021722 WS12L-2D430 2021726 WE12L-2P430
