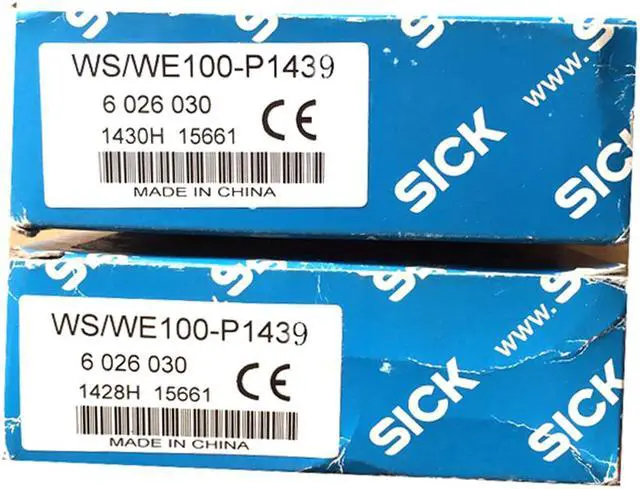

SICK WS / WE100-P1439 Through-beam photoelectric sensor ,New

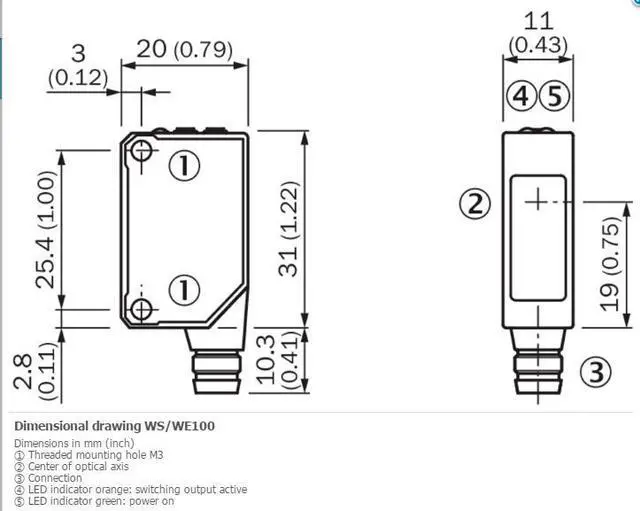

FEATURES Sensor/ detection principle Through-beam photoelectric sensor Dimensions (W x H x D) 11 mm x 31 mm x 20 mm Housing design (light emission) Rectangular Sensing range max. 0 m... 15 m Sensing range 0 m... 12 m Type of light Visible red light Light source LED 1) Light spot size (distance) Ø 1, 500 mm (12 m) Angle of dispersion Approx. 7.2 ° Wave length 680 nm Adjustment Potentiometer, 270° MECHANICS/ELECTRONICS Supply voltage 10 V DC... 30 V DC 1) Ripple ± 10 % 2) Power consumption, sender = 15 mA 3) Power consumption, receiver = 20 mA 3) Switching output PNP Switching mode Light/dark switching Switching mode selector Selectable via light/dark rotary switch Signal voltage PNP HIGH/LOW UV - 1, 8 V / ca.

0 V Output current Imax. 100 Response time = 0.5 ms 4) Switching frequency 1, 000 Hz 5) Angle of reception Approx. 15° Connection type Cable, 3-wire, 2 m 6) Cable material PVC Conductor cross-section 0.18 mm² Circuit protection A 7) B 8) D 9) Weight 106 g Housing material Plastic, ABS/PC/POM Optics material Plastic, PMMA Enclosure rating IP65 Items supplied 2 Stainless steel mounting brackets ( 1.4301 /304) BEF-W100-A Ambient operating temperature –25 °C... +55 °C Ambient storage temperature –40 °C... +70 °C
