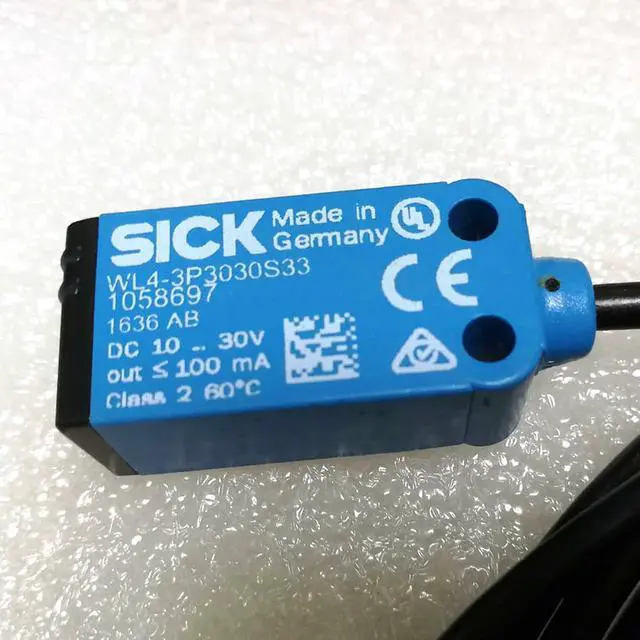

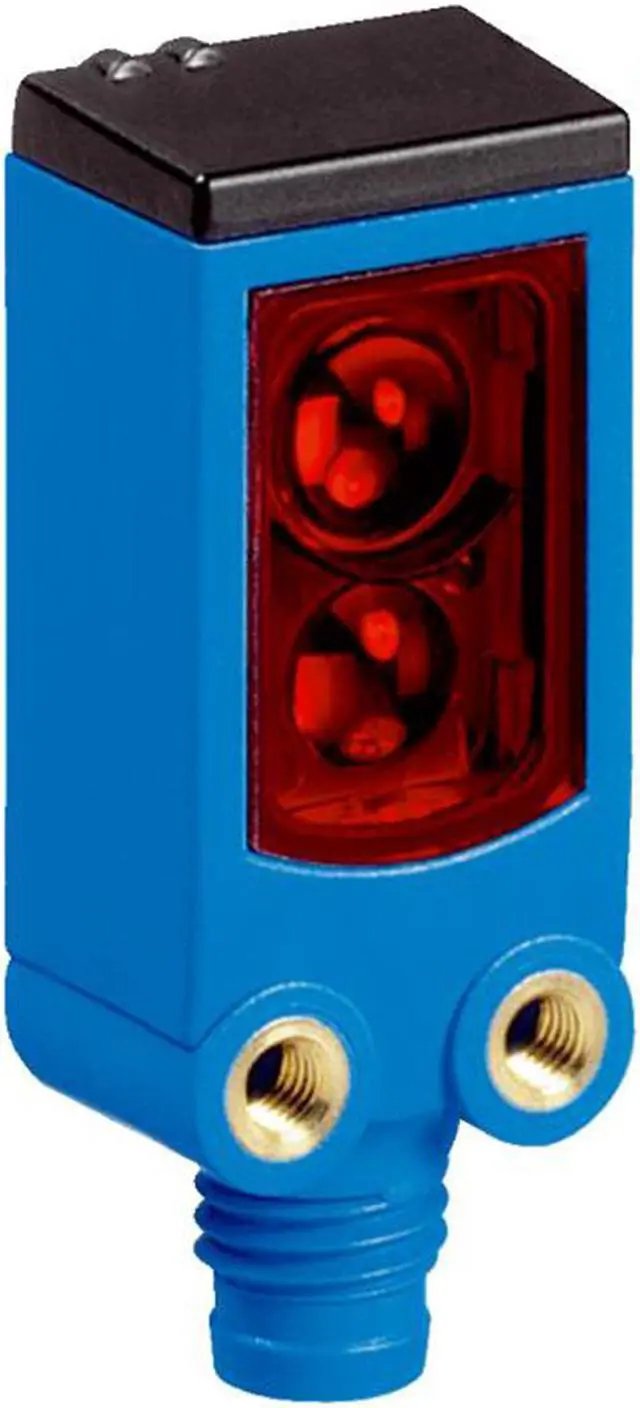

SICK WL4-3P3030S33 Photoelectric Retro-reflective Sensor ,PNP,New
Limited time offer, ends 02/01 By Tech Frontier Electronics
- SICK WL4-3P3030S33 Photoelectric Retro-reflective Sensor ,PNP,New
+
+
Overview
Specs
Reviews
FEATURES Sensor/ detection principle Photoelectric retro-reflective sensor, Dual lens Dimensions (W x H x D) 16 mm x 39.5 mm x 12 mm Housing design (light emission) Rectangular Sensing range max. 0.01 m... 4.5 m 1) Sensing range 0.02 m... 3.5 m 1) Type of light Visible red light Light source PinPoint LED 2) Light spot size (distance) Ø 75 mm ( 1.5 m) Wave length 650 nm Adjustment None MECHANICS/ELECTRONICS Supply voltage 10 V DC... 30 V DC 1) Ripple < 5 Vpp 2) Power consumption 20 mA 3) Switching output PNP Switching mode Light switching Output current Imax.
= 100 mA Response time < 0.5 ms 4) Switching frequency 1, 000 Hz 5) Connection type Cable with Tyco connector, 1, 750 mm 6) Cable material PVC Conductor cross-section 0.14 mm² Cable diameter Ø 3.4 mm Circuit protection A 7) C 8) D 9) Protection class III Weight 30 g Polarisation filter? Special device? Housing material Plastic, ABS Optics material Plastic, PMMA Enclosure rating IP67 IP66 Ambient operating temperature –40 °C... +60 °C Ambient storage temperature –40 °C... +75 °C UL File No. NRKH.
E181493 & NRKH7. E181493
= 100 mA Response time < 0.5 ms 4) Switching frequency 1, 000 Hz 5) Connection type Cable with Tyco connector, 1, 750 mm 6) Cable material PVC Conductor cross-section 0.14 mm² Cable diameter Ø 3.4 mm Circuit protection A 7) C 8) D 9) Protection class III Weight 30 g Polarisation filter? Special device? Housing material Plastic, ABS Optics material Plastic, PMMA Enclosure rating IP67 IP66 Ambient operating temperature –40 °C... +60 °C Ambient storage temperature –40 °C... +75 °C UL File No. NRKH.
E181493 & NRKH7. E181493
