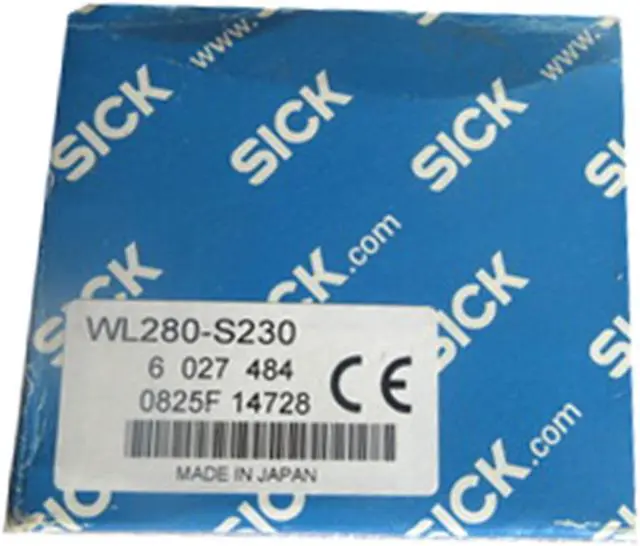

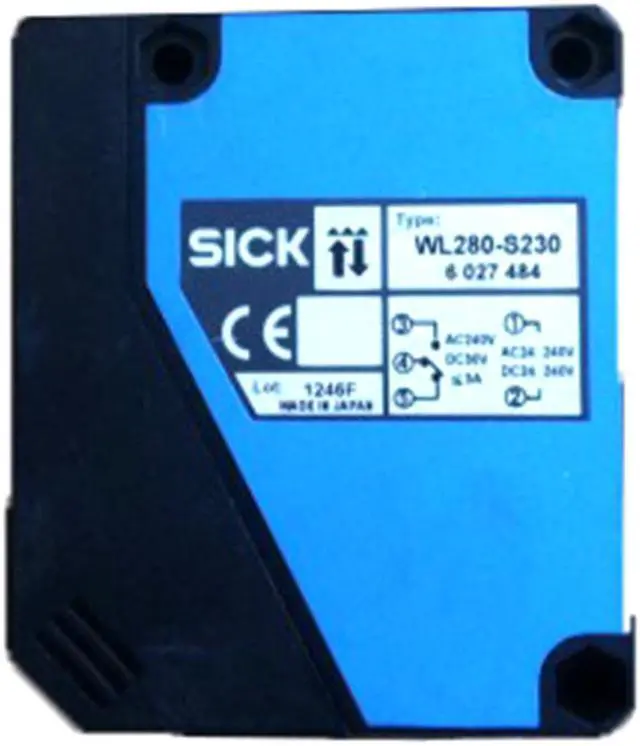

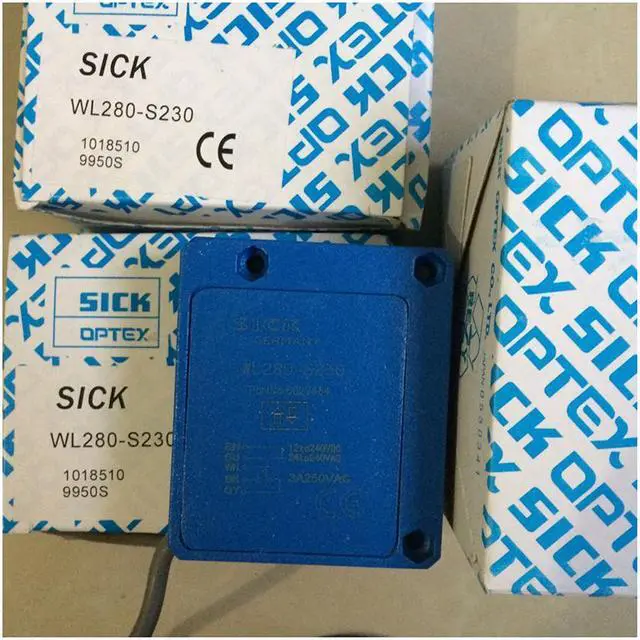

SICK WL280-S230 Photoelectric Retro-reflective Sensor New
- SICK WL280-S230 Photoelectric Retro-reflective Sensor New
+
+
Overview
Specs
Reviews
FEATURES
Sensor/ detection principle Photoelectric retro-reflective sensor

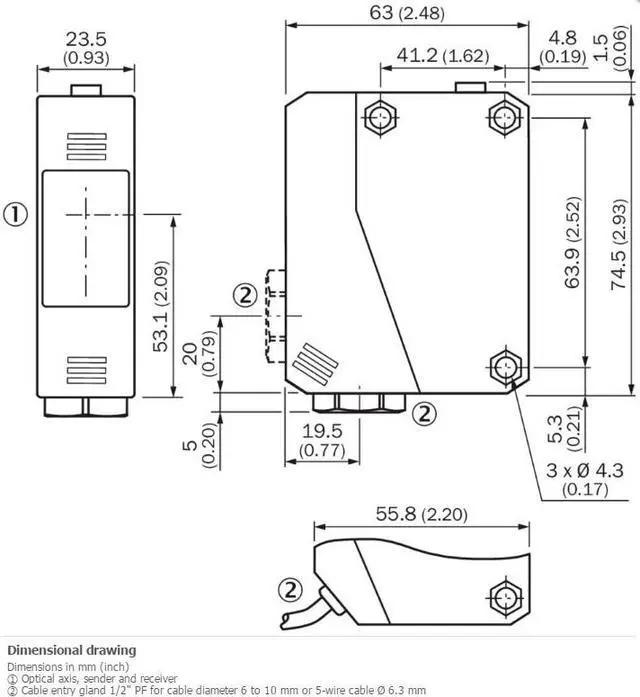

Dimensions (W x H x D) 23.5 mm x 74.5 mm x 63 mm
Housing design (light emission) Rectangular
Sensing range max. 0.01 m ... 15 m 1)
Sensing range
0.01 m ... 10 m 2)
0.01 m ... 13 m 1)
Type of light Visible red light
Light source LED 3)
Light spot size (distance) 280 mm (10 m)
Angle of dispersion 1.6°
Adjustment Potentiometer
MECHANICS/ELECTRONICS
Supply voltage
24 V DC ... 240 V DC 1)
24 V AC ... 240 V AC 1)
Power consumption = 5 VA
Switching output Relay, electrically isolated 2)
Output function Change-over contacts
Switching mode Light switching 2)
Switching current (switching voltage)
3 A (240 V AC)
3 A (30 V DC)
Response time = 20 ms
Switching frequency 25 Hz 3)
Connection type Cable gland
Circuit protection
A 4)
C 5)
Protection class II 6)
Weight 150 g
Polarisation filter ?
Housing material Plastic, ABS
Optics material Plastic, PMMA
Enclosure rating IP66
Items supplied Mounting bracket BEF-W280, Reflector P250
Usage category AC-15, DC-13, according to EN 60947-1
Ambient operating temperature –25 °C ... +55 °C
Ambient storage temperature –40 °C ... +70 °C
Sensor/ detection principle Photoelectric retro-reflective sensor
Dimensions (W x H x D) 23.5 mm x 74.5 mm x 63 mm
Housing design (light emission) Rectangular
Sensing range max. 0.01 m ... 15 m 1)
Sensing range
0.01 m ... 10 m 2)
0.01 m ... 13 m 1)
Type of light Visible red light
Light source LED 3)
Light spot size (distance) 280 mm (10 m)
Angle of dispersion 1.6°
Adjustment Potentiometer
MECHANICS/ELECTRONICS
Supply voltage
24 V DC ... 240 V DC 1)
24 V AC ... 240 V AC 1)
Power consumption = 5 VA
Switching output Relay, electrically isolated 2)
Output function Change-over contacts
Switching mode Light switching 2)
Switching current (switching voltage)
3 A (240 V AC)
3 A (30 V DC)
Response time = 20 ms
Switching frequency 25 Hz 3)
Connection type Cable gland
Circuit protection
A 4)
C 5)
Protection class II 6)
Weight 150 g
Polarisation filter ?
Housing material Plastic, ABS
Optics material Plastic, PMMA
Enclosure rating IP66
Items supplied Mounting bracket BEF-W280, Reflector P250
Usage category AC-15, DC-13, according to EN 60947-1
Ambient operating temperature –25 °C ... +55 °C
Ambient storage temperature –40 °C ... +70 °C
