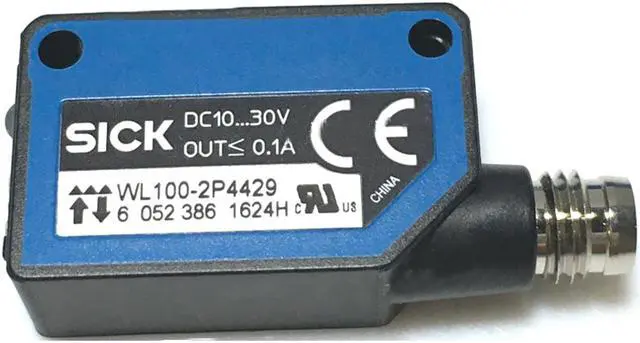

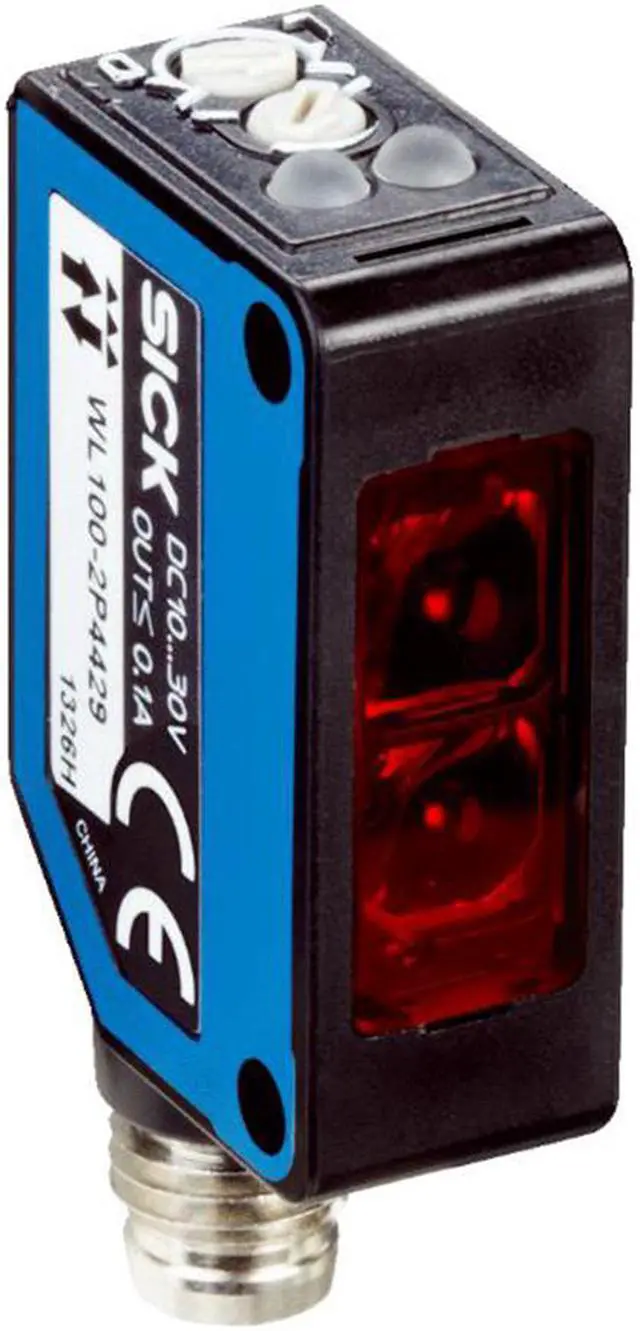

SICK WL100-2P4429 Miniature photoelectric sensors ,PNP,New

FEATURES
Sensor/ detection principle Photoelectric retro-reflective sensor, Dual lens

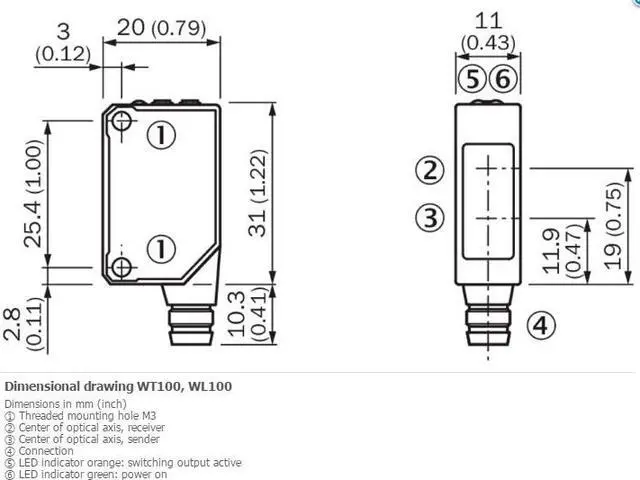

Dimensions (W x H x D) 11 mm x 31 mm x 20 mm
Housing design (light emission) Rectangular
Sensing range max. 0.01 m ... 3 m 1)
Sensing range 0.01 m ... 2.5 m 1)
Type of light Visible red light
Light source LED 2)
Light spot size (distance) Ø 140 mm (2 m)
Wave length 632 nm
Adjustment Potentiometer (Sensitivity)
Special applications Detecting transparent objects
Special features Detecting transparent objects

MECHANICS/ELECTRONICS
Supply voltage 10 V DC ... 30 V DC 1)
Ripple ± 10 % 2)
Power consumption 30 mA 3)
Switching output PNP
Switching mode Light/dark switching
Switching mode selector Selectable via light/dark rotary switch
Signal voltage PNP HIGH/LOW UV - 1,8 V / ca. 0 V
Output current Imax. 100 mA
Response time = 0.5 ms 4)
Switching frequency 1,000 Hz 5)
Attenuation along light beam = 20 %
Connection type Male connector M8, 4-pin
Circuit protection
A 6)
B 7)
D 8)
Protection class III
Housing material Plastic, ABS/PC/POM
Optics material Plastic, PMMA
Enclosure rating IP67
Items supplied Mounting bracket BEF-W100-A, Reflector P250
Special feature Detecting transparent objects
Ambient operating temperature –25 °C ... +55 °C
Ambient storage temperature –40 °C ... +70 °C
