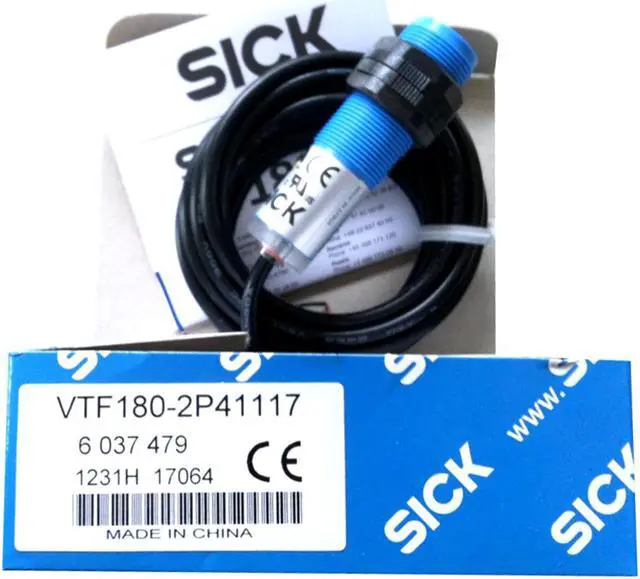

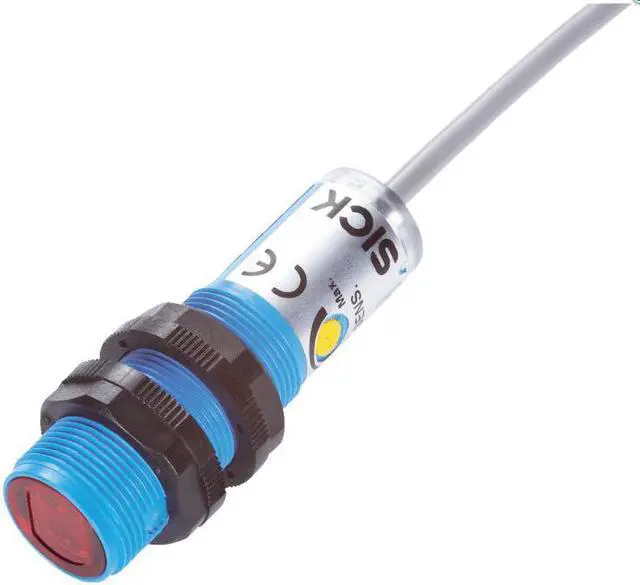

SICK VTF180-2P41117 Cylindrical Photoelectric Sensors,PNP,New
Limited time offer, ends 02/01 By Tech Frontier Electronics
- SICK VTF180-2P41117 Cylindrical Photoelectric Sensors,PNP,New
+
+
Overview
Specs
Reviews
SICK VTF180-2P41117 Cylindrical Photoelectric Sensors,PNP,New
FEATURES
Sensor/ detection principle Photoelectric proximity sensor, Background blanking
Housing design (light emission) Cylindrical

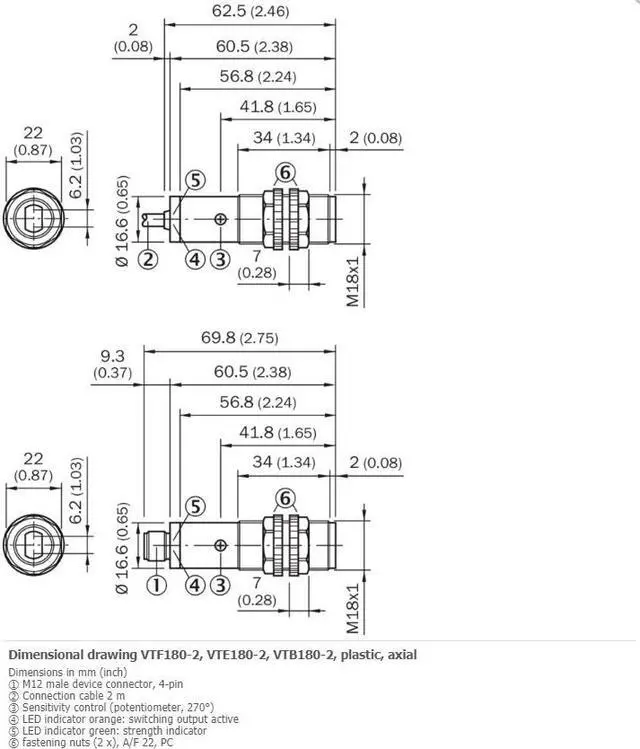

Housing length 62.5 mm
Thread diameter (housing) M18 x 1
Optical axis Axial
Sensing range max. 1 mm ... 140 mm 1)
Sensing range 1 mm ... 100 mm 1)
Focus 2)
Type of light Visible red light
Light source LED 3)
Light spot size (distance) Ø 8 mm (100 mm)
Wave length 645 nm
Adjustment Potentiometer, 270° (Sensing range)
MECHANICS/ELECTRONICS
Supply voltage 10 V DC ... 30 V DC 1)
Ripple ± 10 % 2)
Power consumption 30 mA 3)
Switching output PNP 4)
Switching mode Light/dark switching 4)
Switching mode selector Selectable via L/D control cable
Signal voltage PNP HIGH/LOW Approx. VS – 1.8 V / 0 V
Output current Imax. = 100 mA
Response time = 0.5 ms 5)
Switching frequency 1,000 Hz 6)
Connection type Cable, 4-wire, 2 m 7)
Cable material PVC
Conductor cross-section 0.18 mm²
Cable diameter Ø 3.8 mm
Circuit protection
A 8)
B 9)
D 10)
Protection class III
Weight 62 g
Housing material Plastic, PBT/PC
Optics material Plastic, PMMA
Enclosure rating IP67
Items supplied Fastening nuts (2 x)
Special feature Focused optics
Ambient operating temperature –25 °C ... +55 °C
Ambient storage temperature –40 °C ... +70 °C
FEATURES
Sensor/ detection principle Photoelectric proximity sensor, Background blanking
Housing design (light emission) Cylindrical
Housing length 62.5 mm
Thread diameter (housing) M18 x 1
Optical axis Axial
Sensing range max. 1 mm ... 140 mm 1)
Sensing range 1 mm ... 100 mm 1)
Focus 2)
Type of light Visible red light
Light source LED 3)
Light spot size (distance) Ø 8 mm (100 mm)
Wave length 645 nm
Adjustment Potentiometer, 270° (Sensing range)
MECHANICS/ELECTRONICS
Supply voltage 10 V DC ... 30 V DC 1)
Ripple ± 10 % 2)
Power consumption 30 mA 3)
Switching output PNP 4)
Switching mode Light/dark switching 4)
Switching mode selector Selectable via L/D control cable
Signal voltage PNP HIGH/LOW Approx. VS – 1.8 V / 0 V
Output current Imax. = 100 mA
Response time = 0.5 ms 5)
Switching frequency 1,000 Hz 6)
Connection type Cable, 4-wire, 2 m 7)
Cable material PVC
Conductor cross-section 0.18 mm²
Cable diameter Ø 3.8 mm
Circuit protection
A 8)
B 9)
D 10)
Protection class III
Weight 62 g
Housing material Plastic, PBT/PC
Optics material Plastic, PMMA
Enclosure rating IP67
Items supplied Fastening nuts (2 x)
Special feature Focused optics
Ambient operating temperature –25 °C ... +55 °C
Ambient storage temperature –40 °C ... +70 °C
