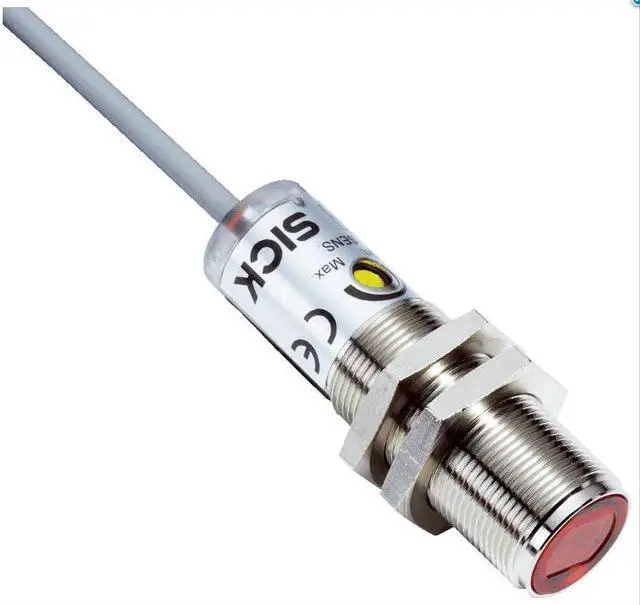

SICK VTF180-2N41112 Cylindrical photoelectric sensors ,NPN ,New

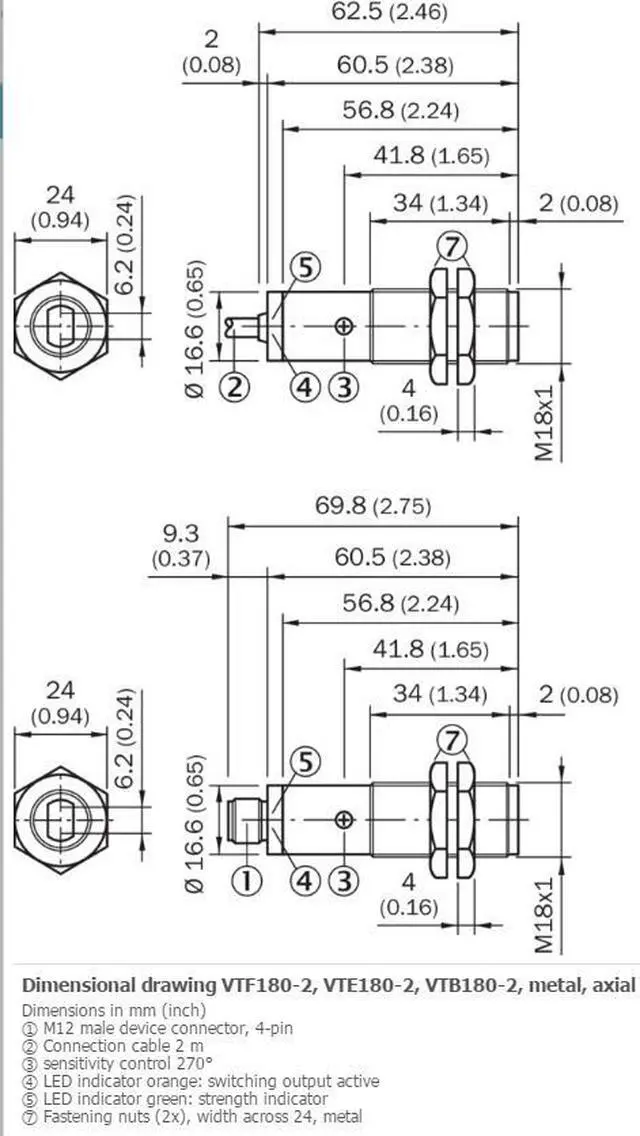

FEATURES Sensor/ detection principle Photoelectric proximity sensor, Background blanking Housing design (light emission) Cylindrical Housing length 62.5 mm Thread diameter (housing) M18 x 1 Optical axis Axial Sensing range max. 1 mm... 140 mm 1) Sensing range 1 mm... 100 mm 1) Focus 2) Type of light Visible red light Light source LED 3) Light spot size (distance) Ø 8 mm (100 mm) Wave length 645 nm Adjustment Potentiometer, 270° (Sensing range) MECHANICS/ELECTRONICS Supply voltage 10 V DC... 30 V DC 1) Ripple ± 10 % 2) Power consumption 30 mA 3) Switching output NPN 4) Switching mode Light/dark switching 4) Switching mode selector Selectable via L/D control cable Signal voltage NPN HIGH/LOW Approx.

VS / < 1.8 V Output current Imax. = 100 mA Response time = 0.5 ms 5) Switching frequency 1, 000 Hz 6) Connection type Cable, 4-wire, 2 m 7) Cable material PVC Conductor cross-section 0.18 mm² Cable diameter Ø 3.8 mm Circuit protection A 8) B 9) D 10) Protection class III Weight 95 g Housing material Metal, Nickel-plated brass and PC Optics material Plastic, PMMA Enclosure rating IP67 Items supplied Fastening nuts (2 x) Special feature Focused optics Ambient operating temperature –25 °C... +55 °C Ambient storage temperature –40 °C.

.. +70 °C
