$94.00
Ships from China.
Meet Your Seller

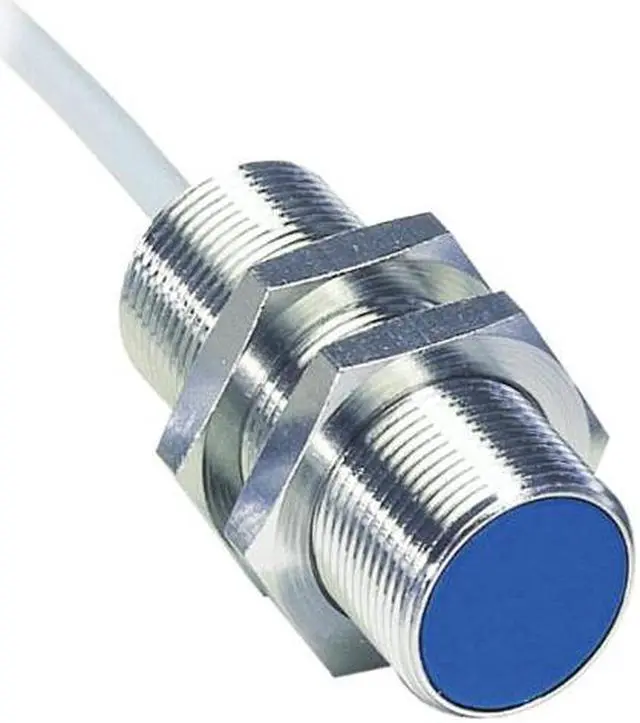

SICK IM18-12BPS-ZW1 Inductive proximity sensors ,NPN ,PNP,New
- SICK IM18-12BPS-ZW1 Inductive proximity sensors ,NPN ,PNP,New
+
+
Overview
Specs
Reviews
Features

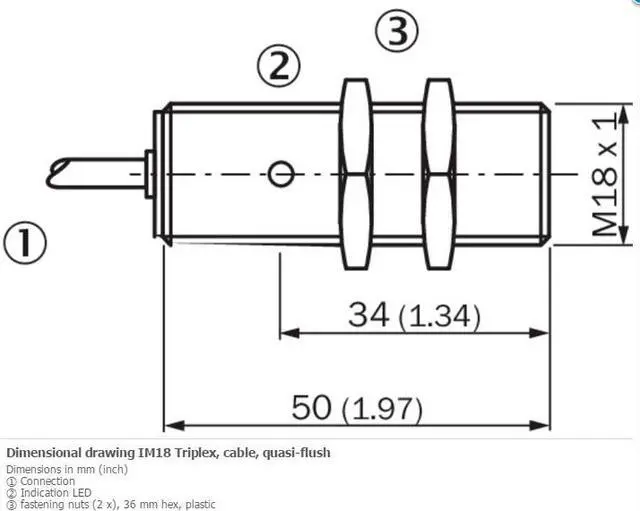

Housing Cylindrical thread design
Housing Standard
Thread size M18 x 1
Diameter Ø 18 mm
Sensing range Sn 12 mm
Safe sensing range Sa 9.72 mm
Installation type Quasi-flush 1)
Switching frequency 500 Hz
Connection type Cable, 3-wire, 2 m
Switching output PNP
Output function NO

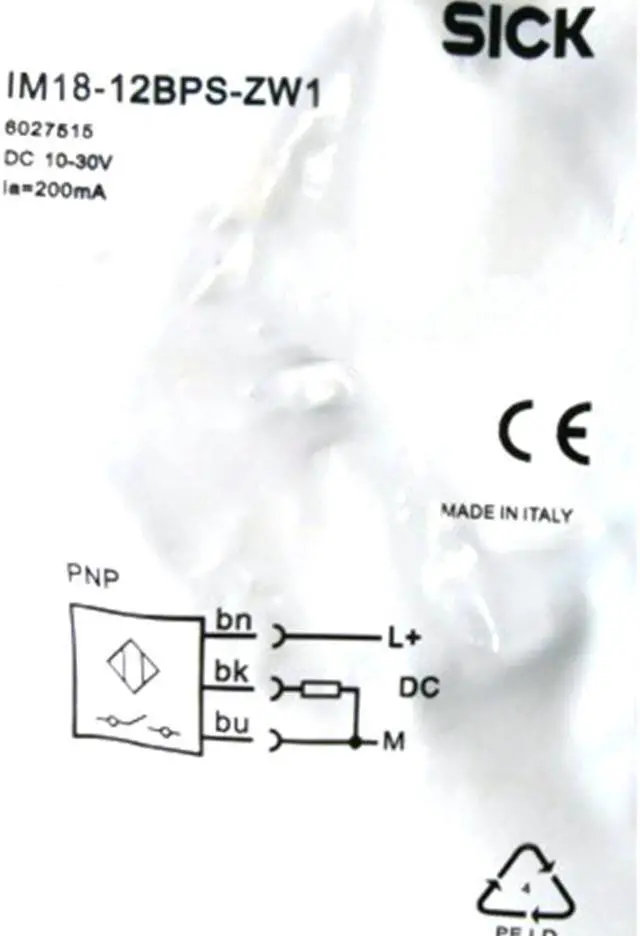

Electrical wiring DC 3-wire
Enclosure rating IP67 2)
Special features Triple sensing range
MECHANICS/ELECTRONICS
Mechanics/electronics
Supply voltage 10 V DC ... 30 V DC
Ripple = 20 % 1)
Voltage drop = 2 V 2)
Current consumption 10 mA 3)
Time delay before availability = 50 ms
Hysteresis 1 % ... 15 %
Reproducibility = 5 % 4) 5)
Temperature drift (of Sr) ± 10 %
EMC According to EN 60947-5-2
Continuous current Ia = 200 mA
Cable material PVC
Conductor size 0.34 mm²
Cable diameter Ø 5 mm
Short-circuit protection ?
Reverse polarity protection ?
Power-up pulse protection ?
Shock and vibration resistance 30 g, 11 ms / 10 ... 55 Hz, 1 mm
Ambient operating temperature –25 °C ... +70 °C
Housing material Metal, Chrome-plated brass
Sensing face material Plastic, Plastic
Housing length 50 mm
Thread length 50 mm
Tightening torque, max. 25 Nm
Housing Cylindrical thread design
Housing Standard
Thread size M18 x 1
Diameter Ø 18 mm
Sensing range Sn 12 mm
Safe sensing range Sa 9.72 mm
Installation type Quasi-flush 1)
Switching frequency 500 Hz
Connection type Cable, 3-wire, 2 m
Switching output PNP
Output function NO
Electrical wiring DC 3-wire
Enclosure rating IP67 2)
Special features Triple sensing range
MECHANICS/ELECTRONICS
Mechanics/electronics
Supply voltage 10 V DC ... 30 V DC
Ripple = 20 % 1)
Voltage drop = 2 V 2)
Current consumption 10 mA 3)
Time delay before availability = 50 ms
Hysteresis 1 % ... 15 %
Reproducibility = 5 % 4) 5)
Temperature drift (of Sr) ± 10 %
EMC According to EN 60947-5-2
Continuous current Ia = 200 mA
Cable material PVC
Conductor size 0.34 mm²
Cable diameter Ø 5 mm
Short-circuit protection ?
Reverse polarity protection ?
Power-up pulse protection ?
Shock and vibration resistance 30 g, 11 ms / 10 ... 55 Hz, 1 mm
Ambient operating temperature –25 °C ... +70 °C
Housing material Metal, Chrome-plated brass
Sensing face material Plastic, Plastic
Housing length 50 mm
Thread length 50 mm
Tightening torque, max. 25 Nm
Warranty & Returns
Warranty, Returns, And Additional Information
Warranty
- Please contact the Seller directly for warranty information. Warranty information may also be found on the Manufacturer's website.
- CONTACT
Return Policies
- Return for refund within: 15 days
- Return for replacement within: 30 days
- This item is covered by B-IN Electronics Return Policy
