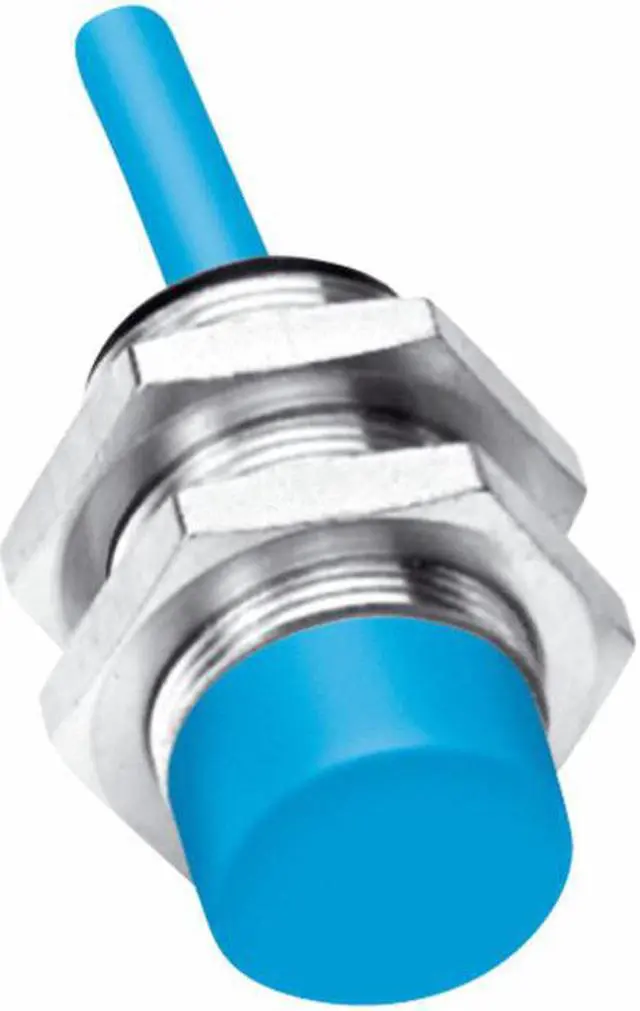

SICK IM18-08N-N-ZW0 Inductive proximity sensors New

Features

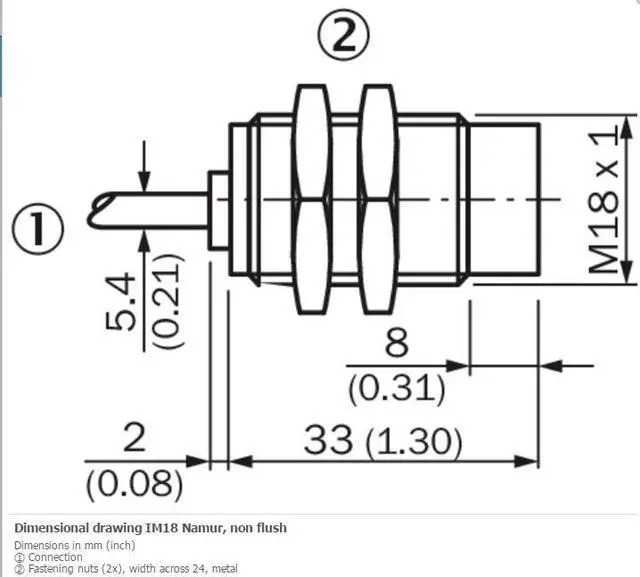

Housing Cylindrical thread design
Thread size M18 x 1
Diameter Ø 18 mm
Sensing range Sn 8 mm
Safe sensing range Sa 6.48 mm
Installation type Non-flush
Switching frequency 300 Hz
Connection type Cable, 2-wire, 2 m
Switching output NAMUR
Output function NC
Enclosure rating IP67 1)

MECHANICS/ELECTRONICS
Mechanics/electronics
Supply voltage 7.5 V DC ... 25 V DC 1)
Current consumption 30 mA 1)
Hysteresis 1 % ... 15 %
Temperature drift (of Sr) ± 10 %
EMC According to EN 60947-5-6
Current consumption, sensor is activated = 1 mA
Current consumption, sensor is not activated = 2.2 mA
Cable material PVC
Conductor size 0.5 mm²
Cable diameter Ø 5.4 mm
Cable resistance 50 O
Shock and vibration resistance 30 g, 11 ms / 10 ... 55 Hz, 1 mm
Ambient operating temperature –20 °C ... +70 °C
Housing material Metal, Nickel-plated brass
Sensing face material Plastic, Plastic
Housing length 33 mm
Thread length 24 mm
Tightening torque, max. 35 Nm
Weight 164 g
Items supplied Fastening nuts (2x), width across 24, metal
EC Approval Certificate PTB 03 ATEX 2037
Ex area category 1G, 2G
Input voltage Ui max. 15 V 2)
Input power Pi max. 120 mW 2)
Input current Ii max. 50 mA 2)
Internal capacitance Ci max. 155 nF 2)
Internal inductance Li max. 50 µH 2)
Nominal voltage 8.2 V DC 3)
Device labeling II 1G Ex ia IIC T6 Ga Ta –20 °C ... +70 °C, II 2 G Ex ia IIC T6 Gb Ta: –20 °C ... +70 °C
