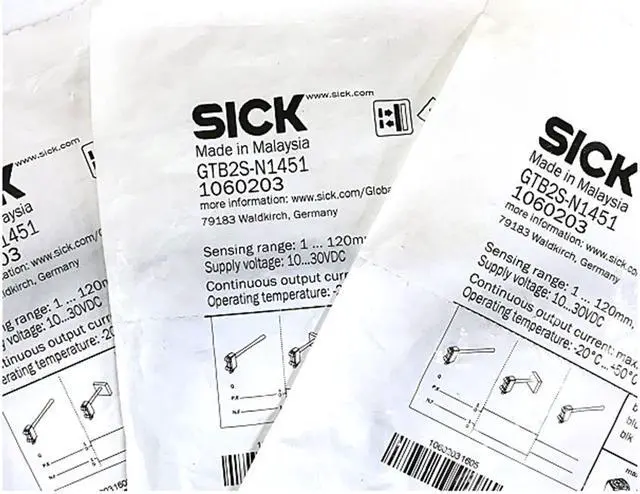

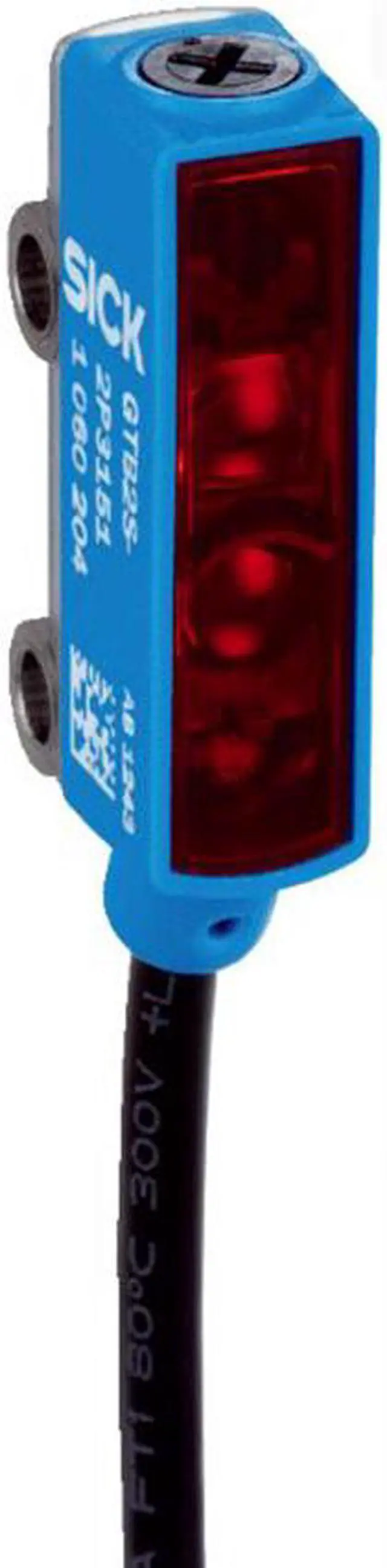

SICK GTB2S-N1451 Miniature Photoelectric Sensors,NPN,New
Limited time offer, ends 02/01 By Tech Frontier Electronics
- SICK GTB2S-N1451 Miniature Photoelectric Sensors,NPN,New
+
+
Overview
Specs
Reviews
FEATURES
Sensor/ detection principle Photoelectric proximity sensor, Background suppression

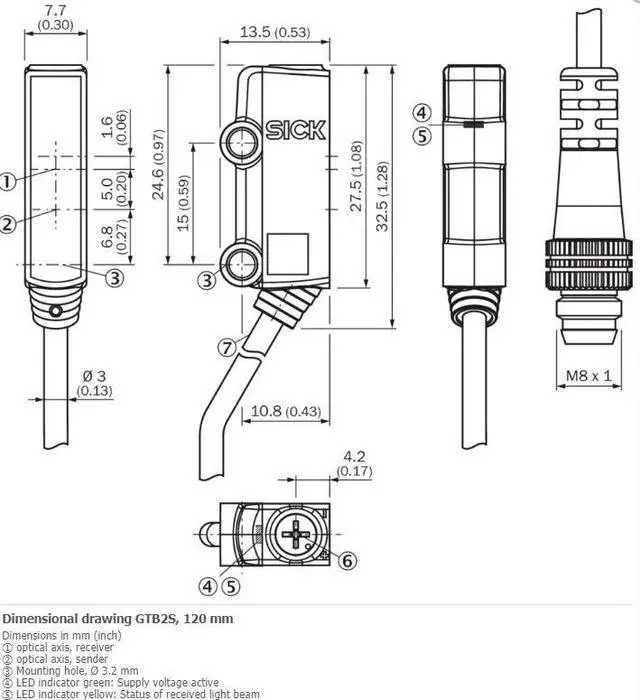

Dimensions (W x H x D) 7.7 mm x 27.5 mm x 13.5 mm
Housing design (light emission) Rectangular
Sensing range max. 2 mm ... 120 mm 1)
Sensing range 25 mm ... 90 mm 2)
Type of light Visible red light
Light source PinPoint LED 3)
Light spot size (distance) Ø 3.5 mm (50 mm)
Wave length 640 nm
Adjustment Potentiometer, 3 turns
MECHANICS/ELECTRONICS
Supply voltage 10 V DC ... 30 V DC 1)
Ripple = 5 Vpp 2)
Power consumption 20 mA 3)
Switching output NPN
Switching mode Light switching
Output current Imax. < 50 mA
Response time < 0.6 ms 4)
Switching frequency 800 Hz 5)
Connection type Cable, 3-wire, 2 m 6)
Cable material PVC
Cable diameter Ø 3 mm
Circuit protection
A 7)
C 8)
D 9)
Housing material Plastic, ABS
Optics material Plastic, PMMA
Enclosure rating IP67
Ambient operating temperature –25 °C ... +50 °C
Ambient storage temperature –40 °C ... +75 °C
Sensor/ detection principle Photoelectric proximity sensor, Background suppression
Dimensions (W x H x D) 7.7 mm x 27.5 mm x 13.5 mm
Housing design (light emission) Rectangular
Sensing range max. 2 mm ... 120 mm 1)
Sensing range 25 mm ... 90 mm 2)
Type of light Visible red light
Light source PinPoint LED 3)
Light spot size (distance) Ø 3.5 mm (50 mm)
Wave length 640 nm
Adjustment Potentiometer, 3 turns
MECHANICS/ELECTRONICS
Supply voltage 10 V DC ... 30 V DC 1)
Ripple = 5 Vpp 2)
Power consumption 20 mA 3)
Switching output NPN
Switching mode Light switching
Output current Imax. < 50 mA
Response time < 0.6 ms 4)
Switching frequency 800 Hz 5)
Connection type Cable, 3-wire, 2 m 6)
Cable material PVC
Cable diameter Ø 3 mm
Circuit protection
A 7)
C 8)
D 9)
Housing material Plastic, ABS
Optics material Plastic, PMMA
Enclosure rating IP67
Ambient operating temperature –25 °C ... +50 °C
Ambient storage temperature –40 °C ... +75 °C
