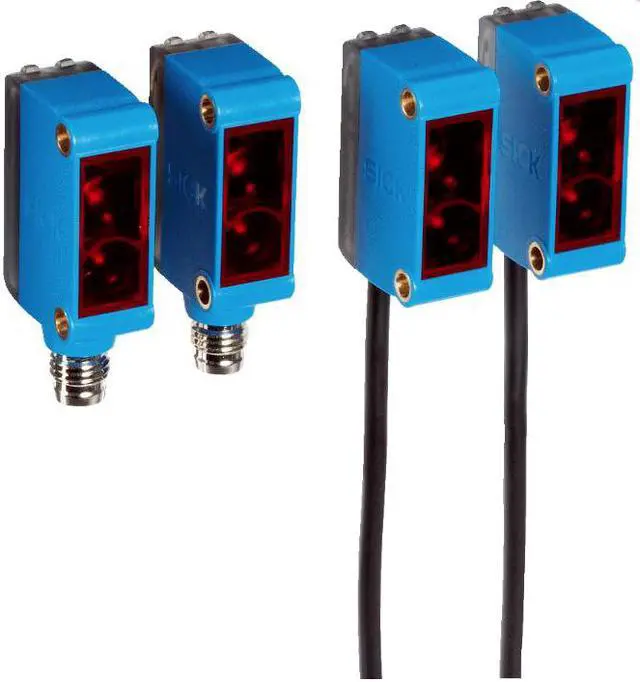

SICK GSE6-N4111 Miniature Photoelectric Sensors,NPN,New

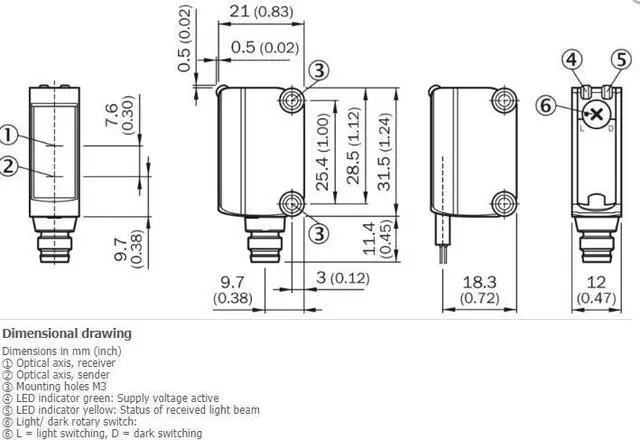

FEATURES Sensor/ detection principle Through-beam photoelectric sensor Dimensions (W x H x D) 12 mm x 31.5 mm x 21 mm Housing design (light emission) Rectangular Sensing range max. 0 m... 15 m Sensing range 0 m... 10 m Type of light Visible red light Light source PinPoint LED 1) Light spot size (distance) Ø 375 mm (12 m) Wave length 650 nm Adjustment None MECHANICS/ELECTRONICS Supply voltage 10 V DC... 30 V DC 1) Ripple ± 10 % 2) Power consumption 30 mA 3) Switching output NPN Switching mode Light/dark switching Switching mode selector Selectable via light/dark selector Signal voltage NPN HIGH/LOW Approx.

VS / = 3 V Output current Imax. = 100 mA 4) Response time < 500 µs 5) Switching frequency 1, 000 Hz 6) Connection type Male connector M8, 4-pin Circuit protection A 7) B 8) D 9) Protection class III Weight 40 g Housing material Plastic, ABS/PC Optics material Plastic, PMMA Enclosure rating IP67 Ambient operating temperature –25 °C... +55 °C 10) Ambient storage temperature –40 °C... +70 °C UL File No. NRKH. E348498 & NRKH7. E348498
