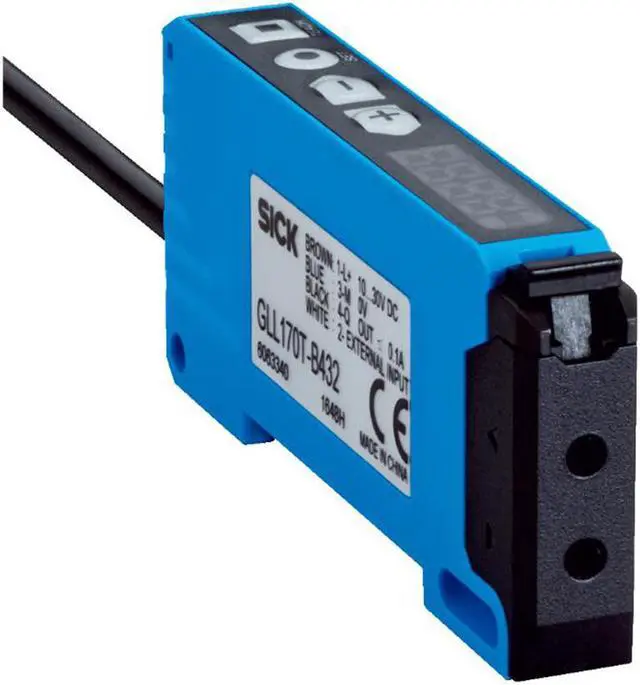

SICK GLL170T-B432 Fiber-optic sensors PNP, NPN, Selectable via menu New

FEATURES
Features
Device type Stand-alone

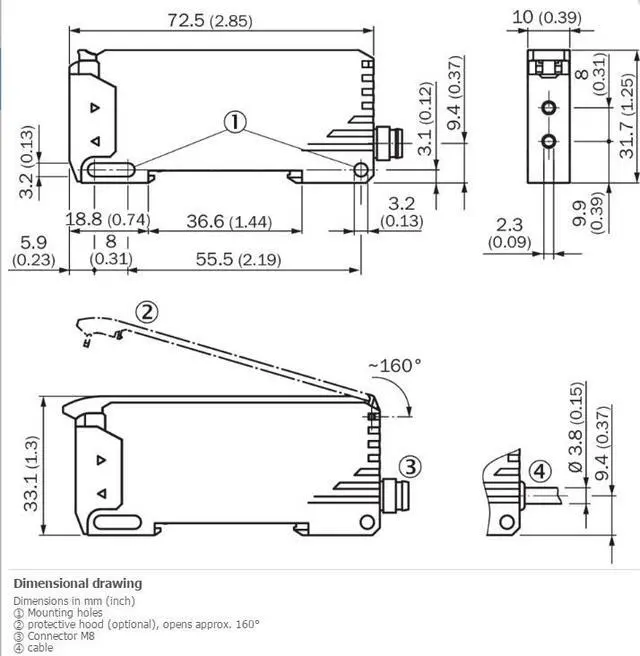

Dimensions (W x H x D) 10 mm x 31.7 mm x 72.5 mm
Housing design (light emission) Rectangular
Sensing range max.
0 mm ... 400 mm, Proximity system 1) 2)
0 mm ... 1,320 mm, Through-beam system 3)
Sensing range
0 mm ... 350 mm, Proximity system 1) 2)
0 mm ... 1,100 mm, Through-beam system 3)
Type of light Visible red light
Light source LED 4)
Wave length 632 nm
Adjustment
Teach-in button
Cable
Plus/minus button
Time type
On delay
Off delay
One shot
Without time delay
Delay time Programmable, 0 ms, 9,999 ms
Indication Display
Display Status LEDs, 4-digit digital display, display selectable between percentage value, absolute digit value and bar display / display of parameters

MECHANICS/ELECTRONICS
Mechanics/electronics
Supply voltage 10 V DC ... 30 V DC 1)
Ripple = 10 % 2)
Power consumption 40 mA 3)
Switching output PNP, NPN, Selectable via menu
Number of switching outputs 1
Switching mode Light/dark switching
Switching mode selector Selectable via menu
Output current Imax. = 100 mA
Response time
= 250 µs 4)
= 50 µs, Selectable via menu 4)
Switching frequency
2 kHz
10 kHz
Input Teach-in input
Connection type Cable, 4-wire, 2 m 5)
Cable material PVC
Conductor cross-section 0.2 mm2
Cable diameter 3.8 mm
Circuit protection
A 6)
B 7)
C 8)
D 9)
Protection class III
Weight 66 g
Housing material Plastic, PC/POM
Tightening torque, max. 0.5 Nm
Enclosure rating IP66 10)
Ambient operating temperature –25 °C ... +55 °C
Ambient storage temperature –40 °C ... +70 °C
UL File No. NRKH2.E300503 & NRKH8.E300503
