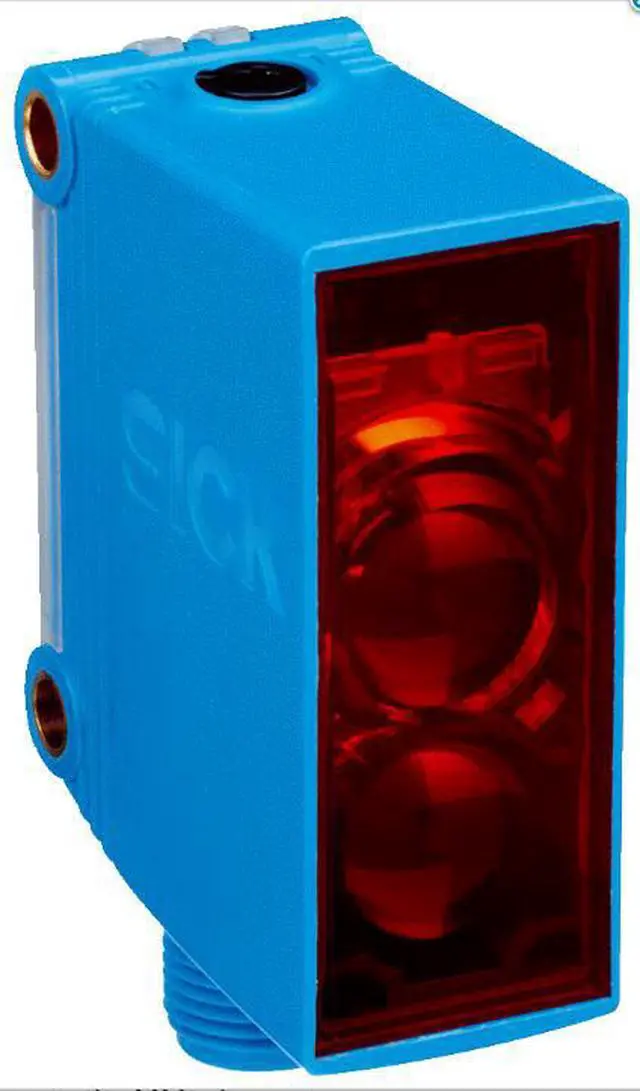

SICK GL10-P4111 Small photoelectric sensors ,PNP,New
Limited time offer, ends 02/01 By Tech Frontier Electronics
- SICK GL10-P4111 Small photoelectric sensors ,PNP,New
+
+
Overview
Specs
Reviews
FEATURES
Sensor/ detection principle Photoelectric retro-reflective sensor, Dual lens

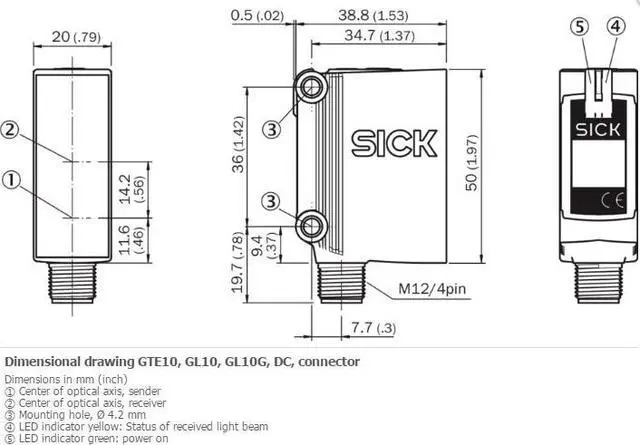

Dimensions (W x H x D) 20 mm x 50 mm x 39 mm
Housing design (light emission) Rectangular
Sensing range max.
0.08 m ... 15 m 1)
0.08 m ... 12 m 2)
Sensing range
0.15 m ... 12 m 1)
0.15 m ... 10 m 2)
Type of light Visible red light
Light source PinPoint LED 3)
Light spot size (distance) Ø 58 mm (5 m)
Wave length 625 nm
Adjustment None
MECHANICS/ELECTRONICS
Supply voltage 10 V DC ... 30 V DC 1)
Ripple ± 5 Vpp 2)
Power consumption 20 mA
Switching output PNP
Switching mode Light/dark switching
Switching mode selector Selectable via light/dark selector
Output current Imax. = 100 mA
Response time = 500 µs 3)
Switching frequency 1,000 Hz 4)
Connection type Male connector M12, 4-pin
Circuit protection
A 5)
B 6)
C 7)
D 8)
Protection class III
Weight 35 g
Polarisation filter ?
Housing material Plastic, ABS/PMMA
Enclosure rating IP67
EMC EN 60947-5-2
Ambient operating temperature –30 °C ... +60 °C
Ambient storage temperature –40 °C ... +70 °C
UL File No. NRKH.E348498 & NRKH7.E348498
More standards UL325 9)
Sensor/ detection principle Photoelectric retro-reflective sensor, Dual lens
Dimensions (W x H x D) 20 mm x 50 mm x 39 mm
Housing design (light emission) Rectangular
Sensing range max.
0.08 m ... 15 m 1)
0.08 m ... 12 m 2)
Sensing range
0.15 m ... 12 m 1)
0.15 m ... 10 m 2)
Type of light Visible red light
Light source PinPoint LED 3)
Light spot size (distance) Ø 58 mm (5 m)
Wave length 625 nm
Adjustment None
MECHANICS/ELECTRONICS
Supply voltage 10 V DC ... 30 V DC 1)
Ripple ± 5 Vpp 2)
Power consumption 20 mA
Switching output PNP
Switching mode Light/dark switching
Switching mode selector Selectable via light/dark selector
Output current Imax. = 100 mA
Response time = 500 µs 3)
Switching frequency 1,000 Hz 4)
Connection type Male connector M12, 4-pin
Circuit protection
A 5)
B 6)
C 7)
D 8)
Protection class III
Weight 35 g
Polarisation filter ?
Housing material Plastic, ABS/PMMA
Enclosure rating IP67
EMC EN 60947-5-2
Ambient operating temperature –30 °C ... +60 °C
Ambient storage temperature –40 °C ... +70 °C
UL File No. NRKH.E348498 & NRKH7.E348498
More standards UL325 9)
