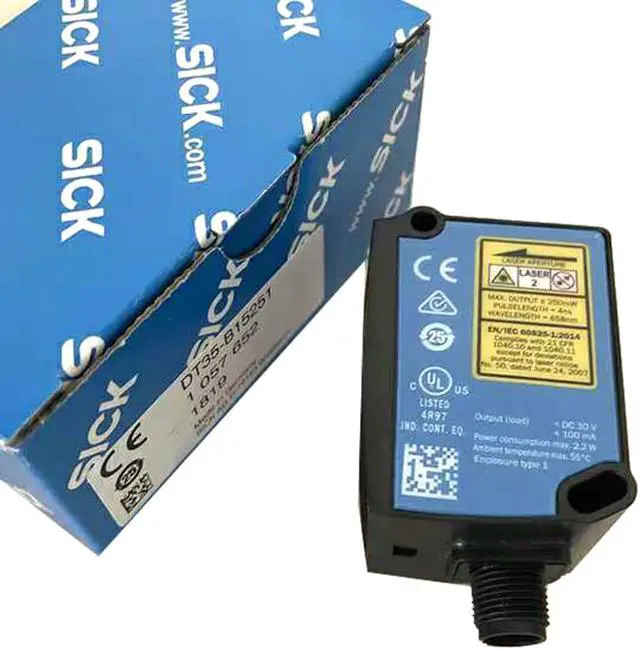

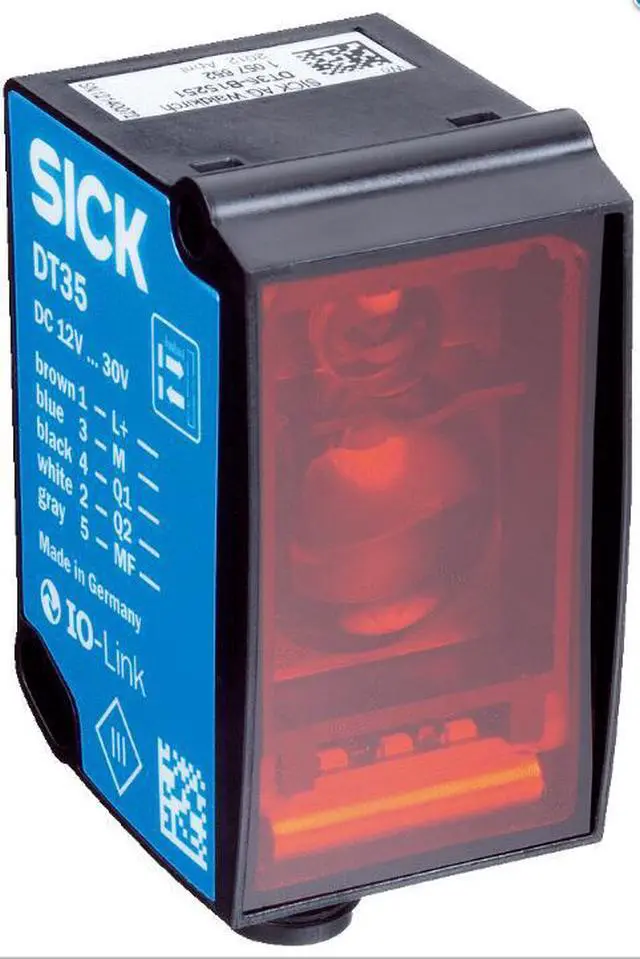

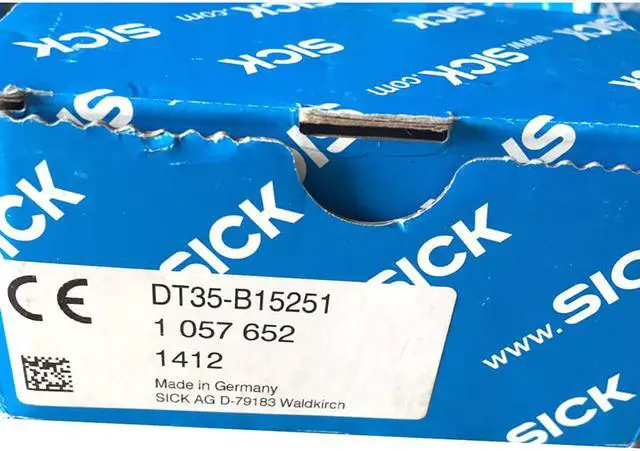

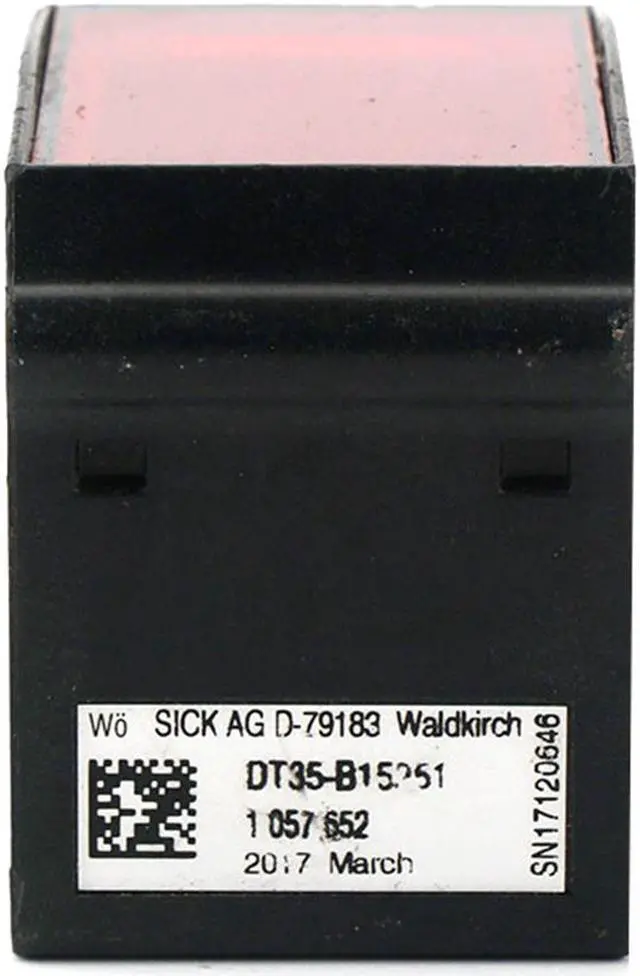

SICK DT35-B15251Mid range Distance Sensors New

PERFORMANCE Measuring range 50 mm... 12, 000 mm, 90 % remission 1) 2) 50 mm... 5, 300 mm, 18 % remission 50 mm... 3, 100 mm, 6 % remission Target Natural objects Resolution 0.1 mm Repeatability = 0.5 mm 2) 3) 4) Accuracy Typ. ± 10 mm 4) Response time 2.5 ms... 96.5 ms, 2.5 ms / 6.5 ms / 12.5 ms / 24.5 ms / 96.5 ms 5) 6) Switching frequency 333 Hz / 100 Hz / 50 Hz / 25 Hz / 6 Hz 5) 6) Output time 1 ms.

.. 32 ms, 1 ms/2 ms/4 ms/8 ms/32 ms 5) 7) Light source Laser, red 8) Laser class 2 (IEC 60825- 1:2014, EN 60825- 1:2014 ) Typ. light spot size (distance) 15 mm x 15 mm (at 2 m) Additional function
Set speed: Super Fast... Super Slow, teach-in of analog output and invertible analog output, Output Q2, selectable: 4 mA... 20 mA / 0 V... 10 V / switching output, Switching
mode: Distance to Object (DtO) / switching window / object between sensor and background (ObSB), teach-in of switching output and switching output invertible, Multifunctional
input: laser off / external teach / deactivated, reset to factory default Average laser service life (at 25 °C) 100, 000 h MECHANICS/ELECTRONICS Supply voltage Vs DC 12 V... 30 V 1) 2) Ripple = 5 Vpp 3) Power consumption = 1.7 W 4) 5) Initialization time = 500 ms Warm-up time = 20 min Housing material Plastic (ABS and PC) Acrylic glass (PMMA) Connection type Male connector, M12, 5-pin Indication LEDs Weight 65 g Enclosure rating IP65 IP67 Protection class III
