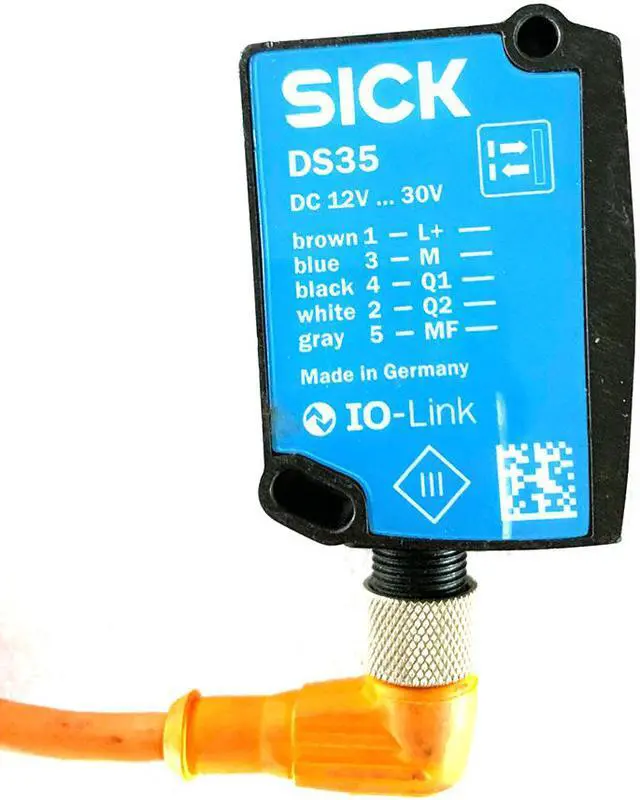

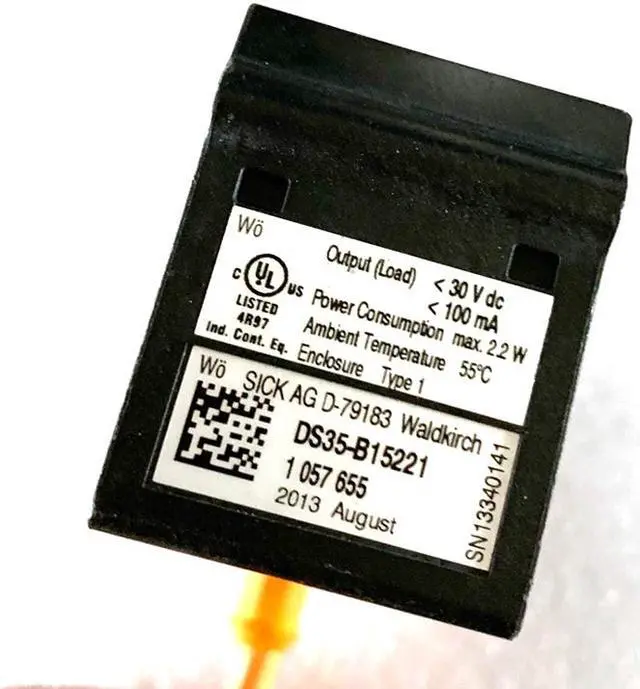

SICK DS35-B15221 Mid range Distance Sensors New

PERFORMANCE
Measuring range
50 mm ... 12,000 mm, 90 % remission 1) 2)
50 mm ... 5,300 mm, 18 % remission
50 mm ... 3,100 mm, 6 % remission
Target Natural objects
Resolution 0.1 mm
Repeatability = 0.5 mm 2) 3) 4)
Accuracy Typ. ± 10 mm 4)
Response time 2.5 ms ... 96.5 ms, 2.5 ms / 6.5 ms / 12.5 ms / 24.5 ms / 96.5 ms 5) 6)
Switching frequency 333 Hz / 100 Hz / 50 Hz / 25 Hz / 6 Hz 5) 6)
Output time 1 ms ... 32 ms, 1 ms/2 ms/4 ms/8 ms/32 ms 5) 7)
Light source Laser, red 8)
Laser class 2 (IEC 60825-1:2014, EN 60825-1:2014)
Typ. light spot size (distance) 15 mm x 15 mm (at 2 m)
Additional function Set speed: Super Fast ... Super Slow, Switching mode: Distance to Object (DtO) / switching window / object between sensor and background (ObSB), teach-in of switching output and switching output invertible, Multifunctional input: laser off / external teach / deactivated, reset to factory default
Average laser service life (at 25 °C) 100,000 h

MECHANICS/ELECTRONICS
Supply voltage Vs DC 12 V ... 30 V 1) 2)
Ripple = 5 Vpp 3)
Power consumption = 1.7 W 4) 5)
Initialization time = 500 ms
Warm-up time = 20 min
Housing material
Plastic (ABS and PC)
Acrylic glass (PMMA)
Connection type Male connector, M12, 5-pin
Indication LEDs
Weight 65 g
Enclosure rating
IP65
IP67
Protection class III
