M.2 NGFF to Desktop PCIe x4 x8 x16 Adapter Card, RIITOP NVMe SATA Dual SSD PCI Express Adapter Card Support 110mm, 80mm, 60mm, 42mm, 30mm SSD

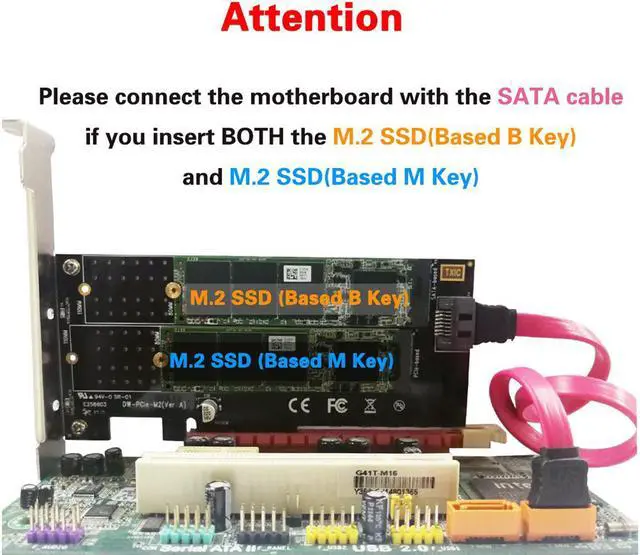

NOTE: You are kindly reminded that this adapter ONLY support M. 2 SSD. DO NOT support SATA3 SSD or any SATA devices! You are kindly reminded that the 7-pin SATA cable must be connected to motherboard if you want to read the M. 2 SATA SSD (Key B). You are kindly reminded that this adapter only support PCIe X4 X8 X16 slot. DO NOT support PCIe X1 slot. If there is a exclamation mark after install the adapter, please ask for SSD supplier to supply the NVME driver for SSD. RIITOP Dual M. 2 PCIe Adapter, M. 2 NVME SSD (M Key) or M. 2 SATA SSD (B Key) 22110 2280 2260 2242 2230 to PCI-e 3.0 x4 & SATA Host Controller Expansion Card with Low Profile Bracket for PC Desktop

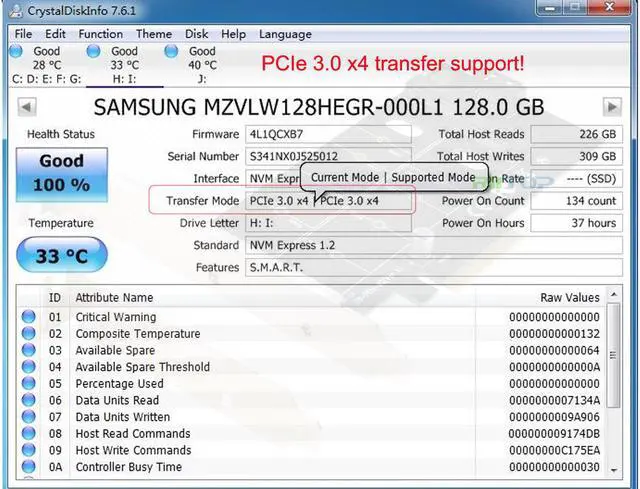

Specifications: 1. Connects one B key & one M key NGFF SSD at the same time to PCI-E 4X motherboard. 2. Compliant with PCI Express M. 2 specification 1.0. 3. Compliant with SATA 3.0 specification for B key. 4. Compliant with PCI-E 4X 3.0 specification for M key.

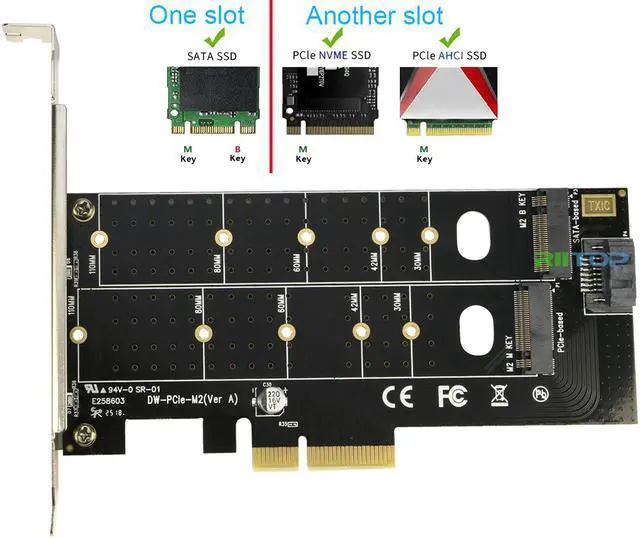

Supports: 1. Supports data transfer up to 6.0G b/s. 2. Supports SATA-based B key and PCI-E 4X-based M key NGFF SSD. 3. Supports 2230, 2242, 2260, 2280 & 22110 mm size NGFF SSD.
Features:

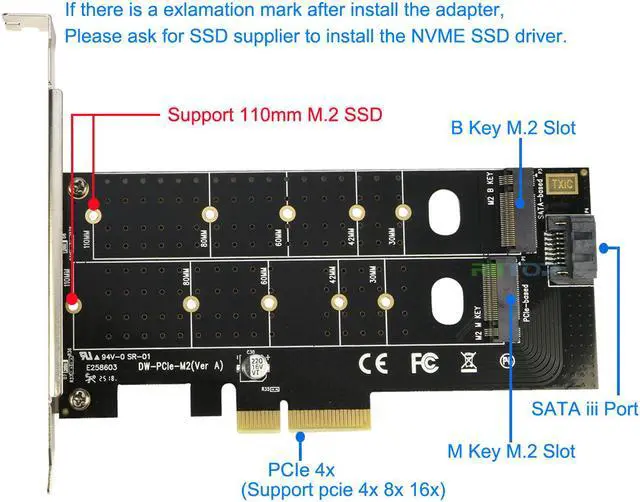

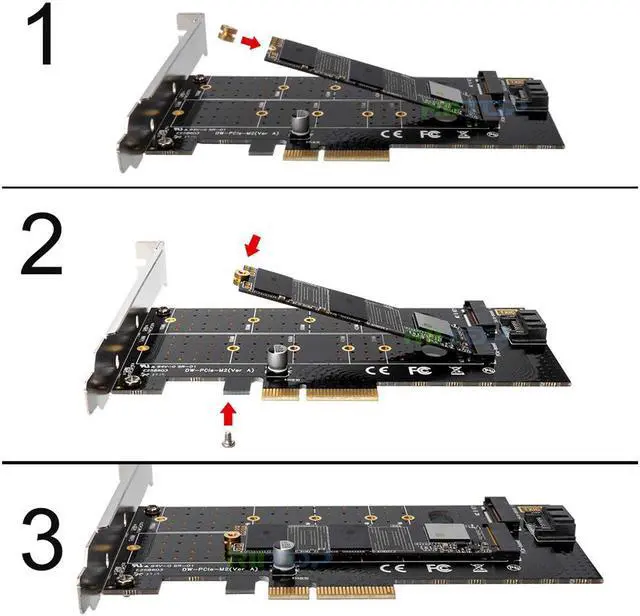

1. One NGFF B Key and one NGFF M key sockets available. 2. 8 screw holes 2230/2242/2260/2280/22110 available to fix NGFF SSD cards. 3. Easy installation & no driver required. 4. No additional power required.
Support boot function: Supports any OS, like Windows, Win
CE, Mac & Linux etc.

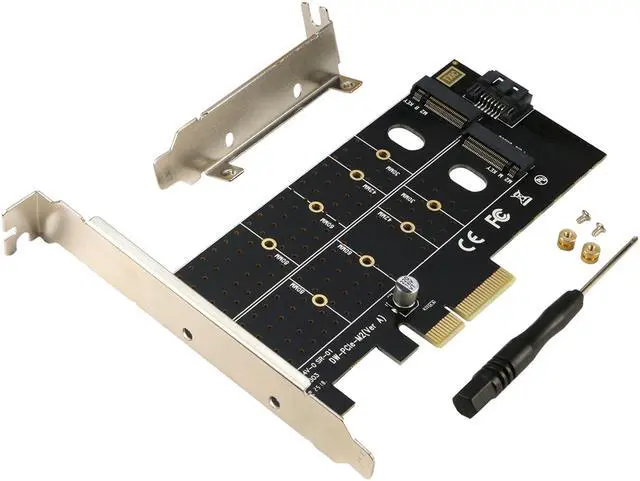

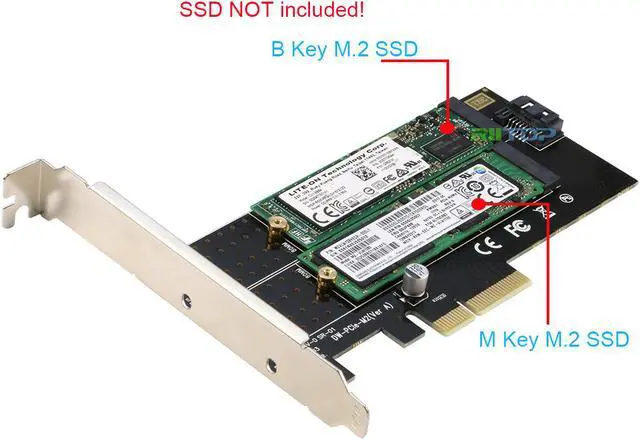

Package Contents: 1x Dual M. 2 PCIe & SATA Adapter Card (SSD in Pictures NOT Including). 1x Low Profile Bracket. 1x Screwdriver. Screws.
