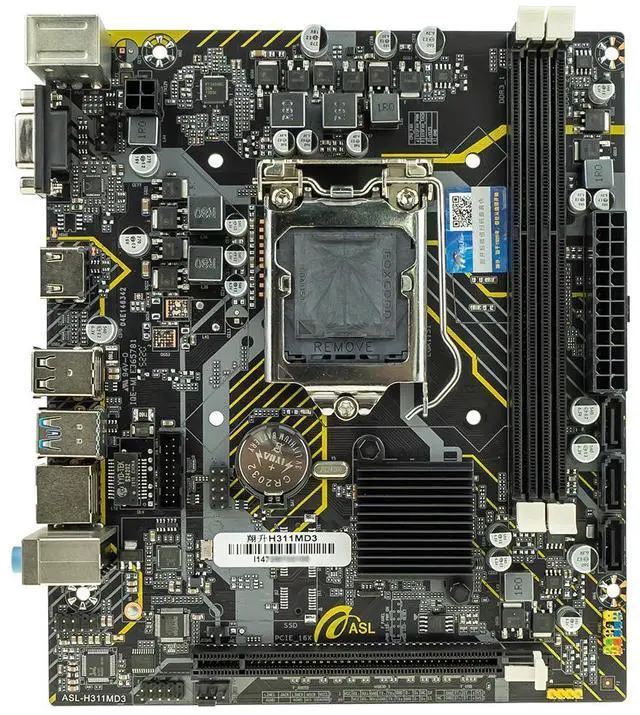

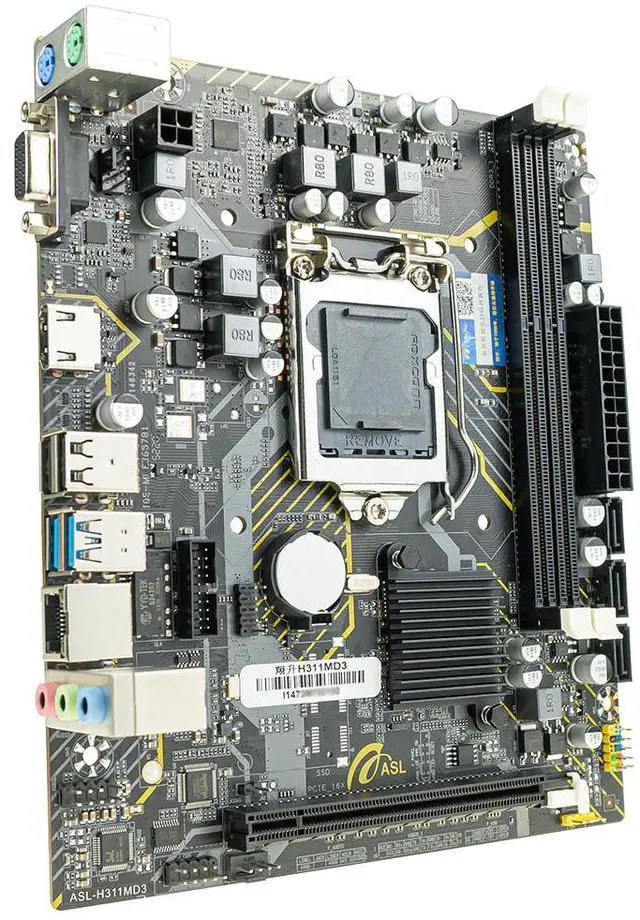

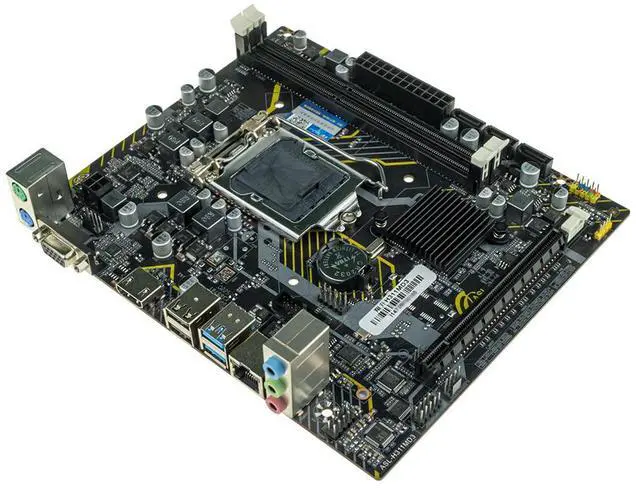

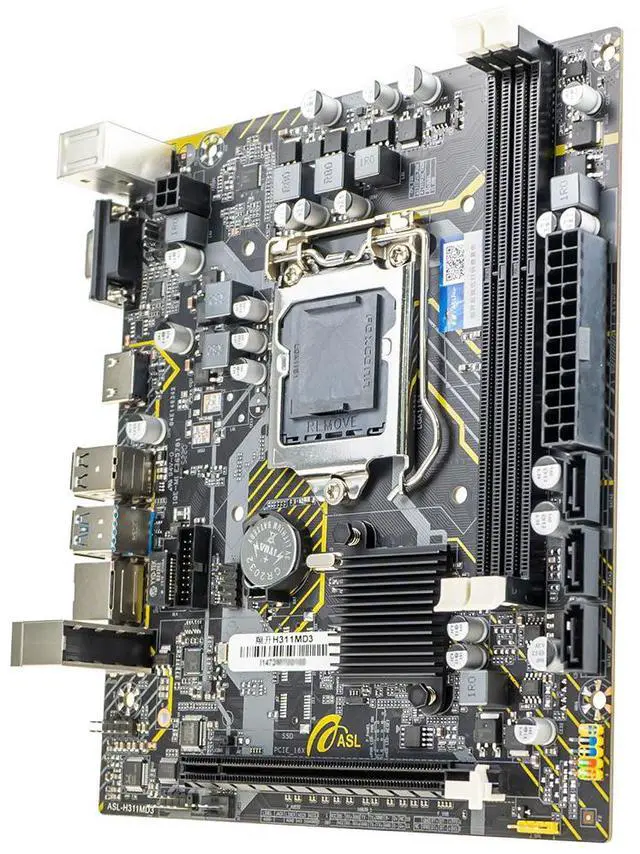

ASL H311M-D3 M-ATX Motherboard, Supports 6/7/8/9th Gen LGA1151, 2xDDR3, HDMI+VGA, 3×SATA3.0, 1x PCI-E x16, 1x PCI-E x1 slots
Limited time offer, ends 12/30 By STELLAR
- 1. Basic specifications: Adopts IntelH - series high - speed chipset, M - ATX form factor, with dimensions of 168.7×196.4mm.
- 2. Processor and memory: Supports Intel LGA1151 (6th - 9th generation Core/Pentium/Celeron series) processors; Equipped with 2 DDR3 DIMM dual - channel memory slots, maximum support for 16GB, and memory frequency depends on the motherboard and processor.
- 3. Video and audio: Requires the processor to have integrated graphics, with 1 VGA and 1 HDMI video interface at the rear; On - board Realtek audio chip, supports High Definition Audio technology, with 3 audio interfaces at the rear, and supports 5.1 - channel audio.
- 4. Network and storage: Integrates Realtek 1000M network chip, with 1 RJ45 network cable interface at the rear; There are 3 SATA3.0 (6.0Gb/s) hard disk interfaces.
- 5. Expansion and interfaces: 1 PCI - E x16 slot; The rear panel includes 1 PS/2, 1 VGA, 1 HDMI, 2 USB2.0, 2 USB3.0, 1 RJ45, and 1 3Jack audio interface; Internally, there are various pins/sockets such as 24Pin motherboard power supply port and 4Pin processor power supply port.
+
+
Overview
Specs
Reviews
Product Model: ASL H311M-D3
Chipset Platform: Intel H-series High-Speed Chipset
Form Factor: M-ATX
Dimensions: 168.7 x 196.4 mm
Processor:
Supports Intel 6th, 7th, 8th, and 9th Gen LGA1151 processors
Supports Intel Core/Pentium/Celeron processors
Memory Slots:
2x DDR3 DIMM dual-channel memory slots
Supports up to 16GB
Memory frequency support depends on motherboard/processor
Video Output Ports:
Requires integrated graphics functionality from the processor
1x rear HDMI video output
1x rear VGA video output
Audio:
Integrated Realtek audio chip
Supports High Definition Audio technology
Rear 3-jack audio ports
Supports 5.1 surround sound
Network:
Integrated Realtek 1000M network chip
Rear 1x RJ45 Ethernet port
Storage:
3x SATA 3.0 6.0Gb/s hard drive interfaces
Expansion Slots:
1x PCI-E x16 slot

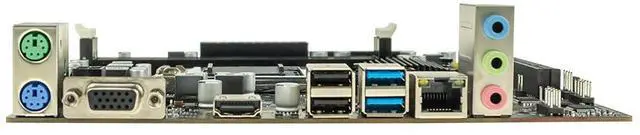

Rear Panel Ports:
1x PS/2 keyboard/mouse port
1x HDMI video output port
1x VGA video output port
2x USB 2.0 ports
2x USB 3.0 ports
1x RJ45 Ethernet port
1x 3-jack audio port
Internal Pins/Connectors:
1x 24-pin motherboard power connector
1x 4-pin CPU power connector
1x 4-pin CPU fan header
1x 4-pin system fan header
1x Front USB 3.0 header
1x Front USB 2.0 Pin Header
1x COM Port Pin Header
1x Front Audio Pin Header
1x 4-Pin Buzzer Pin Header
1x 2-Pin CMOS Clear Pin Header
1x Front Panel Pin Header
