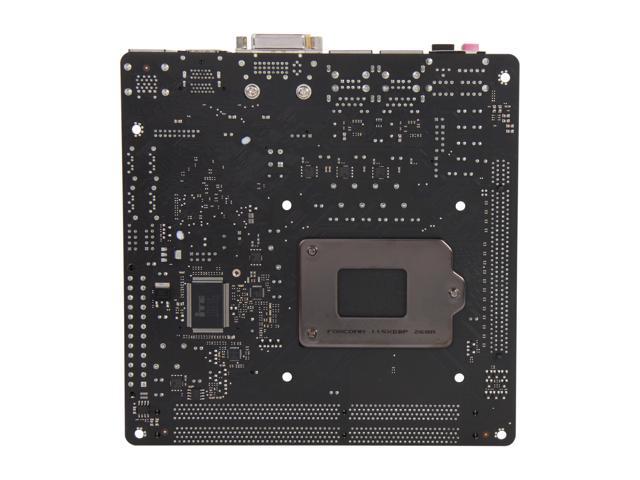

GIGABYTE GA-H77N-WIFI LGA 1155 Intel H77 HDMI SATA 6Gb/s USB 3.0 Mini ITX Intel Motherboard

OUT OF STOCK.
Fees for brokerage and duty included in price.
  • Intel H77
  • Core i7 / i5 / i3 (LGA1155)
  • DDR3 1600/1333
Specs
Reviews

Learn more about the GIGABYTE GA-H77N-WIFI

Model
Brand GIGABYTE
Model GA-H77N-WIFI
Supported CPU
CPU Socket Type LGA 1155
CPU Type Celeron / Core i3 / Core i5 / Core i7 / Intel Core 2nd gen (LGA 1155) / Intel Core 3rd Gen (LGA 1155) / Pentium
Chipsets
Chipset Intel H77
Onboard Video
Onboard Video Chipset Supported only by CPU with integrated graphic
Memory
Number of Memory Slots 2x240pin
Memory Standard DDR3 1600/1333/1066/800
Maximum Memory Supported 16GB
Channel Supported Dual Channel
Expansion Slots
PCI Express 3.0 x16 1 x PCI Express 3.0 x16
Storage Devices
SATA 3Gb/s 2 x SATA 3Gb/s
SATA 6Gb/s 2 x SATA 6Gb/s
SATA RAID 0/1/5/10
Onboard Audio
Audio Chipset Realtek ALC892
Audio Channels 8 Channels
Onboard LAN
Max LAN Speed Dual 10/100/1000Mbps
Rear Panel Ports
PS/2 1 x PS/2 keyboard/mouse port
Video Ports DVI
HDMI 2 x HDMI
USB 3.0 2 x USB 3.0
USB 1.1/2.0 4 x USB 2.0
S/PDIF Out 1 x Optical
Audio Ports 5 Ports
Internal I/O Connectors
Onboard USB 2 x USB 3.0 + 4 x USB 2.0
Other Connectors 1 x 24-pin ATX main power connector
1 x 4-pin ATX 12V power connector
1 x serial port header
1 x CPU fan header
1 x system fan header
1 x front panel header
1 x front panel audio header
1 x S/PDIF Out header
1 x Clear CMOS jumper
Physical Spec
Form Factor Mini ITX
Dimensions (W x L) 6.7" x 6.7"
Power Pin 24 Pin
Features
Features Support Intel Wireless Display (Intel WiDi)

Support Intel Wi-Fi Technology-Intel My WiFi Dashboard

Exclusive Bluetooth 4.0/WiFi Expansion Card

GIGABYTE 3D BIOS

GIGABYTE Ultra Durable 4 Classic

3rd Generation Intel Core processors

Intel Rapid Start Technology

Designed for PCI Express Gen.3 Support

Intel Smart Connect Technology

GIGABYTE EZ Smart Response
Additional Information
Date First Available September 28, 2012
