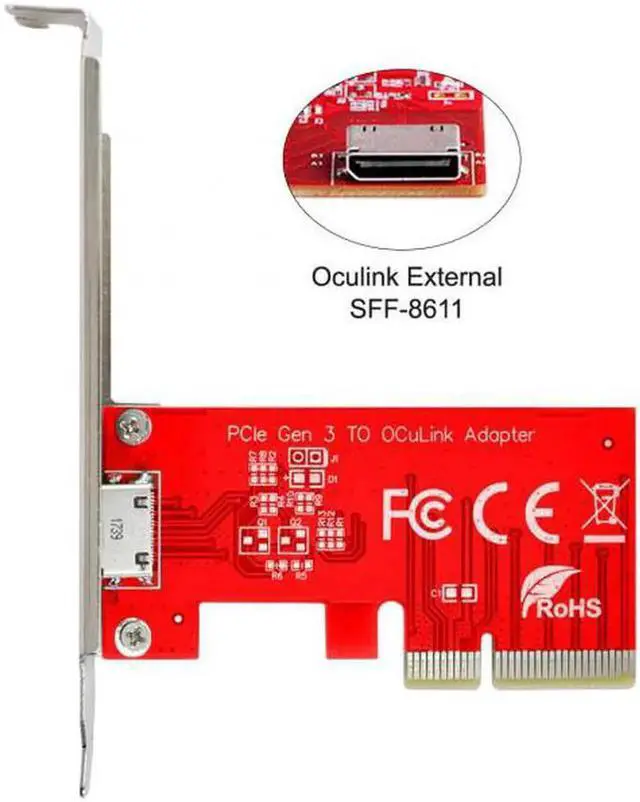

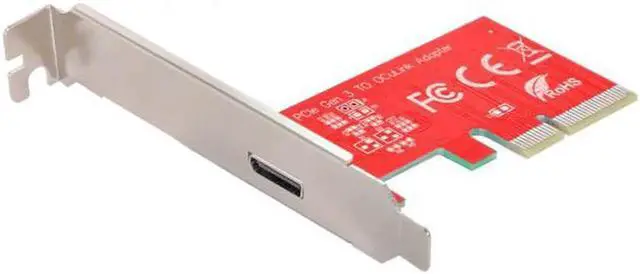

SF-032 PCI-E 3.0 Express 4.0 x4 to Oculink External SFF-8612 SFF-8611 Host Adapter for PCIe SSD with Bracket

PCI-E 3.0 Express 4.0 x4 to Oculink SFF-8612 SFF-8611 Host Adapter for PCIe SSD with Bracket
This PCI Express card expands the PC by one SFF-8612 interface.

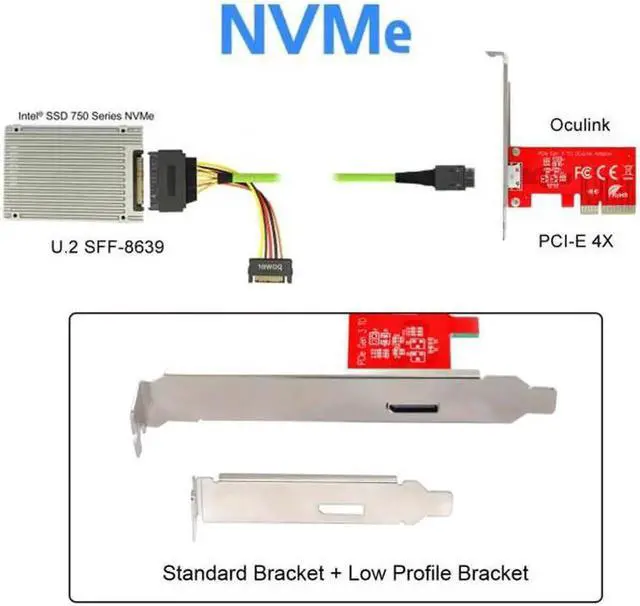

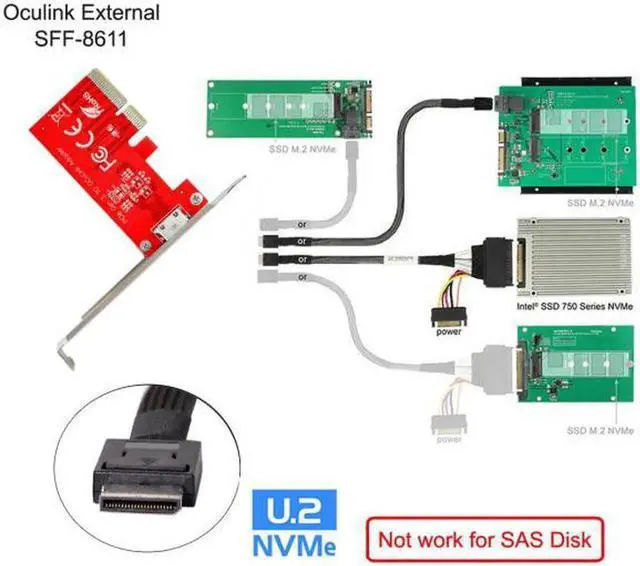

It can be connected e.g. one SSD by using an optional cable.
The card transmits PCI Express signals using the NVMe protocol.
Specification
Connectors:
1 x OCuLink SFF-8612 female
1 x PCI Express x4, V3.0
Data transfer rate up to 32 Gbps
Bootable, ex UEFI version 2.3.1
Supports NVM Express (NVMe) 1.2
System requirements
Linux Kernel 4.3 or above
Windows 8.1/8.1-64/10/10-64
PC with one free PCI Express x4 / x8 / x16 / x32 slot

Overview

Specs

Reviews

PCI-E 3.0 Express 4.0 x4 to Oculink SFF-8612 SFF-8611 Host Adapter for PCIe SSD with Bracket
This PCI Express card expands the PC by one SFF-8612 interface.
It can be connected e.g. one SSD by using an optional cable.
The card transmits PCI Express signals using the NVMe protocol.
Specification
Connectors:
1 x OCuLink SFF-8612 female
1 x PCI Express x4, V3.0
Data transfer rate up to 32 Gbps
Bootable, ex UEFI version 2.3.1
Supports NVM Express (NVMe) 1.2
System requirements
Linux Kernel 4.3 or above
Windows 8.1/8.1-64/10/10-64
PC with one free PCI Express x4 / x8 / x16 / x32 slot
