$106.89
Ships from China.
Meet Your Seller
2 Sets Heltec ESP32 915MHz LoRa V3 Board SX1262 0.96 OLED Display BLE+WiFi ESP32-S3 Dual-core Development Module for Meshtastic IOT Arduino Intelligent Scenes
- WiFi LoRa 32 V3 is a classic IoT development board, Integrated Wi-Fi, BLE, LoRa, onboard 0.96-inch 128*64 OLED display and other functions, as the same as lora V2. But the MCU, lora chip and USB interface are different

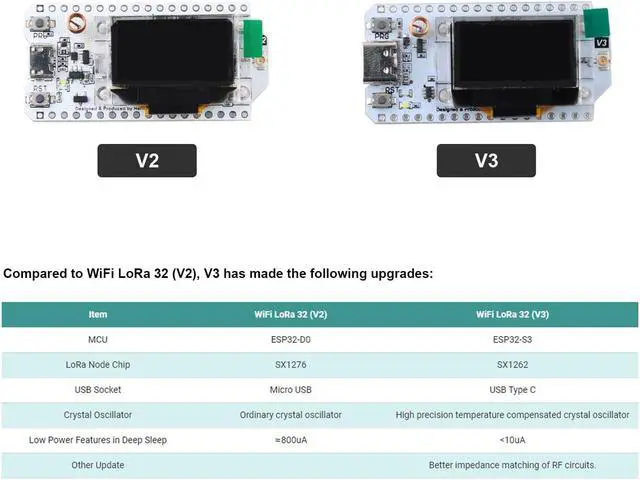

- Different MCU: V2 uses ESP32-D0WDQ6, V3 uses ESP32-S3FN8 dual core processor, so the definitions of GPIO pins are different; Different LoRa chip: V2 uses SX1276/8, V3 uses SX1262; Different USB interfaces: V2 uses Micro USB, V3 uses USB Type-C
- Type-C USB interface, 3.7V lithium battery power supply and charging (Excludes batteries); Frequency: 863~928MHz; Wi-Fi: 802.11 b/g/n, up to 150Mbps
- When you use this ESP32 LoRa V3 development board with 915 MHz antenna, you can use two sets together, one for receiving and another for transmitting
- You will get: 2 x ESP32 LoRa V3 SX1262 0.96 inch OLED Display, 2 x 868MHz 915MHz GSM IPX IPEX 1.13 UF.L Antennas, 2 x Terminal Connector Cables, 4 x Pin Headers
+
+
Overview
Specs
Reviews
2 Sets Heltec ESP32 915MHz LoRa V3 Board SX1262 0.96 OLED Display BLE+WiFi ESP32-S3 Dual-core Development Module for Meshtastic IOT Arduino Intelligent Scenes
