4K HDMI Splitter, 4 in 4 Out HDMI Matrix Switch, HDMI 2.0 Support 3840x2160@60Hz with Audio Switch, IR Remote+ Button Press + RS232 Control, Support EDID Audio Extractor, 3D, HDR, 18 GBPS, HDCP 2.2

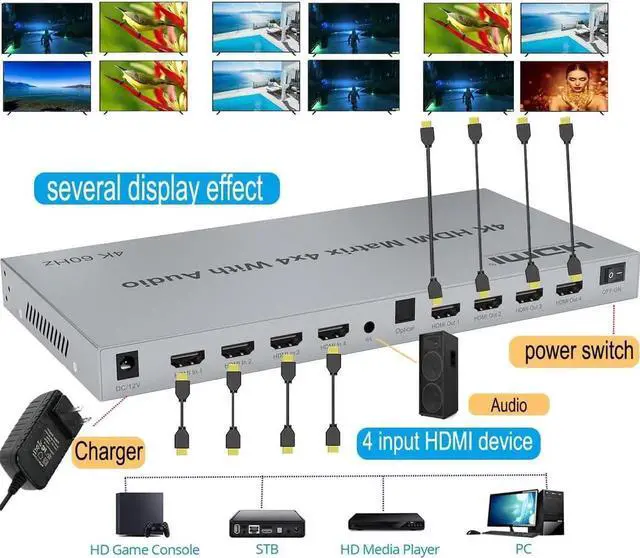

- [4K 4x4 HDMI MATRIX] HDMI matrix 4x4 can connect 4 4K UHD signal sources to 4 UHD display terminals with optical fiber and stereo headphone output at the same time via HDMI out 1 port, The matrix allows four HDMI devices to be switched or split easily to 4 HDMIcompatible monitors or projectors.
- [HDMI Video Resolution] 3840x2160 4K@60Hz, 4K HDR, 3840x2160@60Hz, Ultra HD, 3D, RGB 4:4:4, YUV 4:4:4. Support 18Gbps data rate and tmds clock up to 600Mhz. Support deep color 8/10/12/24bit
- [Audio Split& EDID] With out audio, Supports Dolby TrueHD, DTS-HD, 7.1ch digital and other HDMI audio formats, EDID learning from connected displays or choose from a wide selection of pre-programmed EDID settings to ensure the correct signal resolution is output from the sources.
- [Compatibility] Support HDCP 2.2 &1.4, compatible with HDMI2.0. Input support: Computer,PS4 pro, Xbox, Nintendo Switch, HD player, Fire TV, TV or other HDMI devices. Output support max 4K60HZ, Output 2 3 4 copy output 1 resolution.
+
+
Overview
Specs
Reviews
nput ports: 4 HDMI (female type) Supoort Comupter, Laptop TV BOX, Game devices or with Hdmi Port Device.
Output ports: 4 HDMI (female type) Support TVS, monitor , splicer screen, billboard or other HDMI displays.
Audio output: optical firber, L/R 3.5mm,

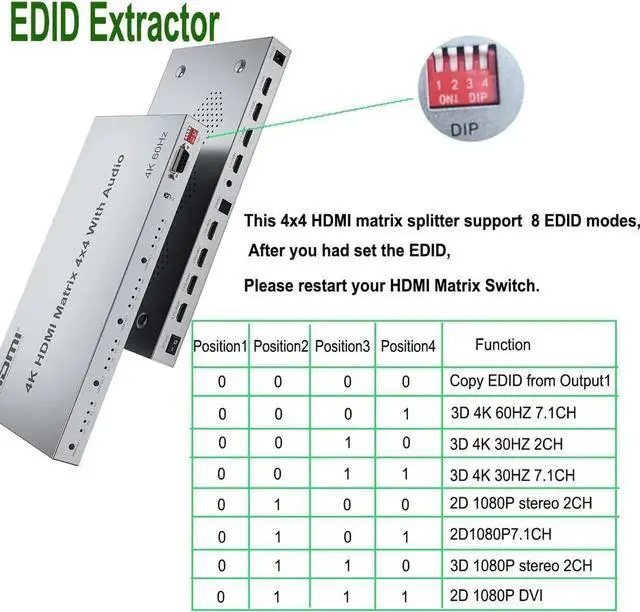

EDID Audio Extractor: EDID learning from connected displays or choose from a wide selection of pre-programmed EDID settings to ensure the correct signal resolution is output from the sources, resulting in better picture quality.After you had set the EDID, Please restart your HDMI Matrix Switch.
Power switch: With power switch to turn on off the device.
Package included:
1xswitch device, 1x12V charger, 1xuser manual, 1xIR remoter
Size: 10.86 x5.6 x1suit for 1U
