X-Axis Power Feed for Milling Machine, 450 in-lb Torque, 0-200RPM Adjustable Rotate Speed 120V Power Table Feed Mill Feeder, for Bridgeport Some Knee Type Mills with a 5/8" End Shaft Diameter
- Ultimate High-Compatibility Solution: Our power feed table mill Includes everything needed to mount on most knee-type mills with a 5/8'' end shaft diameter that shares the same installation pattern, such as Bridgeport, Precision Matthews, Enco, Jet, Sharp, Acer, Webb, and others.
- Infinitely Variable Speed Control: With the continuously variable speed knob, you can adjust the speed according to your needs. Our milling machine power feed offers a rated torque of 450 in-lb(50.7 NM), a maximum speed of 200 RPM, a maximum feed rate of 965 mm/min, and a maximum return speed of 1385 mm/min.
- Highly Stable and Efficient: Featuring Gleason spiral bevel gears, our power table feed boasts stable transmission ratios, low noise, high transmission efficiency, and high load-bearing capacity. Plus, it comes with a special security device that protects the gearbox plastic gears, and electronic components from damage in the event of tool collision or sudden reversal during rapid transmission
+
+
Overview
Specs
Reviews
Specifications
Item Model Number: AL-310
Use Axis: X-axis
Voltage Frequency: AC120V, 60Hz, 210W
Speed Range: 0-200 RPM
Max Speed: 200 RPM
Max Torque: 450 in-lb/ 50.7 NM
Max Feed Rate: 965 mm/min
Max Return Speed: 1385 mm/min
Machine Tool Spindle Diameter: 5/8"
Noise: 85 dB
Net Weight: 12.02 lbs / 5.45 kg
Product Dimensions: 9.45 x 8.27 x 4.72 in / 240 x 210 x 120 mm

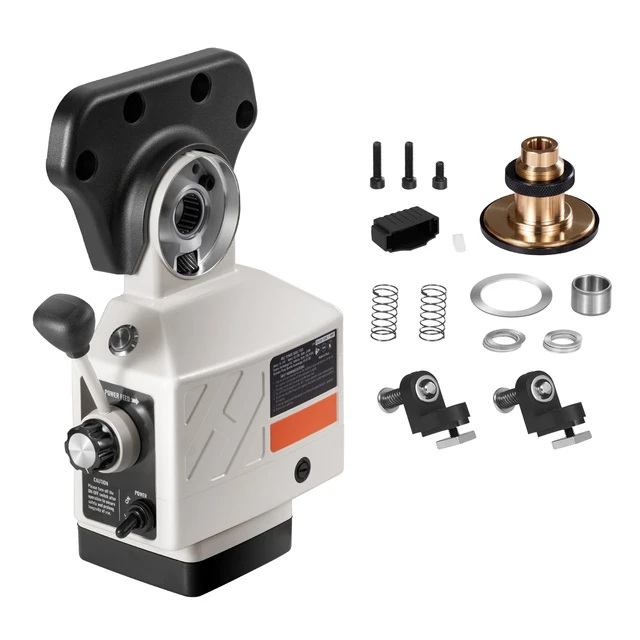

Package Content
1 x Copper Gear
1 x Install the Retainer Plate
3 x Fixing Screws
2 x Limit Switch Springs
15 x Adjusting Shims
1 x Bearing Inner Ring
1 x Copper Gear Gasket
