Keychron V1 QMK/VIA Custom Mechanical Keyboard - Knob Version
The V1 is a fully customizable mechanical keyboard ready for any situation. It's a great option to introduce you to the custom keyboard world. With its compact 75% layout, QMK/VIA support, acoustic silicone pad, and double-shot PBT keycaps, the V1 is designed for ultra typing comfort and boost productivity.
Hot-swappable
The Keychron K Pro mechanical switches come with an optimized mold with more precise positioning, and less wobbliness will certainly improve your fingertip feel. The Keychron switch is durable enough with an unrivaled linear /clicky/ tactile responsiveness on the red/ blue/ brown switch and up to 50 million keystroke lifespan.
The hot-swappable sockets supports both 3 pin and 5 pin MX mechanical switches (including Cherry, Gateron, Kailh, Panda, etc.), so you can customize your favorite switches without soldering.
Program V1 with QMK & VIA
With full QMK and VIA support, you can easily program and remap each key on the keyboard. The open-source firmware means endless possibilities for keyboard layouts, shortcuts, backlight effects, even the knob, and more.

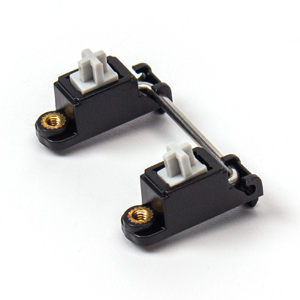

All New Screw-In PCB Stabilizers
The screw-in design increases stability and makes it easier for changes and upgrades. Precise craftsmanship makes the stabilizers more stable and less shaky. The big keys' (space bar, shift, enter, delete) typing experience is now more stable and smooth. The Keychron V1 also supports third-party screw-in PCB stabilizers.

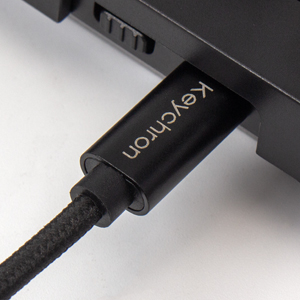

Wired Connectivity
A reliable USB Type-C wired connection with 1000 Hz polling rate and NKRO make sure you won't miss a beat no matter cranking out emails or code.
Note: Please avoid connecting the V1 with a laptop through a hub to ensure enough power supply. For the same reason, please turn off the keyboard backlight if the V1 is connecting with a tablet.

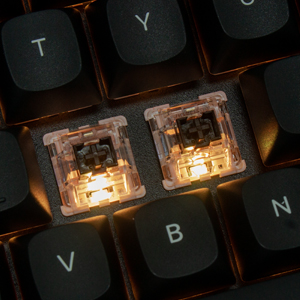

Double-shot PBT Keycaps & South-facing RGB
The V1 comes with our unique OSA profile (OEM profile with spherical-angle) and double-shot PBT keycaps that aim to provide a more comfortable and subtle fingertip feel with excellent oil resistance for long-term use.
The south-facing RGB is designed to better illuminate the keyboard backlight from the typist's angle and free from interference when the user installs Cherry- profile alternative keycaps on the V1.

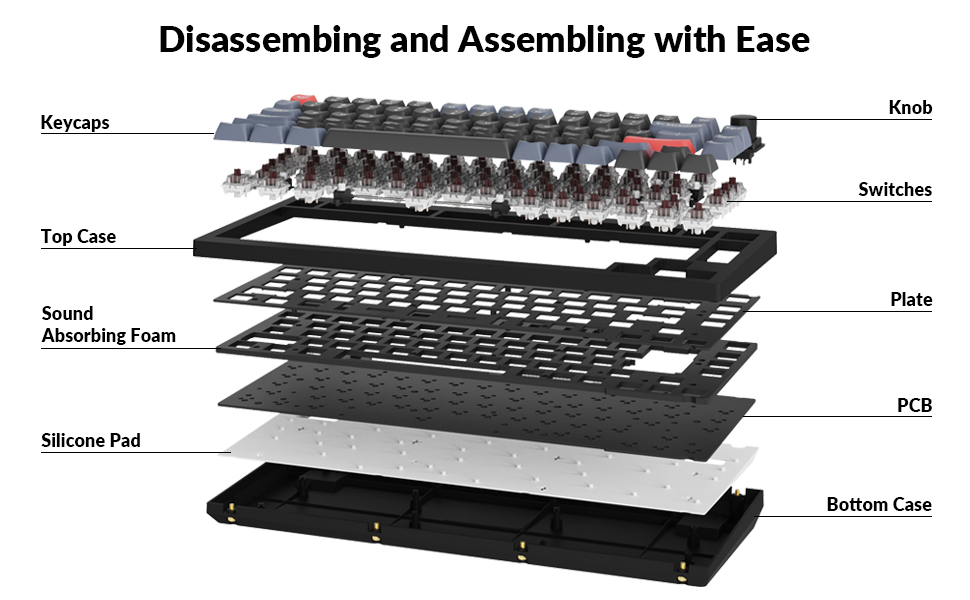

All-Around Customizable Keyboard
To build a fully customizable keyboard, we designed every component to be easily assembled so you can customize and adjust any or every parts the way you want.
| Dimension |
12.93 x 5.85 x 1.02 in (328.5 mm x 148.7 mm x 25.8 mm) |
| Weight |
970 g ± 10 g (2.14 lb ± 0.02 lb) |
| Angle |
3.5° / 7.08° / 9.52° |
| Body Material |
ABS Plastic |
| Plate Material |
Steel |
| Polling Rate |
1000 Hz |
| MCU |
Ultra-low-power ARM Cortex-M4 32-bit STM32L432 (128KB Flash) |
| Keycaps |
Double-shot PBT keycaps, not shine-through, OSA Profile (OEM height, SA shape) |
| Switches |
Keychron K Pro |
| Hot-Swappable |
Yes, compatible with most of the 3pin and 5pin MX switches such as Cherry, Kailh, Panda, Gateron, et |
| Backlight |
South-facing RGB LED |
| Stabilizers |
Screw-in PCB Stabs |
| Mount Style |
Tray Mount Design |
| Connectivity |
Type-C Wired |
The V1 is a fully customizable mechanical keyboard ready for any situation. Its a great option to introduce you to the custom keyboard world. With its compact 75% layout, QMK/VIA support, acoustic silicone pad, and double-shot PBT keycaps, the V1 is designed for ultra typing comfort and boost productivity.
All-Around Customizable Keyboard
To build a fully customizable keyboard, we designed every component to be easily assembled so you can customize and adjust any or every parts the way you want.
Programmable Knob
Designed to enhance your creative workflow, its premium rotary encoder allows you to customize your favorite keys and macros on the knob through the VIA software with ease.
An Epic Core Inside The Keyboard
A brand new powerful ultra-low-power Arm structure MCU armed with 128K Flash will provide more flexibility for developers. The polling rate is up to 1000 Hz out of the box, which makes latency non-existent for the competitive game.
OSA Profile Double-shot PBT Keycaps
For the new double-shot PBT keycaps, we built a new profile. It has a similar height to the OEM profile and has an SA-like shape. We named it the OSA (OEM spherical angled) keycap. The PBT keycaps will provide excellent oil resistance, enhance the type feel, and prevent the legends from fading out.
Switch Layouts Between macOS & Windows
Built with the Mac users experience in mind while still retaining compatibility for Windows devices, the Keychron V1 comes with a system toggle and an additional set of customized keycaps for both Windows and macOS systems. You can now save two different layouts on the keyboard, one for each system.

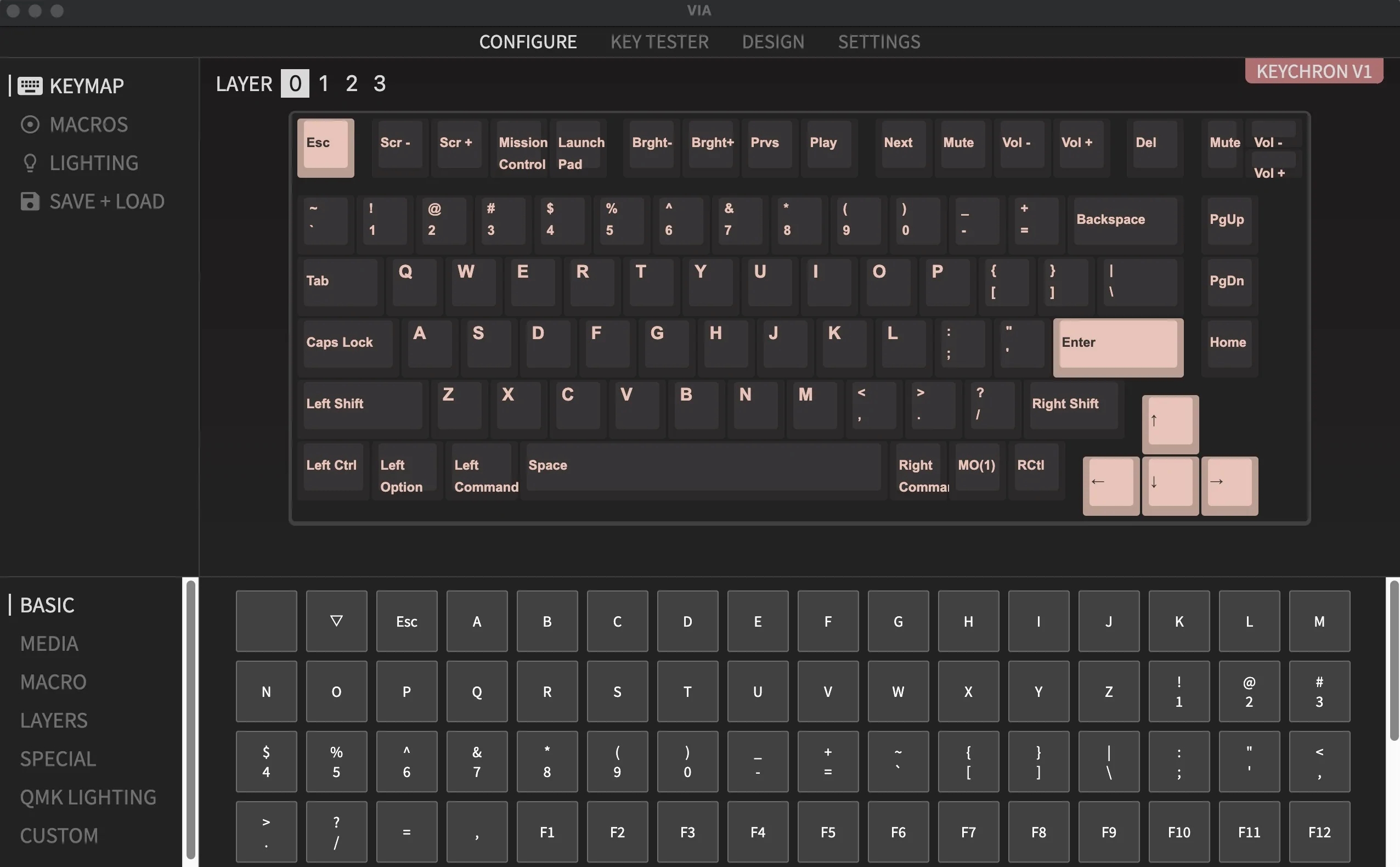

Program V1 with QMK & VIA
With full QMK and VIA support, you can easily program and remap each key on the keyboard. The open-source firmware means endless possibilities for keyboard layouts, shortcuts, backlight effects, even the knob, and more.
Hot-swappable
The hot-swappable sockets are mounted on the PCB, so you can install or change the switches without soldering. The PCB supports both 3-pin and 5-pin MX mechanical switches.
South-facing RGB LED Lights
The south-facing RGB LED is designed to better illuminate the keyboard backlight from the typists angle with the premium non-shine-through PBT keycaps installed. The south-facing RGB is also free from interference when the users install OEM or Cherry-profile alternative keycaps on the keyboard.
Pre-lubed Keychron K Pro Switch
The optimized molded switch with more precise positioning and less wobble will undoubtedly improve the feel at your fingertips. With the fully assembled V1 version fitted with factory pre-lubricated Keychron K Pro switches, a smoother travel experience is guaranteed for you.
Pre-lubed Keychron K Pro Switch
The optimized molded switch with more precise positioning and less wobble will undoubtedly improve the feel at your fingertips. With the fully assembled V1 version fitted with factory pre-lubricated Keychron K Pro switches, a smoother travel experience is guaranteed for you.
Pre-lubed Keychron K Pro Switch
The optimized molded switch with more precise positioning and less wobble will undoubtedly improve the feel at your fingertips. With the fully assembled V1 version fitted with factory pre-lubricated Keychron K Pro switches, a smoother travel experience is guaranteed for you.
