Specifications

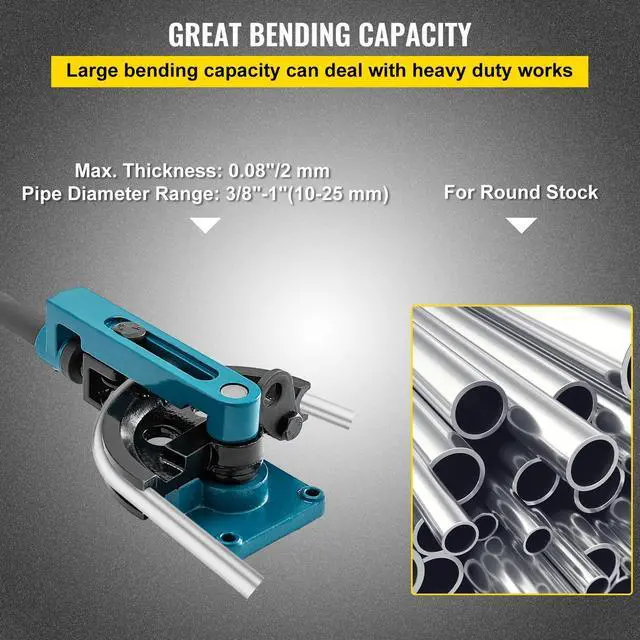

Pipe Diameter Range: 3/8"-1"

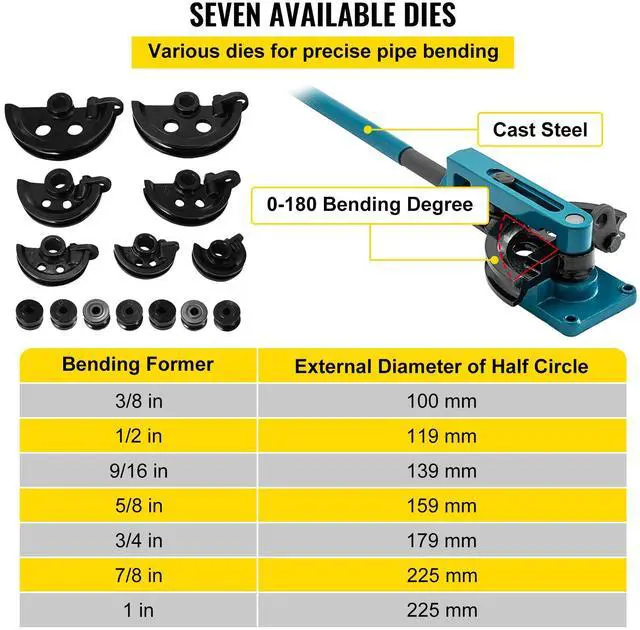

Bending Formers: 3/8", 1/2", 9/16", 5/8", 3/4", 7/8", 1"
External Diameter of Half Circle (mm): 100, 119, 139, 159, 179, 225, 225
Package Dimensions: 21.26 '' x 8.27 '' x 6.30 ''
Wall Thickness of Pipe: 0.8 - 2.0 mm

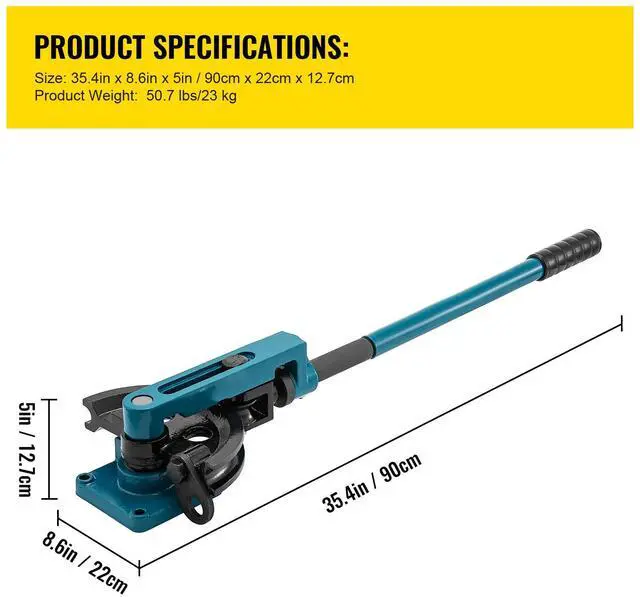

Total Length (w/ Handle on): 86 cm / 33.5"
Net Weight: 23 kg / 50.7 lbs
Gross Weight: 25 kg / 55.1 lbs

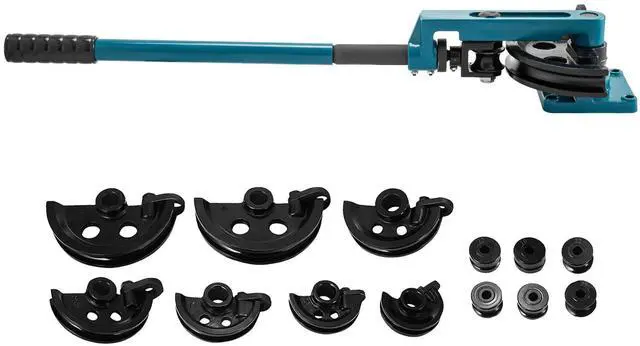

Package Content
1 x Main Part of Manual Tube Bender
7 x Half-circle Bending Molds
7 x Related Bending Formers
1 x User Manual
