Air Hydraulic Pump 10000 PSI Air Over Hydraulic Pump 1/2 Gal Reservoir Air Treadle Foot Actuated Hydraulic Pump 3/8" NPT with 4.1 ft Hose 2 Connector Single Acting for Car Repair (Orange)
- Fundamental Parameters: The hydraulic foot pump has a maximum working pressure of 10,000 PSI. Action: Single Acting, Flow Rate: 0.8 liters / 0.21 gallons per minute, Air Connection: 1/4" NPT, Output Oil Hole: 3/8" NPT, Hydraulic Oil Type: HM22/HM32, Oil Capacity: 98 Cubic Inches / 1.6 Liters (1600 cc), Input Air Pressure: 0.7-1MPa, Fuel Tank Capacity: 1.6L ± 0.1L, Maximum Oil Output: 1.3L, Oil Output Pressure: 70MPa.

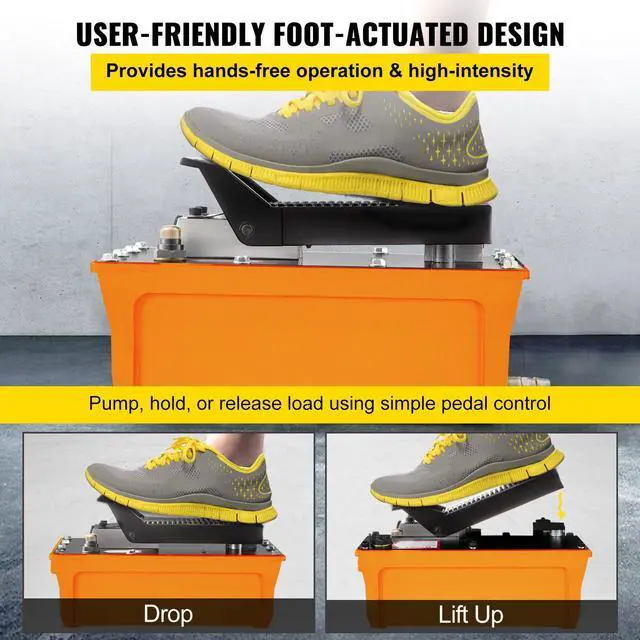

- Foot-Actuated Design: The air hydraulic pump adopts a user-friendly foot-actuated design to provide hands-free operation for pumping and releasing the load, saving the operator's time and effort with strong power and high output pressure. The convenient 2-stage release mechanism gives fast or metered ram return while reducing hydraulic shock.

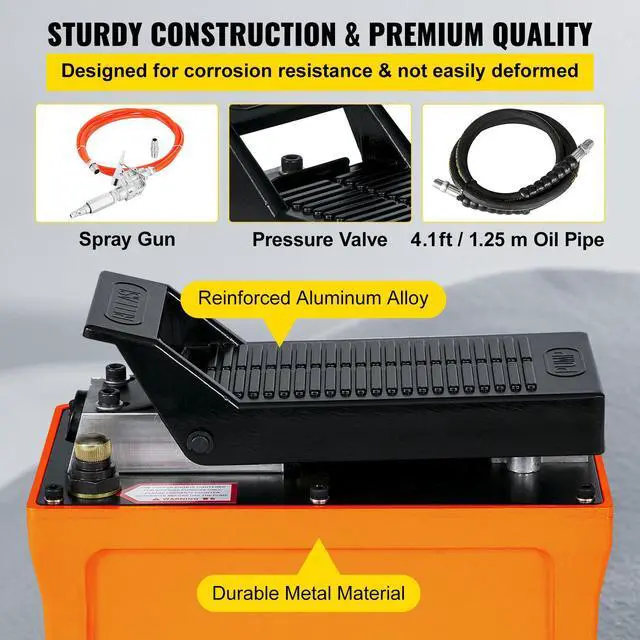

- Sturdy & Compact Construction: This air hydraulic foot pump features an aviation aluminum pump core and a high-quality metal shell to handle tough industrial applications. 1.6L oil tank has a larger capacity with 98 cubic inches / 1
+
+
Overview
Specs
Reviews
Specifications
Model: B-70BQ
Type: Air Powered Hydraulic Pump
Action: Single Acting
Control: Foot pedal pump - Release pressure to return fluid
Includes Hydraulic Hose: 1.25 m / 4.1 ft with 3/8'' NPT - Quick hydraulic coupler
Flow Rate: 0.8 liters / 0.21 gallons per minute
Air Connection: 1/4" Female NPT
Output Oil Hole: 3/8'' NPT Connection
Hydraulic Oil Type: HM22/HM32

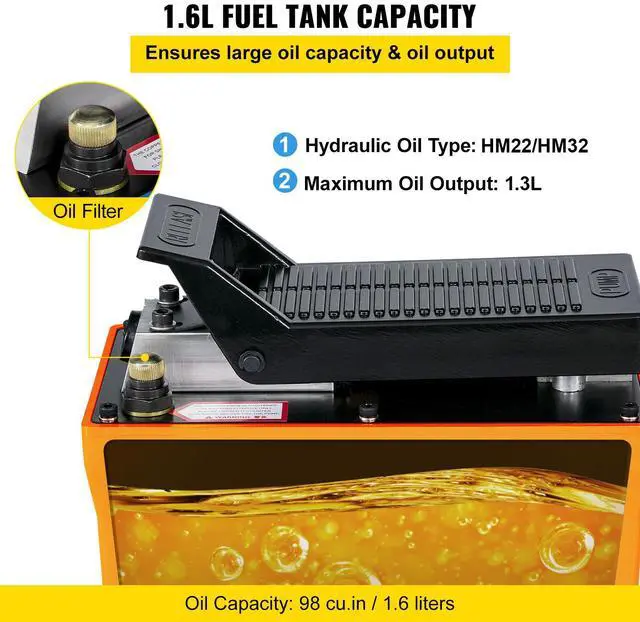

Oil Capacity: 98 Cubic Inches / 1.6 Liters (1600 cc)
Input Air Pressure: 0.7 -1MPa
Shell Material: Reinforced Aluminum Alloy
Fuel Tank Capacity: 1.6L
Capacity Tolerance: ± 0.1L
Maximum Oil Output: 1.3L
Oil Output Pressure: 70MPa
Pressure Range: 0.5
Max Output Hydraulic Pressure: 10000 psi, 700 kg/square cm
Total Mass: 8.0 kg / 17.64 lbs

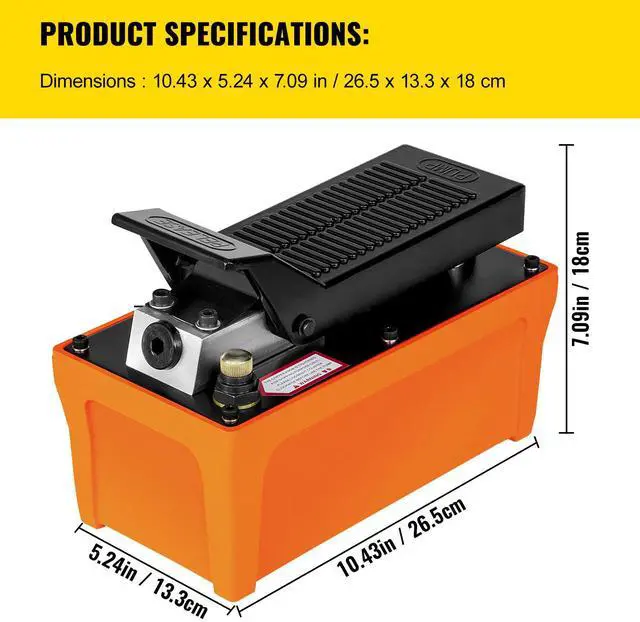

Overall Dimensions (L x W x H): 265 x 133 x 180 mm / 10.43 x 5.24 x 7.09 ''

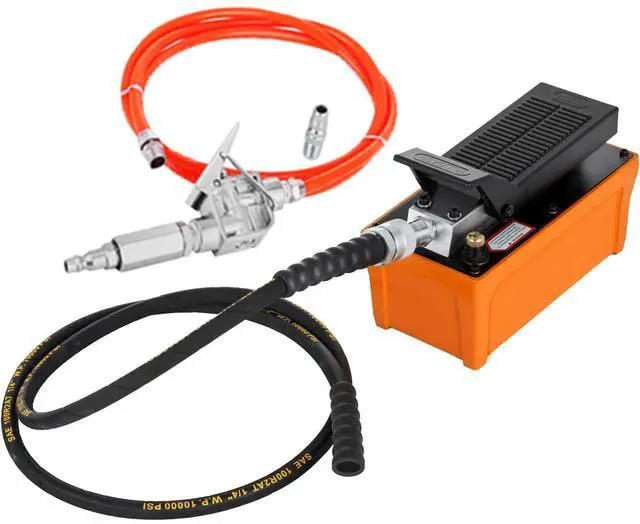

Package Content
1 x Air Powered Hydraulic Pump
1 x Spray Gun
1 x 4 ft Air Line
1 x 5 ft Hose
Note: Pump comes without oil.
