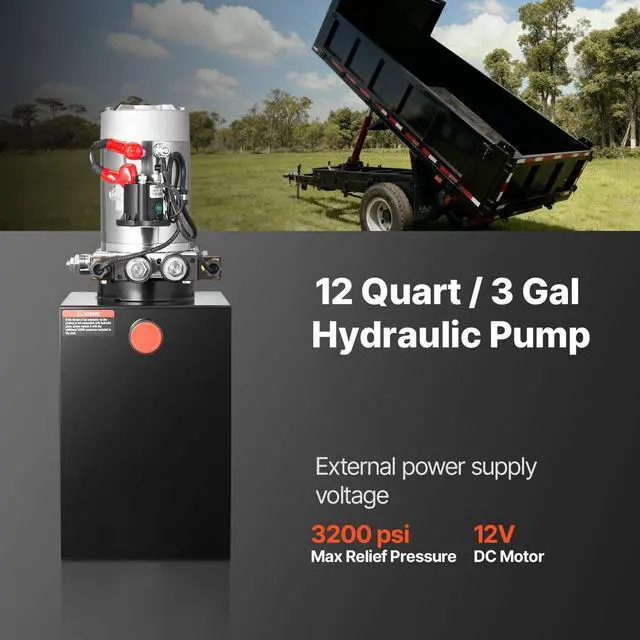

12 Quart Hydraulic Power Unit, Double Acting Dump Trailer Pump, 3200 PSI Max Relief Pressure & 0.91 GPM Flow Rate, DC 12V Hydraulic Pump with Metal Reservoir for Dump Trailer Car Lifting
- Power You Can Feel: This DC 12V, 1.6 kW hydraulic power unit moves 0.91 GPM with a 12-quart tank, 1620 MPa working pressure, and up to 3,200 psi, so heavy-lift gear runs with steady, confident force
- Double-Acting Precision: This hydraulic pump controls both raise and lower for pinpoint moves while using less hydraulic oil. The built-in relief valve auto-vents over-pressure, so failures drop and security steps up

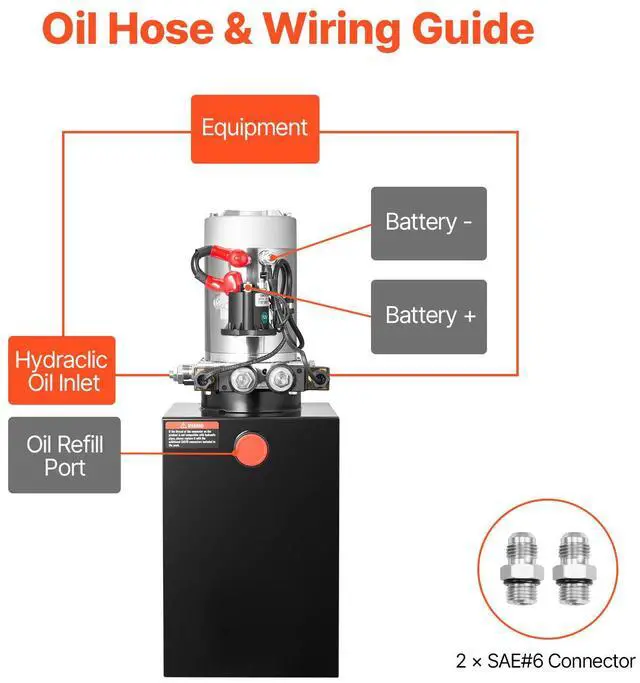

- Easy to Install: This dump trailer pump arrives pre-assembled. You add hydraulic oil, connect power leads and hoses, and go
+
+
Overview
Specs
Reviews
Specifications
Item Model Number: TDDC12V- 1.6KW -S-12L
Voltage: DC12V
Function: Dual Acting
Reservoir Capacity: 12 Quart/3 Gal
Power: 1.6 kW

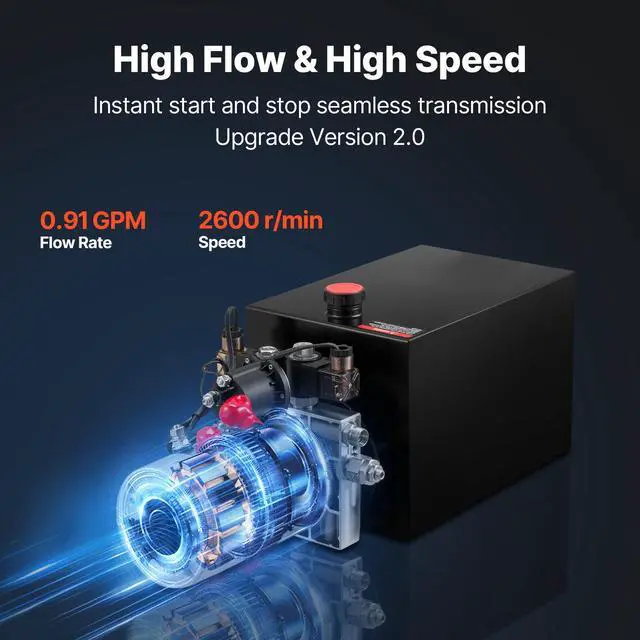

Flow Rate: 0.91 GPM( 3.4 L/min)
Speed: 2600 r/min
Traffic: 2.1 mL/r
Net Weight: 31.3 lbs/ 14.22 kg (Include all accessories)

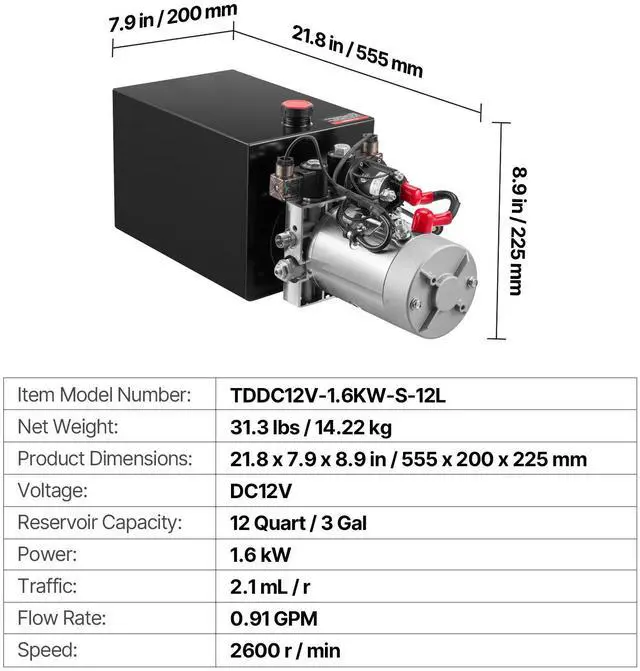

Product Dimensions: 21.8 x 7.9 x 8.9 in/555 x 200 x 225 mm
Package Content

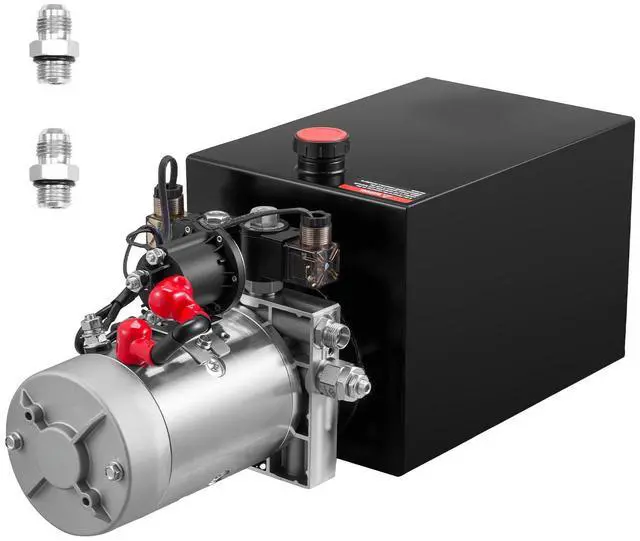

1 x Hydraulic Power Unit
2 x SAE #6 Fittings (U. S. Standard)
1 x English User Manual
