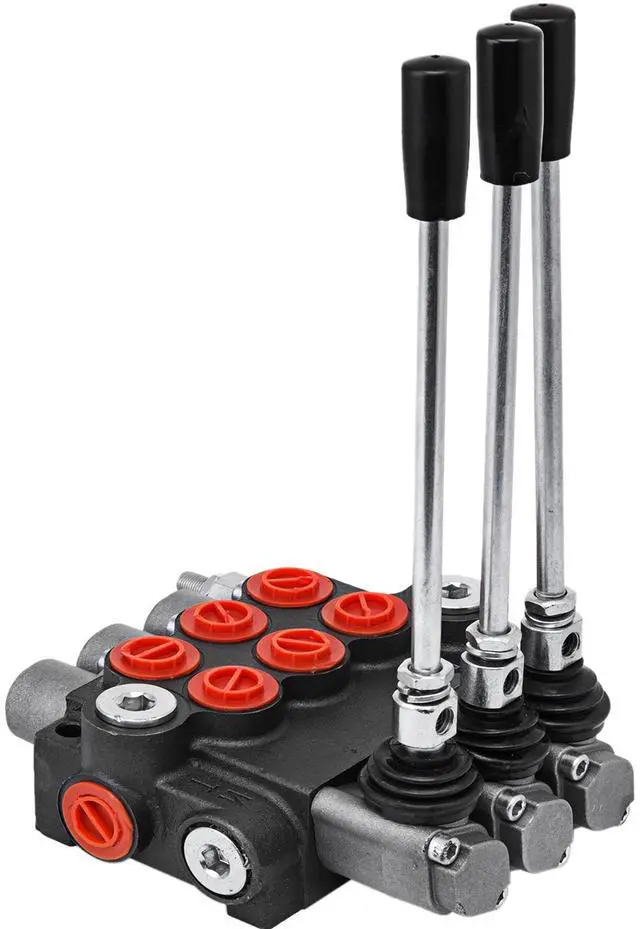

3 Spool Hydraulic Directional Control Valve Double Acting 11 GPM
- DOUBLE ACTING- Our hydraulic control valve is made for operating double-acting cylinders.

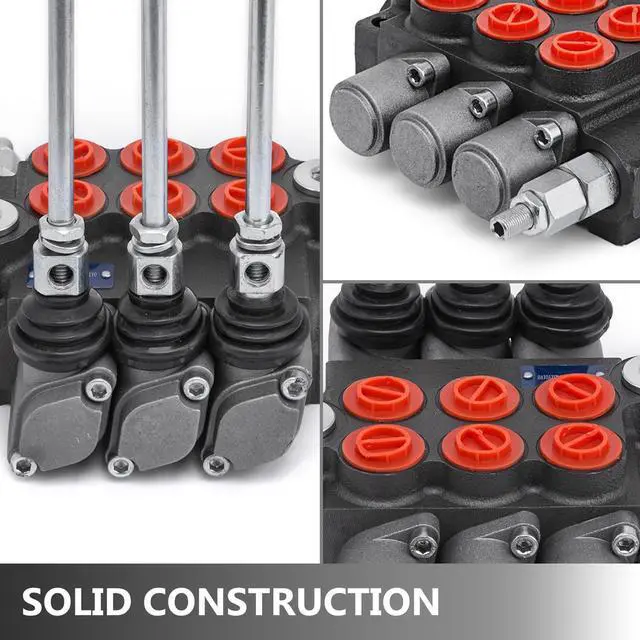

- DURABLE QUALITY- This control valve comes with 3 spools and 1/2 " Unthreaded sealed cylindrical pipe threads O-ring in/out ports, with cast iron construction for long-time use.

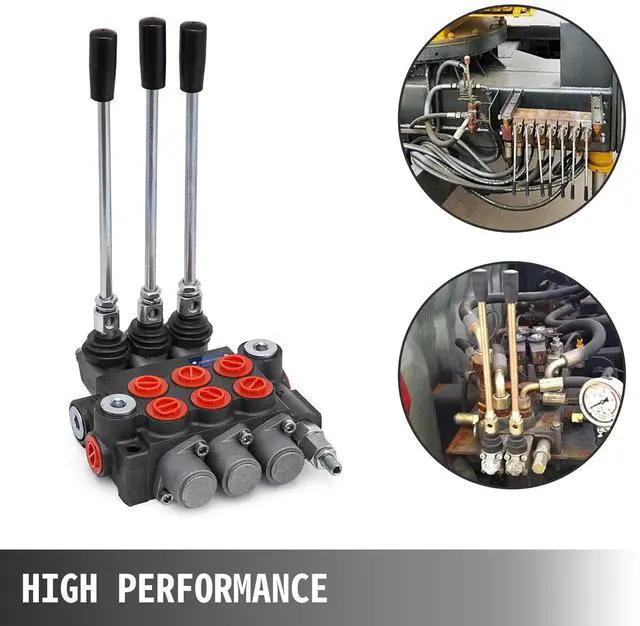

- HIGH PERFORMANCE- This hydraulic relief valve range can reach up to 3600 PSI and the maximum flow is up to 11 GPM.

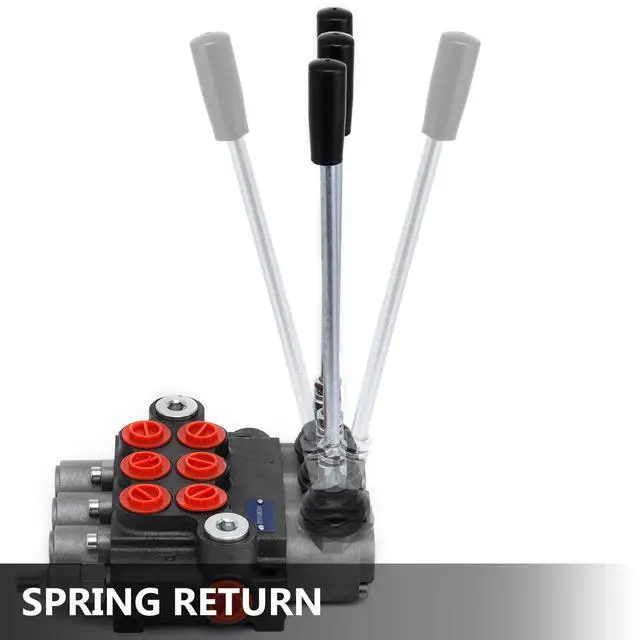

- SPRING RETURN- All spool valves come with spring return, which can return to the neutral position.
- WIDELY USED- This hydraulic directional valve is suitable for small tractors, tractors loaders, log splitters, etc.
+
+
Overview
Specs
Reviews
Specifications
Nominal flow: 11gpm (40l/min)
Spool count: 3 Spool
PABTN: 1/2 " Unthreaded sealed cylindrical pipe threads
PTN: 1/2"
AB: G3/8
7/8-14UNF3/4-16UNF

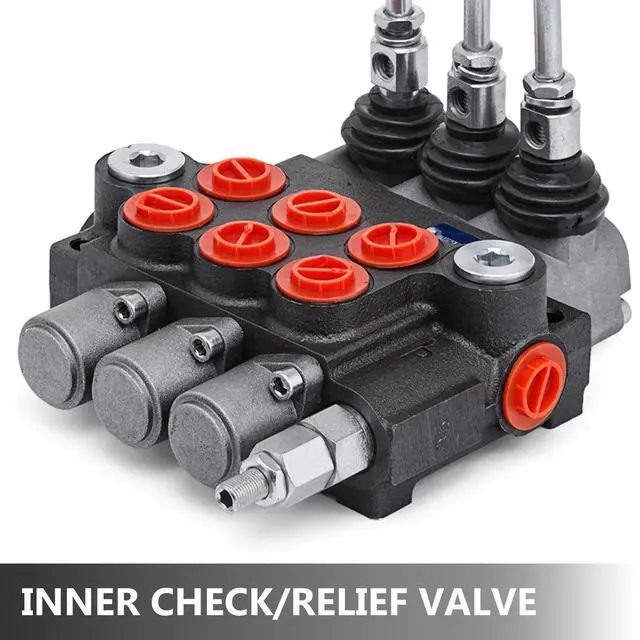

Relief valve: Adjustable
Center system: Open
Weight: 14.6 lb ( 6.6 kg)
Dimensions (L* W* H): 12.2" *8"* 6.6" (31*20* 16.8 cm)
Package Content
1 x 3 Spool Hydraulic Directional Control Valve Double Acting 11 GPM
